Remove/Install Front Panoramic Roof Roller Sun Blind - AR77.21-P-0200LWE
Model 213
with code 413 (Automatic panoramic sliding sunroof)
Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

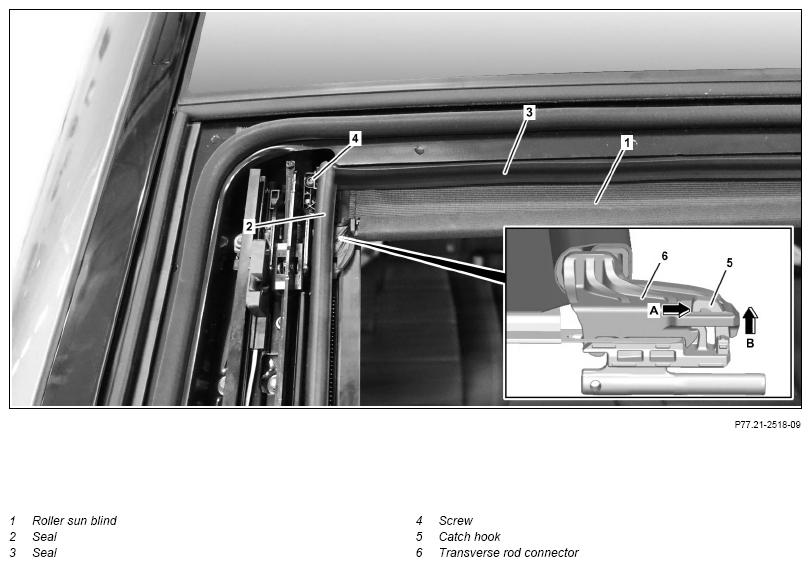

| 1 | Remove flexible glass element of panoramic sliding roof | AR77.21-P-0503LWE | |
| 2 | Remove seal (2) from guide rail in area of roller sun blind (1) | ||
| 3 | Remove seal (3) from panoramic roof frame | ||
| 4 | Unscrew bolt (4) | ||
| 5 | Using a suitable screwdriver, push catch hook (5) forward, lift transverse rod connector (6) (arrow A) and slide out | Ensure that transverse rod connector (6) is correctly seated. Otherwise proper function of the roller sun blind (1) is not ensured. |
|
| 6 | Remove roller sun blind (1) | ||
| 7 | Install in the reverse order |
