Install Rear Fixed Element Of Panoramic Sliding Sunroof - AR77.21-P-0802-05LWE

Model 213

with code 413 (Automatic panoramic sliding sunroof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Shown on model 213.0

Courtesy of MERCEDES-BENZ USA

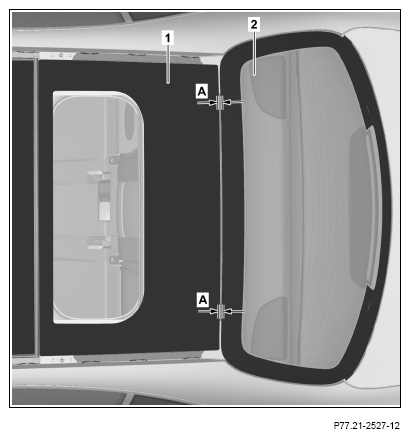

1. Position rear stationary element (1) with aid of helper, carefully lay onto adhesive bead and lightly press on.
2. Insert feeler gauges (2) adjusted to the gap dimension (A) determined before removal, between rear panoramic roof (1) and rear-end window and align rear panoramic roof (1)..

   Model 213.2

   with code 413 (Automatic panoramic sliding sunroof) Align rear stationary element (1) instead of rear window (2) in relation to roof paneling.

3. Center rear stationary element (1) between side roof paneling.
4. Position roof railing or drip rail and check side alignment of rear stationary element (1), correct if required.

   Remove roof railing or drip rail only after adhesive material has cured.

5. Place suitable loads on rear stationary element (1) during curing time of adhesive.

   Use weights with large surface such as sandbags. Otherwise the rear stationary element (1) can be damaged.

6. Carefully remove cup suction tool.
7. Remove roof railing or drip rail.
