Remove/Install Trunk Lid Cover - AR68.30-P-8151LWE
Model 213.0/1
Model 238.3
Shown on model 213.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 213.0/1, 238.3 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove warning triangle (3) from warning triangle bracket | ||

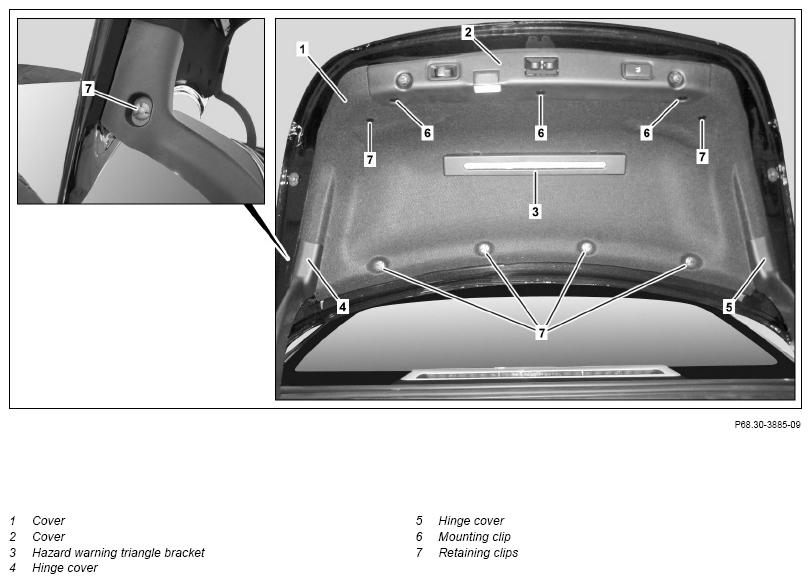

| 2 | Remove rear hazard warning triangle (3) | Fig 1 | |
| 3 | Unclip retaining clips (6) | Fig 1 | |
| 4 | Unclip paneling (2) and disconnect electrical connector | ||
| 5 | Remove trim panel (2) | ||
| 6 | Unclip retaining clips (7) from hinge covers (4, 5) | Fig 1 | |
| 7 | Unclip remaining retaining clips (7) | ||
| 8 | Remove paneling (1) upward from hinge covers (4, 5) | ||
| 9 | Install in the reverse order |
