(Remove/Install Cover On Stowage Box - AR68.20-P-1020LW)
Model 205, 253, 293
Model 213, 238 with transmission 716

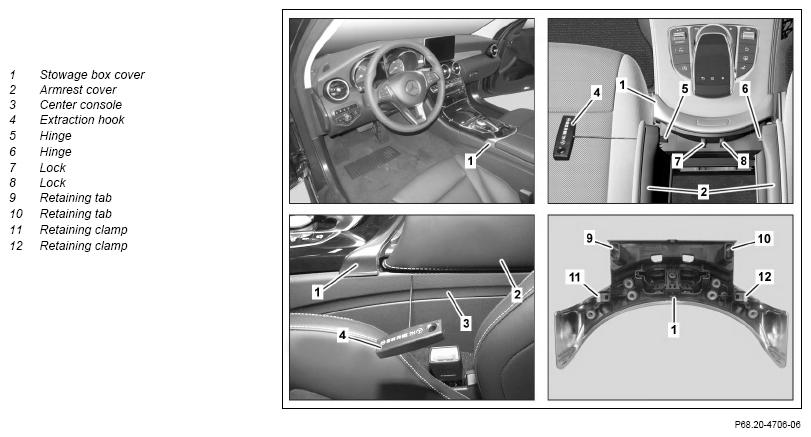

Shown on model 253 with transmission 725

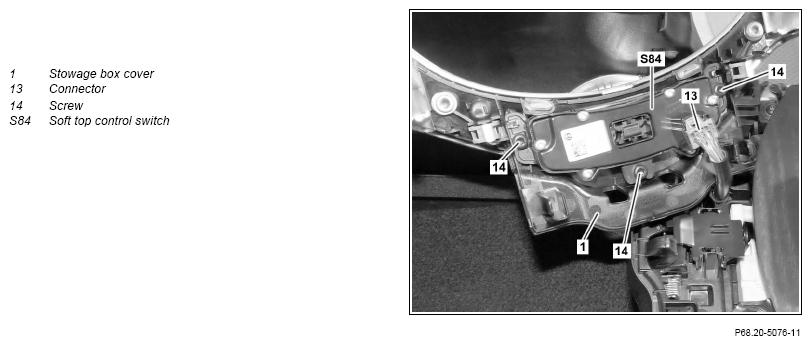

Shown on model 205.4
| Remove | |||
| 1 | Switch off ignition. | ||
| 2 | Open armrest cover (2). | ||
| 3 | Pull stowage box cover (1) at front upwards until retaining clips (11, 12) tangibly release. | ||
| 4 | Insert extraction hook (4) behind hinge (5) at side between left armrest cover (2) and center console (3) and release retaining tab (9) by pressing. | Fig 1 | |
| 5 | Insert extraction hook (4) behind hinge (6) at side between right armrest cover (2) and center console (3) and release retaining tab (10) by pressing. | Fig 1 | |
| 6 | Pull stowage box cover (1) upwards. | ||
| 7 | Press in locks (7, 8) and remove stowage box cover (1). | ||
| 8 | Disconnect connector (13). | Model 205.4 | |
| 9 | Unscrew screws (14) and remove soft top control switch (S84). | Model 205.4 When replacing stowage box cover (1). |
|
| Install | |||
| 10 | Position soft top control switch (S84) at stowage box cover (1) and tighten screws (14). | Model 205.4 When replacing stowage box cover (1). |
|
| 11 | Connect connector (13). | Model 205.4 | |
| 12 | Position stowage box cover (1) in installation position and clip in. | ||
| 13 | Close armrest covers (2). |
