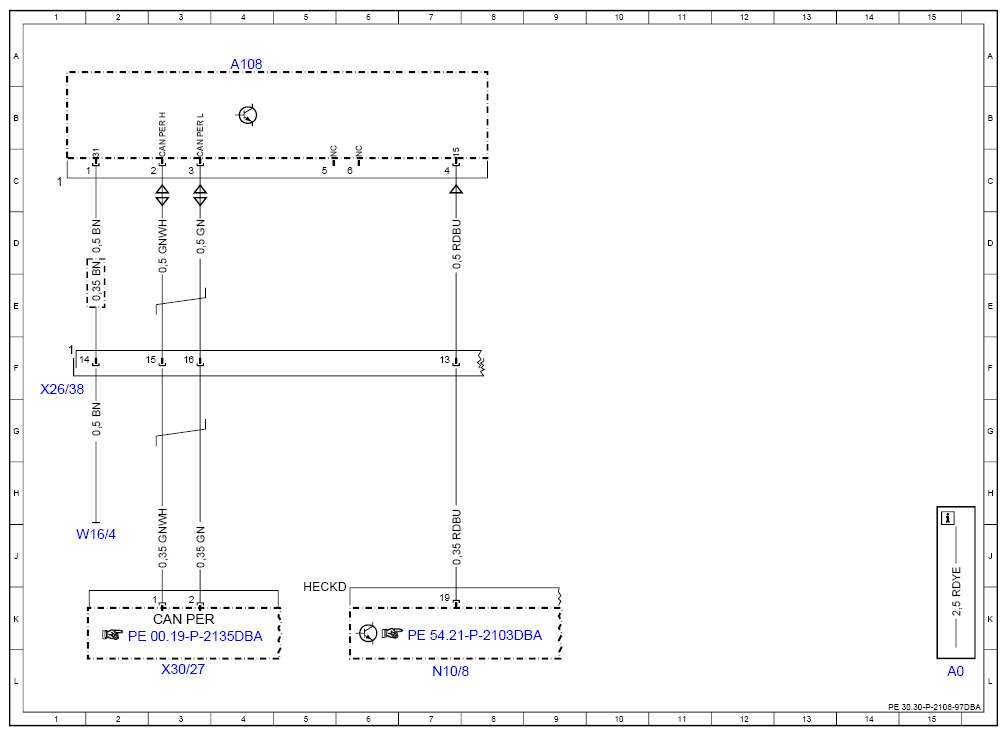

Wiring Diagram For Active Brake Assist Controller Unit - PE30.30-P-2108-97DBA
Model 213 up to model year 2021 with code 258 (Collision warning system with active brake application FCW-Stop) Control unit A108
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A108 | Active Brake Assist controller unit | 4A |
| CAN PER | Peripherals CAN | 3K |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | |
| N10/8 | Rear SAM control unit | 7L |
| W16/4 | Right major assembly compartment ground point | 2J |
| X26/38 | Front bumper electrical connector | 1F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 3L |
