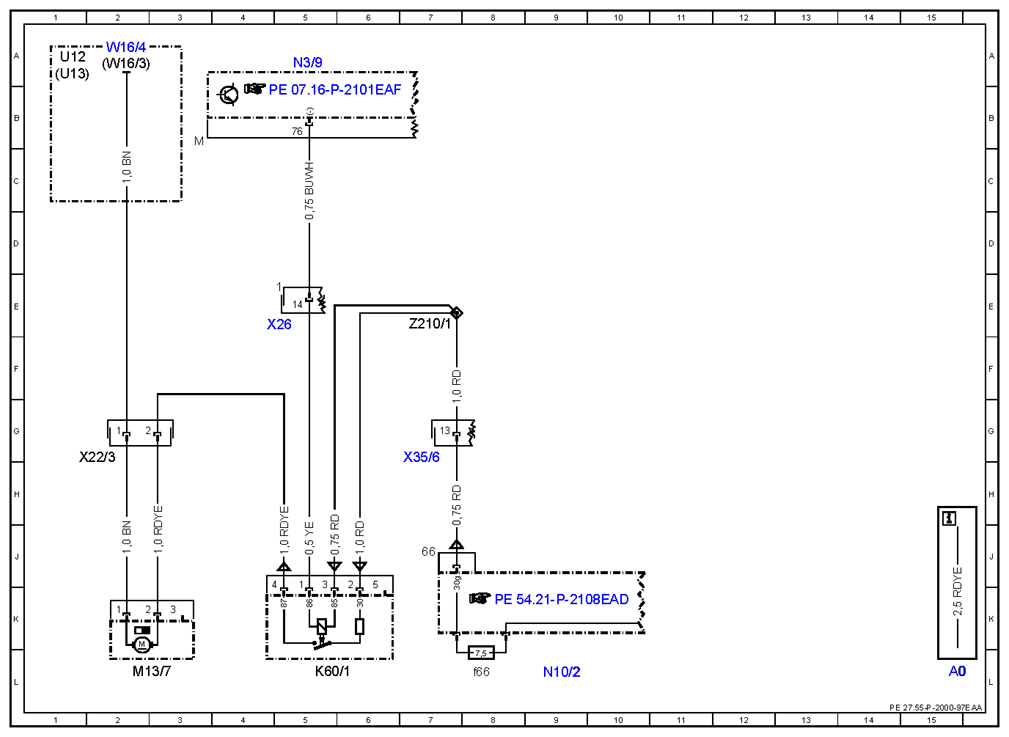

| A0 |
Color code key |
15L |
| K60/1 |
Transmission oil circulation pump relay |
5L |
| M13/7 |
Transmission oil cooling coolant circulation pump |
2L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
9L |
| N10/2f66 |
Fuse 66 |
8L |
| N3/9 |
CDI control unit |
5A |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
1A |
| W16/3 |
Left major assembly compartment ground point |
2A |
| W16/4 |
Right wheelhouse ground point |
2A |
| X22/3 |
Transmission oil cooling electrical connector |
2H |
| X26 |
Interior and engine wiring harness electrical connector |
5E |
| X35/6 |
Instrument panel and module box electrical connector |
7H |
| Z210/1 |
Transmission fluid circulation pump circuit 87 relay connector sleeve |
7E |
