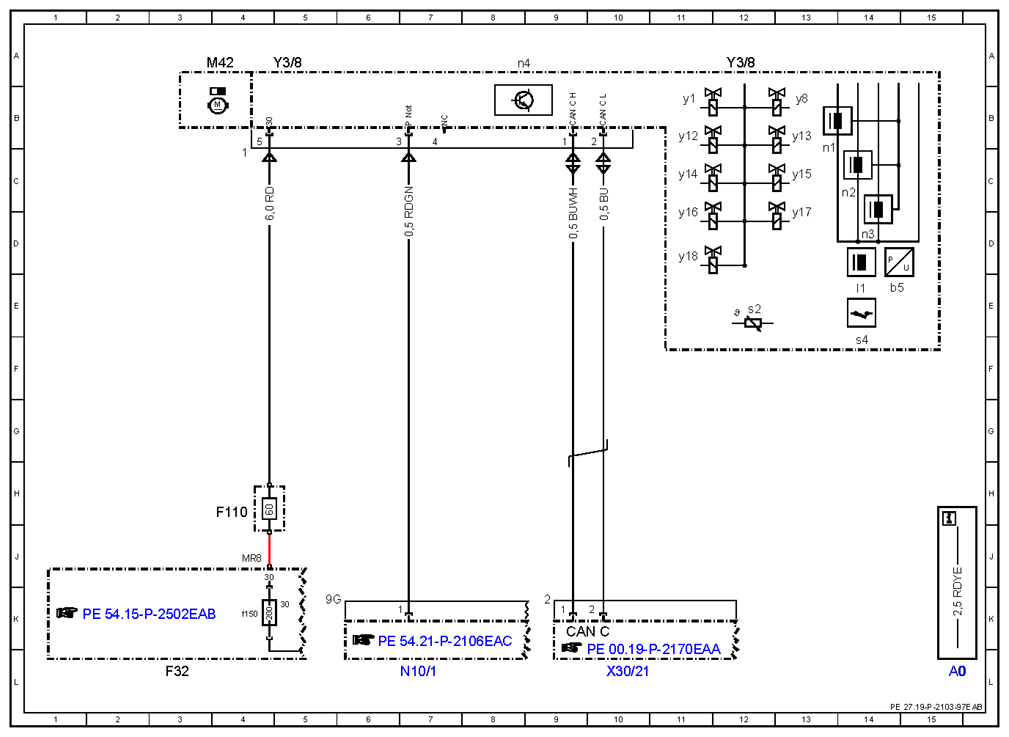

Color code key |
15L |
| CAN C |
Drive train CAN |
9K |
| F110 |
Fully integrated transmission controller unit terminal 30 electrical fuse |
4H |
| F32 |
Front electrical prefuse box |
3L |
| F32f150 |
Pyrofuse 150 |
4K |
| M42 |
Electric transmission oil pump |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
10L |
| Y3/8 |
Fully integrated transmission control unit |
5A |
| Y3/8 |
Fully integrated transmission control unit |
12A |
| Y3/8b5 |
Pressure sensor |
14E |
| Y3/8l1 |
Park pawl lift solenoid |
14E |
| Y3/8n1 |
Turbine wheel RPM sensor |
13C |
| Y3/8n2 |
Internal transmission speed RPM sensor |
14C |
| Y3/8n3 |
Output shaft RPM sensor |
14D |
| Y3/8n4 |
Fully integrated transmission control unit |
8A |
| Y3/8s2 |
Transmission oil temperature sensor |
12E |
| Y3/8s4 |
Park pawl position sensor |
14F |
| Y3/8y1 |
Working pressure control solenoid valve |
11B |
| Y3/8y12 |
Lubricating pressure solenoid |
11B |
| Y3/8y13 |
K81 clutch control solenoid |
13B |
| Y3/8y14 |
K38 clutch control solenoid |
11C |
| Y3/8y15 |
K27 clutch control solenoid |
13C |
| Y3/8y16 |
B08 multidisk brake control solenoid |
11D |
| Y3/8y17 |
B05 multidisk brake control solenoid |
13D |
| Y3/8y18 |
B06 multidisk brake control solenoid |
11D |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve |
13B |
