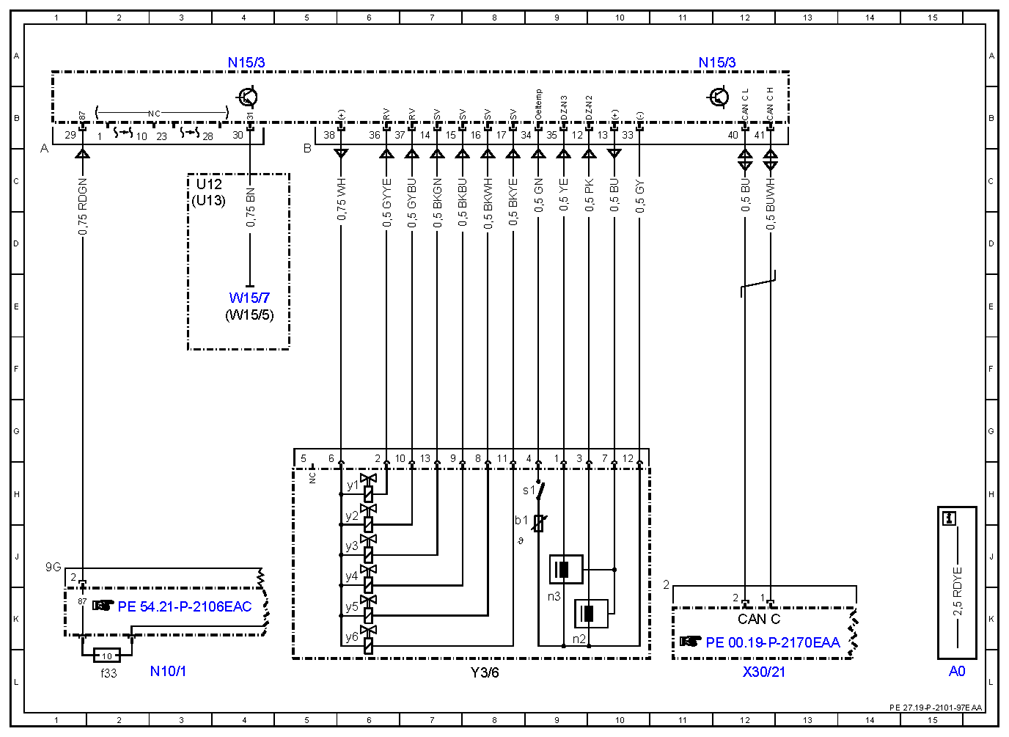

| A0 |
Color code key |
15L |
| CAN C |
Drive train CAN |
12K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f33 |
Fuse 33 |
2L |
| N15/3 |
Electronic transmission control unit |
4A |
| N15/3 |
Electronic transmission control unit |
11A |
| U12 |
Valid for left-hand drive vehicles |
3C |
| U13 |
Valid for right-hand drive vehicles |
3C |
| W15/5 |
Left front footwell ground point |
4E |
| W15/7 |
Right front footwell ground point |
4E |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
12L |
| Y3/6 |
Automatic transmission electric controller unit |
8L |
| Y3/6b1 |
Transmission oil temperature sensor |
8H |
| Y3/6n2 |
RPM sensor 2 |
9K |
| Y3/6n3 |
RPM sensor 3 |
9K |
| Y3/6s1 |
Starter lockout contact |
9H |
| Y3/6y1 |
Modulating pressure control solenoid valve |
6H |
| Y3/6y2 |
Shift pressure control solenoid valve |
6H |
| Y3/6y3 |
1-2 and 4-5 gearshift solenoid valve |
6J |
| Y3/6y4 |
3-4 gearshift solenoid valve |
6J |
| Y3/6y5 |
2-3 gearshift solenoid valve |
6K |
| Y3/6y6 |
Torque converter lockup clutch control solenoid valve |
6K |
