Wiring diagram for electronic selector lever module control unit - PE27.19-P-2102-97EAA

Code:	Designation:	Position:
A0	Color code key	23L
A62	Gear indicator sensor	14A
CAN C	Drive train CAN	7K
E12	Shift gate symbol illumination	12L
N10/1	Front SAM control unit with fuse and relay module	3L
N10/1f16	Fuse 16	3L
N15/5	Electronic selector lever module control unit	4A
N15/5	Electronic selector lever module control unit	12A
S16/12	Automatic transmission mode button	9L
U1	Valid for USA	11F
U812	Valid for Australia	11F
W18	Left front seat crossmember ground point	4E
X30/21	Drive train CAN voltage distributor electrical connector	7L
Y66/2	Selector lever positions R and P locking solenoid	16A

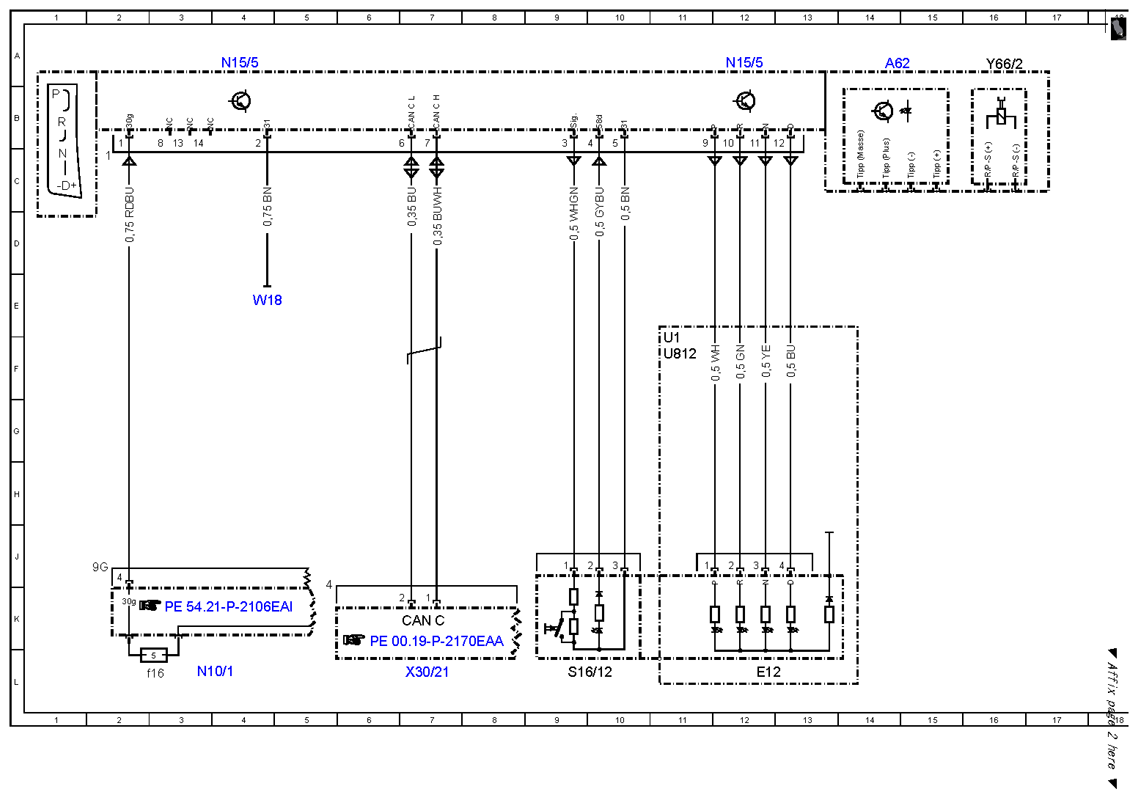

Fig 1: Electronic Selector Lever Module Control Unit - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

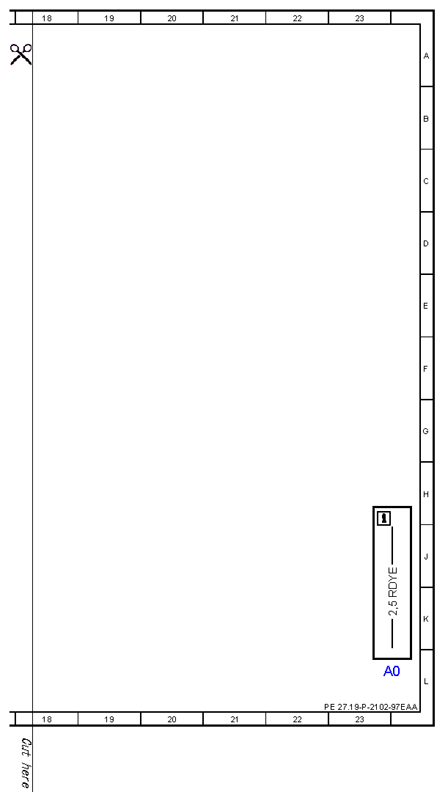

Fig 2: Electronic Selector Lever Module Control Unit - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
