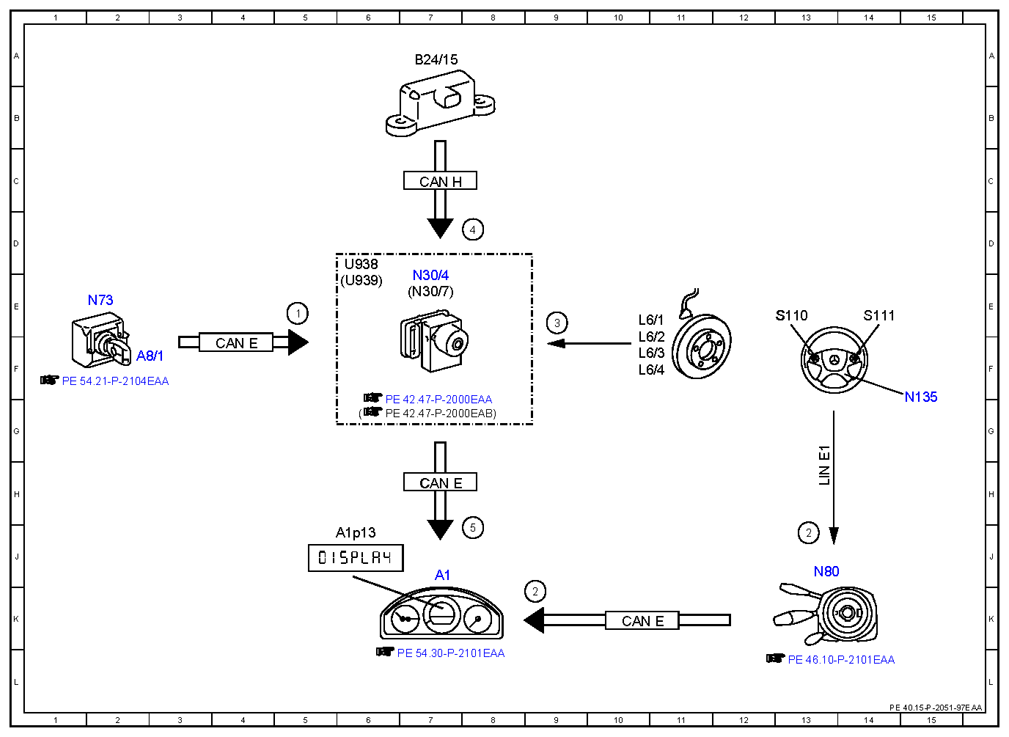

| 1 |
Circuit 15, status |
5E |
| 2 |
Multifunction steering wheel button group, signal |
9K |
| 2 |
Multifunction steering wheel button group, signal |
13J |
| 3 |
Wheel speed, signal |
9E |
| 4 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
8D |
| 5 |
Tire pressure loss warning message, request |
8J |
| A1 |
Instrument cluster |
7J |
| A1p13 |
Multifunction display |
6J |
| A8/1 |
Transmitter key |
2F |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
7A |
| CAN E |
Chassis CAN |
7H |
| CAN E |
Chassis CAN |
4F |
| CAN E |
Chassis CAN |
10K |
| CAN H |
Vehicle dynamics CAN |
7C |
| L6/1 |
Left front axle RPM sensor |
10E |
| L6/2 |
Right front axle RPM sensor |
10F |
| L6/3 |
Left rear axle RPM sensor |
10F |
| L6/4 |
Right rear axle RPM sensor |
10F |
| LIN E1 |
Steering LIN |
13H |
| N135 |
Steering wheel electronics |
15G |
| N30/4 |
Electronic Stability Program control unit |
7E |
| N30/7 |
Premium Electronic Stability Program control unit |
7E |
| N73 |
Electronic ignition switch control unit |
2E |
| N80 |
Steering column module control unit |
13J |
| S110 |
Left multifunction steering wheel button group |
13E |
| S111 |
Right multifunction steering wheel button group |
14E |
| U938 |
Valid for ESP Basic |
6D |
| U939 |
Valid for ESP Premium |
6E |
