Remove/install torque strut at front axle - AR33.15-P-0160CW

MODEL 172, 204, 207

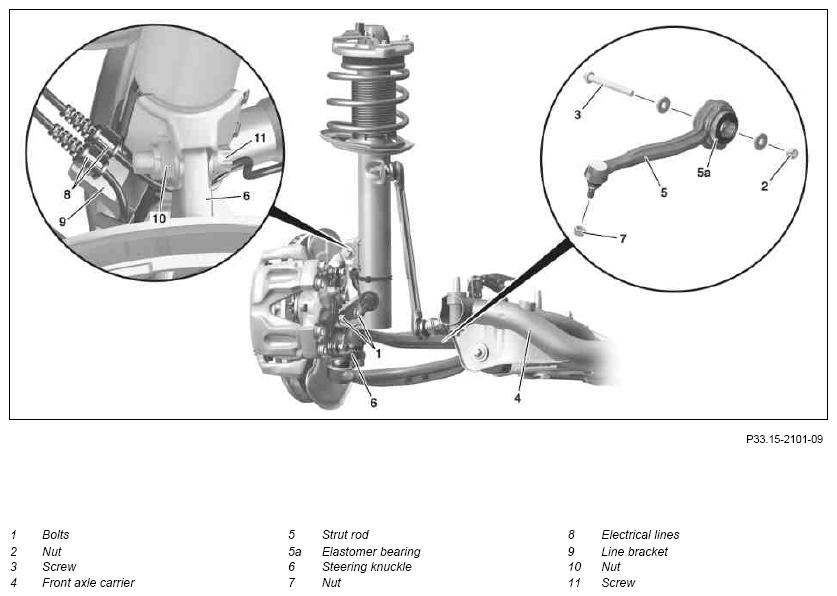

Fig 1: Identifying Front Axle Torque Strut Remove/Install Components - Shown On Model 204 Without 4MATIC (1 Of 2)
G10000018Courtesy of MERCEDES-BENZ USA

Shown model 204 without 4MATIC

Shown model 204 without 4MATIC

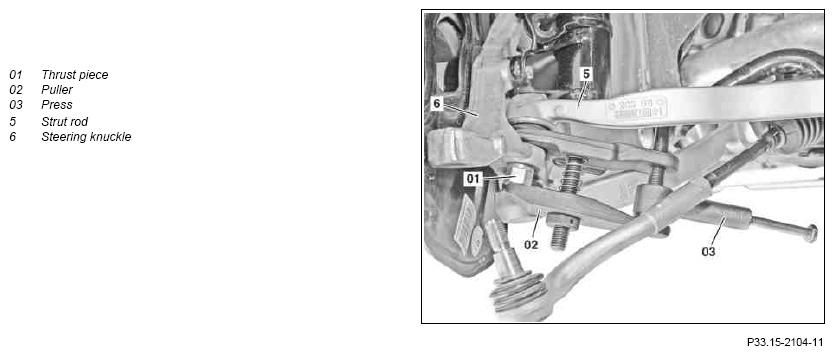

Fig 2: Identifying Front Axle Torque Strut Remove/Install Components - Shown On Model 204 Without 4MATIC (2 Of 2)
G10000019NOTESNOTESIMPORTANTREMOVINGINSTALLINGREFER TO MAINTENANCEREFER TO MAINTENANCENOTESNOTESTORQUE SPECIFICATIONTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLNOTESTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSPECTIMPORTANTIMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLINSTALLATION IMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSCourtesy of MERCEDES-BENZ USA
NOTES Notes on repair work on suspension components   AH00.00-P-0100-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Evaluation of elastomer bearings   AH00.10-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove left or right wheel and tire assembly
REFER TO MAINTENANCE   MODEL 172 AP40.10-P-4050V
REFER TO MAINTENANCE   MODEL 204, 207 AP40.10-P-4050CW
2.1 Remove both lower engine compartment paneling MODEL 204.9
AR61.20-P-1105CY
2.2 Remove engine compartment paneling with gasoline engine
MODEL 172.4 with ENGINE 152, 271, 274, 276 AR61.20-P-1105W
MODEL 204 (except 204.9) with ENGINE 156, 271, 272, 274, 276
MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278
AR61.20-P-1105EW
2.3 Remove bottom sections of soundproofing with diesel engine
MODEL 172.4 with ENGINE 651 AR94.30-P-5300W
MODEL 204.0/2 with ENGINE 642, 646, 651
MODEL 204.3 with ENGINE 651
MODEL 207 with ENGINE 642, 651
AR94.30-P-5300EW
3 Detach front left level sensor from left strut rod (5) MODEL 204.0/2/3, 207
with CODE 483 (ADVANCED AGILITY package)
without CODE M005 (4MATIC)
When removing the left strut rod (5).
NOTES
Do not unclip the left front level sensor.
Otherwise the link rod of the left front level sensor will be damaged.

4 Detach right front level sensor from right strut rod (5) MODEL 204.0/2/3, 207
with CODE 483 (ADVANCED AGILITY package)
without CODE M005 (4MATIC)
When removing the right strut rod (5).
NOTES
Do not unclip the right front level sensor.
Otherwise the link rod of the right front level sensor will be damaged.

5 Detach tie rod from steering knuckle (6)   AR46.40-P-0200-02CW
TORQUE SPECIFICATION
MODEL 172
*BA46.40-P-1001-01E
TORQUE SPECIFICATION
MODEL 204
MODEL 207
*BA46.40-P-1001-01N
SPECIAL TOOL Press Figure
SPECIAL TOOL Thrust piece Figure
SPECIAL TOOL TYP 172, 204 (Spurstangengelenk ohne Edelstahllaufring)
Puller
Figure
SPECIAL TOOL TYP 204, 207 (Spurstangengelenk mit Edelstahllaufring)
Puller
Figure
6 Remove screws/bolts (1) from steering knuckle (6) MODEL 172
MODEL 204.08/09/28/29/38/9
MODEL 207
with CODE 483 (ADVANCED AGILITY package)
MODEL 207
without CODE 483 (ADVANCED AGILITY package)

TORQUE SPECIFICATION
MODEL 172
*BA32.25-P-1002-01N
TORQUE SPECIFICATION
MODEL 204.08/09/28/29/38/9
MODEL 207
with CODE 483 (ADVANCED AGILITY package)
MODEL 207
without CODE 483 (ADVANCED AGILITY package)
*BA32.25-P-1002-04M
7 Release additional oil cooler far enough to enable bolt (3) to be removed. MODEL 204.077/277/377
8 Unscrew nut (2) and pull screw/bolt (3) out of front axle carrier (4) NOTES
When loosening the nut (2) the screw/bolt (3) must not be twisted. It is essential to counterhold screw/bolt (3).
Otherwise the locating lugs for the caster adjustment in the elastomer bearing (5a) will be sheared off when the repair kit is fitted.
INSTALLATION IMPORTANT Screw nut (2) of screw/bolt (3) all the way on until it abuts, but do not tighten yet so that the elastomer bearing (5a) can twist when the vehicle is rocked to settle the suspension. Only tighten nut (2) in the ready-to-drive condition.

TORQUE SPECIFICATION
MODEL 172
*BA33.20-P-1002-01Q
TORQUE SPECIFICATION MODEL 172 (repair kit) *BA33.20-P-1003-01Q
TORQUE SPECIFICATION Model 204, 207 *BA33.20-P-1002-01N
TORQUE SPECIFICATION Model 204, 207 (repair kit) *BA33.20-P-1010-01N
9 Unscrew nut (7) INSTALLATION IMPORTANT There must be no grease on the thread of the ball joint.
TORQUE SPECIFICATION
MODEL 172
*BA33.20-P-1004-01Q
TORQUE SPECIFICATION Model 204, 207 *BA33.20-P-1003-01N
10 Press strut rod (5) off steering knuckle (6) INSTALLATION IMPORTANT There must be no grease on the cones of the ball joint and the steering knuckle (6). The grease in the radial groove on the ball joint must not be removed.
SPECIAL TOOL Press Figure
SPECIAL TOOL Thrust piece Figure
SPECIAL TOOL Puller Figure
11 Support front-axle half using telescopic lifter MODEL 172
MODEL 204, 207
without CODE M005 (4MATIC)
Transmission platform
Transmission jack

12 Unclip electrical lines (8) from line holder (9) MODEL 172
MODEL 204, 207
without CODE M005 (4MATIC)

13 Unscrew nut (10), pull out screw/bolt (11) and fold down steering knuckle (6) NOTES
Do not apply excessive tension to the brake hose.
Otherwise it will be damaged.

TORQUE SPECIFICATION *BA32.25-P-1001-01N
MODEL 172
TORQUE SPECIFICATION Model 204, 207
*BA32.25-P-1001-04M
14 Remove strut rod (5)
INSPECT Check
15 Check rubber boot and ball joint of strut rod (5) for signs of damage IMPORTANT Replace strut rod (5) if necessary.
16 Check rubber boots on elastomer bearing (5a) for damage IMPORTANT To protect the elastomer bearings (5a) the rubber boots must be retrofitted.
If necessary, replace or retrofit rubber boots:
Remove/install rubber boots on elastomer bearing (5a).

AR33.15-P-0160-03T
17 Check elastomer bearing (5a) of strut rod (5) for damage SPECIAL TOOL Hollow piston cylinder Figure
SPECIAL TOOL Extraction and installation tool Figure
SPECIAL TOOL Hand pump Figure
SPECIAL TOOL Hydraulic hose (complete) Figure
SPECIAL TOOL Extraction and insertion tool Fig 3
If necessary:
Press out/press in elastomer bearing (5a) of strut rod (5):

MODEL 204.08/09/28/29/38
MODEL 204.9
MODEL 207
with CODE M005 (4MATIC)
If necessary:
Press out/press in elastomer bearing (5a) of strut rod (5):
AR33.15-P-0160-02SXY
MODEL 172
In installed conditionMODEL 204 (except 204.08/09/28/29/38/9)
In installed conditionMODEL 207
without CODE M005 (4MATIC) In installed condition
AR33.15-P-0160-02EWS
18 Install in the reverse order INSTALLATION IMPORTANT Only tighten nuts and screws/bolts of suspension components when vehicle is in a ready-to-drive condition.
19 Perform wheel alignment check MODEL 204 AR40.20-P-0200CW
MODEL 172, 207 AR40.20-P-0200EW
20 Connect diagnostic system and set zero position of left front level sensor or right front level sensor MODEL 172
MODEL 204, 207
without CODE M005 (4MATIC)

REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
SUSPENSION STRUTS

Number Designation MODEL 172
BA32.25-P-1001-01N Suspension strut to upper steering knuckle Stage 1 Nm 100
Stage 2 ∠° 90
SUSPENSION STRUTS

Number Designation MODEL 204.00/02/04/05/06/20/22/24/25/30/33/34/35 except CODE 483, MODEL 204.077/277, MODEL 204.377 except CODE P98 MODEL 204.00/02/04/05/06/20/22/24/25/30/33/34/35 with CODE 483
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14X45 Stage 1 Nm 100 100
Stage 2 ∠° 90 90
SUSPENSION STRUTS

Number Designation MODEL 207 without CODE 483 (ADVANCED AGILITY package) MODEL 207 with CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14X45 Stage 1 Nm 100 100
Stage 2 ∠° 90 90
SUSPENSION STRUTS

Number Designation MODEL 172
BA32.25-P-1002-01N Suspension strut to lower steering knuckle Nm 110
SUSPENSION STRUTS

Number Designation MODEL 204.08/09/28/29/38/9 MODEL 207 without CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12X20 Stage 1 Nm - 70
Stage 2 - losen
Stage 3 Nm - 100
SUSPENSION STRUTS

Number Designation MODEL 207 with CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12X20 Stage 1 Nm 70
Stage 2 losen
Stage 3 Nm 100
WHEEL CONTROL, HUB

Number Designation MODEL 204 except 4MATIC MODEL 204 with 4MATIC
BA33.20-P-1002-01N Self-locking nut, torque strut to front axle carrier M14X115X10.9 Stage 1 Nm 80 -
Stage 2 ∠° 120 -
M14X120X10.9 Stage 1 Nm 120 120
Stage 2 ∠° 180 180
WHEEL CONTROL, HUB

Number Designation MODEL 207 except 4MATIC MODEL 207 with 4MATIC
BA33.20-P-1002-01N Self-locking nut, torque strut to front axle carrier M14X115X10.9 Stage 1 Nm 80 -
Stage 2 ∠° 120 -
M14X120X10.9 Stage 1 Nm 120 120
Stage 2 ∠° 180 180
WHEEL CONTROL, HUB

Number Designation MODEL 172
BA33.20-P-1002-01Q Self-locking nut, torque strut to front axle carrier Stage 1 Nm 120
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 204 except 4MATIC MODEL 204 with 4MATIC
BA33.20-P-1003-01N Self-locking nut, strut rod to steering knuckle Stage 1 Nm 50 50
Stage 2 ∠° 60 90
WHEEL CONTROL, HUB

Number Designation MODEL 207 except 4MATIC MODEL 207 with 4MATIC
BA33.20-P-1003-01N Self-locking nut, strut rod to steering knuckle Stage 1 Nm 50 50
Stage 2 ∠° 60 90
WHEEL CONTROL, HUB

Number Designation MODEL 172
BA33.20-P-1003-01Q Self-locking nut (repair kit), strut rod to front axle carrier Stage 1 M14X120X11.9 Nm 100
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 172
BA33.20-P-1004-01Q Self-locking nut, strut rod to steering knuckle Stage 1 Nm 50
Stage 2 ∠° 60
WHEEL CONTROL, HUB

Number Designation MODEL 204 except 4MATIC MODEL 204 with 4MATIC
BA33.20-P-1010-01N Self-locking nut (repair kit), strut rod to front axle carrier M14X115X10.9 Stage 1 Nm 80 -
Stage 2 ∠° 120 -
M14X120X11.9 Stage 1 Nm 100 100
Stage 2 ∠° 180 180
WHEEL CONTROL, HUB

Number Designation MODEL 207 except 4MATIC MODEL 207 with 4MATIC
BA33.20-P-1010-01N Self-locking nut (repair kit), strut rod to front axle carrier M14X115X10.9 Stage 1 Nm 80 -
Stage 2 ∠° 120 -
M14X120X11.9 Stage 1 Nm 100 100
Stage 2 ∠° 180 180
TIE ROD

Number Designation MODEL 172
BA46.40-P-1001-01E Self-locking nut, tie rod to steering knuckle Stage 1 Nm 50
Stage 2 ∠° 60
TIE ROD

Number Designation MODEL 204 MODEL 207
BA46.40-P-1001-01N Self-locking nut, tie rod to steering knuckle Stage 1 Nm 50 50
Stage 2 ∠° 60 60
Fig 3: Identifying Extraction And Insertion Tool (220 589 06 43 00)
G10000020Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (221 589 05 33 00)
G10000021Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)
G10000022Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Puller (221 589 00 33 00)
G10000023Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Hand Pump (652 589 00 33 21)
G10000024Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Thrust Piece (171 589 00 34 00)
G10000025Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Hollow Piston Cylinder (001 589 51 33 00)
G10000026Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Press (163 589 03 43 00)
G10000027Courtesy of MERCEDES-BENZ USA
Fig 11: Identifying Extraction And Installation Tool (212 589 00 43 00)
G10000028Courtesy of MERCEDES-BENZ USA
