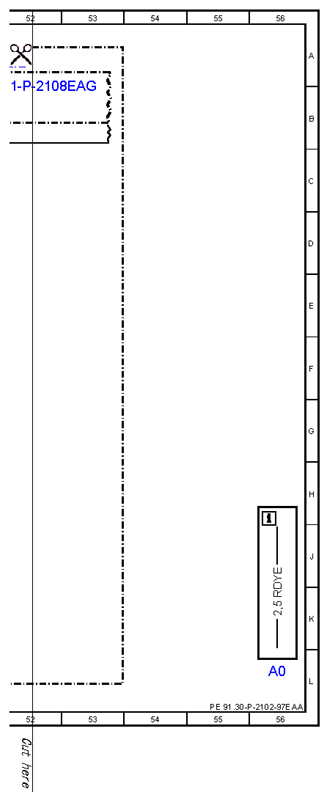

| A0 |
Color code key |
56L |

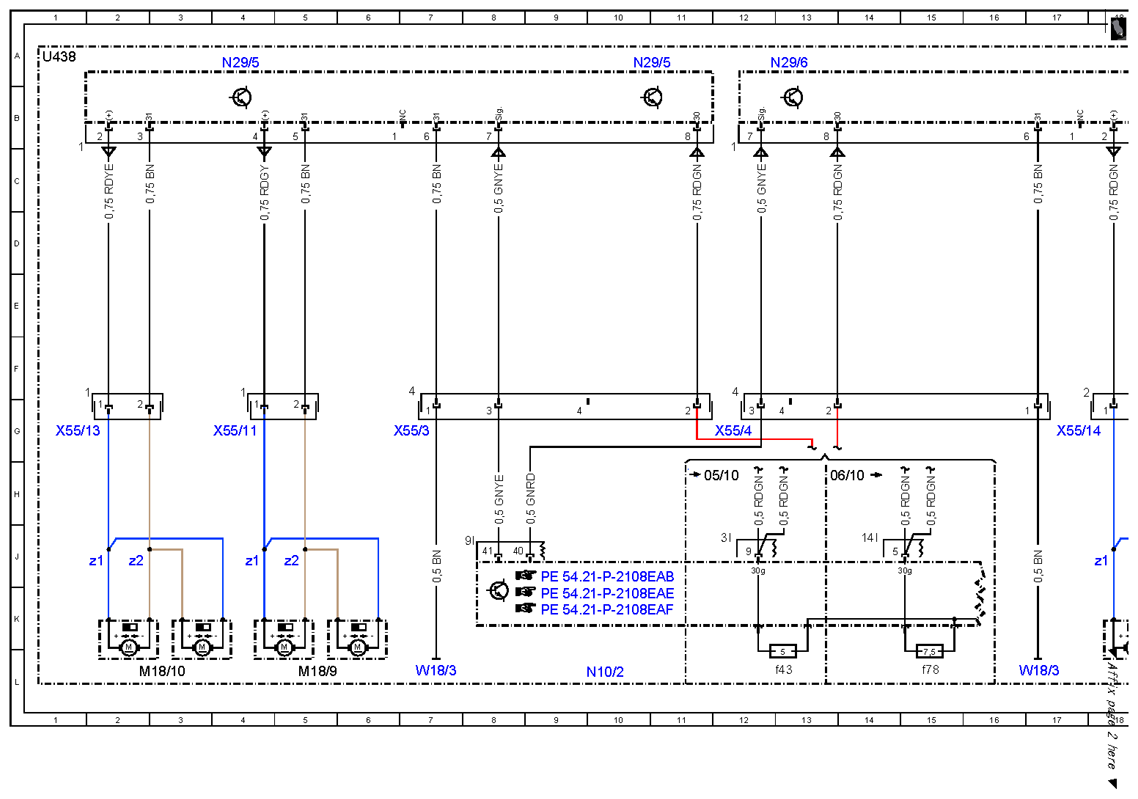

| M18/10 |
Left front backrest seat ventilation motors |
3L |
| M18/10z1 |
Left front backrest seat ventilation motor power supply connector sleeve |
2J |
| M18/10z2 |
Left front backrest seat ventilation motor ground connector sleeve |
2J |

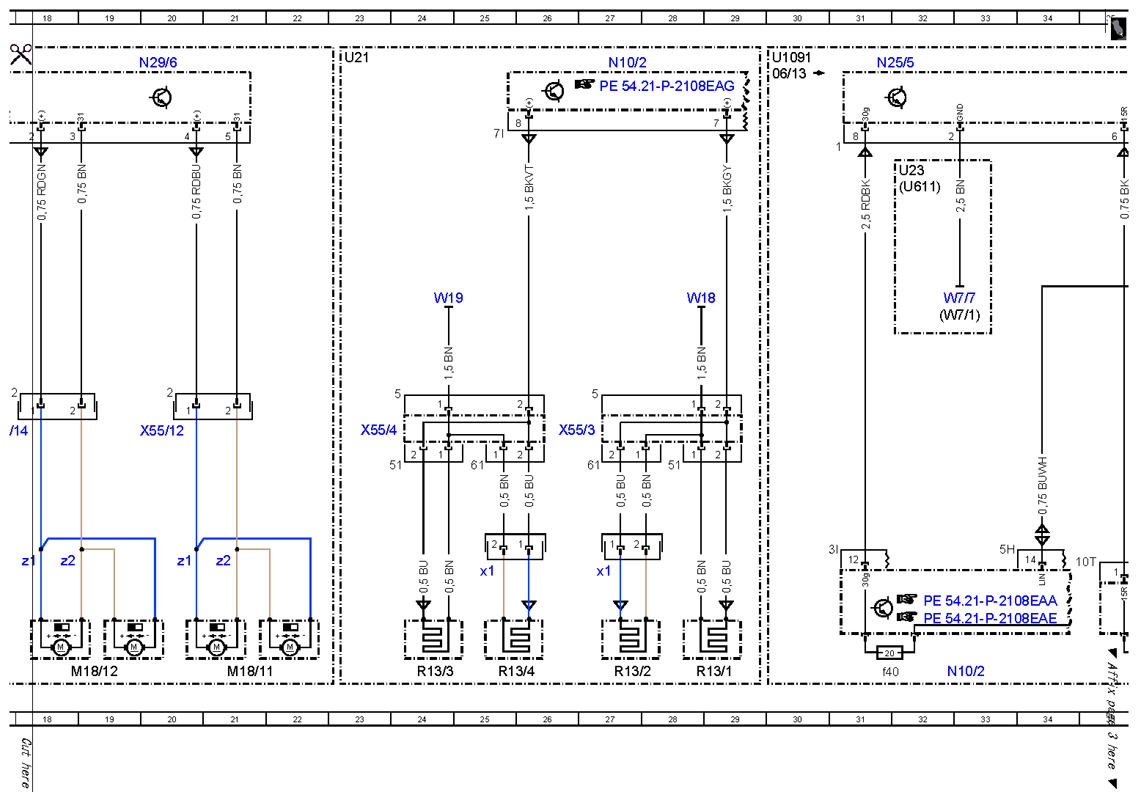

| M18/11 |
Right front seat cushion seat ventilation motors |
21L |
| M18/11z1 |
Right front seat cushion seat ventilation motor power supply connector sleeve |
20J |
| M18/11z2 |
Right front seat cushion seat ventilation motor ground connector sleeve |
21J |
| M18/12 |
Right front backrest seat ventilation motors |
19L |
| M18/12z1 |
Right front backrest seat ventilation motor power supply connector sleeve |
18J |
| M18/12z2 |
Right front backrest seat ventilation motor ground connector sleeve |
18J |
| M18/9 |
Left front seat cushion seat ventilation motors |
5L |
| M18/9z1 |
Left front seat cushion seat ventilation motor power supply connector sleeve |
4J |
| M18/9z2 |
Left front seat cushion seat ventilation motor ground connector sleeve |
5J |

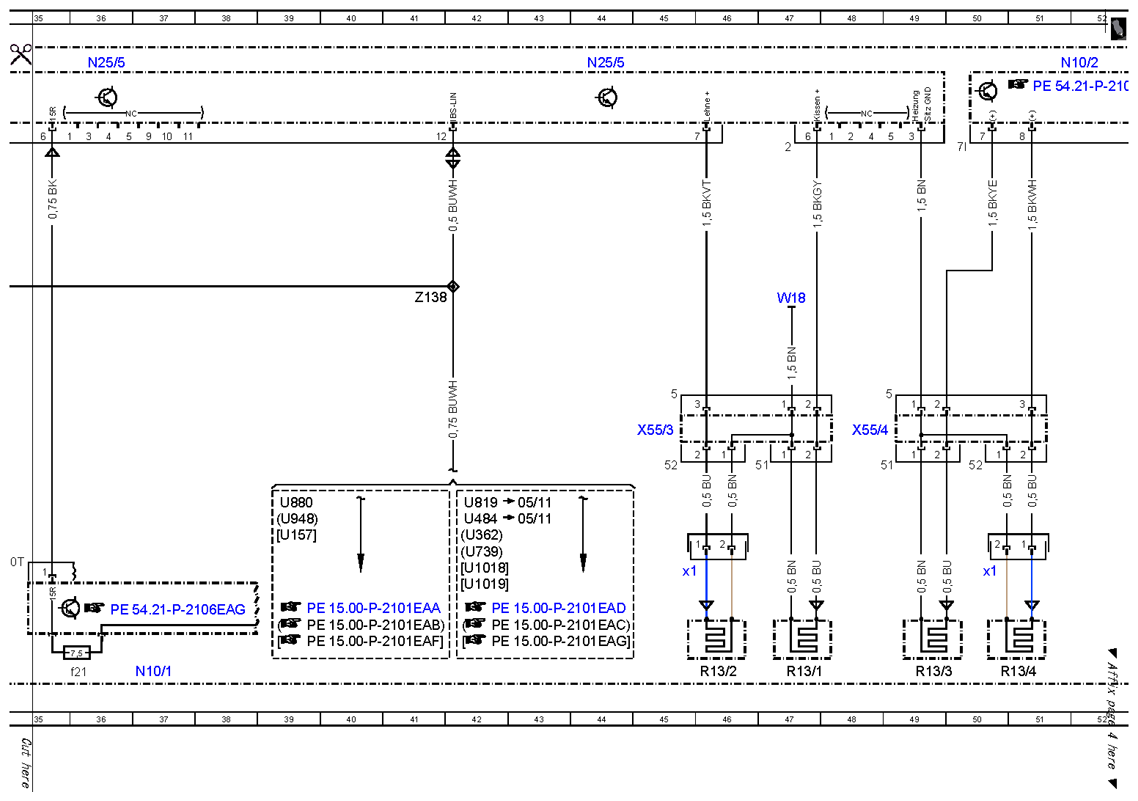

| N10/1 |
Front SAM control unit with fuse and relay module |
37L |
| N10/1f21 |
Fuse 21 |
36L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
10L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
27A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
33L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
51A |
| N10/2f40 |
Fuse 40 |
31L |
| N10/2f43 |
Fuse 43 |
13L |
| N10/2f78 |
Fuse 78 |
15L |
| N25/5 |
Driver seat heater control unit |
31A |
| N25/5 |
Driver seat heater control unit |
36A |
| N25/5 |
Driver seat heater control unit |
44A |
| N29/5 |
Left front seat ventilation blower regulator |
10A |
| N29/5 |
Left front seat ventilation blower regulator |
4A |
| N29/6 |
Right front seat ventilation blower regulator |
20A |
| N29/6 |
Right front seat ventilation blower regulator |
13A |
| R13/1 |
Left front seat sitting surface heated cushion |
29L |
| R13/1 |
Left front seat sitting surface heated cushion |
47L |
| R13/2 |
Left front backrest heated cushion |
27L |
| R13/2 |
Left front backrest heated cushion |
46L |
| R13/2x1 |
Left front backrest heater pad electrical connector |
27J |
| R13/2x1 |
Left front backrest heater pad electrical connector |
45J |
| R13/3 |
Right front seat sitting surface heated cushion |
24L |
| R13/3 |
Right front seat sitting surface heated cushion |
49L |
| R13/4 |
Right front backrest heated cushion |
25L |
| R13/4 |
Right front backrest heated cushion |
51L |
| R13/4x1 |
Right front backrest heater pad electrical connector |
25J |
| R13/4x1 |
Right front backrest heater pad electrical connector |
50J |
| U1018 |
Valid for gasoline engine 276 |
42J |
| U1019 |
Valid for gasoline engine 278 |
42K |
| U1091 |
Valid for balance control seat heater |
30A |
| U157 |
Valid for combustion engine 272 DE |
39J |
| U21 |
Valid for heated seats |
23A |
| U23 |
Valid for convertibles |
32C |
| U362 |
Valid for gasoline engine 274 |
42J |
| U438 |
Valid for seat ventilation |
1A |
| U484 |
Valid for gasoline engine 273 |
42H |
| U611 |
Valid for Coupe |
32C |
| U739 |
Valid for gasoline engine 271 DE |
42J |
| U819 |
Valid for gasoline engine 272 |
42H |
| U880 |
Valid for diesel engine 642 |
39H |
| U948 |
Valid for diesel engine 651 |
39H |
| W18 |
Left front seat crossmember ground point |
28E |
| W18 |
Left front seat crossmember ground point |
47E |
| W18/3 |
Left front seat crossmember ground point 2 |
7L |
| W18/3 |
Left front seat crossmember ground point 2 |
17L |
| W19 |
Right front seat crossmember ground point |
24E |
| W7/1 |
Right taillamp trunk ground point |
32E |
| W7/7 |
Right spare wheel well ground point |
32E |
| X55/11 |
Right seat cushion seat ventilation motor electrical connector |
4G |
| X55/12 |
Right seat cushion seat ventilation motor electrical connector |
20G |
| X55/13 |
Left backrest seat ventilation motor electrical connector |
1G |
| X55/14 |
Right backrest seat ventilation motor electrical connector |
17G |
| X55/3 |
Driver seat connector block |
7G |
| X55/3 |
Driver seat connector block |
26G |
| X55/3 |
Driver seat connector block |
45G |
| X55/4 |
Front passenger seat connector block |
12G |
| X55/4 |
Front passenger seat connector block |
23G |
| X55/4 |
Front passenger seat connector block |
48G |
| Z138 |
Battery sensor connector sleeve |
41E |
