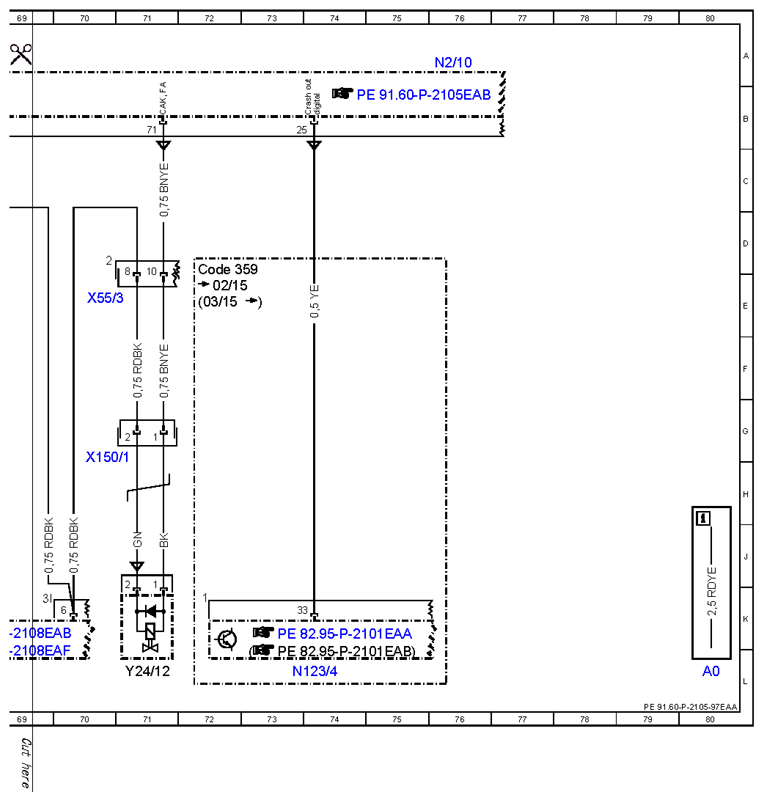

| A0 |
Color code key |
80L |

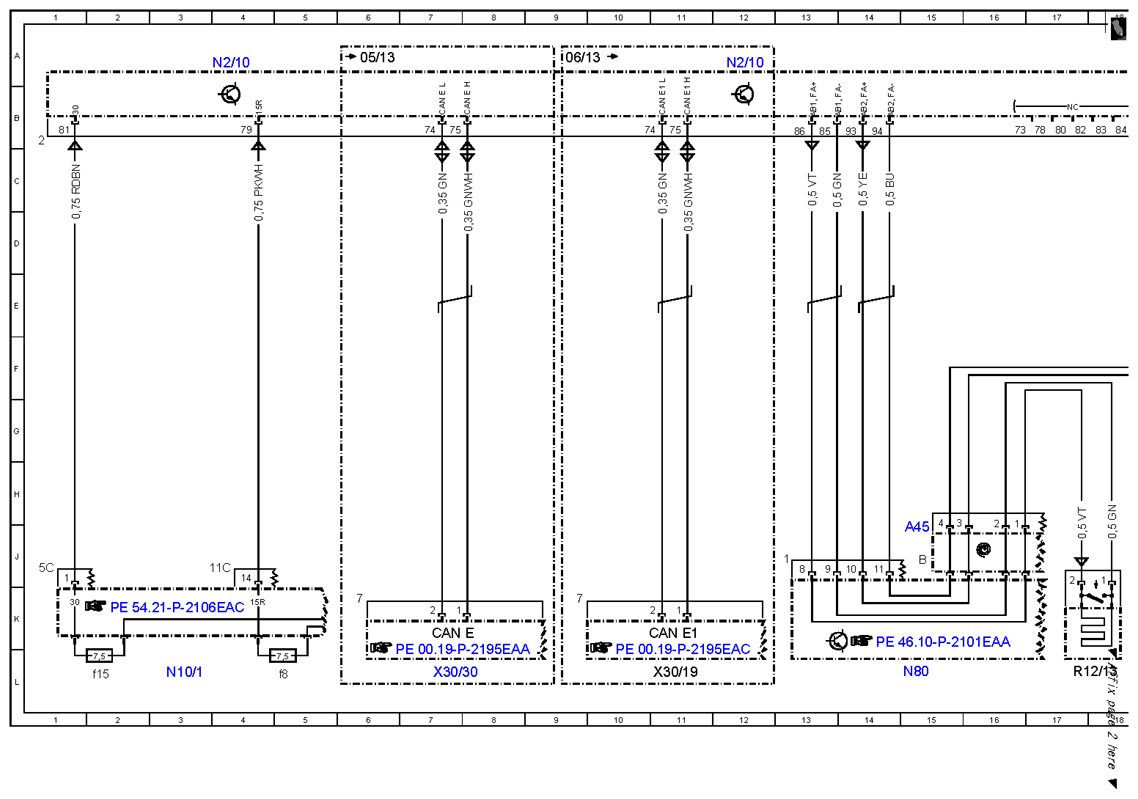

| A45 |
Fanfare horns and airbag clock spring contact |
15J |

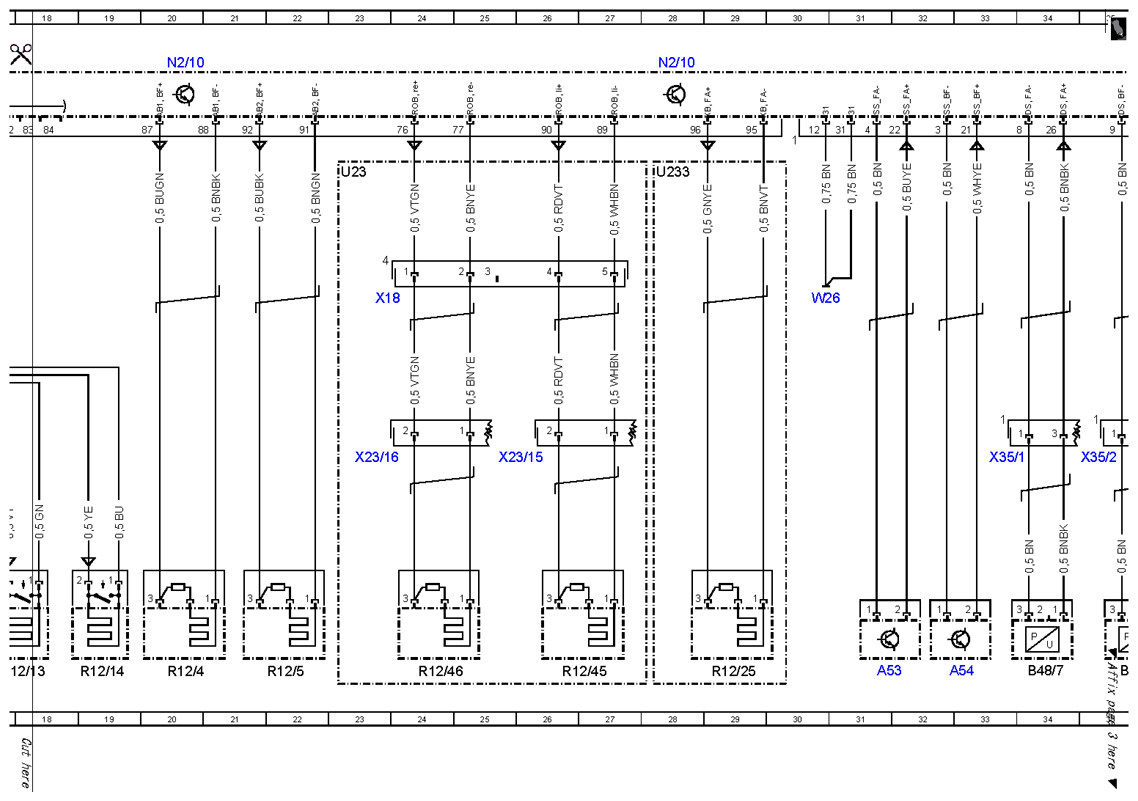

| A53 |
Left sidebag sensor |
31L |
| A54 |
Right sidebag sensor |
33L |

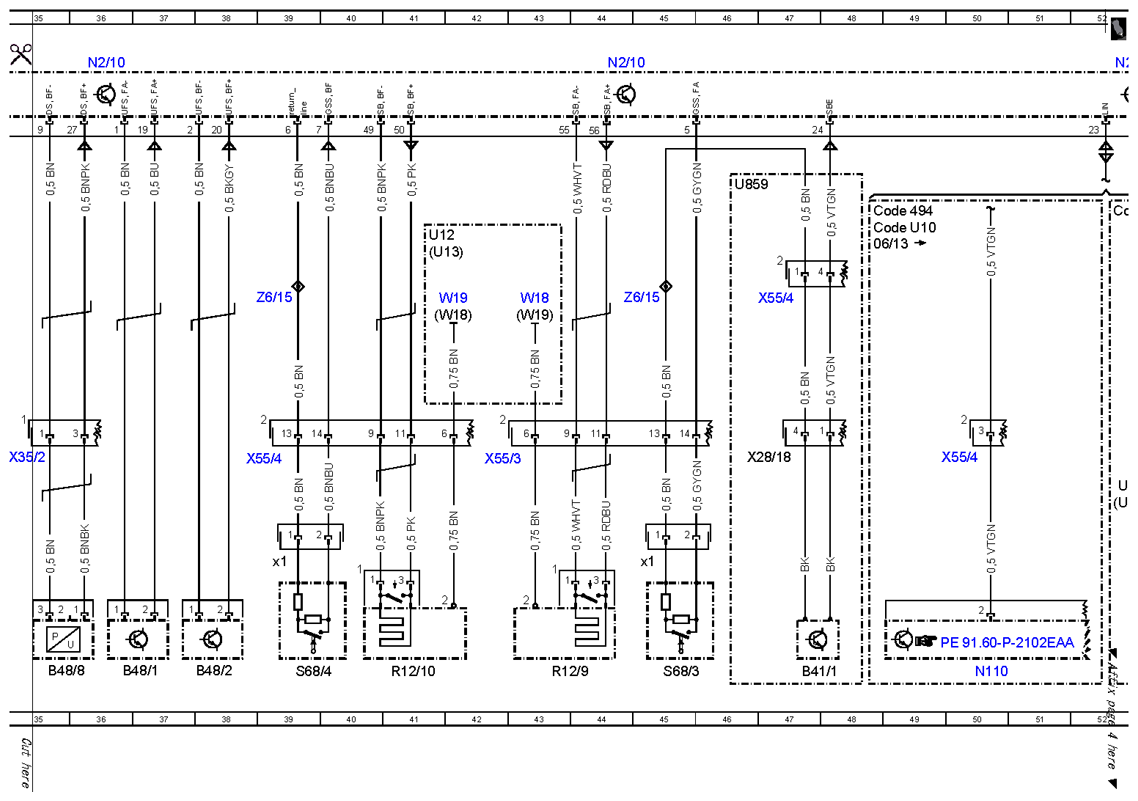

| B41/1 |
Front passenger seat occupied recognition |
47L |

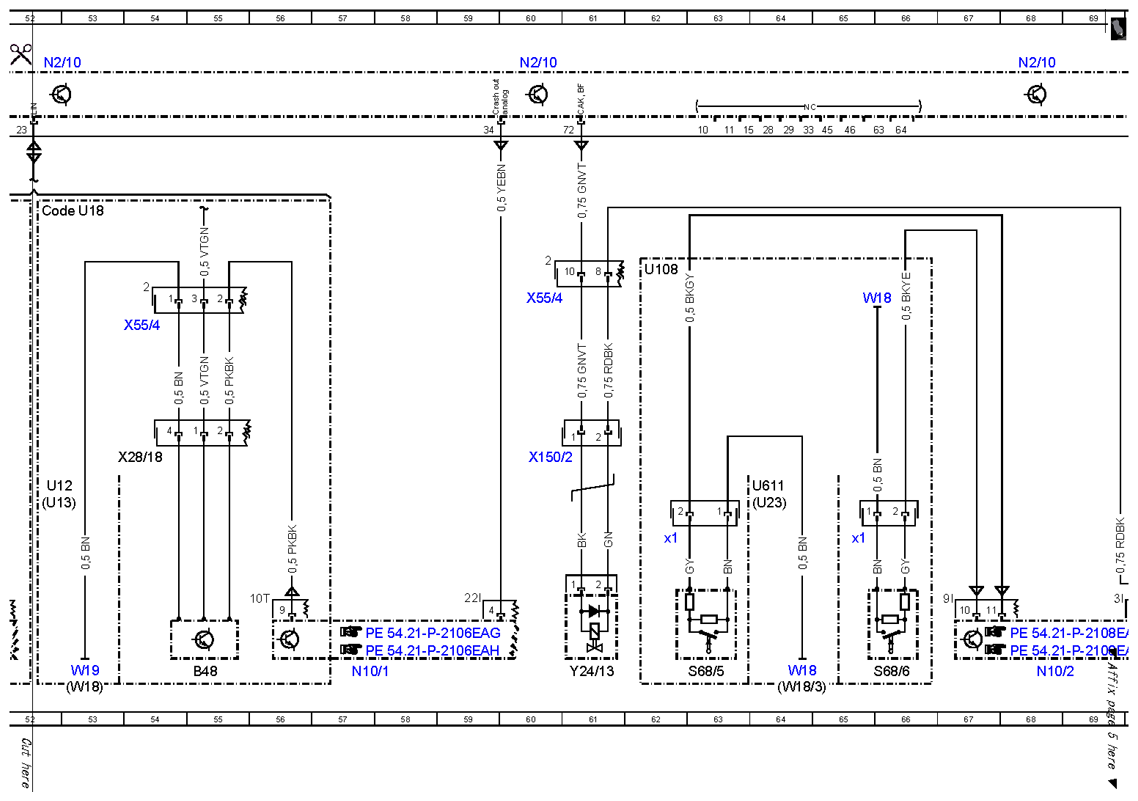

| B48 |
Front passenger seat occupied recognition and ACSR |
55L |
| B48/1 |
Left frontal acceleration sensor |
36L |
| B48/2 |
Right frontal acceleration sensor |
38L |
| B48/7 |
Left front door pressure sensor |
34L |
| B48/8 |
Right front door pressure sensor |
35L |
| CAN E |
Chassis CAN |
7K |
| CAN E1 |
Chassis CAN 1 |
11K |
| Code 359 |
TELEAID emergency call system |
72D |
| Code 494 |
USA version |
48D |
| Code U10 |
Weight sensing system (WSS) |
48D |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
52D |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
57L |
| N10/1f15 |
Fuse 15 |
2L |
| N10/1f8 |
Fuse 8 |
5L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
68L |
| N110 |
Weight Sensing System (WSS) control unit |
50L |
| N123/4 |
Emergency call system control unit |
74L |
| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
12A |
| N2/10 |
Supplemental restraint system control unit |
28A |
| N2/10 |
Supplemental restraint system control unit |
20A |
| N2/10 |
Supplemental restraint system control unit |
36A |
| N2/10 |
Supplemental restraint system control unit |
44A |
| N2/10 |
Supplemental restraint system control unit |
52A |
| N2/10 |
Supplemental restraint system control unit |
60A |
| N2/10 |
Supplemental restraint system control unit |
68A |
| N2/10 |
Supplemental restraint system control unit |
76A |
| N80 |
Steering column module control unit |
15L |
| R12/10 |
Front passenger sidebag squib |
41L |
| R12/13 |
Driver airbag squib 1 |
17L |
| R12/14 |
Driver airbag squib 2 |
19L |
| R12/25 |
Driver kneebag squib |
29L |
| R12/4 |
Front passenger airbag squib 1 |
20L |
| R12/45 |
Left roll bar airbag squib |
26L |
| R12/46 |
Right roll bar airbag squib |
24L |
| R12/5 |
Front passenger airbag squib 2 |
22L |
| R12/9 |
Driver sidebag squib |
43L |
| S68/3 |
Driver seat belt buckle restraint system switch |
45L |
| S68/3x1 |
Driver seat belt buckle restraint system switch electrical connector |
45J |
| S68/4 |
Front passenger seat belt buckle restraint system switch |
39L |
| S68/4x1 |
Front passenger seat belt buckle restraint system switch electrical connector |
39J |
| S68/5 |
Left rear seat belt buckle switch |
63L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
62J |
| S68/6 |
Right rear seat belt buckle switch |
66L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
65J |
| U108 |
Valid for rear seat belt buckles |
62D |
| U12 |
Valid for left-hand drive vehicles |
52H |
| U12 |
Valid for left-hand drive vehicles |
41D |
| U13 |
Valid for right-hand drive vehicles |
52H |
| U13 |
Valid for right-hand drive vehicles |
41D |
| U23 |
Valid for convertibles |
23C |
| U23 |
Valid for convertibles |
64H |
| U233 |
Valid for kneebag |
28C |
| U611 |
Valid for Coupe |
64H |
| U859 |
Valid for seat belt reminder warning |
46C |
| W18 |
Left front seat crossmember ground point |
53L |
| W18 |
Left front seat crossmember ground point |
64L |
| W18 |
Left front seat crossmember ground point |
41E |
| W18 |
Left front seat crossmember ground point |
43E |
| W18 |
Left front seat crossmember ground point |
65E |
| W18/3 |
Left front seat crossmember ground point 2 |
64L |
| W19 |
Right front seat crossmember ground point |
53L |
| W19 |
Right front seat crossmember ground point |
43E |
| W19 |
Right front seat crossmember ground point |
42E |
| W26 |
Supplemental restraint system (SRS) control unit ground point |
30E |
| X150/1 |
Driver NECK-PRO head restraint electrical connector |
70H |
| X150/2 |
Front passenger NECK-PRO head restraint electrical connector |
60H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
23E |
| X23/15 |
Left roll-over protection system electrical connector |
26H |
| X23/16 |
Right roll-over protection system electrical connector |
23H |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
47H |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
54H |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
11L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| X35/1 |
Left front door electrical connector |
33H |
| X35/2 |
Right front door electrical connector |
35H |
| X55/3 |
Driver seat connector block |
70E |
| X55/3 |
Driver seat connector block |
42H |
| X55/4 |
Front passenger seat connector block |
39H |
| X55/4 |
Front passenger seat connector block |
50H |
| X55/4 |
Front passenger seat connector block |
47E |
| X55/4 |
Front passenger seat connector block |
54E |
| X55/4 |
Front passenger seat connector block |
60E |
| Y24/12 |
Driver seat NECK-PRO head restraint solenoid |
71L |
| Y24/13 |
Front passenger seat NECK-PRO head restraint solenoid |
61L |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
39E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
45E |
