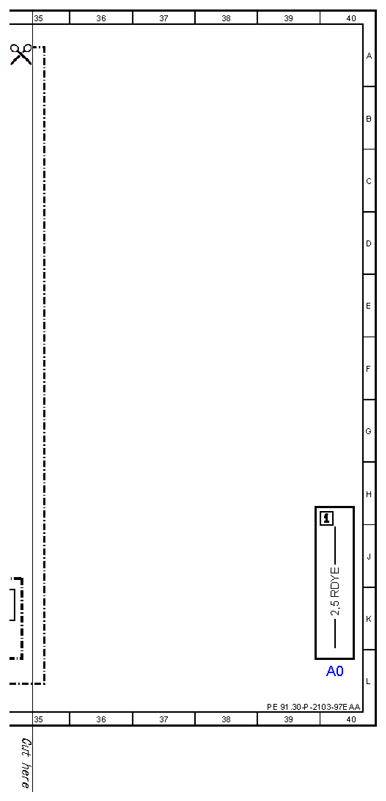

| A0 |
Color code key |
40L |
| CAN B |
Interior CAN |
2K |
| CAN B |
Interior CAN |
20K |
| F34 |
Interior fuse box |
5L |
| F34 |
Interior fuse box |
23L |
| F34f117 |
Fuse 117 |
4K |
| F34f117 |
Fuse 117 |
22K |
| F34f127 |
Fuse 127 |
6K |
| F34f127 |
Fuse 127 |
23K |
| M4/10 |
Left AIRSCARF fan motor |
12L |
| M4/10 |
Left AIRSCARF fan motor |
33L |
| M4/10x1 |
Left AIRSCARF fan motor electrical connector |
12H |
| M4/10x1 |
Left AIRSCARF fan motor electrical connector |
33H |
| M4/11 |
Right AIRSCARF fan motor |
16L |
| M4/11 |
Right AIRSCARF fan motor |
29L |
| M4/11x1 |
Right AIRSCARF fan motor electrical connector |
15H |
| M4/11x1 |
Right AIRSCARF fan motor electrical connector |
29H |
| N25/7 |
AIRSCARF system control unit |
20A |
| N25/7 |
AIRSCARF system control unit |
4A |
| N25/7 |
AIRSCARF system control unit |
12A |
| N25/7 |
AIRSCARF system control unit |
28A |
| R22/5 |
Left AIRSCARF heating element |
10L |
| R22/5 |
Left AIRSCARF heating element |
27L |
| R22/6 |
Right AIRSCARF heating element |
8L |
| R22/6 |
Right AIRSCARF heating element |
25L |

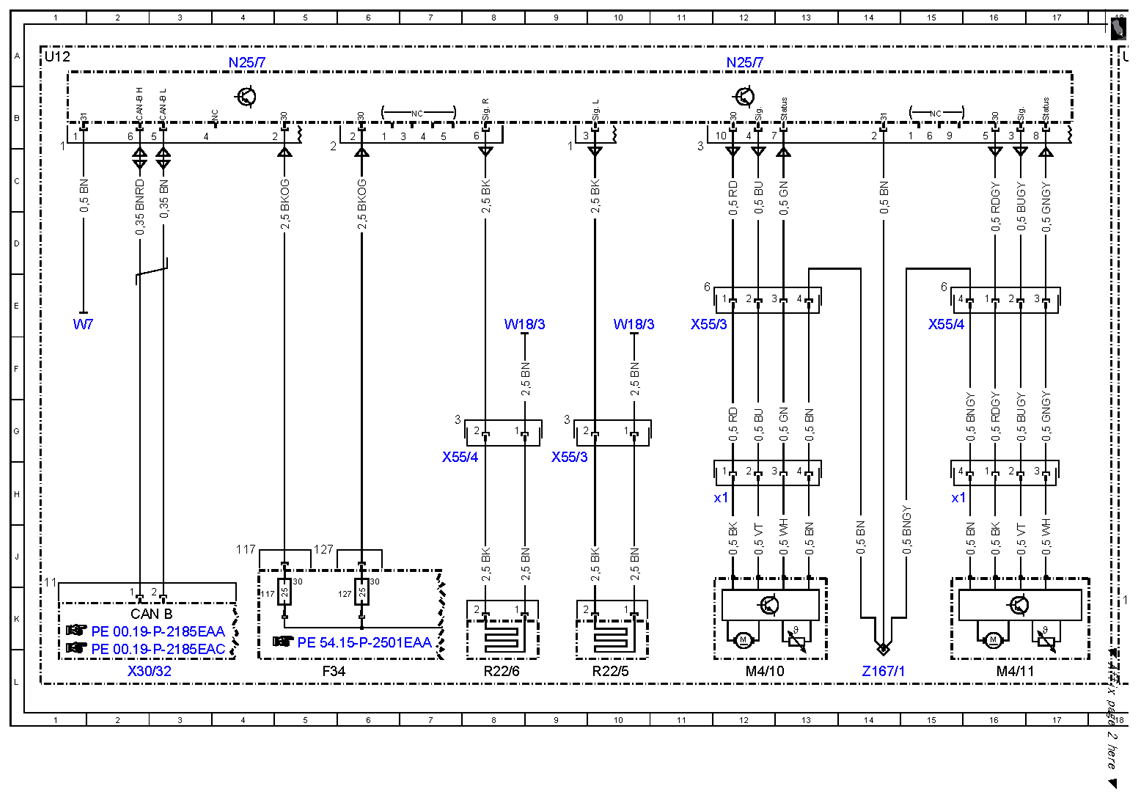

| U12 |
Valid for left-hand drive vehicles |
1A |

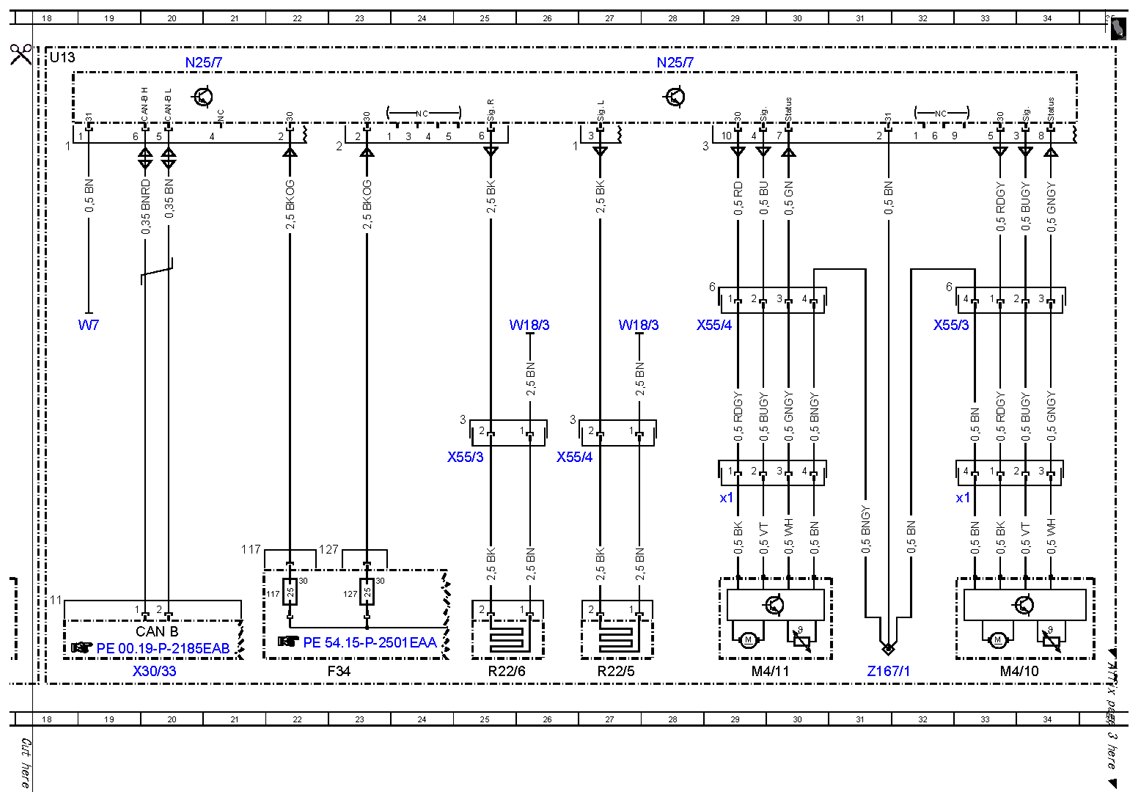

| U13 |
Valid for right-hand drive vehicles |
18A |
| W18/3 |
Left front seat crossmember ground point 2 |
8E |
| W18/3 |
Left front seat crossmember ground point 2 |
10E |
| W18/3 |
Left front seat crossmember ground point 2 |
26E |
| W18/3 |
Left front seat crossmember ground point 2 |
27E |
| W7 |
Right wheelhouse trunk ground point |
1E |
| W7 |
Right wheelhouse trunk ground point |
19E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
2L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
20L |
| X55/3 |
Driver seat connector block |
9H |
| X55/3 |
Driver seat connector block |
11E |
| X55/3 |
Driver seat connector block |
25H |
| X55/3 |
Driver seat connector block |
32E |
| X55/4 |
Front passenger seat connector block |
7H |
| X55/4 |
Front passenger seat connector block |
15E |
| X55/4 |
Front passenger seat connector block |
26H |
| X55/4 |
Front passenger seat connector block |
29E |
| Z167/1 |
AIRSCARF fan connector sleeve |
14L |
| Z167/1 |
AIRSCARF fan connector sleeve |
31L |
