| A0 |
Color code key |
32L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
3L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
9L |
| M25/4x1 |
Driver seat lumbar support pneumatic pump electrical connector |
3J |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
17L |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
23L |
| M25/5x1 |
Front passenger seat lumbar support pneumatic pump electrical connector |
22J |
| N10/2 |
Rear SAM control unit with fuse and relay module |
13L |
| N10/2f44 |
Fuse 44 |
14L |
| N10/2f45 |
Fuse 45 |
12L |
| N32/1 |
Driver seat control unit |
6L |
| N32/2 |
Front passenger seat control unit |
20L |

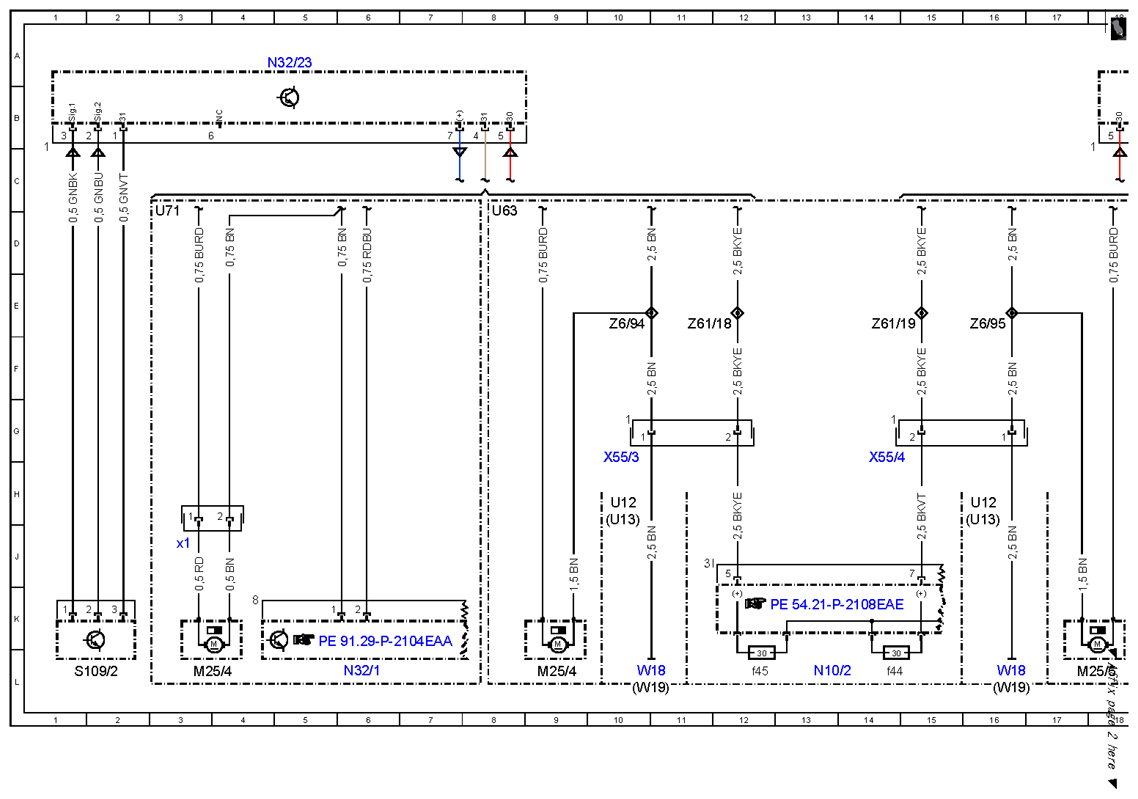

| N32/23 |
Driver seat lumbar support adjustment control unit |
5A |

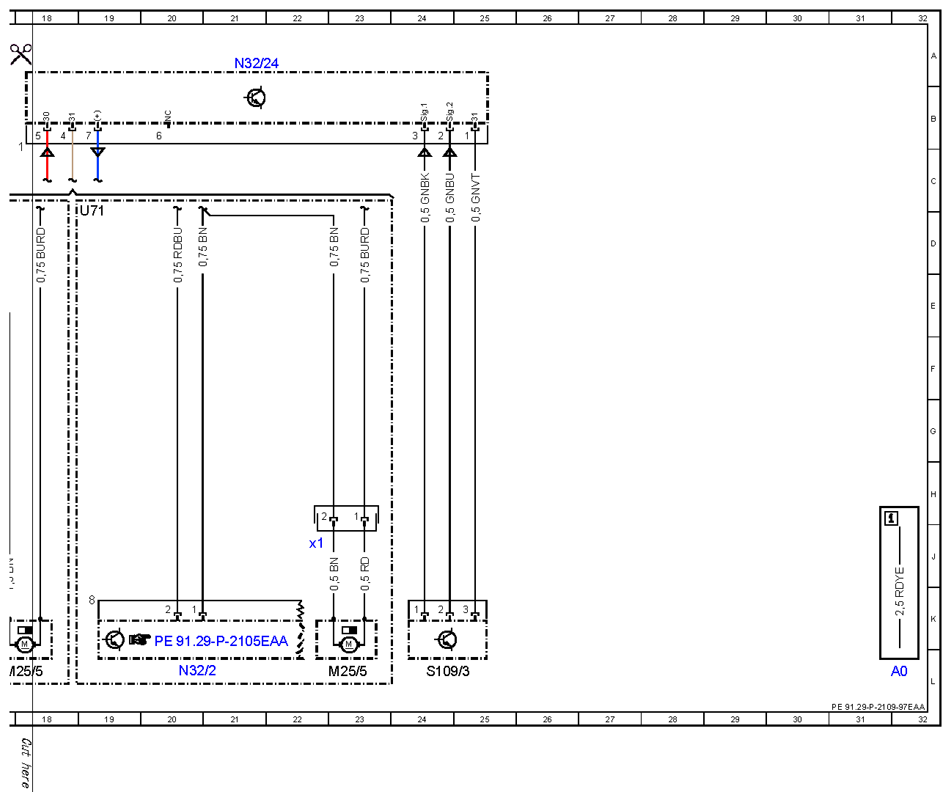

| N32/24 |
Front passenger seat lumbar support adjustment control unit |
21A |
| S109/2 |
Driver seat lumbar support adjustment switch |
1L |
| S109/3 |
Front passenger seat lumbar support adjustment switch |
24L |
| U12 |
Valid for left-hand drive vehicles |
10H |
| U12 |
Valid for left-hand drive vehicles |
16H |
| U13 |
Valid for right-hand drive vehicles |
10H |
| U13 |
Valid for right-hand drive vehicles |
16H |
| U63 |
Valid for seat adjustment without memory function |
8D |
| U71 |
Valid for fully electric seat adjustment with memory function |
3D |
| U71 |
Valid for fully electric seat adjustment with memory function |
19D |
| W18 |
Left front seat crossmember ground point |
16L |
| W18 |
Left front seat crossmember ground point |
10L |
| W19 |
Right front seat crossmember ground point |
16L |
| W19 |
Right front seat crossmember ground point |
10L |
| X55/3 |
Driver seat connector block |
10H |
| X55/4 |
Front passenger seat connector block |
14H |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
10E |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
16E |
| Z61/18 |
Left seat circuit 15R connector sleeve |
11E |
| Z61/19 |
Right seat circuit 15R connector sleeve |
14E |
