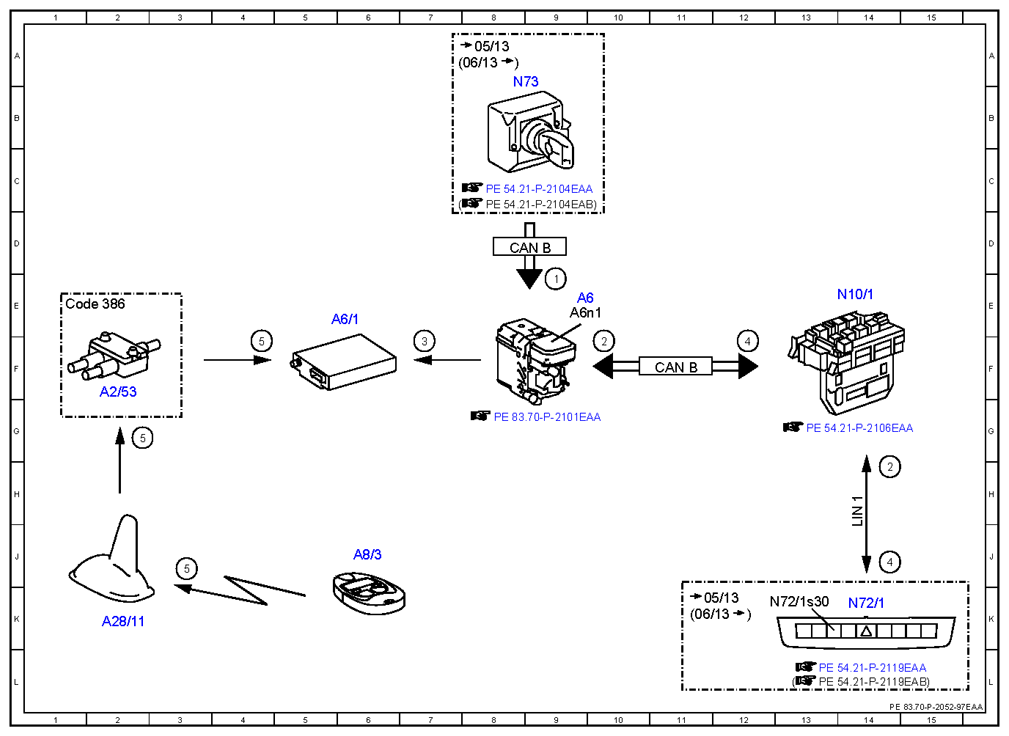

| 1 |
Circuit 15C, status |
9E |
| 2 |
Stationary heater button, status |
14H |
| 2 |
Stationary heater button, status |
10F |
| 3 |
Open learning time window, request |
7F |
| 4 |
Stationary heater status indication, request |
14J |
| 4 |
Stationary heater status indication, request |
12F |
| 5 |
Stationary heater radio remote control transmitter, signal |
3J |
| 5 |
Stationary heater radio remote control transmitter, signal |
2G |
| 5 |
Stationary heater radio remote control transmitter, signal |
4F |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
2F |
| A28/11 |
Multifunction antenna |
2K |
| A6 |
Stationary heater unit |
9E |
| A6/1 |
Stationary heater radio remote control receiver |
6E |
| A6n1 |
Stationary heater control unit |
9E |
| A8/3 |
Stationary heater radio remote control transmitter |
6J |
| CAN B |
Interior CAN |
8D |
| CAN B |
Interior CAN |
11F |
| Code 386 |
Mobile phone |
1E |
| LIN 1 |
Instrument panel LIN |
14H |
| N10/1 |
Front SAM control unit with fuse and relay module |
14E |
| N72/1 |
Upper control panel control unit |
14K |
| N72/1s30 |
Stationary heater button |
12K |
| N73 |
Electronic ignition switch control unit |
8A |
