| A0 |
Color code key |
32L |

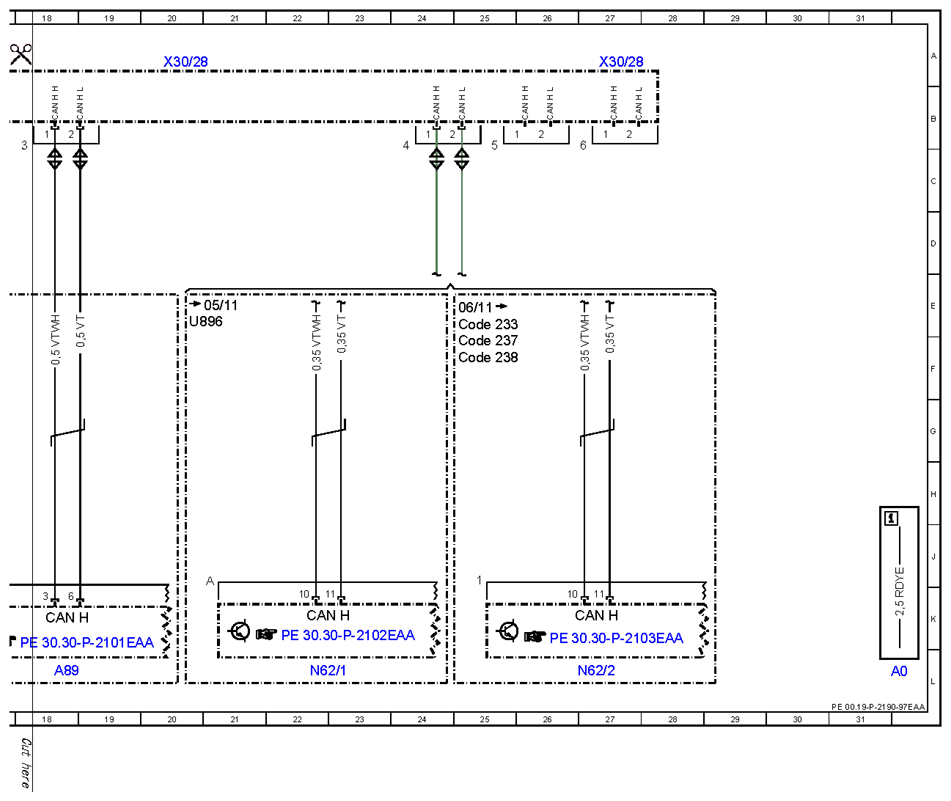

| A89 |
DISTRONIC electric controller unit |
18L |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
6L |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
14L |
| CAN H |
Vehicle dynamics CAN |
3K |
| CAN H |
Vehicle dynamics CAN |
6K |
| CAN H |
Vehicle dynamics CAN |
10K |
| CAN H |
Vehicle dynamics CAN |
14K |
| CAN H |
Vehicle dynamics CAN |
27K |
| CAN H |
Vehicle dynamics CAN |
18K |
| CAN H |
Vehicle dynamics CAN |
22K |
| Code 233 |
DISTRONIC PLUS |
25E |
| Code 237 |
Active Blind Spot Assist |
25F |
| Code 238 |
Active Lane Keeping Assist |
25F |
| N30/7 |
Premium Electronic Stability Program control unit |
3L |
| N30/7 |
Premium Electronic Stability Program control unit |
10L |
| N62/1 |
Radar sensors control unit |
22L |
| N62/2 |
Video and radar sensor system control unit |
27L |
| U504 |
Valid for DISTRONIC |
16E |
| U896 |
Valid for City Assist System |
20E |
| U939 |
Valid for ESP Premium |
1E |
| U939 |
Valid for ESP Premium |
9E |

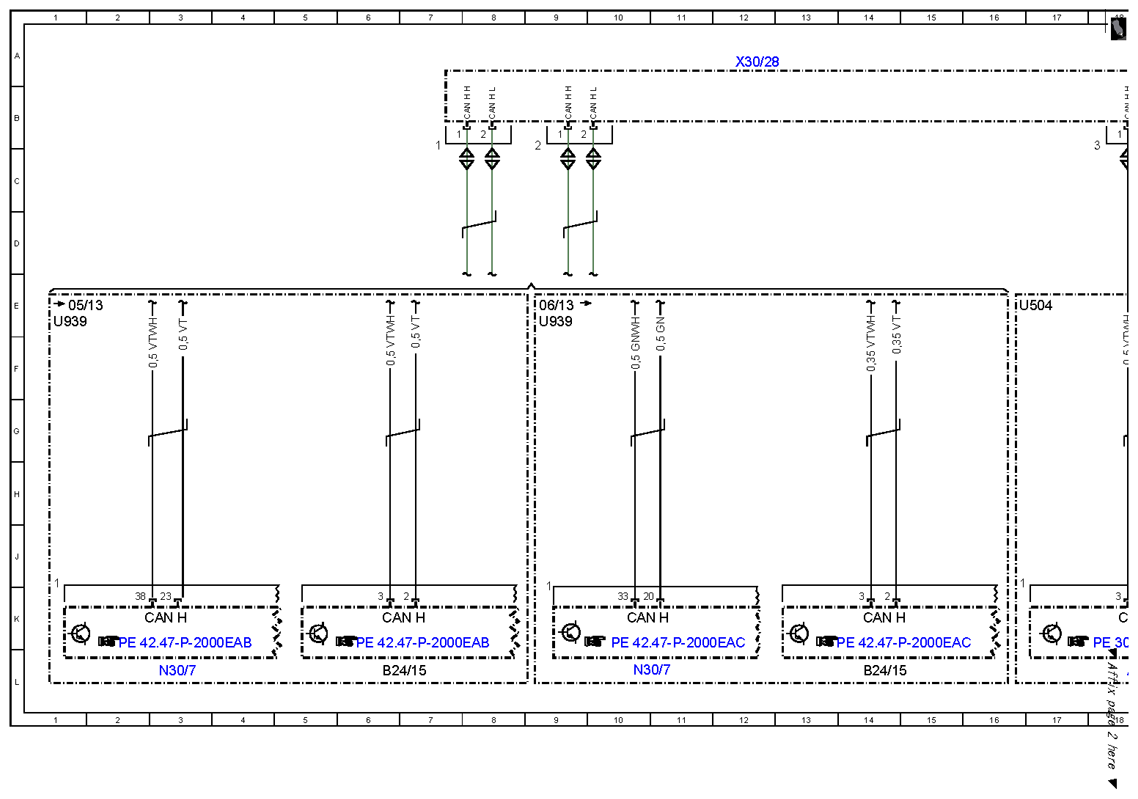

| X30/28 |
Vehicle dynamics CAN voltage distributor electrical connector |
12A |
| X30/28 |
Vehicle dynamics CAN voltage distributor electrical connector |
20A |
| X30/28 |
Vehicle dynamics CAN voltage distributor electrical connector |
27A |
