| A0 |
Color code key |
40L |
| A2 |
Radio |
25L |
| A2 |
Radio |
25L |
| A2 |
Radio |
37L |
| A2/30 |
Navigation module |
21L |
| A2/30-1 |
Cradle for navigation module |
18J |
| A2/56 |
Radio with auto pilot system |
25L |
| A40/3 |
COMAND control unit |
29L |
| A40/3 |
COMAND control unit |
33L |
| A40/3 |
COMAND control unit |
37L |
| A40/8 |
Audio/COMAND display |
15L |
| A40/8 |
Audio/COMAND display |
7L |
| A40/8 |
Audio/COMAND display |
11L |

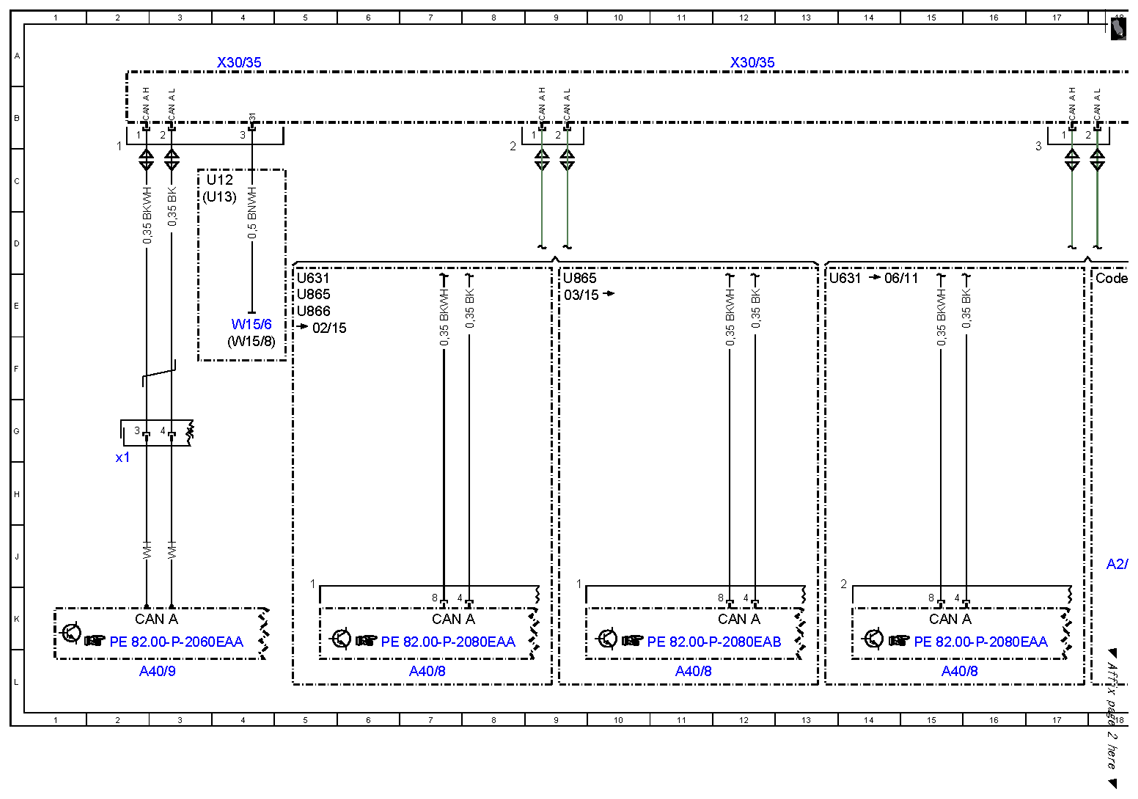

| A40/9 |
Audio/COMAND control panel |
2L |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
2H |

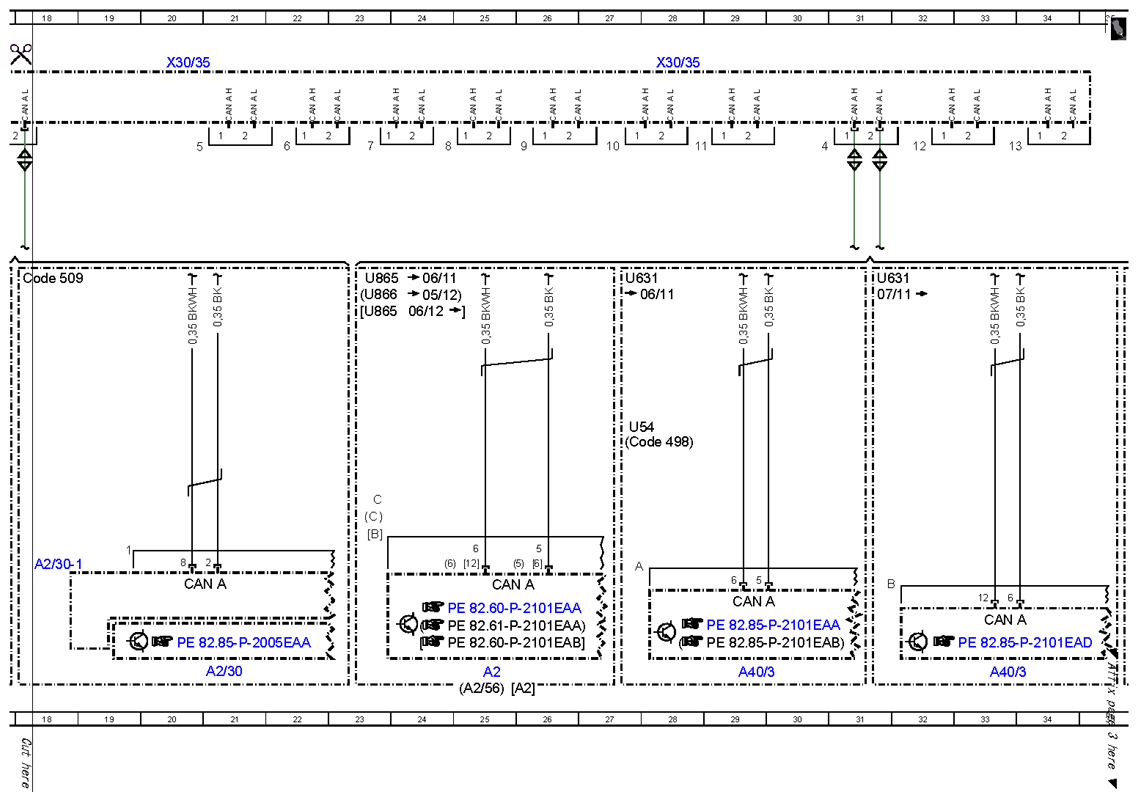

| CAN A |
Telematics CAN |
20K |
| CAN A |
Telematics CAN |
2K |
| CAN A |
Telematics CAN |
15K |
| CAN A |
Telematics CAN |
7K |
| CAN A |
Telematics CAN |
25K |
| CAN A |
Telematics CAN |
29K |
| CAN A |
Telematics CAN |
33K |
| CAN A |
Telematics CAN |
12K |
| CAN A |
Telematics CAN |
37K |
| Code 498 |
Japan version |
27G |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
35E |
| Code 509 |
Navigation module |
18E |
| Code 522 |
Audio 20 radio |
35E |

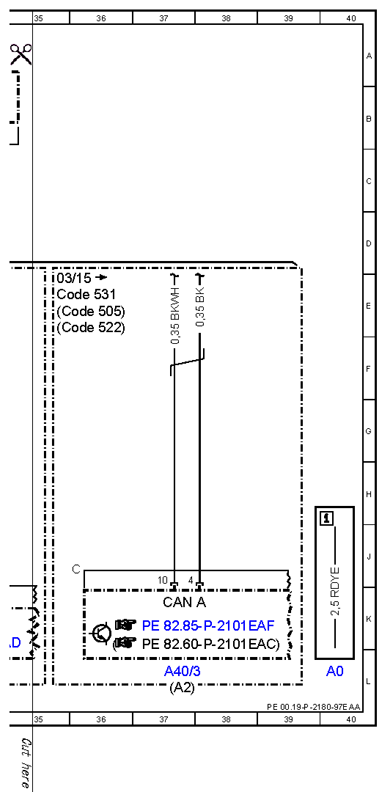

| Code 531 |
COMAND APS |
35E |
| U12 |
Valid for left-hand drive vehicles |
3C |
| U13 |
Valid for right-hand drive vehicles |
3C |
| U54 |
Valid for all except Japan |
27G |
| U631 |
Valid for COMAND |
5E |
| U631 |
Valid for COMAND |
13E |
| U631 |
Valid for COMAND |
27E |
| U631 |
Valid for COMAND |
31E |
| U865 |
Valid for Audio 20 |
23E |
| U865 |
Valid for Audio 20 |
23E |
| U865 |
Valid for Audio 20 |
9E |
| U865 |
Valid for Audio 20 |
5E |
| U866 |
Valid for Audio 50 |
23E |
| U866 |
Valid for Audio 50 |
5E |
| W15/6 |
Ground point (left front footwell CAN) |
4E |
| W15/8 |
Ground point (right front footwell CAN) |
4F |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
4A |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
12A |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
20A |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
28A |
