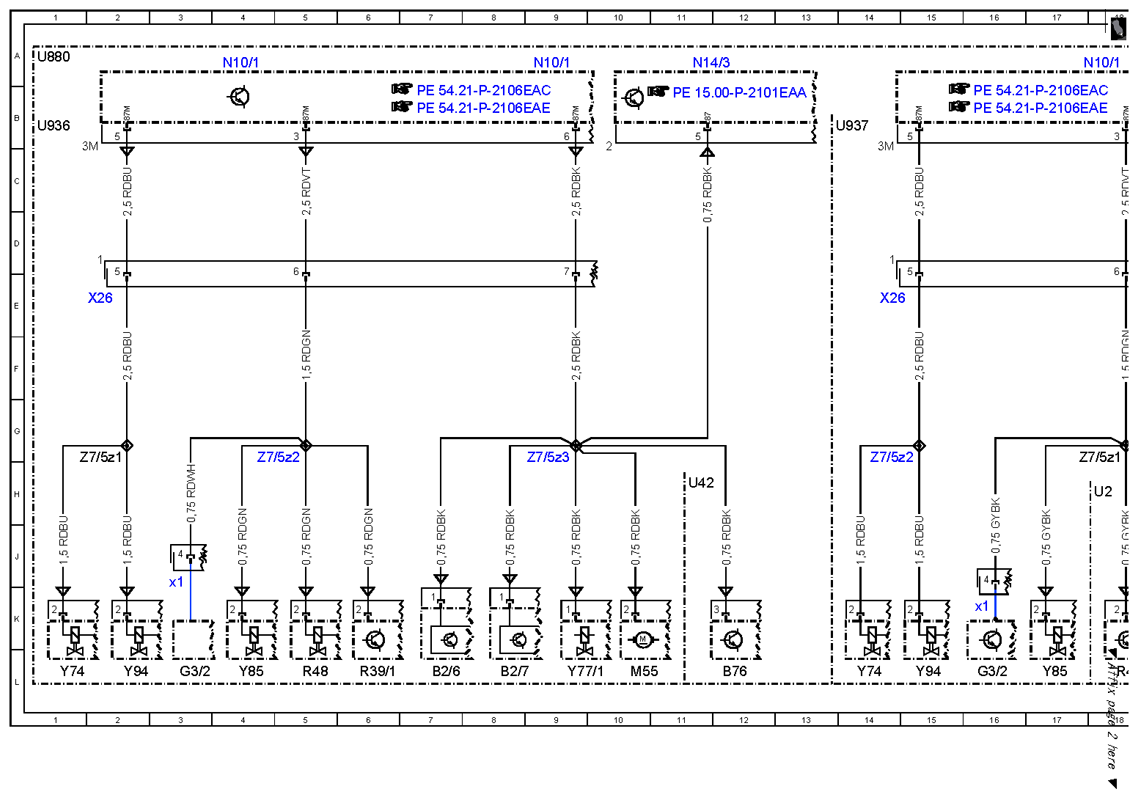

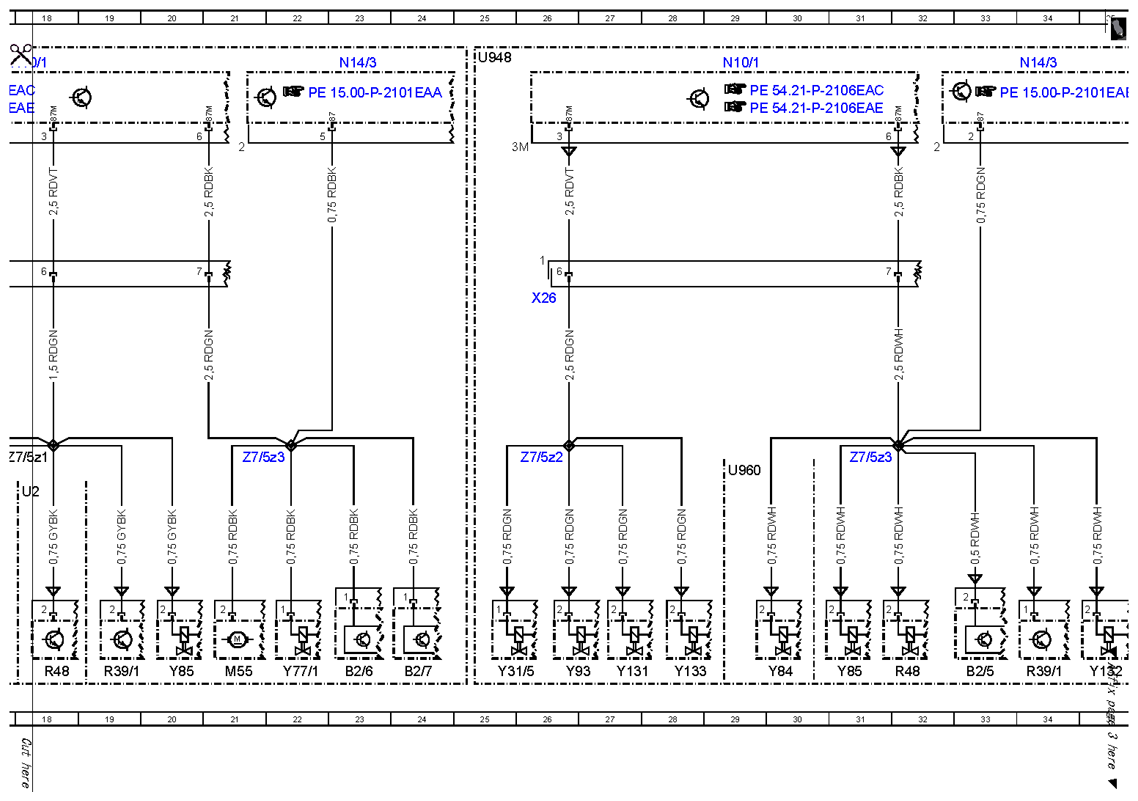

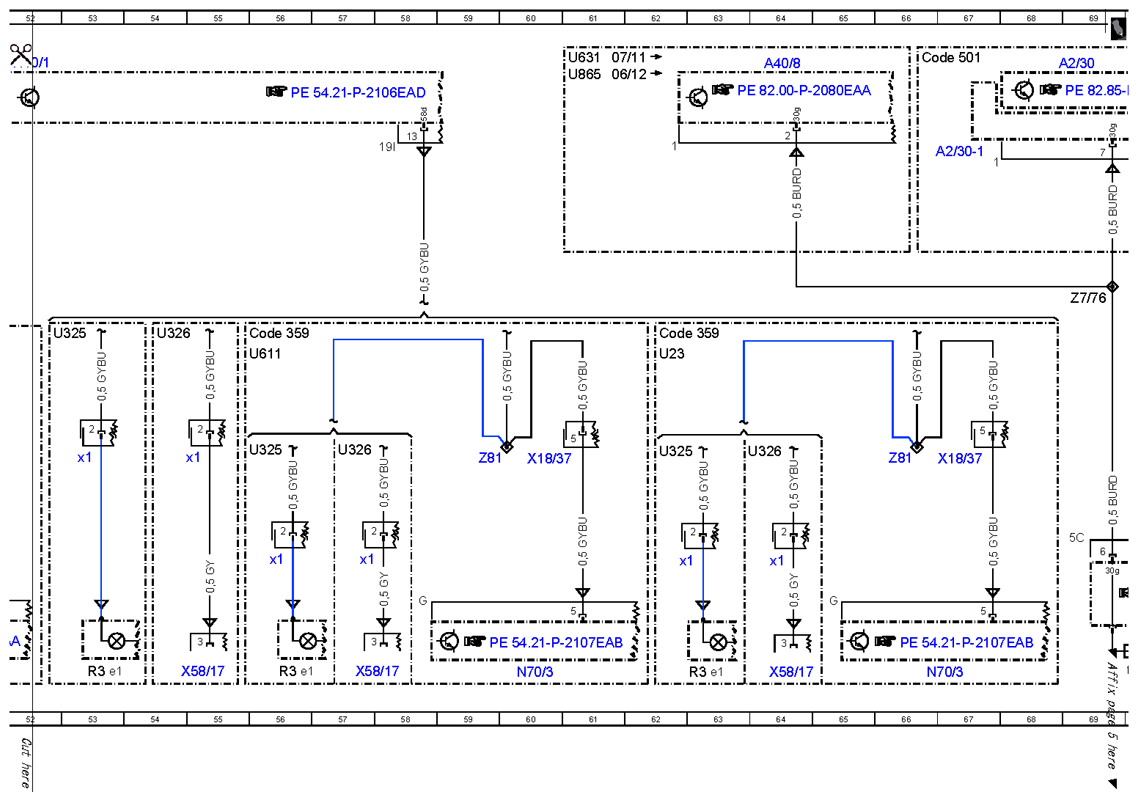

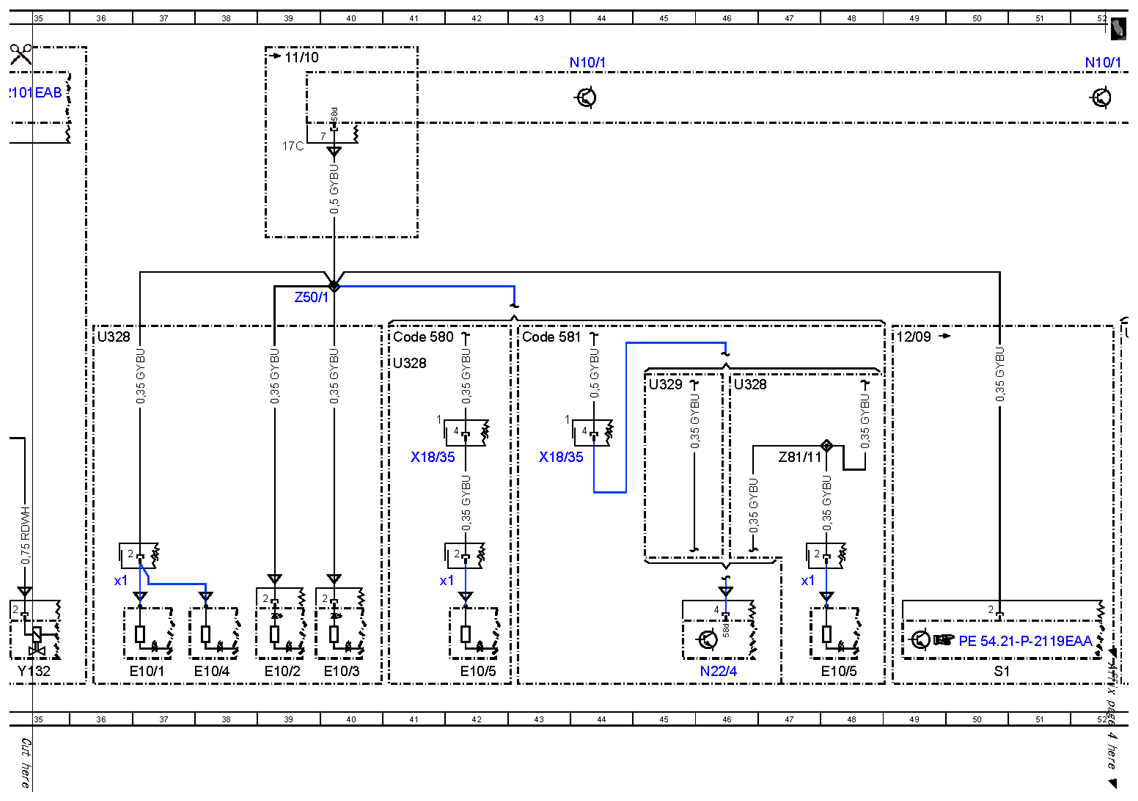

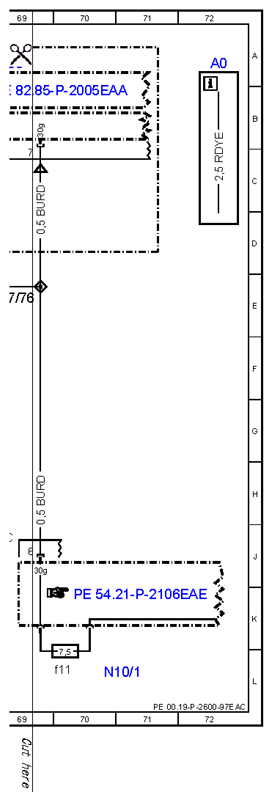

| A0 |
Color code key |
72A |
| A2/30 |
Navigation module |
69A |
| A2/30-1 |
Cradle for navigation module |
67C |
| A40/8 |
Audio/COMAND display |
64A |
| B2/5 |
Hot film mass air flow sensor |
33L |
| B2/6 |
Left hot film MAF sensor |
7L |
| B2/6 |
Left hot film MAF sensor |
23L |
| B2/7 |
Right hot film MAF sensor |
8L |
| B2/7 |
Right hot film MAF sensor |
24L |
| B76 |
Fuel filter condensation sensor |
12L |
| Code 359 |
TELEAID emergency call system |
55F |
| Code 359 |
TELEAID emergency call system |
62F |
| Code 501 |
360 degree camera |
66A |
| Code 580 |
Automatic air conditioning |
41F |
| Code 581 |
Comfort automatic air conditioning |
43F |
| E10/1 |
Left center air outlet symbol illumination |
37L |
| E10/1x1 |
Center vent symbol illumination electrical connector |
36J |
| E10/2 |
Left front side air outlet symbol illumination |
39L |
| E10/3 |
Right front side air outlet symbol illumination |
40L |
| E10/4 |
Right center air outlet symbol illumination |
38L |
| E10/5 |
Rear air outlet symbol illumination |
48L |
| E10/5 |
Rear air outlet symbol illumination |
42L |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
42J |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
47J |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
3L |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
16L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
3J |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
16K |
| M55 |
Intake port shutoff actuator motor |
10L |
| M55 |
Intake port shutoff actuator motor |
21L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
9A |
| N10/1 |
Front SAM control unit with fuse and relay module |
18A |
| N10/1 |
Front SAM control unit with fuse and relay module |
29A |
| N10/1 |
Front SAM control unit with fuse and relay module |
70L |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1f11 |
Fuse 11 |
70L |
| N14/3 |
Glow output stage |
11A |
| N14/3 |
Glow output stage |
23A |
| N14/3 |
Glow output stage |
34A |
| N22/4 |
Rear automatic air conditioning operating unit |
46L |
| N70/3 |
Overhead control panel electronics |
60L |
| N70/3 |
Overhead control panel electronics |
66L |
| R3 |
Front cigarette lighter with ashtray illumination |
53L |
| R3 |
Front cigarette lighter with ashtray illumination |
56L |
| R3 |
Front cigarette lighter with ashtray illumination |
63L |
| R39/1 |
Vent line heater element |
6L |
| R39/1 |
Vent line heater element |
19L |
| R39/1 |
Vent line heater element |
34L |
| R3e1 |
Ashtray illumination |
53L |
| R3e1 |
Ashtray illumination |
56L |
| R3e1 |
Ashtray illumination |
63L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
56J |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
53H |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
62J |
| R48 |
Coolant thermostat heating element |
5L |
| R48 |
Coolant thermostat heating element |
18L |
| R48 |
Coolant thermostat heating element |
32L |
| S1 |
Exterior lights switch |
50L |
| U2 |
Valid for all except USA |
18H |
| U23 |
Valid for convertibles |
62F |
| U325 |
Valid for smoker package |
55G |
| U325 |
Valid for smoker package |
62G |
| U325 |
Valid for smoker package |
52F |
| U326 |
Valid for nonsmoker package |
57G |
| U326 |
Valid for nonsmoker package |
63G |
| U326 |
Valid for nonsmoker package |
54F |
| U328 |
Valid for air outlet symbol illumination |
36F |
| U328 |
Valid for air outlet symbol illumination |
46F |
| U328 |
Valid for air outlet symbol illumination |
41F |
| U329 |
Valid without air outlet symbol illumination |
45F |
| U42 |
Valid for countries with poor quality fuel |
11H |
| U611 |
Valid for Coupe |
55F |
| U631 |
Valid for COMAND |
61A |
| U865 |
Valid for Audio 20 |
61A |
| U880 |
Valid for diesel engine 642 |
1A |
| U936 |
Valid for increased engine power |
1B |
| U937 |
Valid for all except increased engine power |
13B |
| U948 |
Valid for diesel engine 651 |
25A |
| U960 |
Valid for radiator shutters |
29H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
41H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
43H |
| X18/37 |
Emergency call system button electrical connector |
60H |
| X18/37 |
Emergency call system button electrical connector |
67H |
| X26 |
Interior and engine wiring harness electrical connector |
2E |
| X26 |
Interior and engine wiring harness electrical connector |
14E |
| X26 |
Interior and engine wiring harness electrical connector |
26E |
| X58/17 |
Front vehicle interior power outlet |
58L |
| X58/17 |
Front vehicle interior power outlet |
55L |
| X58/17 |
Front vehicle interior power outlet |
64L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
57J |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
55H |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
64J |
| Y131 |
Oil spray nozzle shutoff valve |
27L |
| Y132 |
Charge air bypass flap switchover valve |
35L |
| Y133 |
Coolant pump switchover valve |
28L |
| Y31/5 |
Boost pressure control pressure transducer |
25L |
| Y74 |
Pressure regulator valve |
1L |
| Y74 |
Pressure regulator valve |
14L |
| Y77/1 |
Boost pressure positioner |
9L |
| Y77/1 |
Boost pressure positioner |
22L |
| Y84 |
Radiator shutters actuator |
30L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
4L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
17L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
20L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
31L |
| Y93 |
Boost pressure control flap pressure transducer |
26L |
| Y94 |
Quantity control valve |
2L |
| Y94 |
Quantity control valve |
15L |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
39E |
| Z7/5z1 |
Circuit 87 connector sleeve |
2G |
| Z7/5z1 |
Circuit 87 connector sleeve |
18G |
| Z7/5z2 |
Circuit 87 connector sleeve |
5G |
| Z7/5z2 |
Circuit 87 connector sleeve |
14G |
| Z7/5z2 |
Circuit 87 connector sleeve |
26G |
| Z7/5z3 |
Circuit 87 connector sleeve |
9G |
| Z7/5z3 |
Circuit 87 connector sleeve |
21G |
| Z7/5z3 |
Circuit 87 connector sleeve |
31G |
| Z7/76 |
Cockpit circuit 30G connector sleeve |
69E |
| Z81 |
Circuit 58d connector sleeve |
59H |
| Z81 |
Circuit 58d connector sleeve |
66H |
| Z81/11 |
Air conditioning circuit 58d connector sleeve |
47G |
