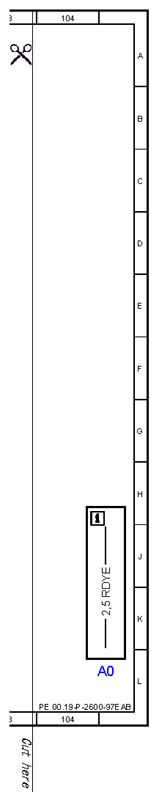

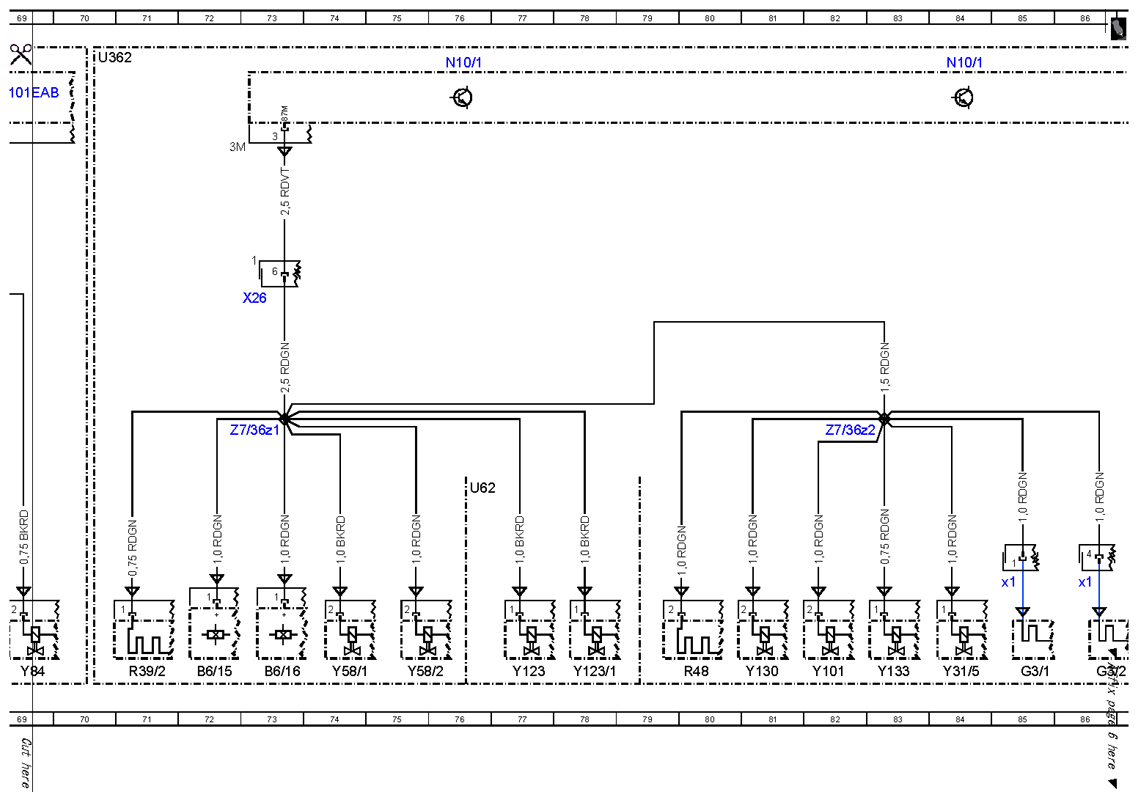

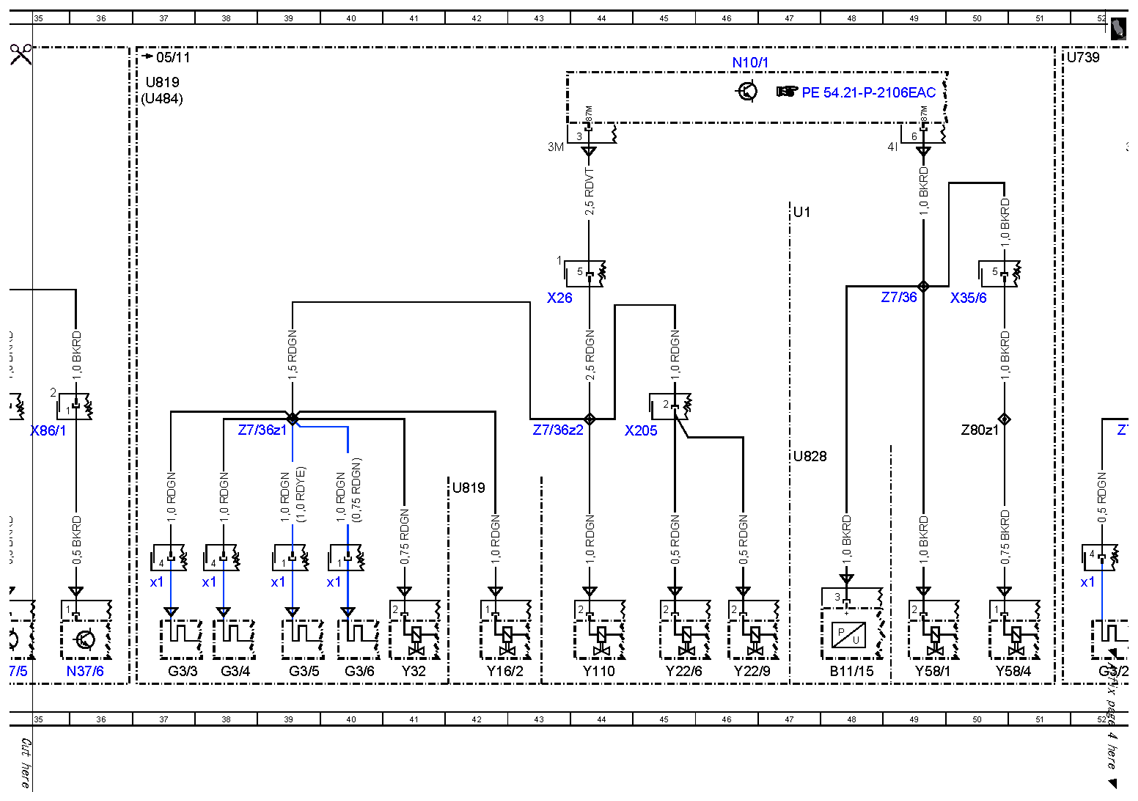

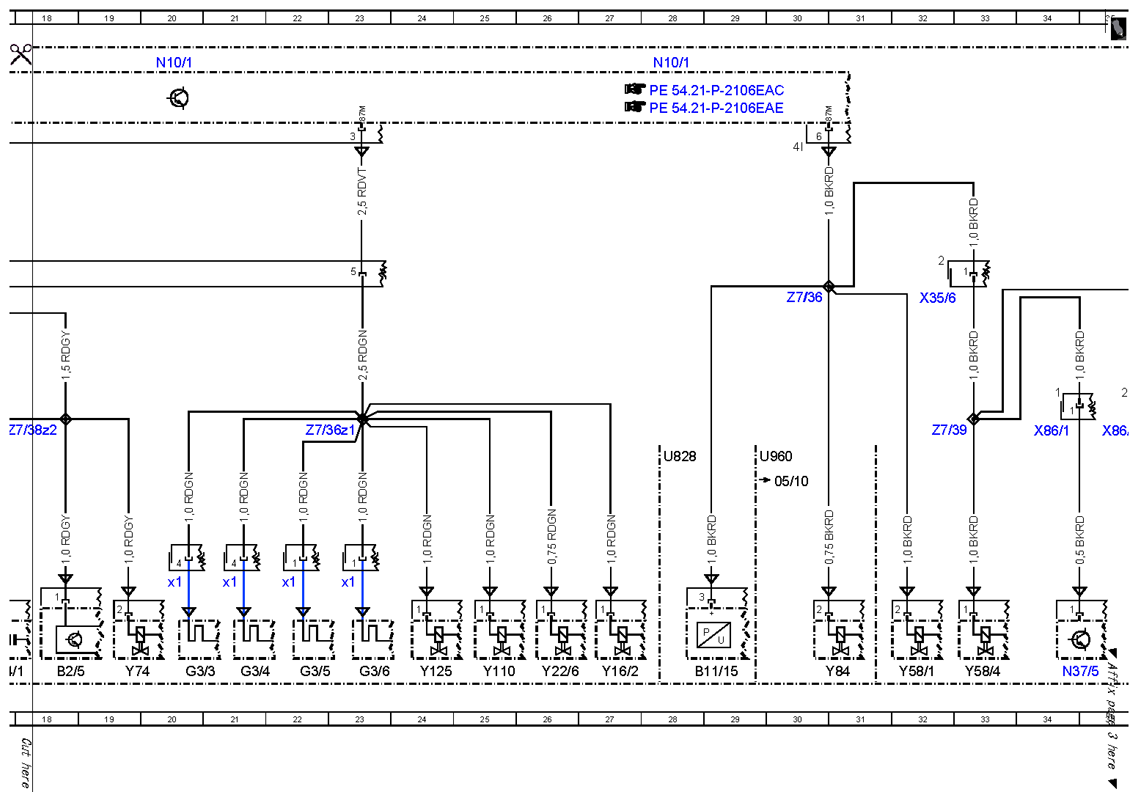

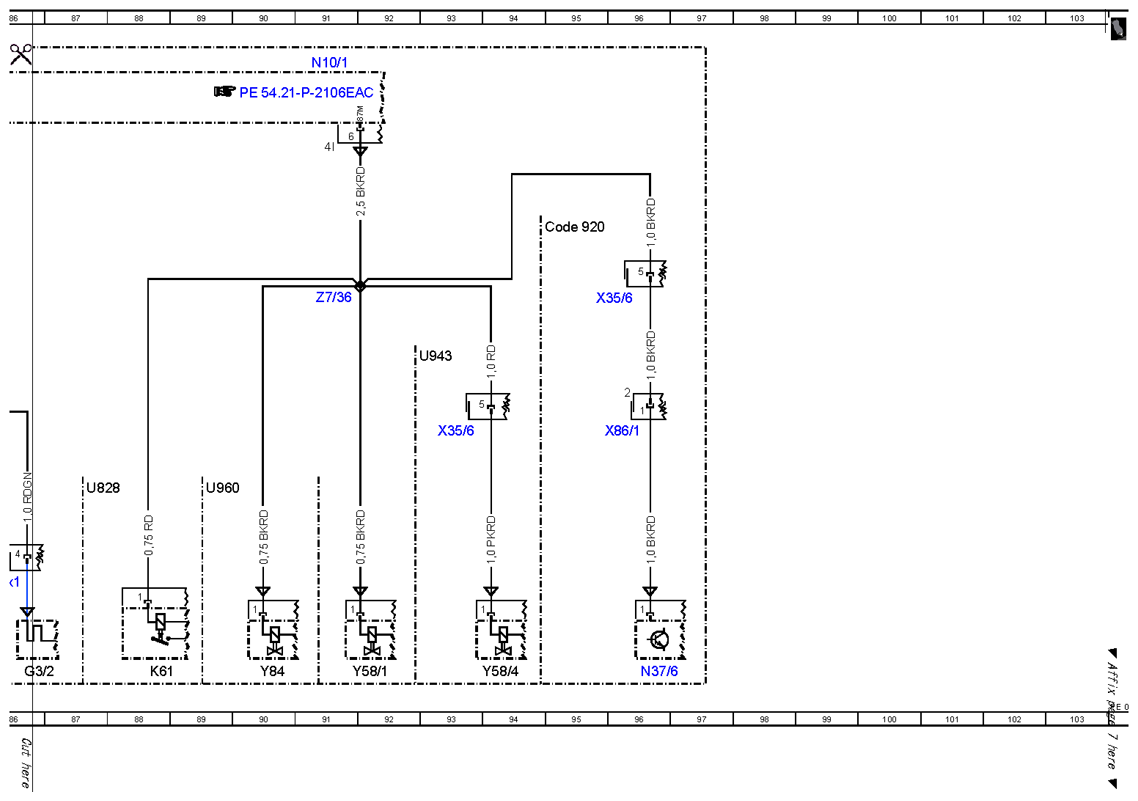

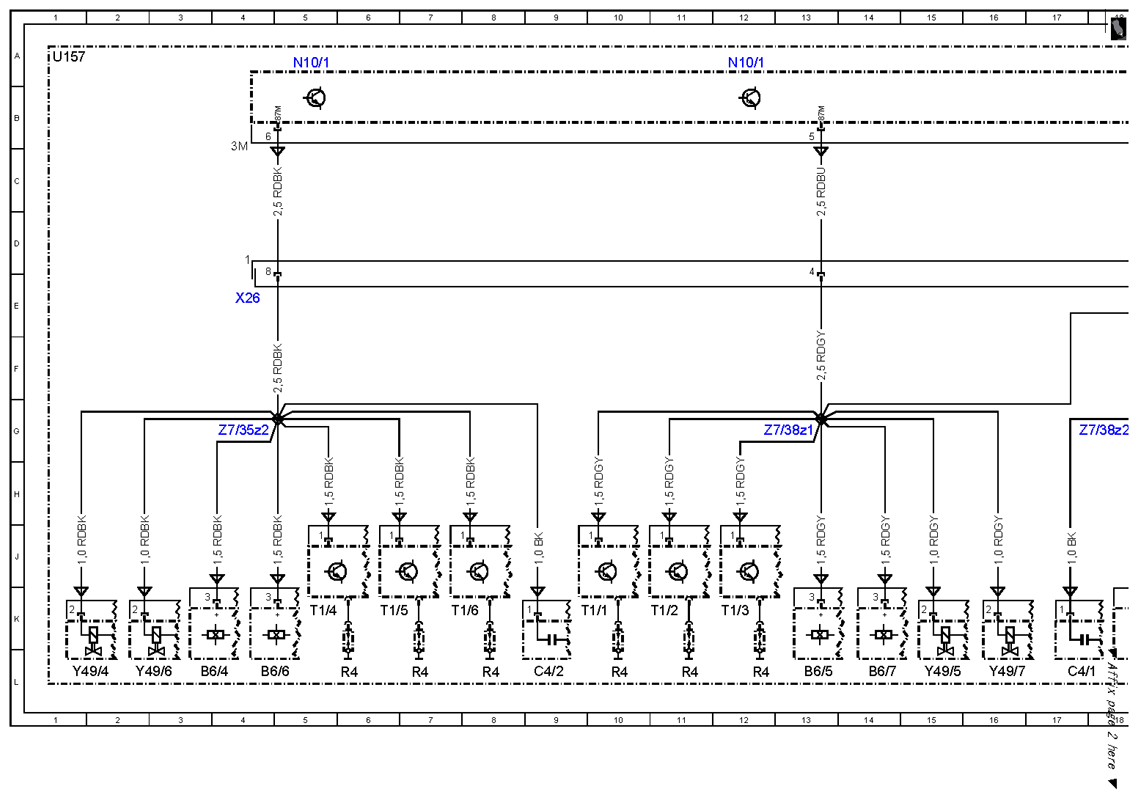

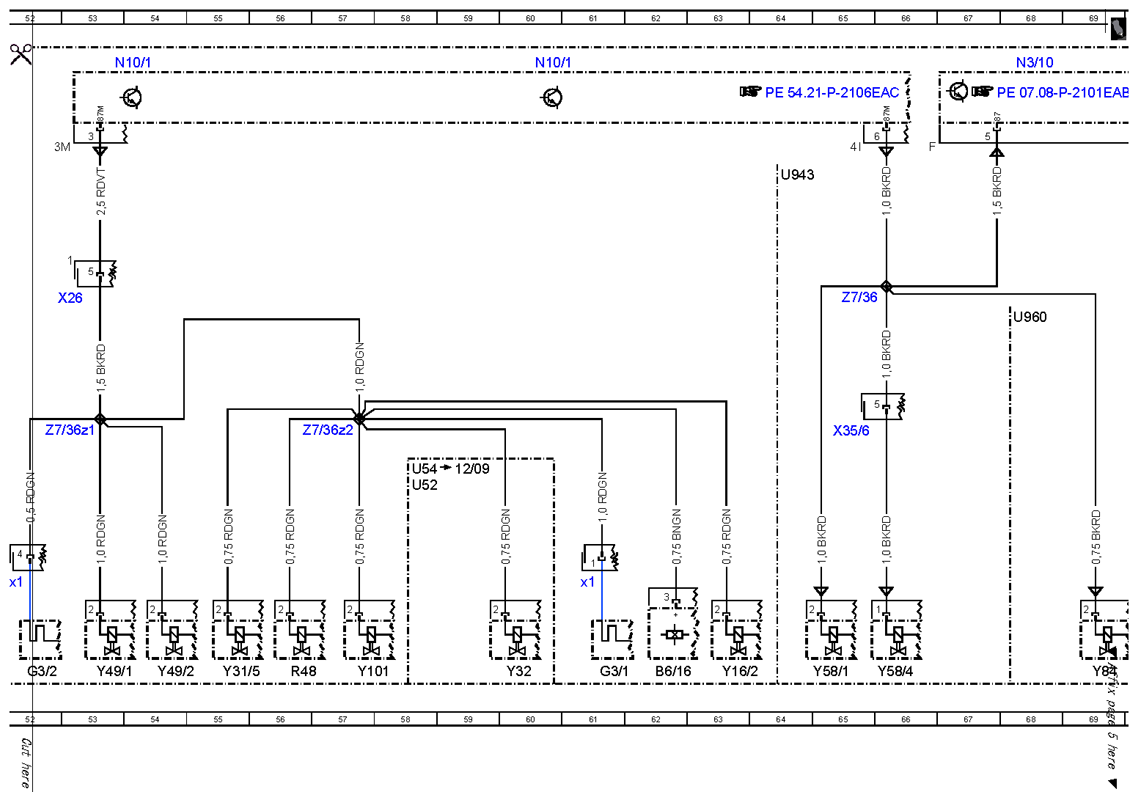

| A0 |
Color code key |
105L |
| B11/15 |
Radiator sensor for engine diagnosis |
29L |
| B11/15 |
Radiator sensor for engine diagnosis |
48L |
| B2/5 |
Hot film mass air flow sensor |
18L |
| B6/15 |
Intake camshaft Hall sensor |
72L |
| B6/16 |
Exhaust camshaft Hall sensor |
62L |
| B6/16 |
Exhaust camshaft Hall sensor |
73L |
| B6/4 |
Left intake camshaft Hall sensor |
3L |
| B6/5 |
Right intake camshaft Hall sensor |
13L |
| B6/6 |
Left exhaust camshaft Hall sensor |
4L |
| B6/7 |
Right exhaust camshaft Hall sensor |
14L |
| C4/1 |
Radio interference suppression capacitor 1 |
17L |
| C4/2 |
Radio interference suppression capacitor 2 |
9L |
| Code 920 |
Gasoline direct injection with stratified charge |
94D |
| G3/1 |
Oxygen sensor downstream of catalytic converter |
61L |
| G3/1 |
Oxygen sensor downstream of catalytic converter |
85L |
| G3/1x1 |
Electrical connector for oxygen sensor downstream of catalytic converter |
61J |
| G3/1x1 |
Electrical connector for oxygen sensor downstream of catalytic converter |
85J |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
52L |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
86L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
52J |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
86J |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
20L |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
37L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
20J |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
37J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
21L |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
38L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
21J |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
38J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
22L |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
39L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
22J |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
39J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
23L |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
40L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic |
23J |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
5A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
46A |
| N10/1 |
Front SAM control unit with fuse and relay module |
53A |
| N10/1 |
Front SAM control unit with fuse and relay module |
60A |
| N10/1 |
Front SAM control unit with fuse and relay module |
76A |
| N10/1 |
Front SAM control unit with fuse and relay module |
84A |
| N10/1 |
Front SAM control unit with fuse and relay module |
91A |
| N3/10 |
ME-SFI [ME] control unit |
68A |
| N37/5 |
Left nitrogen oxides control unit |
34L |
| N37/6 |
Right nitrogen oxides control unit |
36L |
| N37/6 |
Right nitrogen oxides control unit |
96L |
| R39/2 |
Full-load operation vent line heater element |
71L |
| R4 |
Spark plugs |
10L |
| R4 |
Spark plugs |
11L |
| R4 |
Spark plugs |
8L |
| R4 |
Spark plugs |
6L |
| R4 |
Spark plugs |
7L |
| R4 |
Spark plugs |
12L |
| R48 |
Coolant thermostat heating element |
56L |
| R48 |
Coolant thermostat heating element |
80L |
| T1/1 |
Cylinder 1 ignition coil |
9K |
| T1/2 |
Cylinder 2 ignition coil |
11K |
| T1/3 |
Cylinder 3 ignition coil |
12K |
| T1/4 |
Cylinder 4 ignition coil |
5K |
| T1/5 |
Cylinder 5 ignition coil |
6K |
| T1/6 |
Cylinder 6 ignition coil |
7K |
| U1 |
Valid for USA |
47D |
| U157 |
Valid for combustion engine 272 DE |
1A |
| U362 |
Valid for gasoline engine 274 |
70A |
| U484 |
Valid for gasoline engine 273 |
37B |
| U52 |
Valid for Japan |
58H |
| U54 |
Valid for all except Japan |
58H |
| U62 |
Valid for 4MATIC |
76H |
| U739 |
Valid for gasoline engine 271 DE |
51A |
| U819 |
Valid for gasoline engine 272 |
42H |
| U819 |
Valid for gasoline engine 272 |
37B |
| U828 |
Valid for SULEV |
28G |
| U828 |
Valid for SULEV |
47G |
| U828 |
Valid for SULEV |
87H |
| U943 |
Valid for South Korea |
64C |
| U943 |
Valid for South Korea |
92F |
| U960 |
Valid for radiator shutters |
29G |
| U960 |
Valid for radiator shutters |
89H |
| U960 |
Valid for radiator shutters |
68E |
| X205 |
Tumble flap and intake manifold switchover valves electrical connector |
45G |
| X26 |
Interior and engine wiring harness electrical connector |
53E |
| X26 |
Interior and engine wiring harness electrical connector |
4E |
| X26 |
Interior and engine wiring harness electrical connector |
43E |
| X26 |
Interior and engine wiring harness electrical connector |
73E |
| X35/6 |
Instrument panel and module box electrical connector |
32E |
| X35/6 |
Instrument panel and module box electrical connector |
50E |
| X35/6 |
Instrument panel and module box electrical connector |
65G |
| X35/6 |
Instrument panel and module box electrical connector |
93G |
| X35/6 |
Instrument panel and module box electrical connector |
96E |
| X86/1 |
Nitrogen oxides control unit electrical connector |
35G |
| X86/1 |
Nitrogen oxides control unit electrical connector |
34G |
| X86/1 |
Nitrogen oxides control unit electrical connector |
96G |
| Y101 |
Divert air switchover valve |
57L |
| Y101 |
Divert air switchover valve |
82L |
| Y110 |
Coolant thermostat |
25L |
| Y110 |
Coolant thermostat |
44L |
| Y123 |
Left switchable engine mount |
77L |
| Y123/1 |
Right switchable engine mount |
78L |
| Y125 |
Low-temperature circuit shutoff valve |
24L |
| Y130 |
Engine oil pump valve |
81L |
| Y133 |
Coolant pump switchover valve |
83L |
| Y16/2 |
Heating system shutoff valve |
27L |
| Y16/2 |
Heating system shutoff valve |
42L |
| Y16/2 |
Heating system shutoff valve |
63L |
| Y22/6 |
Intake manifold switchover valve |
26L |
| Y22/6 |
Intake manifold switchover valve |
45L |
| Y22/9 |
Intake manifold tumble flap switchover valve |
46L |
| Y31/5 |
Boost pressure control pressure transducer |
55L |
| Y31/5 |
Boost pressure control pressure transducer |
84L |
| Y32 |
Air pump switchover valve |
41L |
| Y32 |
Air pump switchover valve |
60L |
| Y49/1 |
Intake camshaft solenoid |
53L |
| Y49/2 |
Exhaust camshaft solenoid |
54L |
| Y49/4 |
Left intake camshaft solenoid |
1L |
| Y49/5 |
Right intake camshaft solenoid |
15L |
| Y49/6 |
Left exhaust camshaft solenoid |
2L |
| Y49/7 |
Right exhaust camshaft solenoid |
16L |
| Y58/1 |
Purge control valve |
32L |
| Y58/1 |
Purge control valve |
49L |
| Y58/1 |
Purge control valve |
65L |
| Y58/1 |
Purge control valve |
74L |
| Y58/1 |
Purge control valve |
92L |
| Y58/2 |
Partial load operation crankcase ventilation valve |
75L |
| Y58/4 |
Activated charcoal filter shutoff valve |
33L |
| Y58/4 |
Activated charcoal filter shutoff valve |
50L |
| Y58/4 |
Activated charcoal filter shutoff valve |
66L |
| Y58/4 |
Activated charcoal filter shutoff valve |
94L |
| Y74 |
Pressure regulator valve |
19L |
| Y84 |
Radiator shutters actuator |
31L |
| Y84 |
Radiator shutters actuator |
69L |
| Y84 |
Radiator shutters actuator |
90L |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
4G |
| Z7/36 |
Circuit 87 M2e connector sleeve |
30E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
49E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
65E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
91E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
53G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
23G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
39G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
73G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
43G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
57G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
82G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
13G |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
18G |
| Z7/39 |
Circuit 87 M2i connector sleeve |
32G |
| Z80z1 |
Cross section reduction connector sleeve |
50G |
