| A0 |
Color code key |
72L |
| A1 |
Instrument cluster |
15L |
| A2 |
Radio |
43L |
| A2 |
Radio |
51L |
| A40/3 |
COMAND control unit |
47L |
| A40/3 |
COMAND control unit |
51L |
| A98 |
Panoramic sliding roof control module |
63L |

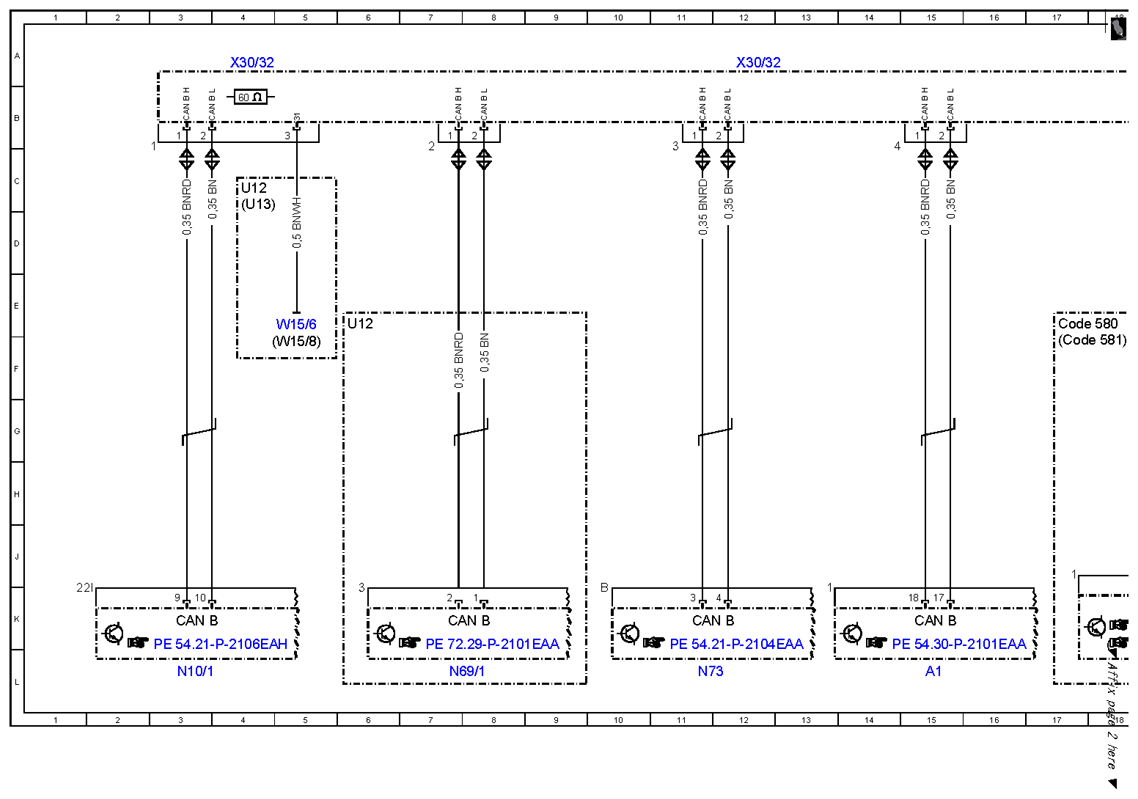

| CAN B |
Interior CAN |
11K |
| CAN B |
Interior CAN |
3K |

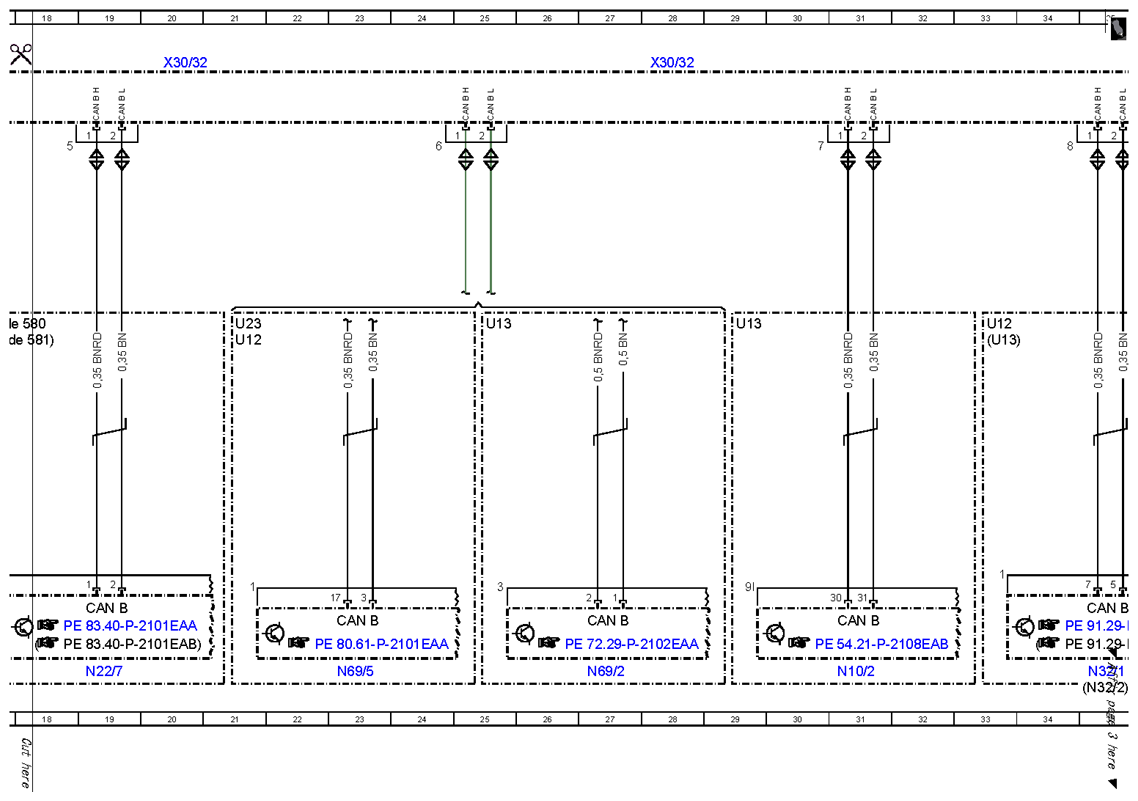

| CAN B |
Interior CAN |
19K |
| CAN B |
Interior CAN |
15K |
| CAN B |
Interior CAN |
31K |

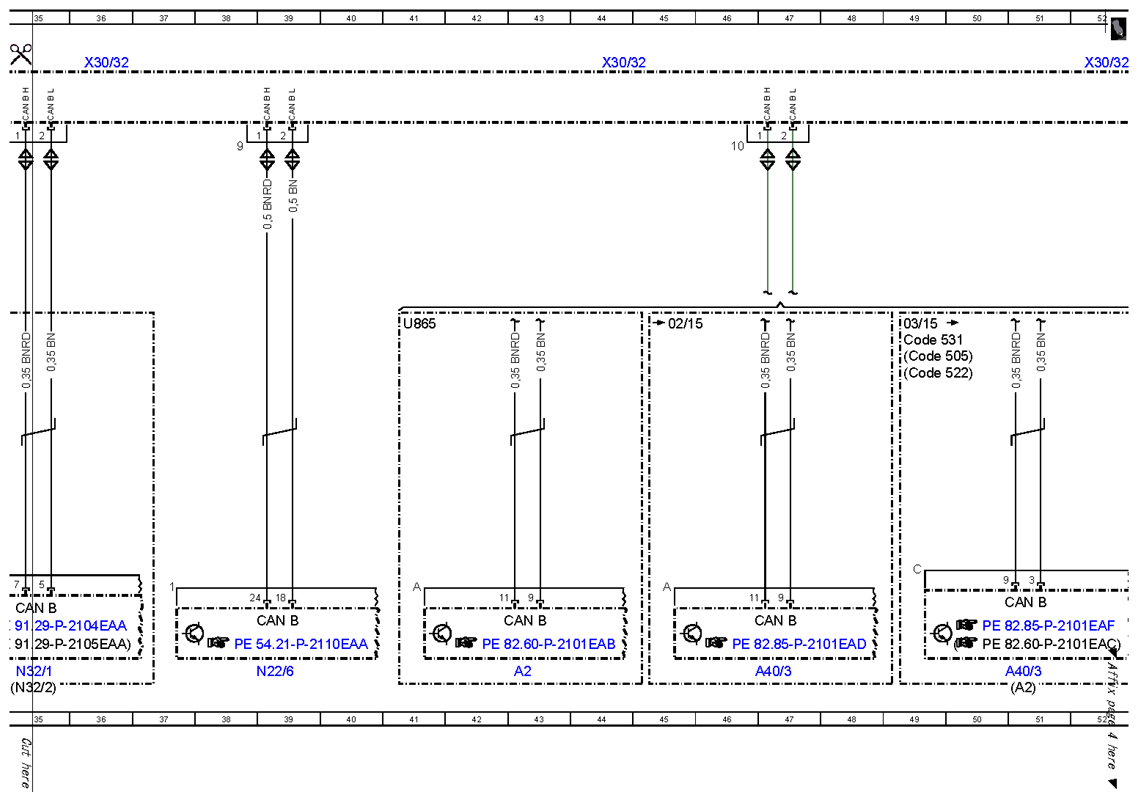

| CAN B |
Interior CAN |
35K |
| CAN B |
Interior CAN |
39K |
| CAN B |
Interior CAN |
47K |
| CAN B |
Interior CAN |
43K |
| CAN B |
Interior CAN |
55K |
| CAN B |
Interior CAN |
63K |

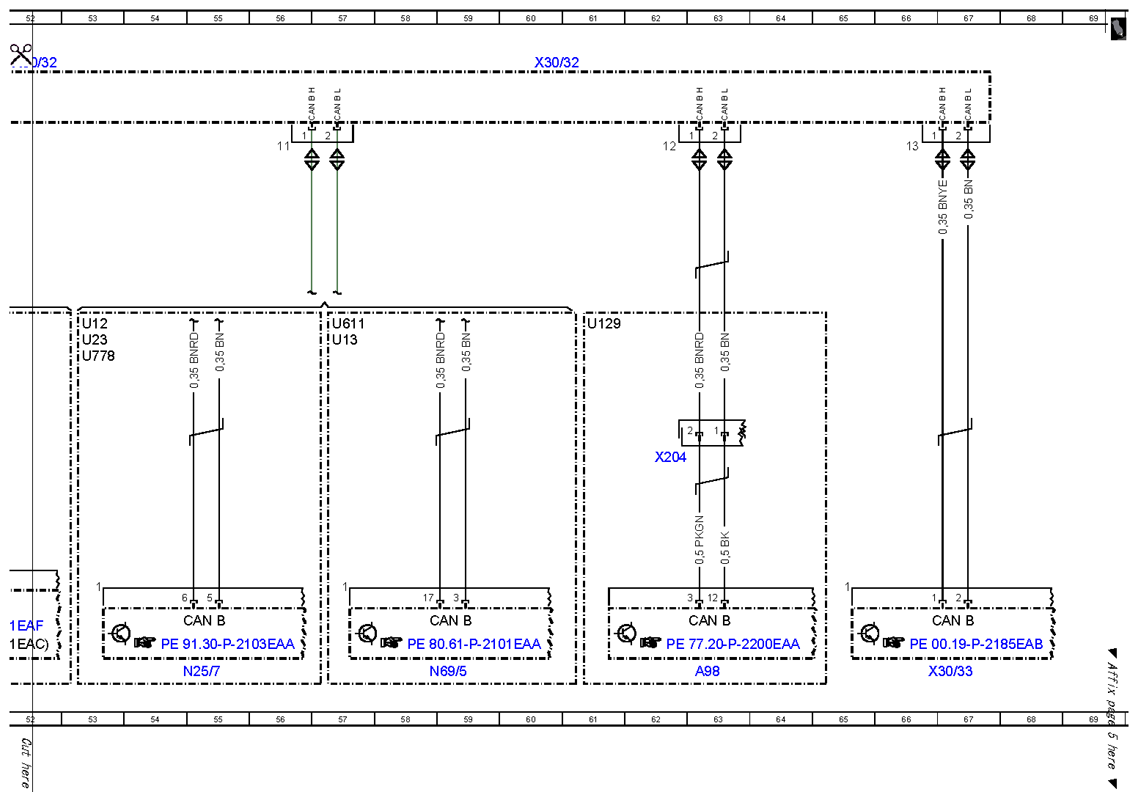

| CAN B |
Interior CAN |
67K |
| CAN B |
Interior CAN |
59K |
| CAN B |
Interior CAN |
7K |
| CAN B |
Interior CAN |
23K |
| CAN B |
Interior CAN |
27K |
| CAN B |
Interior CAN |
51K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
49F |
| Code 522 |
Audio 20 radio |
49F |
| Code 531 |
COMAND APS |
49F |
| Code 580 |
Automatic air conditioning |
17E |
| Code 581 |
Comfort automatic air conditioning |
17F |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
31L |
| N22/6 |
Rear control unit |
39L |
| N22/7 |
Automatic air conditioning control and operating unit |
19L |
| N25/7 |
AIRSCARF system control unit |
55L |
| N32/1 |
Driver seat control unit |
35L |
| N32/2 |
Front passenger seat control unit |
35L |
| N69/1 |
Left front door control unit |
7L |
| N69/2 |
Right front door control unit |
27L |
| N69/5 |
KEYLESS-GO control unit |
59L |
| N69/5 |
KEYLESS-GO control unit |
23L |
| N73 |
Electronic ignition switch control unit |
11L |
| U12 |
Valid for left-hand drive vehicles |
6E |
| U12 |
Valid for left-hand drive vehicles |
4C |
| U12 |
Valid for left-hand drive vehicles |
33E |
| U12 |
Valid for left-hand drive vehicles |
53E |
| U12 |
Valid for left-hand drive vehicles |
21F |
| U129 |
Valid for panoramic sliding roof |
61E |
| U13 |
Valid for right-hand drive vehicles |
33F |
| U13 |
Valid for right-hand drive vehicles |
4C |
| U13 |
Valid for right-hand drive vehicles |
29E |
| U13 |
Valid for right-hand drive vehicles |
57F |
| U13 |
Valid for right-hand drive vehicles |
25E |
| U23 |
Valid for convertibles |
53F |
| U23 |
Valid for convertibles |
21E |
| U611 |
Valid for Coupe |
57E |
| U778 |
Valid for heated seats and seat ventilation |
53F |
| U865 |
Valid for Audio 20 |
41E |
| W15/6 |
Ground point (left front footwell CAN) |
5E |
| W15/8 |
Ground point (right front footwell CAN) |
5F |
| X204 |
Panoramic sliding roof electrical connector |
62H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
4A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
12A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
20A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
28A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
36A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
44A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
60A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
52A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
67L |
