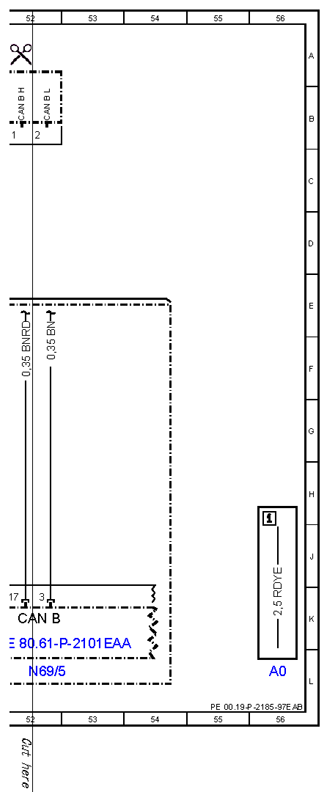

| A0 |
Color code key |
56L |
| A6 |
Stationary heater unit |
44L |

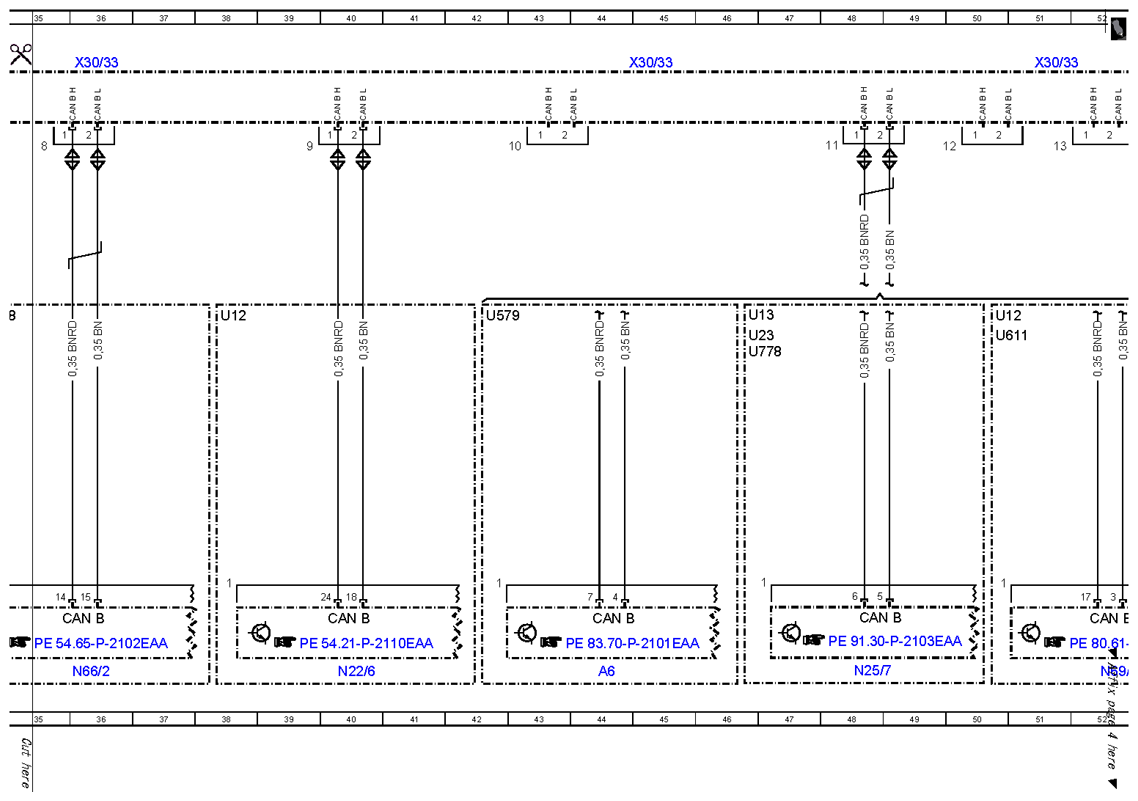

| CAN B |
Interior CAN |
7K |
| CAN B |
Interior CAN |
3K |
| CAN B |
Interior CAN |
11K |
| CAN B |
Interior CAN |
19K |
| CAN B |
Interior CAN |
27K |
| CAN B |
Interior CAN |
36K |
| CAN B |
Interior CAN |
44K |
| CAN B |
Interior CAN |
48K |
| CAN B |
Interior CAN |
23K |
| CAN B |
Interior CAN |
31K |
| CAN B |
Interior CAN |
52K |
| CAN B |
Interior CAN |
15K |
| CAN B |
Interior CAN |
40K |
| Code 218 |
Backup camera |
34E |
| Code 242 |
Electrically adjustable front passenger seat with memory function |
5E |
| Code 494 |
USA version |
17E |

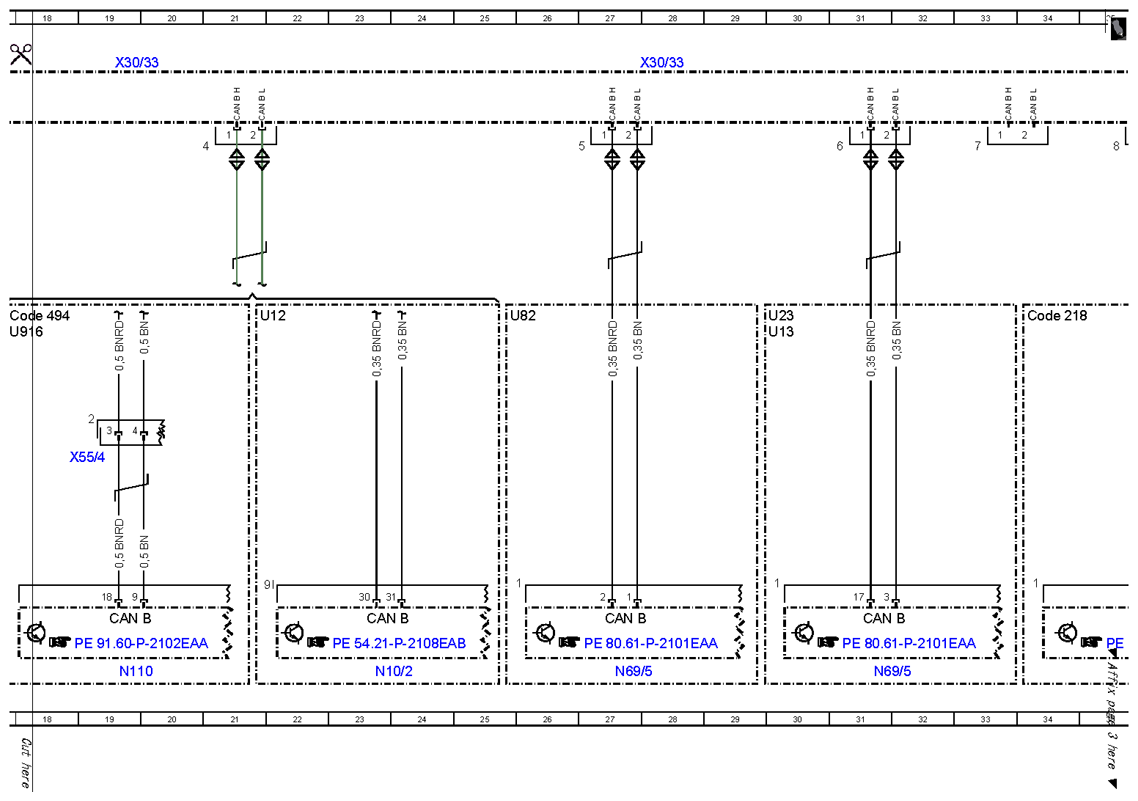

| N10/2 |
Rear SAM control unit with fuse and relay module |
23L |
| N110 |
Weight Sensing System (WSS) control unit |
19L |
| N22/6 |
Rear control unit |
40L |
| N25/7 |
AIRSCARF system control unit |
48L |
| N32/1 |
Driver seat control unit |
7L |
| N32/2 |
Front passenger seat control unit |
7L |
| N66/2 |
Backup camera control unit |
36L |
| N69/1 |
Left front door control unit |
11L |
| N69/2 |
Right front door control unit |
15L |
| N69/5 |
KEYLESS-GO control unit |
27L |
| N69/5 |
KEYLESS-GO control unit |
31L |
| N69/5 |
KEYLESS-GO control unit |
52L |
| U12 |
Valid for left-hand drive vehicles |
5E |
| U12 |
Valid for left-hand drive vehicles |
21E |
| U12 |
Valid for left-hand drive vehicles |
50E |
| U12 |
Valid for left-hand drive vehicles |
13E |
| U12 |
Valid for left-hand drive vehicles |
38E |
| U13 |
Valid for right-hand drive vehicles |
5F |
| U13 |
Valid for right-hand drive vehicles |
46E |
| U13 |
Valid for right-hand drive vehicles |
30E |
| U13 |
Valid for right-hand drive vehicles |
9E |
| U23 |
Valid for convertibles |
46F |
| U23 |
Valid for convertibles |
30E |
| U579 |
Valid for stationary heater |
42E |
| U611 |
Valid for Coupe |
50F |
| U778 |
Valid for heated seats and seat ventilation |
46F |
| U82 |
Valid for KEYLESS GO |
25E |
| U916 |
Valid for weight sensing system (WSS) |
17E |

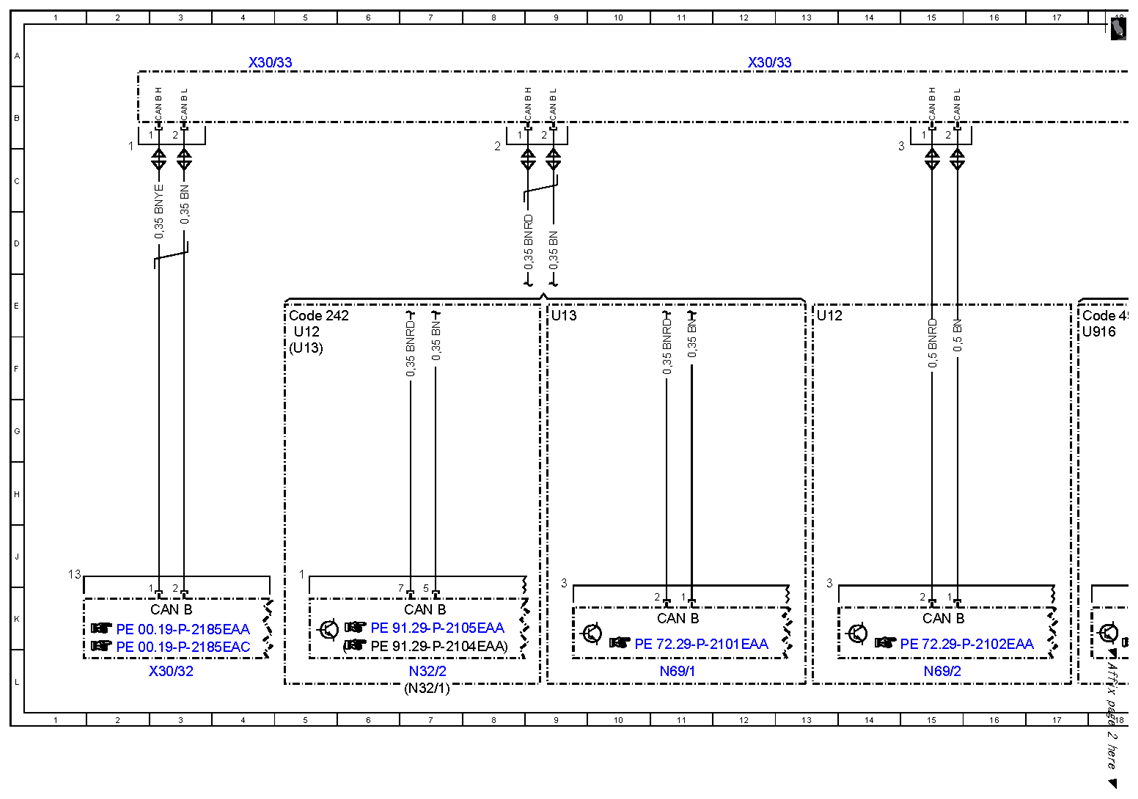

| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
3L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
28A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
4A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
12A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
36A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
45A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
19A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
51A |
| X55/4 |
Front passenger seat connector block |
19G |
