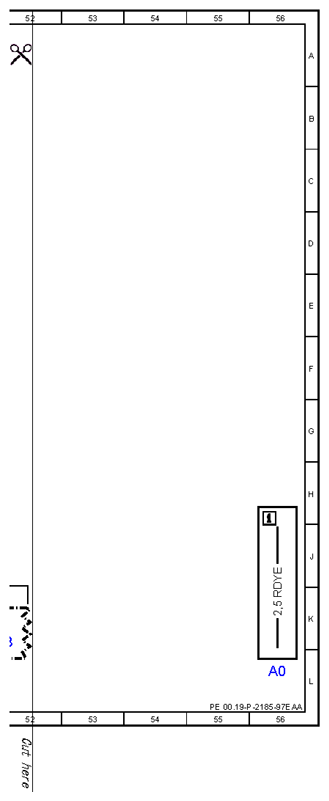

| A0 |
Color code key |
56L |
| A1 |
Instrument cluster |
14L |
| A2 |
Radio |
35L |
| A2 |
Radio |
35L |
| A2/56 |
Radio with auto pilot system |
34L |
| A40/3 |
COMAND control unit |
39L |
| A98 |
Panoramic sliding roof control module |
47L |
| CAN A |
Telematics CAN |
34K |
| CAN B |
Interior CAN |
11K |
| CAN B |
Interior CAN |
2K |
| CAN B |
Interior CAN |
7K |
| CAN B |
Interior CAN |
26K |
| CAN B |
Interior CAN |
18K |
| CAN B |
Interior CAN |
14K |
| CAN B |
Interior CAN |
22K |
| CAN B |
Interior CAN |
46K |
| CAN B |
Interior CAN |
30K |
| CAN B |
Interior CAN |
43K |
| CAN B |
Interior CAN |
39K |
| CAN B |
Interior CAN |
50K |
| Code 498 |
Japan version |
37F |
| Code 580 |
Automatic air conditioning |
16E |
| Code 581 |
Comfort automatic air conditioning |
16F |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
22L |
| N22/6 |
Rear control unit |
30L |
| N22/7 |
Automatic air conditioning control and operating unit |
18L |
| N25/7 |
AIRSCARF system control unit |
43L |
| N32/1 |
Driver seat control unit |
26L |
| N32/2 |
Front passenger seat control unit |
26L |
| N69/1 |
Left front door control unit |
7L |
| N69/2 |
Right front door control unit |
6L |
| N73 |
Electronic ignition switch control unit |
11L |
| U12 |
Valid for left-hand drive vehicles |
5E |
| U12 |
Valid for left-hand drive vehicles |
3C |
| U12 |
Valid for left-hand drive vehicles |
25E |
| U12 |
Valid for left-hand drive vehicles |
41E |
| U129 |
Valid for panoramic sliding roof |
45E |
| U13 |
Valid for right-hand drive vehicles |
5F |
| U13 |
Valid for right-hand drive vehicles |
3C |
| U13 |
Valid for right-hand drive vehicles |
20E |
| U13 |
Valid for right-hand drive vehicles |
24F |
| U23 |
Valid for convertibles |
41F |
| U54 |
Valid for all except Japan |
37E |
| U778 |
Valid for heated seats and seat ventilation |
41F |
| U865 |
Valid for Audio 20 |
32E |
| U865 |
Valid for Audio 20 |
32F |
| U866 |
Valid for Audio 50 |
32F |
| W15/6 |
Ground point (left front footwell CAN) |
3E |
| W15/8 |
Ground point (right front footwell CAN) |
3F |
| X204 |
Panoramic sliding roof electrical connector |
46H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
3A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
13A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
21A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
27A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
36A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
44A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
50A |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
50L |
