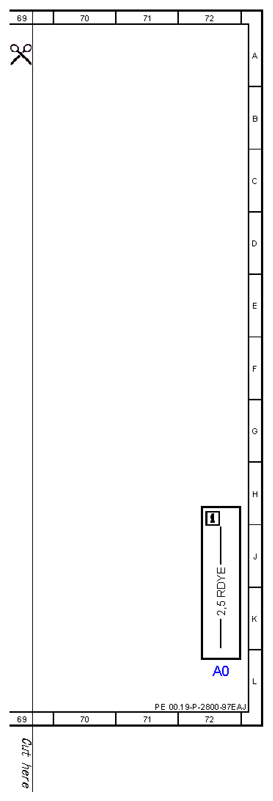

| A0 |
Color code key |
72L |
| A103/1 |
AdBlue® tank module |
56L |
| A103/1r1 |
AdBlue® tank heating element |
56K |
| A90/1 |
TV tuner (analog/digital) |
20A |
| A90/3 |
TV digital tuner |
20A |
| B29/4 |
Left rear bumper intelligent radar sensor |
60L |
| B29/5 |
Right rear bumper intelligent radar sensor |
58L |
| B29/6 |
Left rear bumper radar sensor |
64L |
| B29/7 |
Right rear bumper radar sensor |
62L |
| B4/1 |
Left fuel level indicator sensor |
2L |
| B4/2 |
Right fuel level indicator sensor |
3L |
| Code 494 |
USA version |
14A |
| Code 501 |
360 degree camera |
10A |
| Code 863 |
Digital/analog TV tuner |
17B |
| Code 865 |
TV tuner (digital) |
17B |
| Code 889 |
KEYLESS-GO |
21G |
| Code 889 |
KEYLESS-GO |
22A |
| Code B03 |
ECO start/stop function |
36G |
| Code B03 |
ECO start/stop function |
41G |
| Code B03 |
ECO start/stop function |
45G |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
49D |
| E18/4 |
Right luggage compartment lamp |
15L |
| E19/1 |
Left license plate lamp |
30L |
| E19/2 |
Right license plate lamp |
31L |
| E21 |
Center stop lamp |
29L |
| E21x1 |
Center brake lamp electrical connector |
29J |

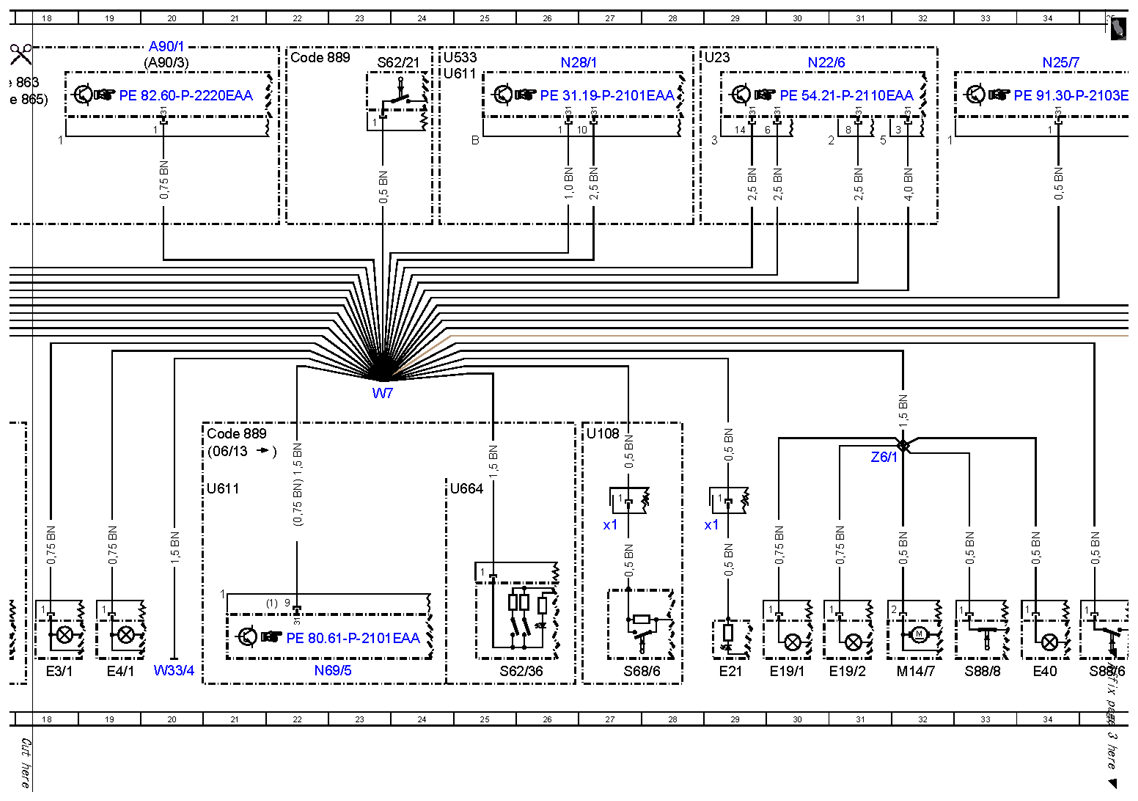

| E3 |
Left rear lamp unit |
16L |
| E3/1 |
Inner left rear lamp unit |
18L |
| E4 |
Right rear lamp unit |
17L |
| E4/1 |
Inner right rear lamp unit |
19L |
| E40 |
Trunk lid ambient lamp |
34L |
| E6/3 |
Left rear side-marker lamp |
16L |
| E6/4 |
Right rear side-marker lamp |
17L |

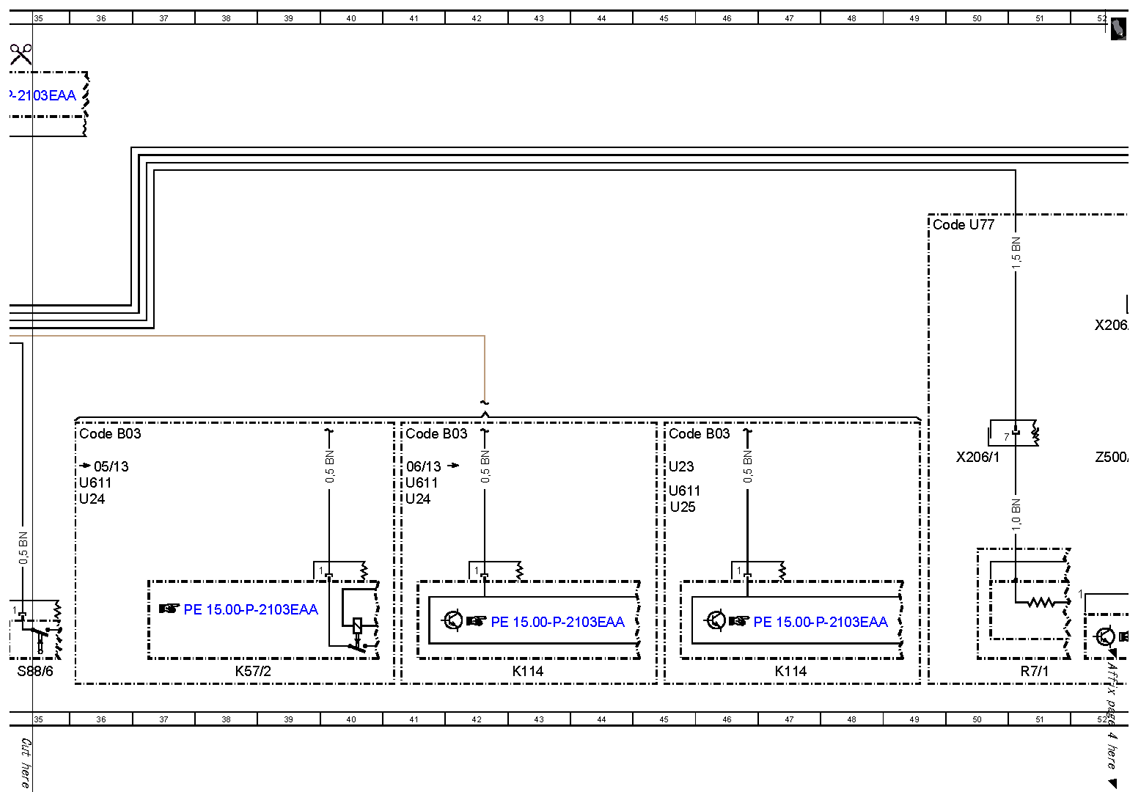

| K114 |
ECO start/stop function additional battery relay |
43L |
| K114 |
ECO start/stop function additional battery relay |
47L |
| K57/2 |
Additional battery relay |
38L |
| M14/7 |
Trunk lid central locking motor |
32L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N148 |
360° camera control unit |
12A |

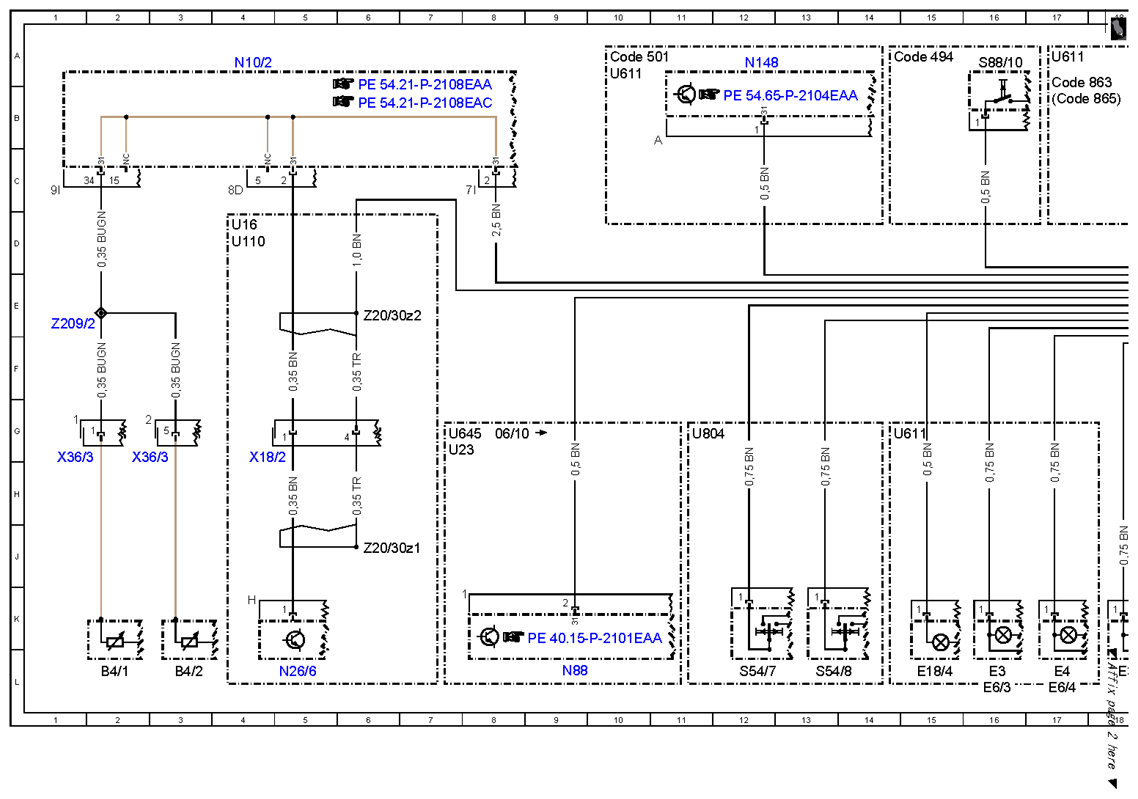

| N22/6 |
Rear control unit |
30A |
| N25/7 |
AIRSCARF system control unit |
34A |
| N26/6 |
Interior protection and tow-away protection control unit |
5L |
| N28/1 |
Trailer recognition control unit |
26A |

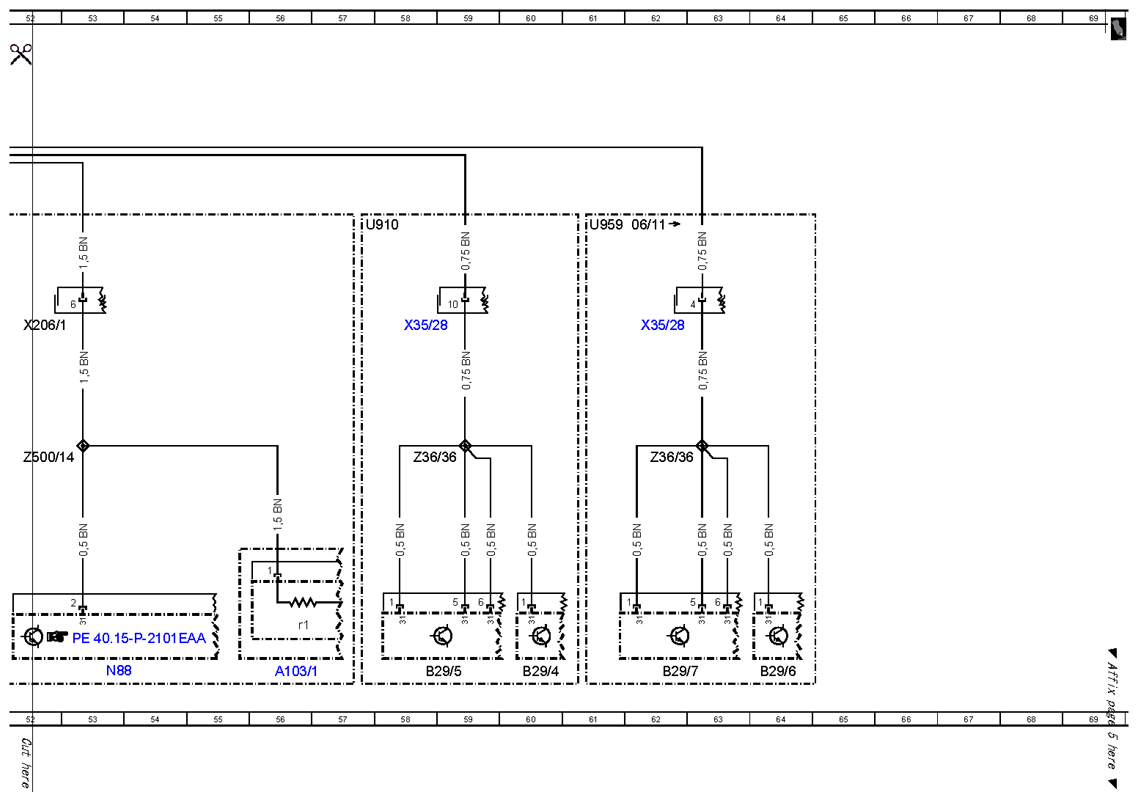

| N69/5 |
KEYLESS-GO control unit |
22L |
| N88 |
Tire pressure monitor control unit |
9L |
| N88 |
Tire pressure monitor control unit |
53L |
| R7/1 |
AdBlue® metering line heater |
51L |
| S54/7 |
Left rear backrest lock switch |
12L |
| S54/8 |
Right rear backrest lock switch |
13L |
| S62/21 |
Trunk lid KEYLESS GO button |
23A |
| S62/36 |
Trunk lid control button |
25L |
| S68/6 |
Right rear seat belt buckle switch |
27L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
27J |
| S88/10 |
Trunk lid emergency opening switch |
16A |
| S88/6 |
Trunk lid contact switch |
35L |
| S88/8 |
Trunk lid external operation switch |
33L |
| U108 |
Valid for rear seat belt buckles |
27G |
| U110 |
Valid for overhead control panel with CAN |
4D |
| U16 |
Valid for ATA [EDW] with tow-away protection and interior protection |
4D |
| U23 |
Valid for convertibles |
29A |
| U23 |
Valid for convertibles |
7G |
| U23 |
Valid for convertibles |
45H |
| U24 |
Valid for manual transmission |
36H |
| U24 |
Valid for manual transmission |
41H |
| U25 |
Valid for automatic transmission |
45H |
| U533 |
Valid for trailer hitch |
24A |
| U611 |
Valid for Coupe |
14G |
| U611 |
Valid for Coupe |
21H |
| U611 |
Valid for Coupe |
10A |
| U611 |
Valid for Coupe |
17A |
| U611 |
Valid for Coupe |
24A |
| U611 |
Valid for Coupe |
36H |
| U611 |
Valid for Coupe |
41H |
| U611 |
Valid for Coupe |
45H |
| U645 |
Valid for tire pressure monitor |
7G |
| U664 |
Valid for automatic trunk lid |
24H |
| U804 |
Valid for rear backrest adjustment |
11G |
| U910 |
Valid for Blind Spot Assist |
57D |
| U959 |
Valid for video and radar sensor system control unit |
61D |
| W33/4 |
Fuel tank filler neck ground point |
20L |
| W7 |
Right wheelhouse trunk ground point |
23F |
| X18/2 |
Interior/roof electrical connector |
4H |
| X206/1 |
AdBlue® tank module electrical connector |
50H |
| X206/1 |
AdBlue® tank module electrical connector |
52E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
58E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
62E |
| X36/3 |
Fuel pump harness electrical connector |
1H |
| X36/3 |
Fuel pump harness electrical connector |
3H |
| Z20/30z1 |
Tracer wire connector sleeve |
6J |
| Z20/30z2 |
Tracer wire connector sleeve |
6E |
| Z209/2 |
Fuel pump control unit connector sleeve |
1E |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
58G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
62G |
| Z500/14 |
Circuit 31 connector sleeve |
52G |
| Z6/1 |
Circuit 31 connector sleeve |
31G |
