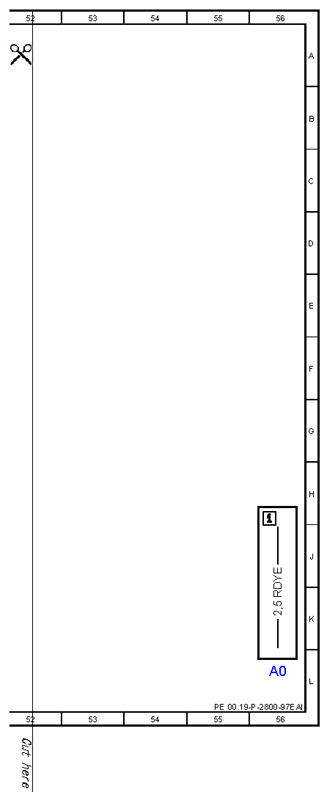

| A0 |
Color code key |
56L |
| A40/11 |
Multifunction camera |
22L |
| A76/1 |
Right front reversible emergency tensioning retractor |
11A |
| B48 |
Front passenger seat occupied recognition and ACSR |
35L |
| Code 238 |
Active Lane Keeping Assist |
20F |
| Code 476 |
Automatic lane detection |
20F |
| Code 494 |
USA version |
30F |
| Code 513 |
Speed Limit Assist |
20F |
| Code 608 |
Adaptive Highbeam Assist |
20G |
| Code B03 |
ECO start/stop function |
47D |
| Code U10 |
Weight sensing system (WSS) |
30F |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
34F |
| E17/17 |
Right rear footwell lamp |
6L |
| M3 |
Fuel pump (FP) |
8L |
| M42 |
Electric transmission oil pump |
48L |
| M96/2 |
Wind deflector actuator motor |
19L |
| M96/2x1 |
Wind deflector actuator motor electrical connector |
19J |
| N110 |
Weight Sensing System (WSS) control unit |
32L |
| N32/2 |
Front passenger seat control unit |
7A |
| N37/5 |
Left nitrogen oxides control unit |
38L |
| N37/6 |
Right nitrogen oxides control unit |
40L |
| N69/2 |
Right front door control unit |
15A |
| R12/10 |
Front passenger sidebag squib |
36L |
| R12/41 |
Driver pelvis airbag squib |
25L |
| R12/42 |
Front passenger pelvis airbag squib |
25L |
| R12/9 |
Driver sidebag squib |
46L |
| R13/3 |
Right front seat sitting surface heated cushion |
18L |
| R13/4 |
Right front backrest heated cushion |
16L |
| R13/4x1 |
Right front backrest heater pad electrical connector |
16K |
| R3 |
Front cigarette lighter with ashtray illumination |
4L |
| R3e1 |
Ashtray illumination |
3L |
| R3r1 |
Cigarette lighter heating element |
4L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
3J |
| S10/2 |
Right front brake wear sensor |
9L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
8K |
| S10/4 |
Right rear brake wear sensor |
10L |
| S10/4x1 |
Right rear brake wear sensor electrical connector |
10K |
| S22 |
Left front seat adjustment switch group |
44L |
| S22/1 |
Driver seat partially electric seat adjustment switch |
42L |
| S23 |
Right front seat adjustment switch group |
29L |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
27L |
| S54/6 |
Right rear backrest inclination switch |
13L |
| S84/18 |
Soft top limit switch in catch position |
11L |
| U112 |
Valid for footwell lamps |
5F |
| U12 |
Valid for left-hand drive vehicles |
5E |
| U12 |
Valid for left-hand drive vehicles |
25D |
| U12 |
Valid for left-hand drive vehicles |
26D |
| U13 |
Valid for right-hand drive vehicles |
20F |
| U13 |
Valid for right-hand drive vehicles |
25D |
| U13 |
Valid for right-hand drive vehicles |
41D |
| U157 |
Valid for combustion engine 272 DE |
37D |
| U2 |
Valid for all except USA |
34F |
| U21 |
Valid for heated seats |
15F |
| U23 |
Valid for convertibles |
11F |
| U23 |
Valid for convertibles |
19F |
| U25 |
Valid for automatic transmission |
47D |
| U284 |
Valid for fully electric seat adjustment |
28F |
| U284 |
Valid for fully electric seat adjustment |
43F |
| U285 |
Valid for partially electric driver seat adjustment |
41F |
| U286 |
Valid for partially electric front passenger seat adjustment |
26F |
| U325 |
Valid for smoker package |
2G |
| U326 |
Valid for nonsmoker package |
1G |
| U775 |
Valid for emergency tensioning retractor |
9A |
| U804 |
Valid for rear backrest adjustment |
12F |
| U856 |
Valid for rear socket |
14F |
| U958 |
Valid for pelvis airbag |
25D |
| W19 |
Right front seat crossmember ground point |
16E |
| X173/1 |
Driver pelvis airbag electrical connector |
25H |
| X173/2 |
Front passenger pelvis airbag electrical connector |
25G |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
34H |
| X36/3 |
Fuel pump harness electrical connector |
7G |
| X55/3 |
Driver seat connector block |
25F |
| X55/3 |
Driver seat connector block |
43E |
| X55/3 |
Driver seat connector block |
45E |
| X55/4 |
Front passenger seat connector block |
5G |
| X55/4 |
Front passenger seat connector block |
16H |
| X55/4 |
Front passenger seat connector block |
25E |
| X55/4 |
Front passenger seat connector block |
27E |
| X55/4 |
Front passenger seat connector block |
33E |
| X58/1 |
Vehicle interior power outlet |
15L |
| X58/17 |
Front vehicle interior power outlet |
2L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
1J |
| X62/33 |
Rear axle electrical connector, right distributor |
10H |
| X62/6 |
Front axle electrical connector, right distributor |
8H |
| X86/1 |
Nitrogen oxides control unit electrical connector |
38E |
| X86/1 |
Nitrogen oxides control unit electrical connector |
39E |
| Z6/40 |
NOx sensor connector sleeve |
38G |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
44G |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
28G |
