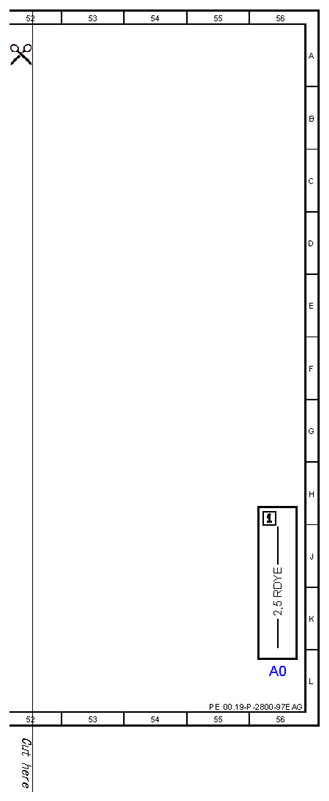

| A0 |
Color code key |
56L |
| A38/1 |
Pedestrian protection Hall sensor + engine hood ATA [EDW] switch |
38L |

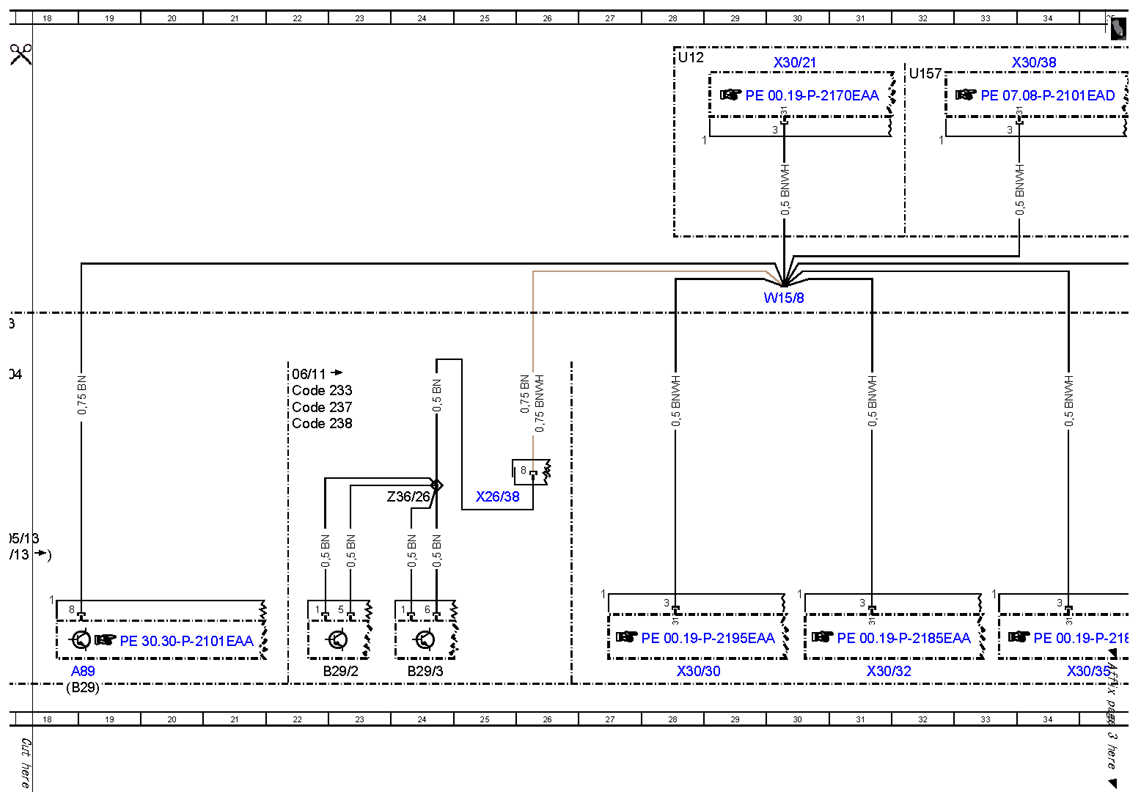

| A89 |
DISTRONIC electric controller unit |
18L |
| B29 |
Front long-range radar sensor |
18L |
| B29/2 |
DISTRONIC sensor (DTR)/left front bumper |
23L |
| B29/3 |
DISTRONIC sensor (DTR)/right front bumper |
24L |
| C4/1 |
Radio interference suppression capacitor 1 |
3A |
| C4/1 |
Radio interference suppression capacitor 1 |
10A |
| C4/2 |
Radio interference suppression capacitor 2 |
7A |
| C4/2 |
Radio interference suppression capacitor 2 |
15A |
| Code 233 |
DISTRONIC PLUS |
22F |
| Code 237 |
Active Blind Spot Assist |
22G |
| Code 238 |
Active Lane Keeping Assist |
22G |
| Code U60 |
Pedestrian protection |
37F |
| M33 |
Electric air pump |
5A |
| M33 |
Electric air pump |
12A |
| R4 |
Spark plugs |
5L |
| R4 |
Spark plugs |
4L |
| R4 |
Spark plugs |
3L |
| R4 |
Spark plugs |
2L |
| R4 |
Spark plugs |
7L |
| R4 |
Spark plugs |
6L |
| R4 |
Spark plugs |
9L |
| R4 |
Spark plugs |
10L |
| R4 |
Spark plugs |
14L |
| R4 |
Spark plugs |
12L |
| R4 |
Spark plugs |
13L |
| R4 |
Spark plugs |
11L |
| R4 |
Spark plugs |
16L |
| R4 |
Spark plugs |
15L |

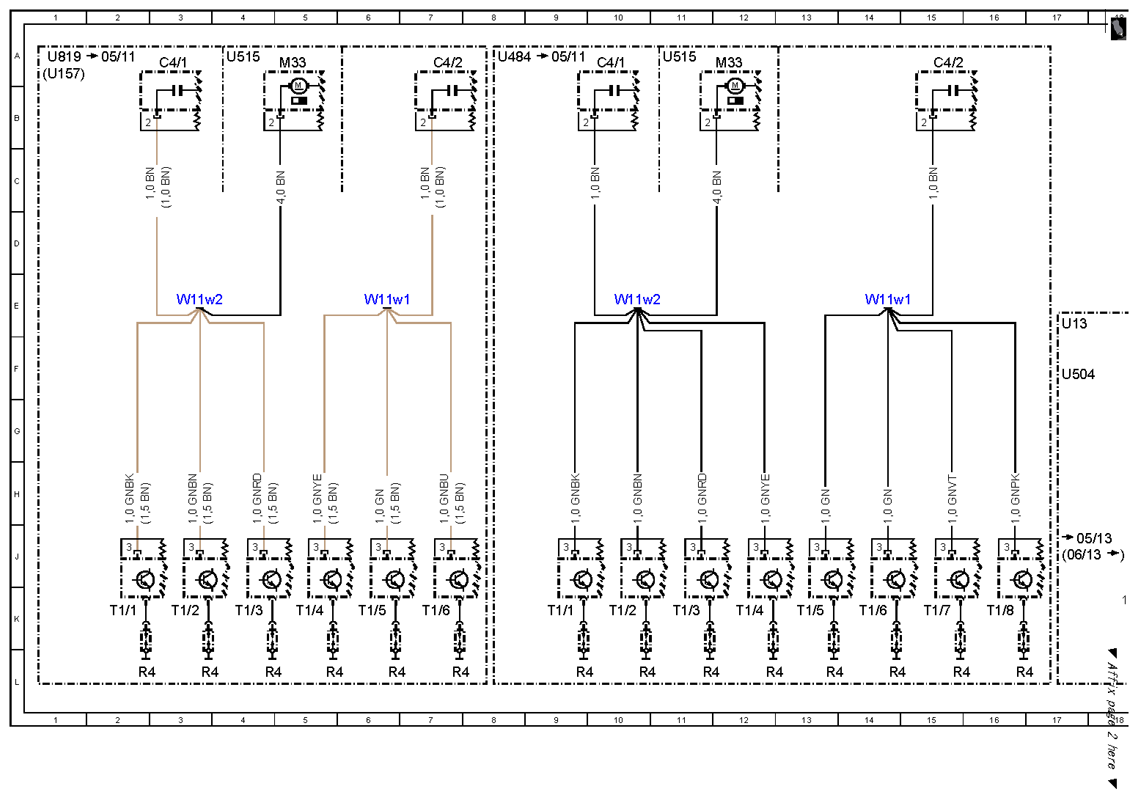

| T1/1 |
Cylinder 1 ignition coil |
2K |
| T1/1 |
Cylinder 1 ignition coil |
9K |
| T1/2 |
Cylinder 2 ignition coil |
3K |
| T1/2 |
Cylinder 2 ignition coil |
10K |
| T1/3 |
Cylinder 3 ignition coil |
4K |
| T1/3 |
Cylinder 3 ignition coil |
11K |
| T1/4 |
Cylinder 4 ignition coil |
5K |
| T1/4 |
Cylinder 4 ignition coil |
12K |
| T1/5 |
Cylinder 5 ignition coil |
6K |
| T1/5 |
Cylinder 5 ignition coil |
13K |
| T1/6 |
Cylinder 6 ignition coil |
7K |
| T1/6 |
Cylinder 6 ignition coil |
14K |
| T1/7 |
Cylinder 7 ignition coil |
15K |
| T1/8 |
Cylinder 8 ignition coil |
16K |
| U12 |
Valid for left-hand drive vehicles |
28A |
| U12 |
Valid for left-hand drive vehicles |
41H |
| U13 |
Valid for right-hand drive vehicles |
17E |
| U13 |
Valid for right-hand drive vehicles |
42A |
| U157 |
Valid for combustion engine 272 DE |
1A |
| U157 |
Valid for combustion engine 272 DE |
32A |
| U157 |
Valid for combustion engine 272 DE |
46A |
| U484 |
Valid for gasoline engine 273 |
8A |
| U504 |
Valid for DISTRONIC |
17F |
| U515 |
Valid for secondary air injection |
4A |
| U515 |
Valid for secondary air injection |
11A |
| U819 |
Valid for gasoline engine 272 |
1A |
| W11w1 |
Left cylinder bank ground point (engine) |
6E |
| W11w1 |
Left cylinder bank ground point (engine) |
14E |
| W11w2 |
Right cylinder bank ground point (engine) |
3E |
| W11w2 |
Right cylinder bank ground point (engine) |
10E |

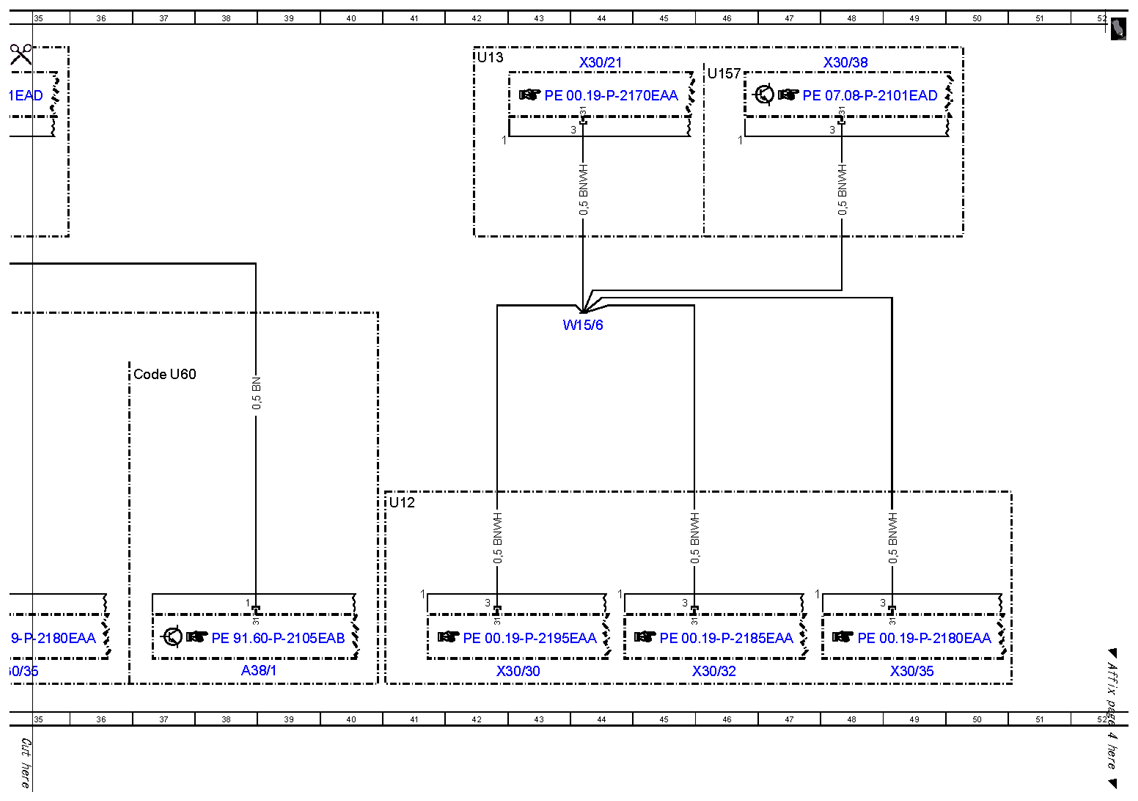

| W15/6 |
Ground point (left front footwell CAN) |
44E |
| W15/8 |
Ground point (right front footwell CAN) |
30E |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
25H |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
30A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
44A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
28L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
42L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
31L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
46L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
34L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
49L |
| X30/38 |
Potential distributor electrical connector (CAN I) |
34A |
| X30/38 |
Potential distributor electrical connector (CAN I) |
48A |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
24H |
