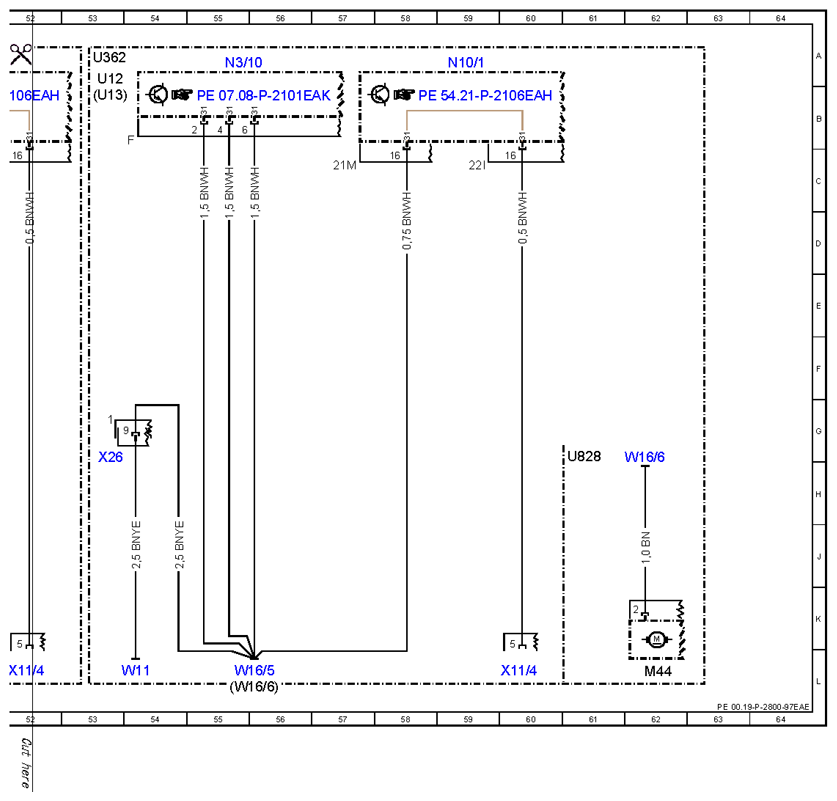

| M44 |
Charge air cooler circulation pump |
62L |

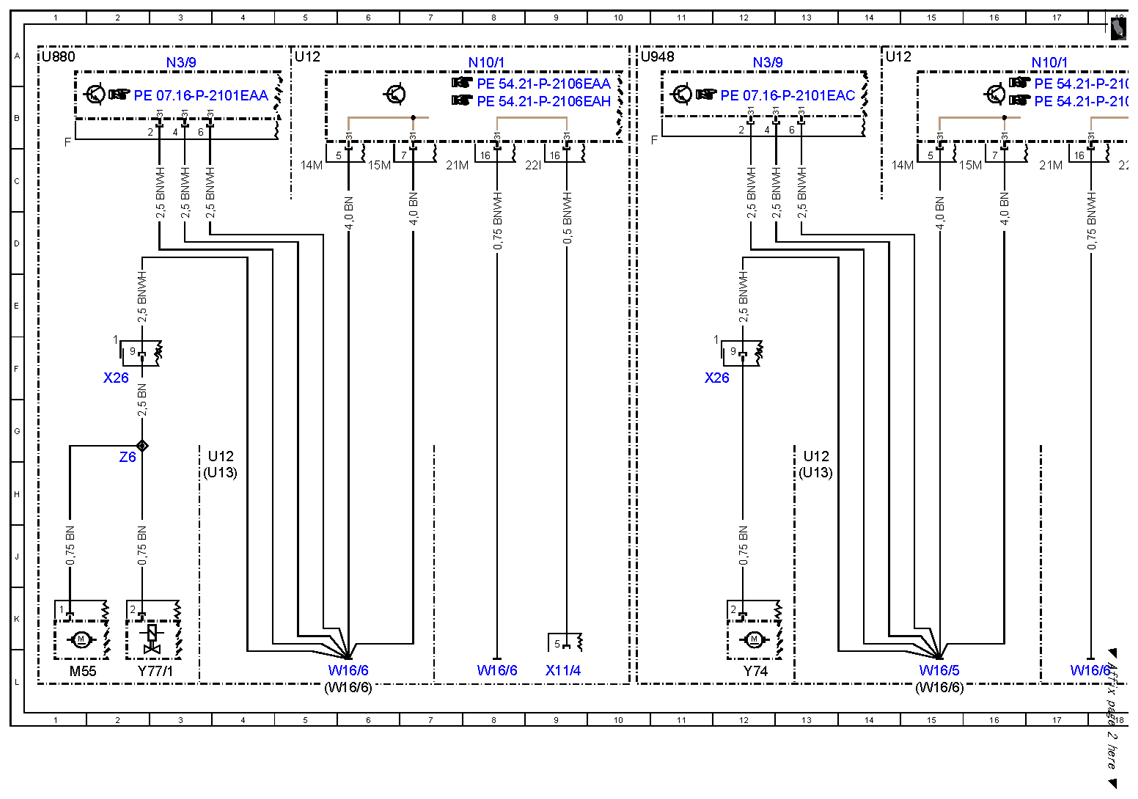

| M55 |
Intake port shutoff actuator motor |
1L |
| N10/1 |
Front SAM control unit with fuse and relay module |
8A |
| N10/1 |
Front SAM control unit with fuse and relay module |
17A |
| N10/1 |
Front SAM control unit with fuse and relay module |
25A |
| N10/1 |
Front SAM control unit with fuse and relay module |
33A |
| N10/1 |
Front SAM control unit with fuse and relay module |
43A |
| N10/1 |
Front SAM control unit with fuse and relay module |
51A |
| N10/1 |
Front SAM control unit with fuse and relay module |
59A |
| N3/10 |
ME-SFI [ME] control unit |
22A |
| N3/10 |
ME-SFI [ME] control unit |
30A |
| N3/10 |
ME-SFI [ME] control unit |
38A |
| N3/10 |
ME-SFI [ME] control unit |
47A |
| N3/10 |
ME-SFI [ME] control unit |
55A |
| N3/9 |
CDI control unit |
3A |
| N3/9 |
CDI control unit |
12A |
| R4 |
Spark plugs |
29L |
| R4 |
Spark plugs |
28L |
| R4 |
Spark plugs |
30L |
| R4 |
Spark plugs |
31L |
| R4 |
Spark plugs |
32L |
| R4 |
Spark plugs |
33L |
| R4 |
Spark plugs |
37L |
| R4 |
Spark plugs |
36L |
| R4 |
Spark plugs |
38L |
| R4 |
Spark plugs |
40L |
| R4 |
Spark plugs |
39L |
| R4 |
Spark plugs |
47L |
| R4 |
Spark plugs |
41L |
| R4 |
Spark plugs |
42L |
| R4 |
Spark plugs |
43L |
| R4 |
Spark plugs |
46L |
| R4 |
Spark plugs |
50L |
| R4 |
Spark plugs |
48L |
| R4 |
Spark plugs |
49L |
| R4 |
Spark plugs |
51L |
| T1/1 |
Cylinder 1 ignition coil |
31K |
| T1/1 |
Cylinder 1 ignition coil |
40K |
| T1/1 |
Cylinder 1 ignition coil |
48K |
| T1/2 |
Cylinder 2 ignition coil |
32K |
| T1/2 |
Cylinder 2 ignition coil |
41K |
| T1/2 |
Cylinder 2 ignition coil |
49K |
| T1/3 |
Cylinder 3 ignition coil |
33K |
| T1/3 |
Cylinder 3 ignition coil |
42K |
| T1/3 |
Cylinder 3 ignition coil |
50K |
| T1/4 |
Cylinder 4 ignition coil |
27K |
| T1/4 |
Cylinder 4 ignition coil |
43K |
| T1/4 |
Cylinder 4 ignition coil |
45K |
| T1/5 |
Cylinder 5 ignition coil |
29K |
| T1/5 |
Cylinder 5 ignition coil |
35K |
| T1/5 |
Cylinder 5 ignition coil |
46K |
| T1/6 |
Cylinder 6 ignition coil |
30K |
| T1/6 |
Cylinder 6 ignition coil |
36K |
| T1/6 |
Cylinder 6 ignition coil |
47K |
| T1/7 |
Cylinder 7 ignition coil |
38K |
| T1/8 |
Cylinder 8 ignition coil |
39K |
| U12 |
Valid for left-hand drive vehicles |
13G |
| U12 |
Valid for left-hand drive vehicles |
3G |
| U12 |
Valid for left-hand drive vehicles |
5A |
| U12 |
Valid for left-hand drive vehicles |
14A |
| U12 |
Valid for left-hand drive vehicles |
19A |
| U12 |
Valid for left-hand drive vehicles |
27A |
| U12 |
Valid for left-hand drive vehicles |
35A |
| U12 |
Valid for left-hand drive vehicles |
45A |
| U12 |
Valid for left-hand drive vehicles |
53A |
| U13 |
Valid for right-hand drive vehicles |
3H |
| U13 |
Valid for right-hand drive vehicles |
13H |
| U13 |
Valid for right-hand drive vehicles |
19B |
| U13 |
Valid for right-hand drive vehicles |
27B |
| U13 |
Valid for right-hand drive vehicles |
35B |
| U13 |
Valid for right-hand drive vehicles |
45B |
| U13 |
Valid for right-hand drive vehicles |
53B |

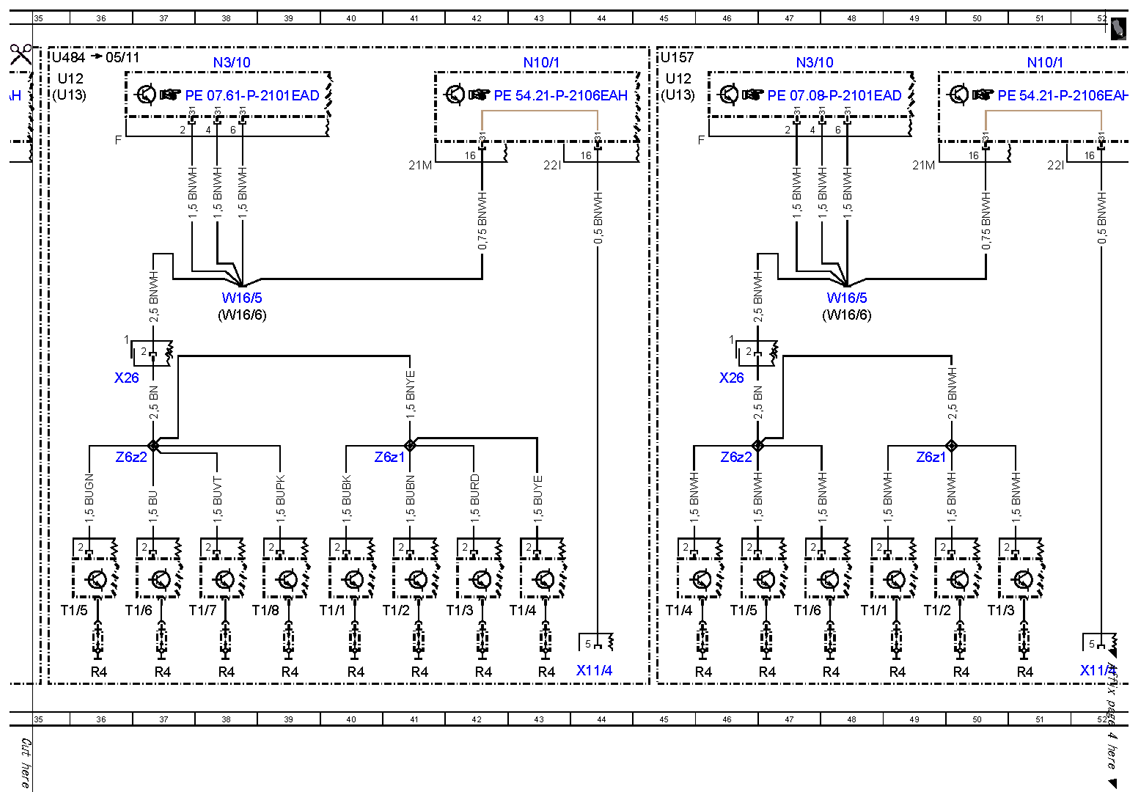

| U157 |
Valid for combustion engine 272 DE |
45A |
| U362 |
Valid for gasoline engine 274 |
53A |
| U484 |
Valid for gasoline engine 273 |
35A |

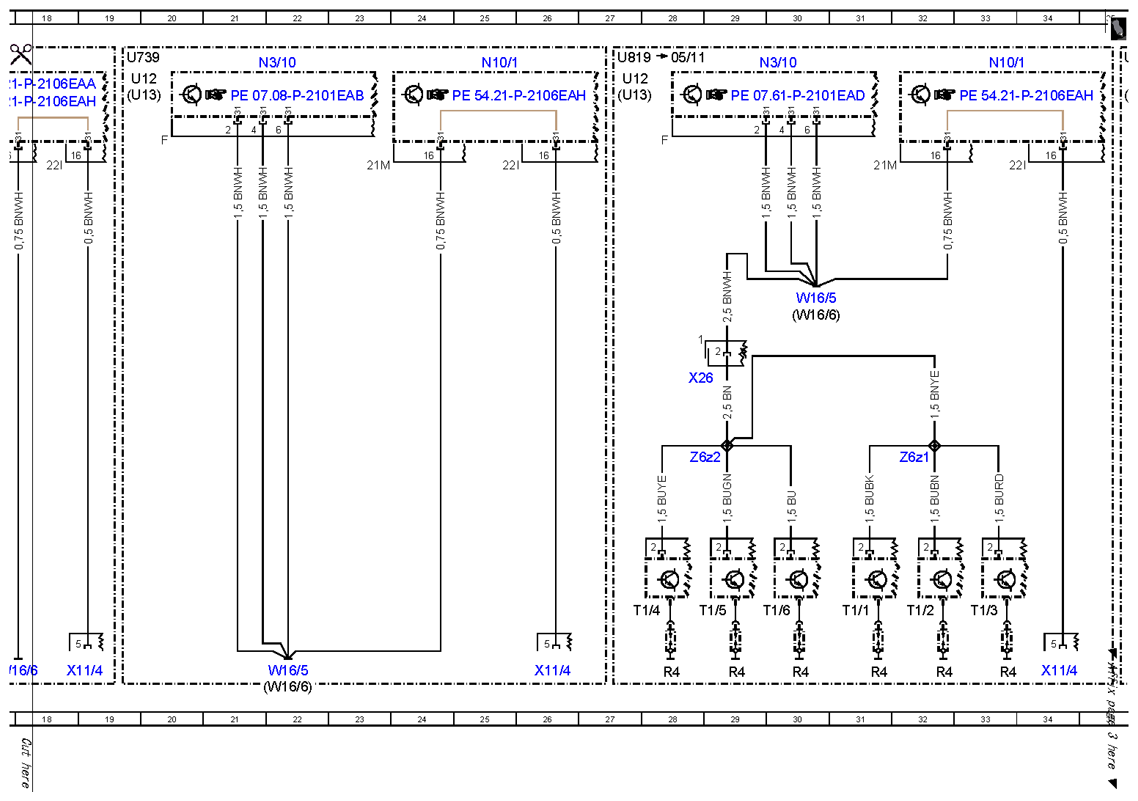

| U739 |
Valid for gasoline engine 271 DE |
19A |
| U819 |
Valid for gasoline engine 272 |
27A |
| U828 |
Valid for SULEV |
61G |
| U880 |
Valid for diesel engine 642 |
1A |
| U948 |
Valid for diesel engine 651 |
10A |
| W11 |
Combustion engine ground point |
54L |
| W16/5 |
Left major assembly compartment electronics ground point |
15L |
| W16/5 |
Left major assembly compartment electronics ground point |
22L |
| W16/5 |
Left major assembly compartment electronics ground point |
30E |
| W16/5 |
Left major assembly compartment electronics ground point |
38E |
| W16/5 |
Left major assembly compartment electronics ground point |
55L |
| W16/5 |
Left major assembly compartment electronics ground point |
48E |
| W16/6 |
Right major assembly compartment ground point |
15L |
| W16/6 |
Right major assembly compartment ground point |
5L |
| W16/6 |
Right major assembly compartment ground point |
6L |
| W16/6 |
Right major assembly compartment ground point |
8L |
| W16/6 |
Right major assembly compartment ground point |
22L |
| W16/6 |
Right major assembly compartment ground point |
17L |
| W16/6 |
Right major assembly compartment ground point |
30E |
| W16/6 |
Right major assembly compartment ground point |
38E |
| W16/6 |
Right major assembly compartment ground point |
62H |
| W16/6 |
Right major assembly compartment ground point |
55L |
| W16/6 |
Right major assembly compartment ground point |
48E |
| X11/4 |
Diagnostic connector |
9L |
| X11/4 |
Diagnostic connector |
19L |
| X11/4 |
Diagnostic connector |
26L |
| X11/4 |
Diagnostic connector |
34L |
| X11/4 |
Diagnostic connector |
44L |
| X11/4 |
Diagnostic connector |
52L |
| X11/4 |
Diagnostic connector |
60L |
| X26 |
Interior and engine wiring harness electrical connector |
2F |
| X26 |
Interior and engine wiring harness electrical connector |
12F |
| X26 |
Interior and engine wiring harness electrical connector |
28F |
| X26 |
Interior and engine wiring harness electrical connector |
36F |
| X26 |
Interior and engine wiring harness electrical connector |
53H |
| X26 |
Interior and engine wiring harness electrical connector |
46F |
| Y74 |
Pressure regulator valve |
12L |
| Y77/1 |
Boost pressure positioner |
2L |
| Z6 |
Circuit 31 connector sleeve |
2G |
| Z6z1 |
Circuit 31 connector sleeve |
32G |
| Z6z1 |
Circuit 31 connector sleeve |
49G |
| Z6z1 |
Circuit 31 connector sleeve |
41G |
| Z6z2 |
Circuit 31 connector sleeve |
37G |
| Z6z2 |
Circuit 31 connector sleeve |
29G |
| Z6z2 |
Circuit 31 connector sleeve |
46G |
