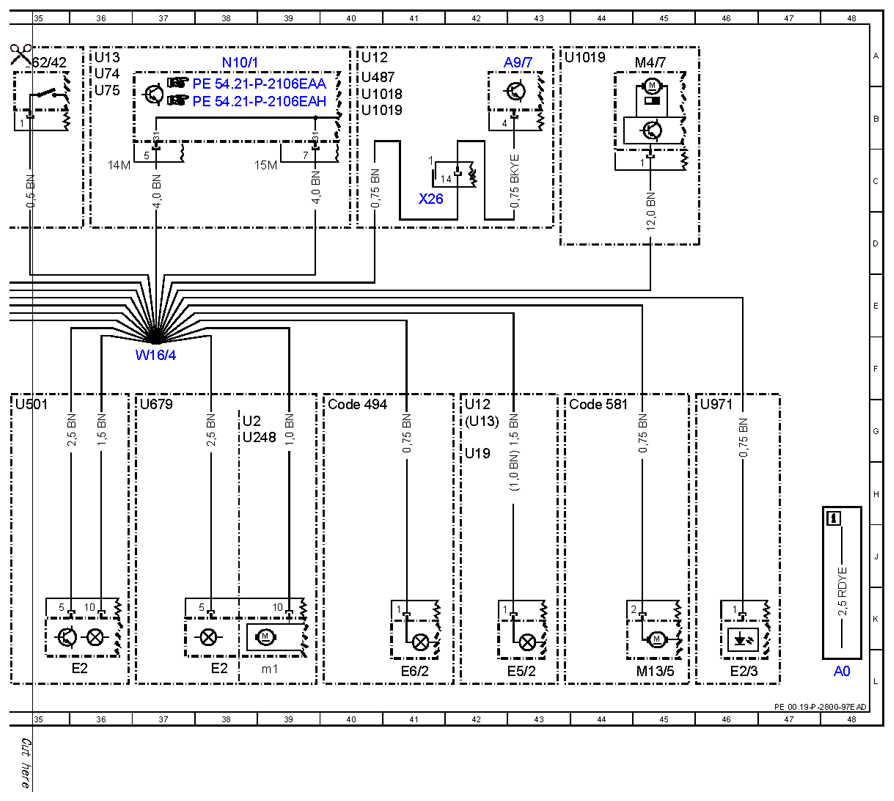

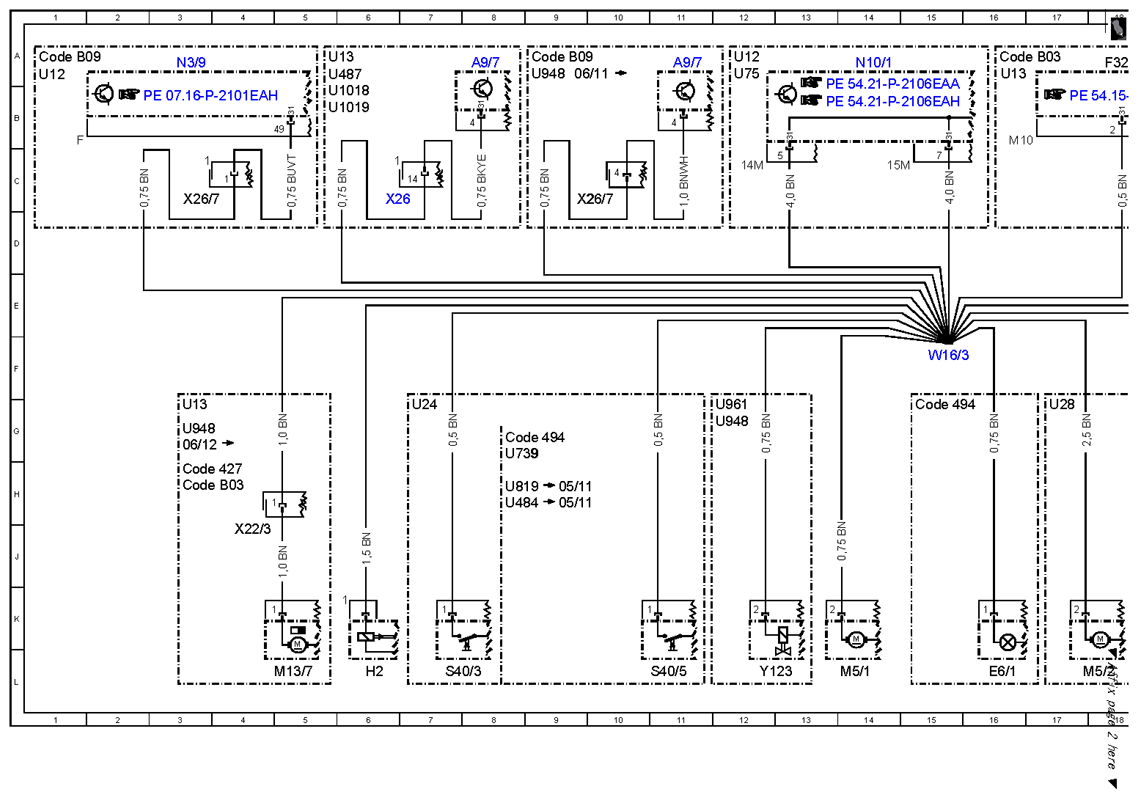

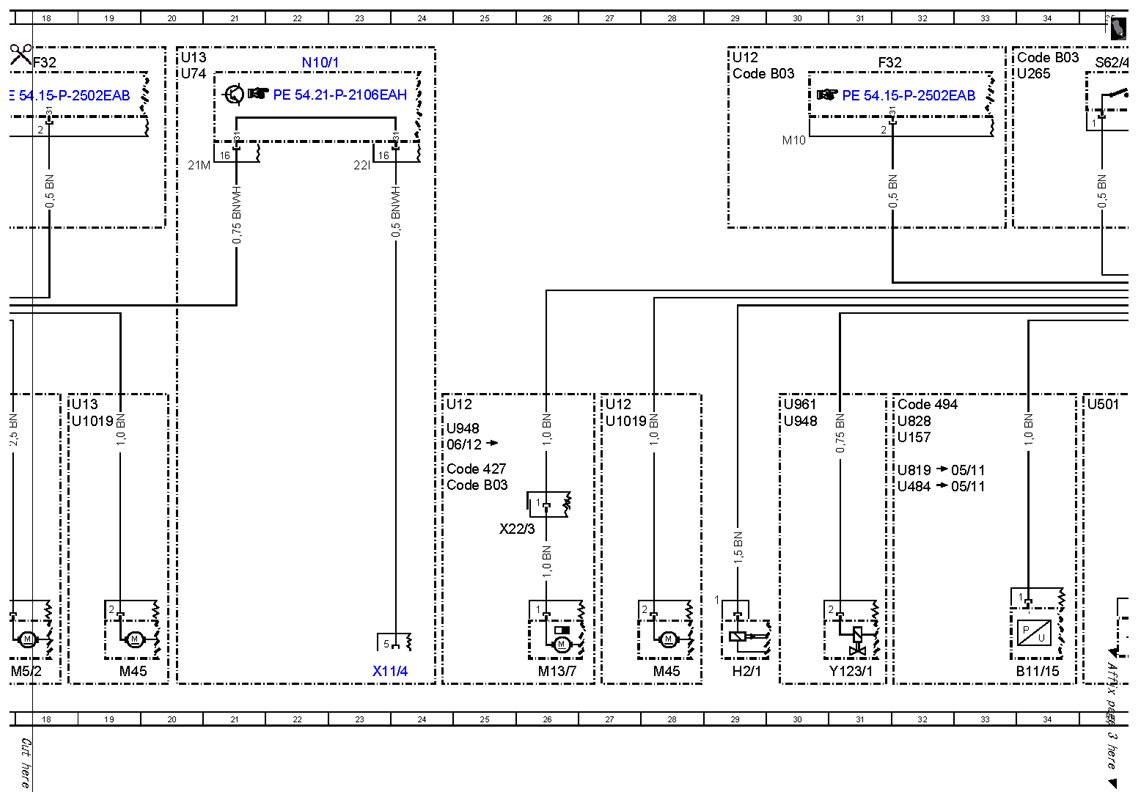

| A0 |
Color code key |
48L |
| A9/7 |
Refrigerant compressor with magnetic clutch |
8A |
| A9/7 |
Refrigerant compressor with magnetic clutch |
11A |
| A9/7 |
Refrigerant compressor with magnetic clutch |
43A |
| B11/15 |
Radiator sensor for engine diagnosis |
34L |
| Code 427 |
7-speed automatic transmission |
3H |
| Code 427 |
7-speed automatic transmission |
24H |
| Code 494 |
USA version |
8G |
| Code 494 |
USA version |
15G |
| Code 494 |
USA version |
32G |
| Code 494 |
USA version |
40G |
| Code 581 |
Comfort automatic air conditioning |
43G |
| Code B03 |
ECO start/stop function |
29A |
| Code B03 |
ECO start/stop function |
3H |
| Code B03 |
ECO start/stop function |
24H |
| Code B03 |
ECO start/stop function |
16A |
| Code B03 |
ECO start/stop function |
34A |
| Code B09 |
Refrigerant compressor with magnetic clutch |
9A |
| Code B09 |
Refrigerant compressor with magnetic clutch |
1A |
| E2 |
Right front lamp unit |
36L |
| E2 |
Right front lamp unit |
38L |
| E2/3 |
Right daytime running lamps headlamp |
46L |
| E2m1 |
Right headlamp range adjustment actuator motor |
39L |
| E5/2 |
Right fog lamp |
43L |
| E6/1 |
Left front side-marker lamp |
16L |
| E6/2 |
Right front side-marker lamp |
41L |
| F32 |
Front electrical prefuse box |
18A |
| F32 |
Front electrical prefuse box |
31A |
| H2 |
Left fanfare horn |
6L |
| H2/1 |
Right fanfare horn |
29L |
| M13/5 |
Coolant circulation pump |
45L |
| M13/7 |
Transmission oil cooling coolant circulation pump |
5L |
| M13/7 |
Transmission oil cooling coolant circulation pump |
26L |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
45A |
| M45 |
Coolant circulation pump |
28L |
| M45 |
Coolant circulation pump |
19L |
| M5/1 |
Windshield washer system pump |
14L |
| M5/2 |
Headlamp cleaning system pump |
18L |
| N10/1 |
Front SAM control unit with fuse and relay module |
14A |
| N10/1 |
Front SAM control unit with fuse and relay module |
22A |
| N10/1 |
Front SAM control unit with fuse and relay module |
38A |
| N3/9 |
CDI control unit |
3A |
| S40/3 |
Clutch pedal switch |
7L |
| S40/5 |
Start enable clutch pedal switch |
11L |
| S62/42 |
Right engine hood contact switch |
35A |
| U1018 |
Valid for gasoline engine 276 |
5B |
| U1018 |
Valid for gasoline engine 276 |
40B |
| U1019 |
Valid for gasoline engine 278 |
18G |
| U1019 |
Valid for gasoline engine 278 |
27G |
| U1019 |
Valid for gasoline engine 278 |
5B |
| U1019 |
Valid for gasoline engine 278 |
40B |
| U1019 |
Valid for gasoline engine 278 |
43A |
| U12 |
Valid for left-hand drive vehicles |
29A |
| U12 |
Valid for left-hand drive vehicles |
24G |
| U12 |
Valid for left-hand drive vehicles |
27G |
| U12 |
Valid for left-hand drive vehicles |
12A |
| U12 |
Valid for left-hand drive vehicles |
42G |
| U12 |
Valid for left-hand drive vehicles |
40A |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
3G |
| U13 |
Valid for right-hand drive vehicles |
18G |
| U13 |
Valid for right-hand drive vehicles |
5A |
| U13 |
Valid for right-hand drive vehicles |
20A |
| U13 |
Valid for right-hand drive vehicles |
16A |
| U13 |
Valid for right-hand drive vehicles |
42G |
| U13 |
Valid for right-hand drive vehicles |
36A |
| U157 |
Valid for combustion engine 272 DE |
32G |
| U19 |
Valid for standard equipment |
42G |
| U2 |
Valid for all except USA |
38G |
| U24 |
Valid for manual transmission |
7G |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
38G |
| U265 |
Not valid for pedestrian protection |
34A |
| U28 |
Valid for headlamp cleaning system |
17G |
| U484 |
Valid for gasoline engine 273 |
32H |
| U484 |
Valid for gasoline engine 273 |
8H |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
5A |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
40A |
| U501 |
Valid for xenon headlamps |
35G |
| U679 |
Valid for version without xenon headlamps |
37G |
| U739 |
Valid for gasoline engine 271 DE |
8G |
| U74 |
Valid for diesel engines |
20A |
| U74 |
Valid for diesel engines |
36A |
| U75 |
Valid for gasoline engines |
12A |
| U75 |
Valid for gasoline engines |
36B |
| U819 |
Valid for gasoline engine 272 |
32H |
| U819 |
Valid for gasoline engine 272 |
8H |
| U828 |
Valid for SULEV |
32G |
| U948 |
Valid for diesel engine 651 |
3G |
| U948 |
Valid for diesel engine 651 |
12G |
| U948 |
Valid for diesel engine 651 |
24G |
| U948 |
Valid for diesel engine 651 |
9A |
| U948 |
Valid for diesel engine 651 |
30G |
| U961 |
Valid for engine mount |
12G |
| U961 |
Valid for engine mount |
30G |
| U971 |
Valid for daytime running lamps |
46G |
| W16/3 |
Left major assembly compartment ground point |
15F |
| W16/4 |
Right wheelhouse ground point |
37F |
| X11/4 |
Diagnostic connector |
23L |
| X22/3 |
Transmission oil cooling electrical connector |
4J |
| X22/3 |
Transmission oil cooling electrical connector |
26J |
| X26 |
Interior and engine wiring harness electrical connector |
6C |
| X26 |
Interior and engine wiring harness electrical connector |
41C |
| X26/7 |
Rear engine compartment electrical connector |
10C |
| X26/7 |
Rear engine compartment electrical connector |
3C |
| Y123 |
Left switchable engine mount |
12L |
| Y123/1 |
Right switchable engine mount |
31L |
