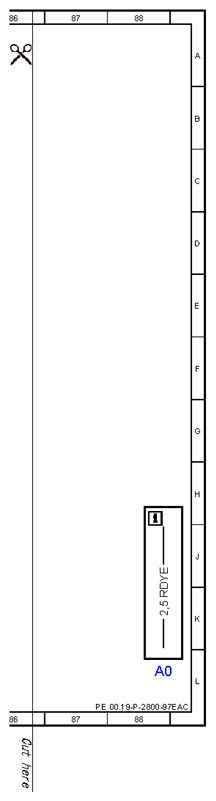

| A0 |
Color code key |
88L |
| A1 |
Instrument cluster |
40A |
| A2 |
Radio |
50A |
| A2 |
Radio |
51A |
| A2/30 |
Navigation module |
76L |
| A2/30-1 |
Cradle for navigation module |
74J |
| A2/56 |
Radio with auto pilot system |
50A |
| A32 |
AC housing |
45L |
| A32x1 |
Air conditioner housing electrical connector |
45J |
| A40/11 |
Multifunction camera |
11L |
| A40/3 |
COMAND control unit |
55A |
| A40/3 |
COMAND control unit |
59A |

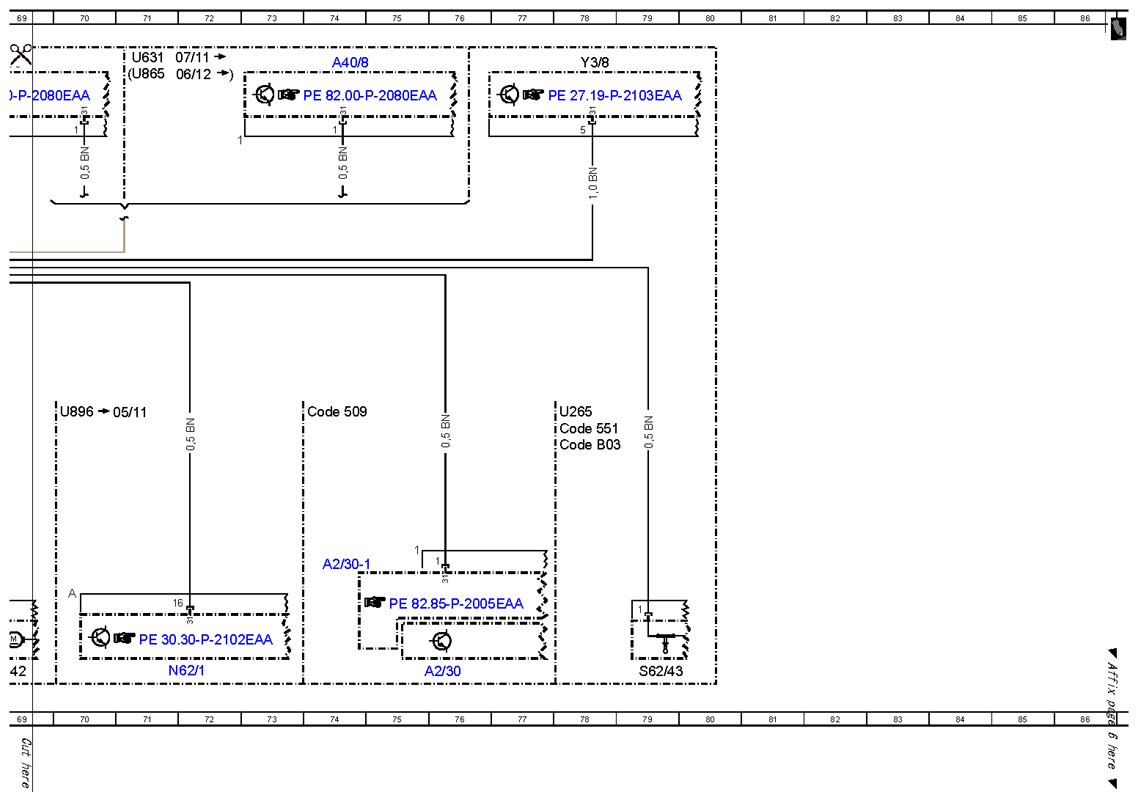

| A40/8 |
Audio/COMAND display |
69A |
| A40/8 |
Audio/COMAND display |
74A |
| A40/9 |
Audio/COMAND control panel |
43L |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
42J |
| A50/3 |
Electronic Toll Collection control unit |
6L |
| A50/3 |
Electronic Toll Collection control unit |
37L |
| A6 |
Stationary heater unit |
22L |
| A6 |
Stationary heater unit |
44A |
| A86/1b2 |
Left inner radar sensor, front bumper |
18L |
| A86/1b2 |
Left inner radar sensor, front bumper |
62L |
| A86/1b3 |
Right inner radar sensor, front bumper |
19L |
| A86/1b3 |
Right inner radar sensor, front bumper |
64L |

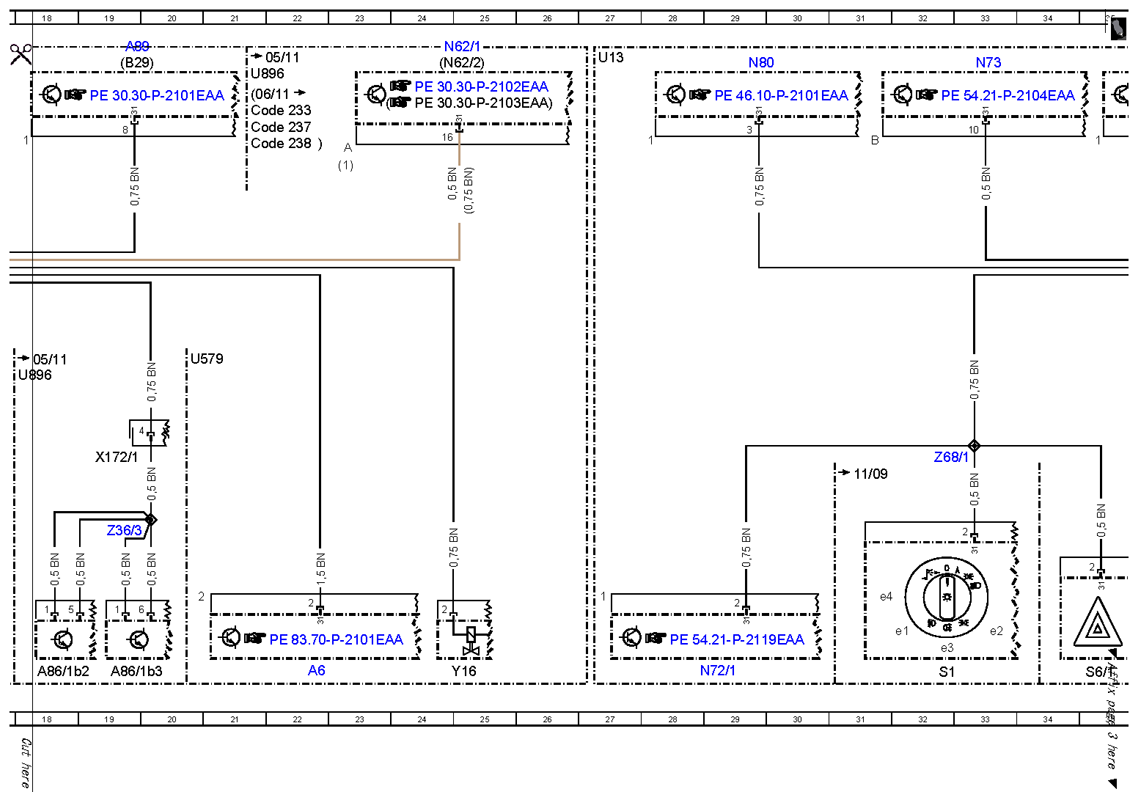

| A89 |
DISTRONIC electric controller unit |
19A |
| B10/4 |
Interior temperature sensor |
52L |
| B29 |
Front long-range radar sensor |
19A |
| B29/2 |
DISTRONIC sensor (DTR)/left front bumper |
15L |
| B29/3 |
DISTRONIC sensor (DTR)/right front bumper |
17L |
| Code 233 |
DISTRONIC PLUS |
15F |
| Code 233 |
DISTRONIC PLUS |
21B |
| Code 237 |
Active Blind Spot Assist |
15F |
| Code 237 |
Active Blind Spot Assist |
21B |
| Code 238 |
Active Lane Keeping Assist |
15G |
| Code 238 |
Active Lane Keeping Assist |
9F |
| Code 238 |
Active Lane Keeping Assist |
21B |
| Code 476 |
Automatic lane detection |
9F |
| Code 494 |
USA version |
13F |
| Code 498 |
Japan version |
5F |
| Code 498 |
Japan version |
36F |
| Code 498 |
Japan version |
52B |
| Code 509 |
Navigation module |
74G |
| Code 513 |
Traffic sign recognition |
9F |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
13F |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
78G |
| Code 580 |
Automatic air conditioning |
51G |
| Code 580 |
Automatic air conditioning |
60G |
| Code 581 |
Comfort automatic air conditioning |
51G |
| Code 608 |
Adaptive Highbeam Assist |
9G |
| Code B03 |
ECO start/stop function |
1F |
| Code B03 |
ECO start/stop function |
67G |
| Code B03 |
ECO start/stop function |
78G |

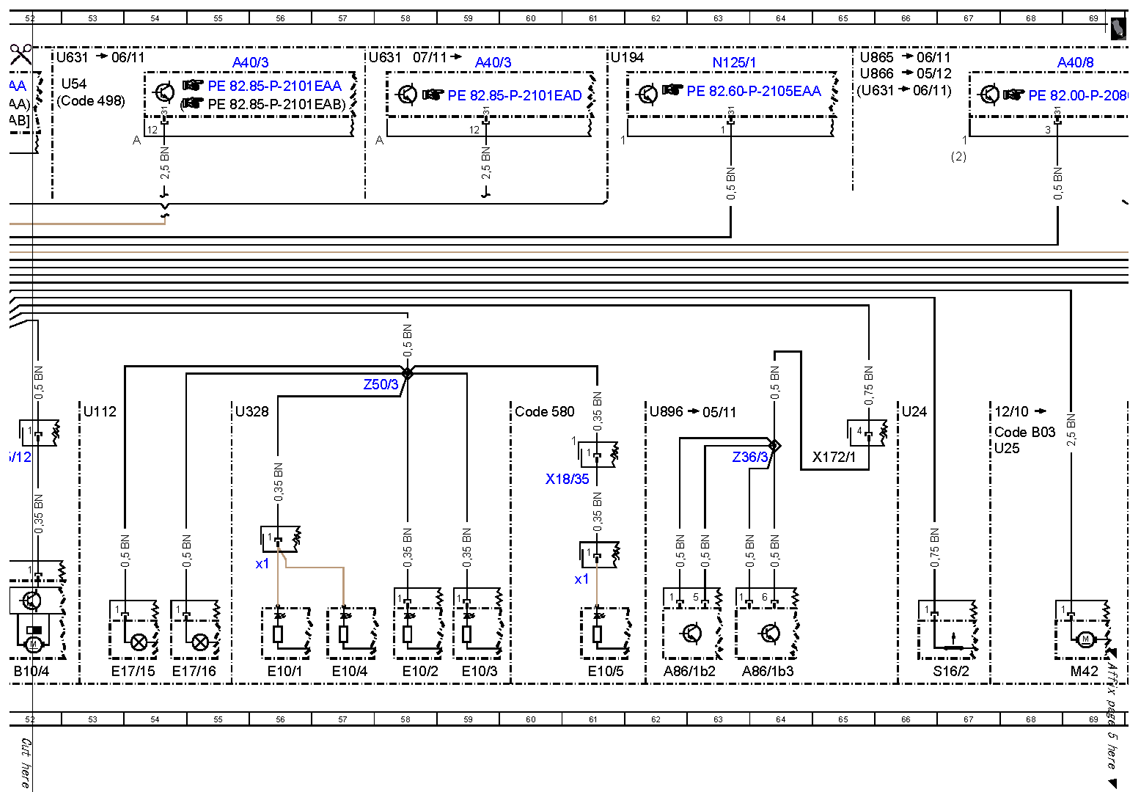

| E10/1 |
Left center air outlet symbol illumination |
56L |
| E10/1x1 |
Center vent symbol illumination electrical connector |
56J |
| E10/2 |
Left front side air outlet symbol illumination |
58L |
| E10/3 |
Right front side air outlet symbol illumination |
59L |
| E10/4 |
Right center air outlet symbol illumination |
57L |
| E10/5 |
Rear air outlet symbol illumination |
61L |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
61J |
| E13/1 |
Glove box lamp |
47L |
| E17/15 |
Right front footwell lamp |
53L |
| E17/16 |
Left front footwell lamp |
54L |
| H3/1 |
Alarm siren |
14L |
| M42 |
Electric transmission oil pump |
3L |
| M42 |
Electric transmission oil pump |
69L |
| N125/1 |
Media interface control unit |
63A |

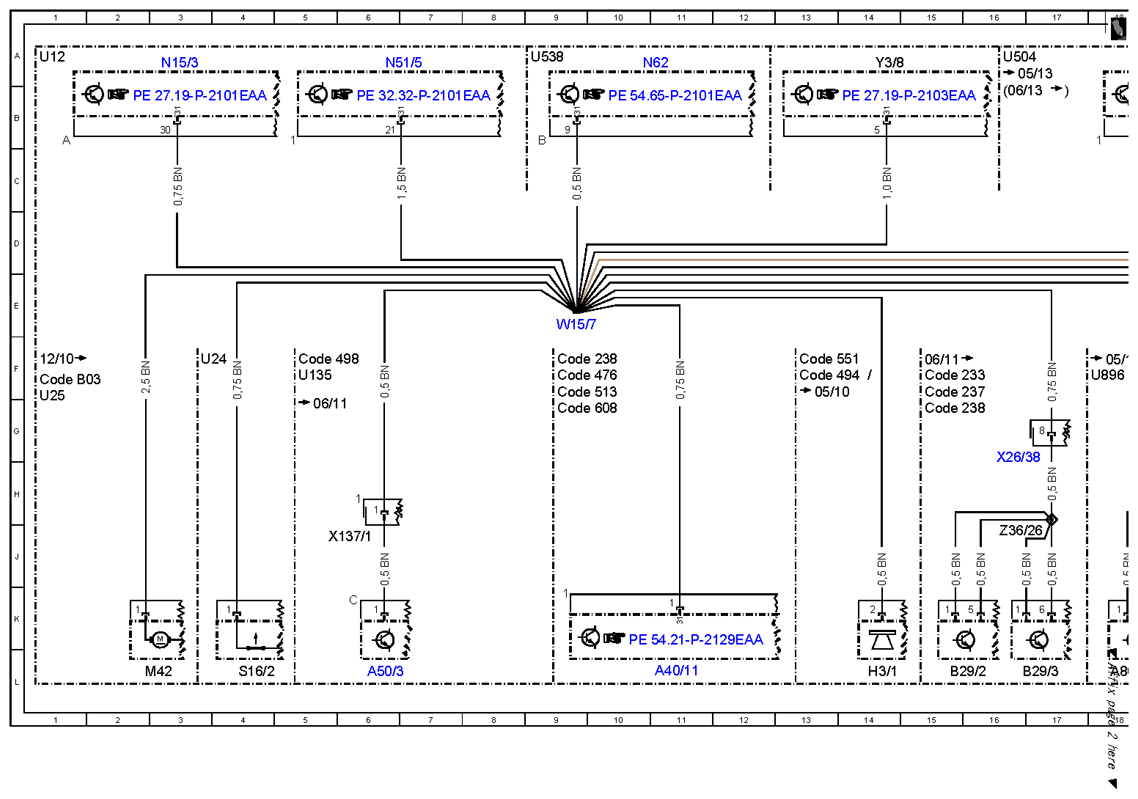

| N15/3 |
Electronic transmission control unit |
3A |

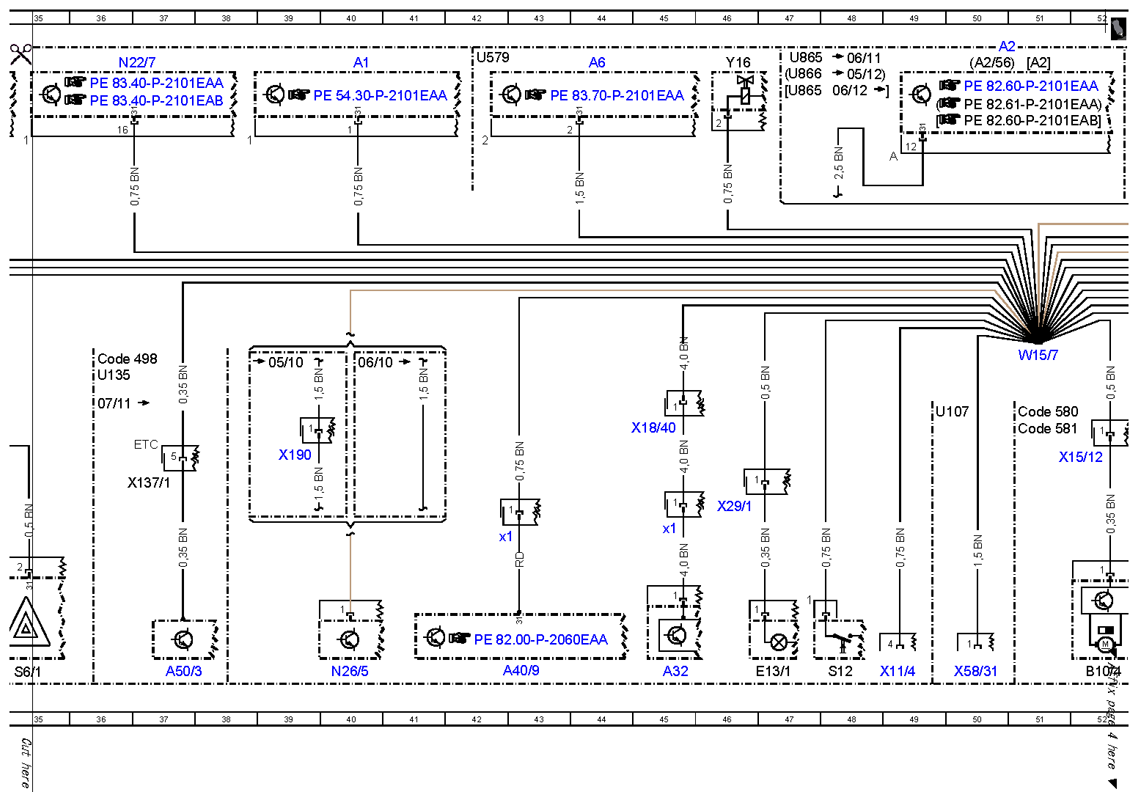

| N22/7 |
Automatic air conditioning control and operating unit |
36A |
| N26/5 |
Electric steering lock control unit |
40L |
| N51/5 |
Adaptive damping system control unit |
6A |
| N62 |
Parking system control unit |
11A |
| N62/1 |
Radar sensors control unit |
24A |
| N62/1 |
Radar sensors control unit |
71L |
| N62/2 |
Video and radar sensor system control unit |
24A |
| N72/1 |
Upper control panel control unit |
29L |
| N73 |
Electronic ignition switch control unit |
33A |
| N80 |
Steering column module control unit |
29A |
| S1 |
Exterior lights switch |
32L |
| S12 |
Parking brake indicator switch |
48L |
| S16/2 |
Backup lamp switch |
4L |
| S16/2 |
Backup lamp switch |
67L |
| S1e1 |
Front fog lamps indicator lamp |
32K |
| S1e2 |
Rear fog lamp indicator lamp |
33K |
| S1e3 |
Standing lamps indicator lamp |
32L |
| S1e4 |
Switch illumination |
31K |
| S6/1 |
Instrument panel switch group |
35L |
| S62/43 |
Left engine hood contact switch |
79L |
| U107 |
Valid for socket in glove compartment |
49G |
| U112 |
Valid for footwell lamps |
53G |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
27A |
| U135 |
Valid for Electronic Toll Collection |
5F |
| U135 |
Valid for Electronic Toll Collection |
36F |
| U194 |
Valid for AUX jack |
61A |
| U24 |
Valid for manual transmission |
3F |
| U24 |
Valid for manual transmission |
66G |
| U25 |
Valid for automatic transmission |
1G |
| U25 |
Valid for automatic transmission |
67G |
| U265 |
Not valid for pedestrian protection |
78G |
| U328 |
Valid for air outlet symbol illumination |
55G |
| U504 |
Valid for DISTRONIC |
16A |
| U538 |
Valid for PARKTRONIC |
9A |
| U54 |
Valid for all except Japan |
52B |
| U579 |
Valid for stationary heater |
20F |
| U579 |
Valid for stationary heater |
42A |
| U631 |
Valid for COMAND |
52A |
| U631 |
Valid for COMAND |
57A |
| U631 |
Valid for COMAND |
65B |
| U631 |
Valid for COMAND |
71A |
| U865 |
Valid for Audio 20 |
47B |
| U865 |
Valid for Audio 20 |
47A |
| U865 |
Valid for Audio 20 |
65A |
| U865 |
Valid for Audio 20 |
71A |
| U866 |
Valid for Audio 50 |
47A |
| U866 |
Valid for Audio 50 |
65A |
| U896 |
Valid for City Assist System |
18F |
| U896 |
Valid for City Assist System |
21A |
| U896 |
Valid for City Assist System |
62G |
| U896 |
Valid for City Assist System |
70G |
| W15/7 |
Right front footwell ground point |
9E |
| W15/7 |
Right front footwell ground point |
51F |
| X11/4 |
Diagnostic connector |
49L |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
6J |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
37H |
| X15/12 |
Vehicle interior/cockpit temperature sensor electrical connector |
52H |
| X172/1 |
Front bumper radar sensors electrical connector |
19H |
| X172/1 |
Front bumper radar sensors electrical connector |
65H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
61H |
| X18/40 |
Instrument panel harness and vehicle floor electrical connector |
45G |
| X190 |
Instrument panel and electric steering lock electrical connector |
39G |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
16H |
| X29/1 |
Glove compartment electrical connector |
46H |
| X58/31 |
Glove box socket |
50L |
| Y16 |
Stationary heater switchover valve |
25L |
| Y16 |
Stationary heater switchover valve |
46A |
| Y3/8 |
Fully integrated transmission control unit |
14A |
| Y3/8 |
Fully integrated transmission control unit |
78A |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
16J |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
19J |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
64G |
| Z50/3 |
Circuit 31 instrument panel connector sleeve |
58F |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
32G |
