| A0 |
Color code key |
64L |
| A1 |
Instrument cluster |
13A |
| A2 |
Radio |
19A |
| A2 |
Radio |
19A |
| A2/30 |
Navigation module |
23L |
| A2/30-1 |
Cradle for navigation module |
21J |
| A2/56 |
Radio with auto pilot system |
19A |
| A32 |
AC housing |
18L |
| A32x1 |
Air conditioner housing electrical connector |
18J |
| A40/3 |
COMAND control unit |
24A |
| A40/3 |
COMAND control unit |
28A |
| A40/8 |
Audio/COMAND display |
33A |
| A40/8 |
Audio/COMAND display |
39A |
| A40/9 |
Audio/COMAND control panel |
13L |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
13J |
| A50/3 |
Electronic Toll Collection control unit |
46L |
| A50/3 |
Electronic Toll Collection control unit |
50L |
| B10/4 |
Interior temperature sensor |
30L |
| Code 233 |
DISTRONIC PLUS |
54B |
| Code 237 |
Active Blind Spot Assist |
54B |
| Code 238 |
Active Lane Keeping Assist |
54B |
| Code 498 |
Japan version |
21B |
| Code 498 |
Japan version |
44F |
| Code 498 |
Japan version |
48F |
| Code 509 |
Navigation module |
21F |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
40G |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
52F |
| Code 580 |
Automatic air conditioning |
29F |
| Code 580 |
Automatic air conditioning |
38G |
| Code 581 |
Comfort automatic air conditioning |
29G |
| Code B03 |
ECO start/stop function |
40G |
| Code B03 |
ECO start/stop function |
55F |
| E10/1 |
Left center air outlet symbol illumination |
34L |
| E10/1x1 |
Center vent symbol illumination electrical connector |
34J |
| E10/2 |
Left front side air outlet symbol illumination |
36L |
| E10/3 |
Right front side air outlet symbol illumination |
37L |
| E10/4 |
Right center air outlet symbol illumination |
35L |
| E10/5 |
Rear air outlet symbol illumination |
39L |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
39J |
| E13/1 |
Glove box lamp |
16L |
| E17/15 |
Right front footwell lamp |
32L |
| E17/16 |
Left front footwell lamp |
33L |
| H3/1 |
Alarm siren |
54L |
| N125/1 |

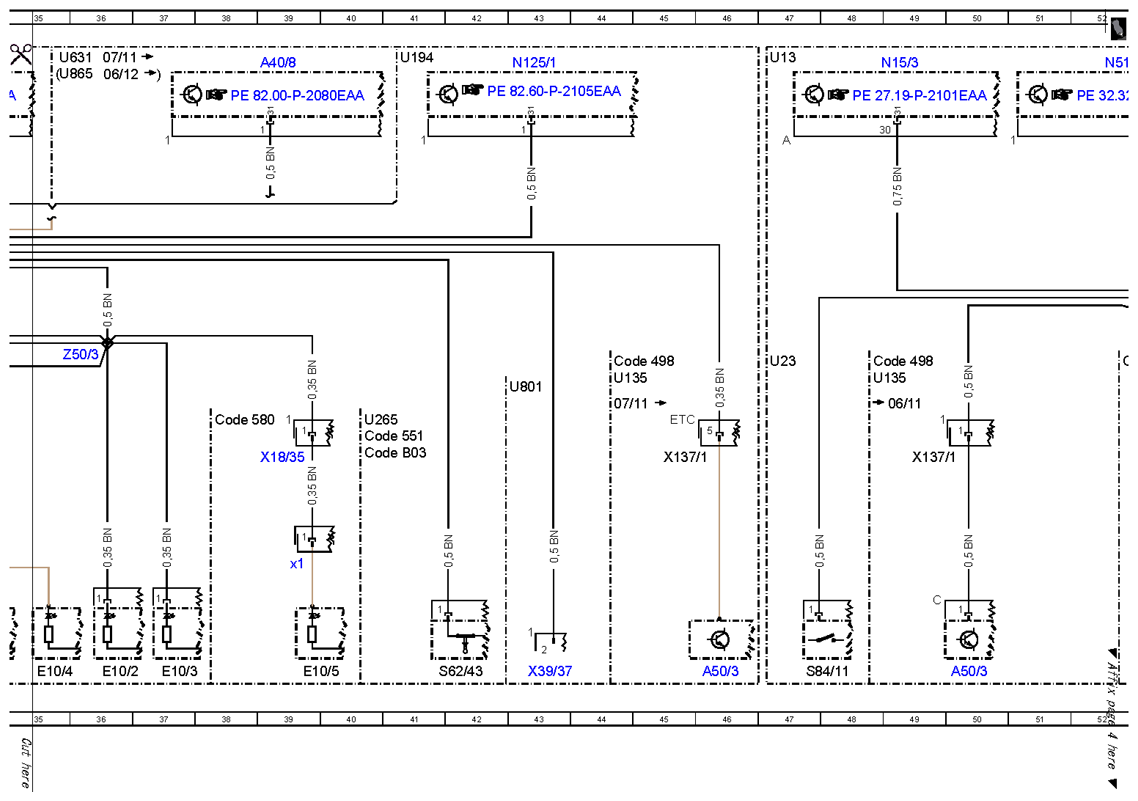

Media interface control unit |
43A |
| N15/3 |
Electronic transmission control unit |
49A |
| N22/7 |
Automatic air conditioning control and operating unit |
10A |
| N26/5 |
Electric steering lock control unit |
10L |
| N51/5 |
Adaptive damping system control unit |
52A |
| N62 |
Parking system control unit |
57A |
| N62/2 |
Video and radar sensor system control unit |
57A |
| N72/1 |

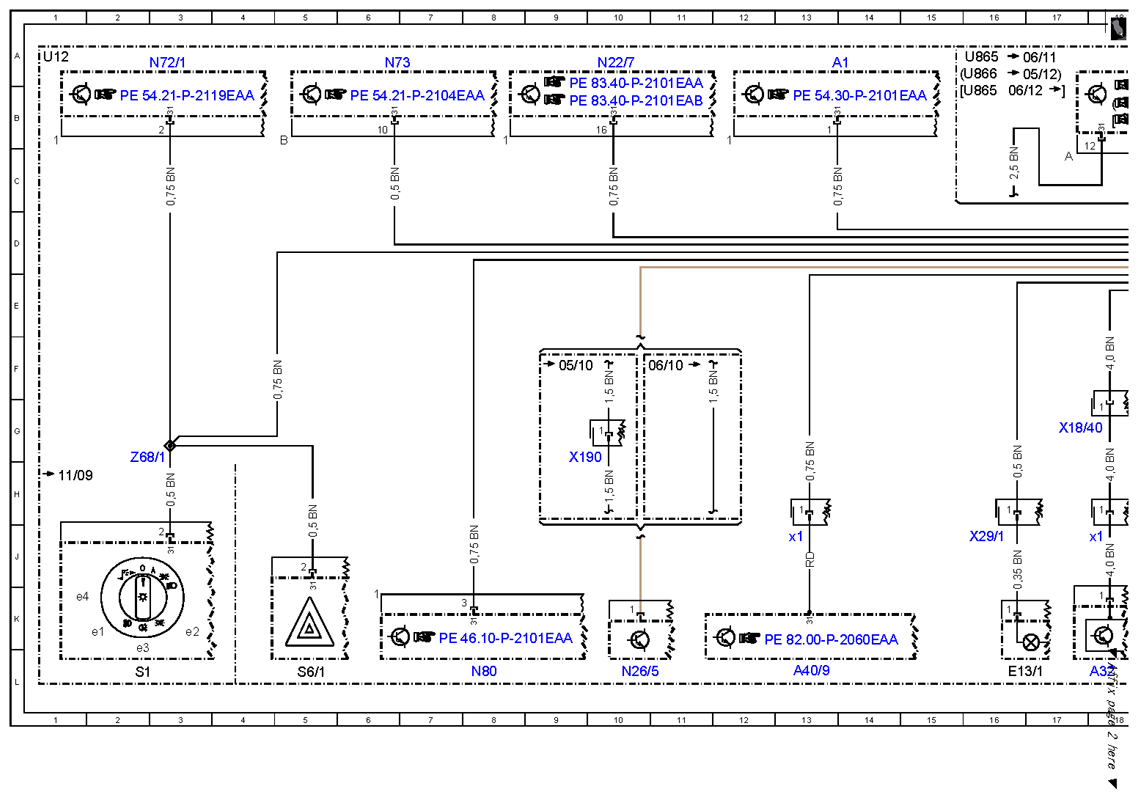

Upper control panel control unit |
3A |
| N73 |
Electronic ignition switch control unit |
6A |
| N80 |
Steering column module control unit |
8L |
| S1 |
Exterior lights switch |
2L |
| S12 |
Parking brake indicator switch |
19L |
| S1e1 |
Front fog lamps indicator lamp |
2K |
| S1e2 |
Rear fog lamp indicator lamp |
3K |
| S1e3 |
Standing lamps indicator lamp |
2L |
| S1e4 |
Switch illumination |
1K |
| S6/1 |
Instrument panel switch group |
5L |
| S62/43 |
Left engine hood contact switch |
42L |
| S62/43 |
Left engine hood contact switch |
56L |
| S84/11 |
Left soft top "locked" limit switch |
27L |
| S84/11 |
Left soft top "locked" limit switch |
47L |
| U107 |
Valid for socket in glove compartment |
28F |
| U112 |
Valid for footwell lamps |
31F |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
47A |
| U135 |
Valid for Electronic Toll Collection |
48F |
| U135 |
Valid for Electronic Toll Collection |
44F |
| U194 |
Valid for AUX jack |
41A |
| U23 |
Valid for convertibles |
26F |
| U23 |
Valid for convertibles |
47F |
| U265 |
Not valid for pedestrian protection |
55F |
| U265 |
Not valid for pedestrian protection |
40G |
| U328 |
Valid for air outlet symbol illumination |
33F |
| U538 |
Valid for PARKTRONIC |
54A |
| U54 |
Valid for all except Japan |
21A |
| U631 |
Valid for COMAND |
21A |
| U631 |
Valid for COMAND |
26A |
| U631 |
Valid for COMAND |
30B |
| U631 |
Valid for COMAND |
35A |
| U801 |
Valid for mobile phone preinstallation with universal interface |
43F |
| U801 |
Valid for mobile phone preinstallation with universal interface |
57F |
| U865 |
Valid for Audio 20 |
16B |
| U865 |
Valid for Audio 20 |
16A |
| U865 |
Valid for Audio 20 |
30A |
| U865 |
Valid for Audio 20 |
35A |
| U866 |
Valid for Audio 50 |
16A |
| U866 |
Valid for Audio 50 |
30A |
| W15/5 |

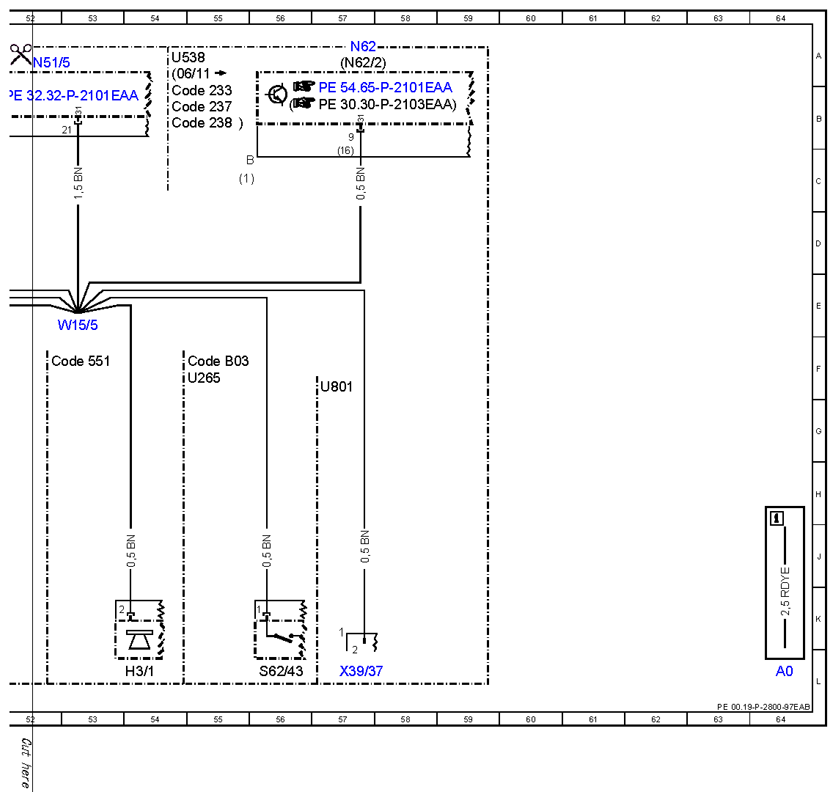

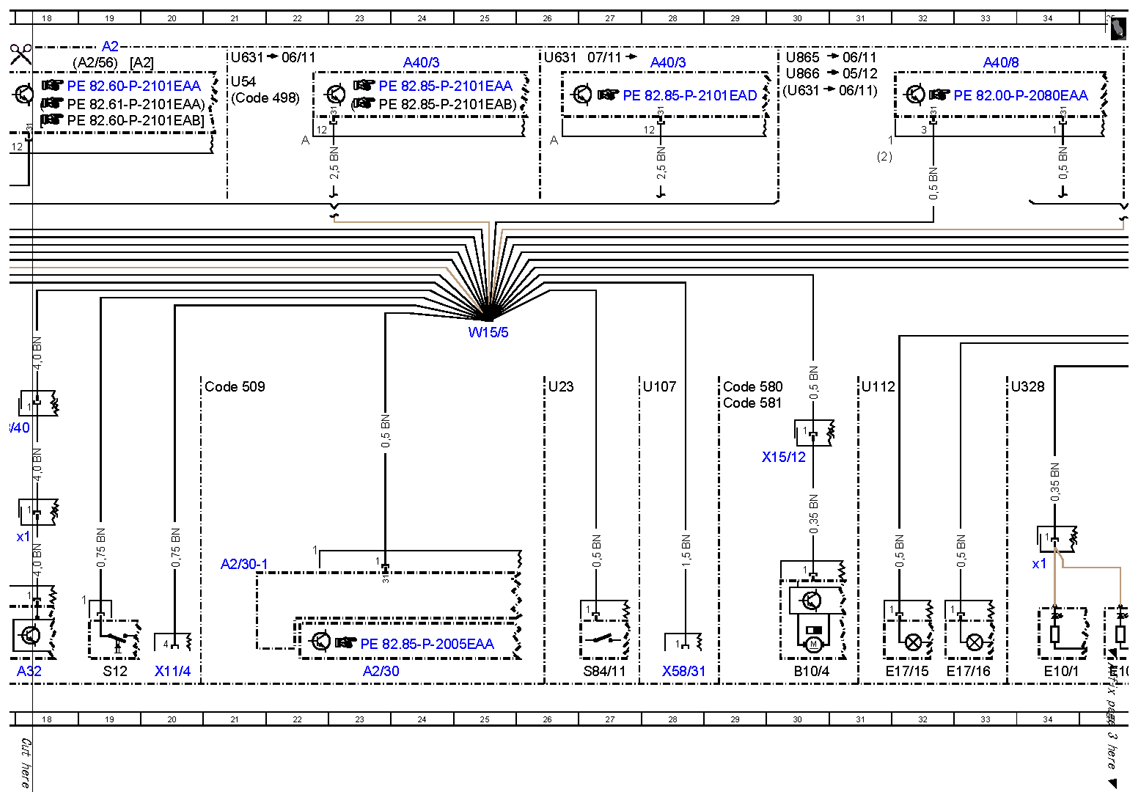

Left front footwell ground point |
25F |
| W15/5 |
Left front footwell ground point |
53E |
| X11/4 |
Diagnostic connector |
20L |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
45H |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
49H |
| X15/12 |
Vehicle interior/cockpit temperature sensor electrical connector |
30H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
39H |
| X18/40 |
Instrument panel harness and vehicle floor electrical connector |
17G |
| X190 |
Instrument panel and electric steering lock electrical connector |
9H |
| X29/1 |
Glove compartment electrical connector |
16J |
| X39/37 |
Mobile phone electrical connector |
43L |
| X39/37 |
Mobile phone electrical connector |
57L |
| X58/31 |
Glove box socket |
28L |
| Z50/3 |
Circuit 31 instrument panel connector sleeve |
36F |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
2G |
