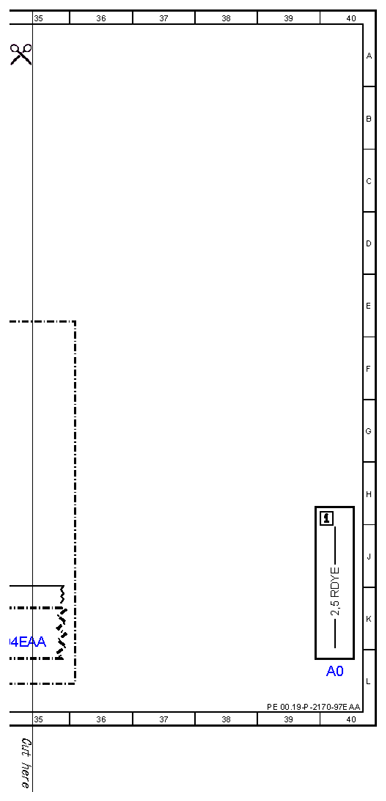

| A0 |
Color code key |
40L |
| A80 |
Intelligent servo module for DIRECT SELECT |
30L |
| CAN C |
Drive train CAN |
2K |
| CAN C |
Drive train CAN |
10K |
| CAN C |
Drive train CAN |
14K |
| CAN C |
Drive train CAN |
26K |
| CAN C |
Drive train CAN |
22K |
| CAN C |
Drive train CAN |
30K |
| CAN C |
Drive train CAN |
34K |
| CAN C |
Drive train CAN |
18K |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N118 |
Fuel pump control unit |
22L |
| N15/3 |
Electronic transmission control unit |
10L |
| N15/5 |
Electronic selector lever module control unit |
26L |
| N89 |
Transmission oil auxiliary pump control unit |
34L |
| U1018 |
Valid for gasoline engine 276 |
20G |
| U1019 |
Valid for gasoline engine 278 |
20G |
| U12 |
Valid for left-hand drive vehicles |
6F |
| U13 |
Valid for right-hand drive vehicles |
5F |
| U157 |
Valid for combustion engine 272 DE |
20F |
| U25 |
Valid for automatic transmission |
24F |
| U25 |
Valid for automatic transmission |
32F |
| U252 |
Valid for ECO start/stop function |
32F |
| U484 |
Valid for gasoline engine 273 |
20F |
| U490 |
Valid for 7-speed automatic transmission |
12F |
| U527 |
Valid for electronic transmission control |
8F |
| U739 |
Valid for gasoline engine 271 DE |
20F |
| U819 |
Valid for gasoline engine 272 |
20F |
| U880 |
Valid for diesel engine 642 |
16F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
28F |
| U948 |
Valid for diesel engine 651 |
16F |
| W15/6 |
Ground point (left front footwell CAN) |
5L |
| W15/8 |
Ground point (right front footwell CAN) |
7L |

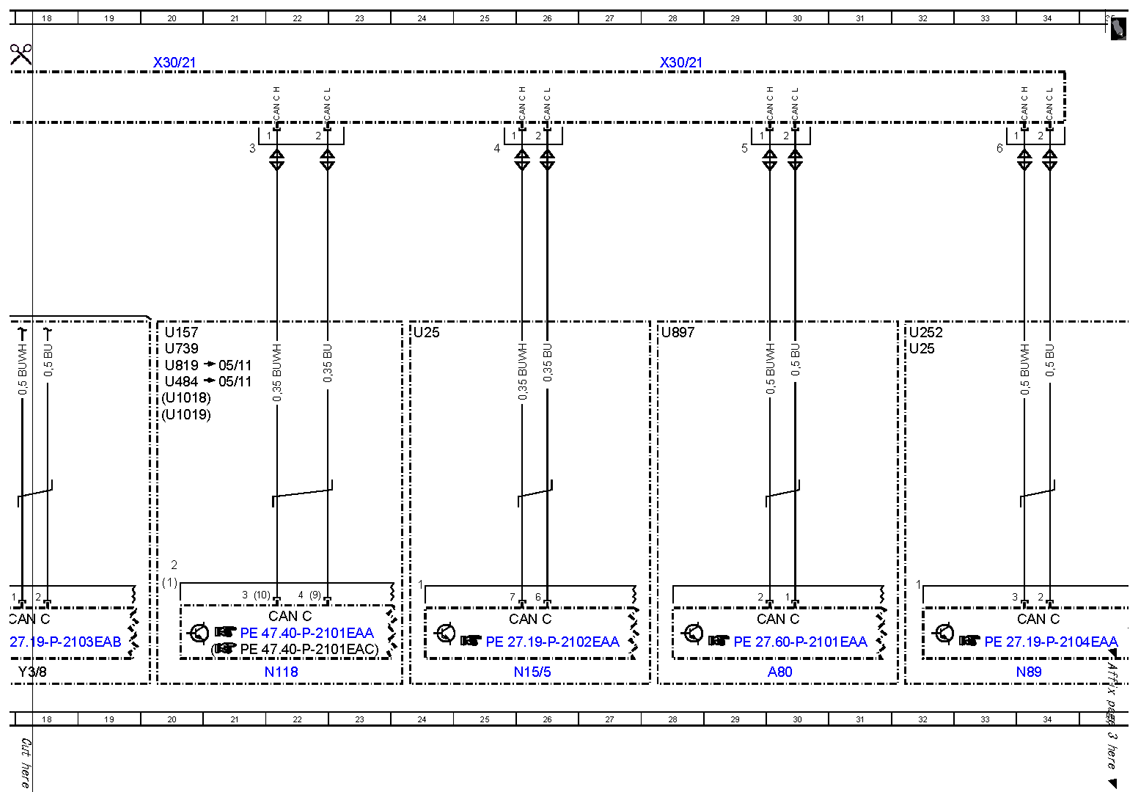

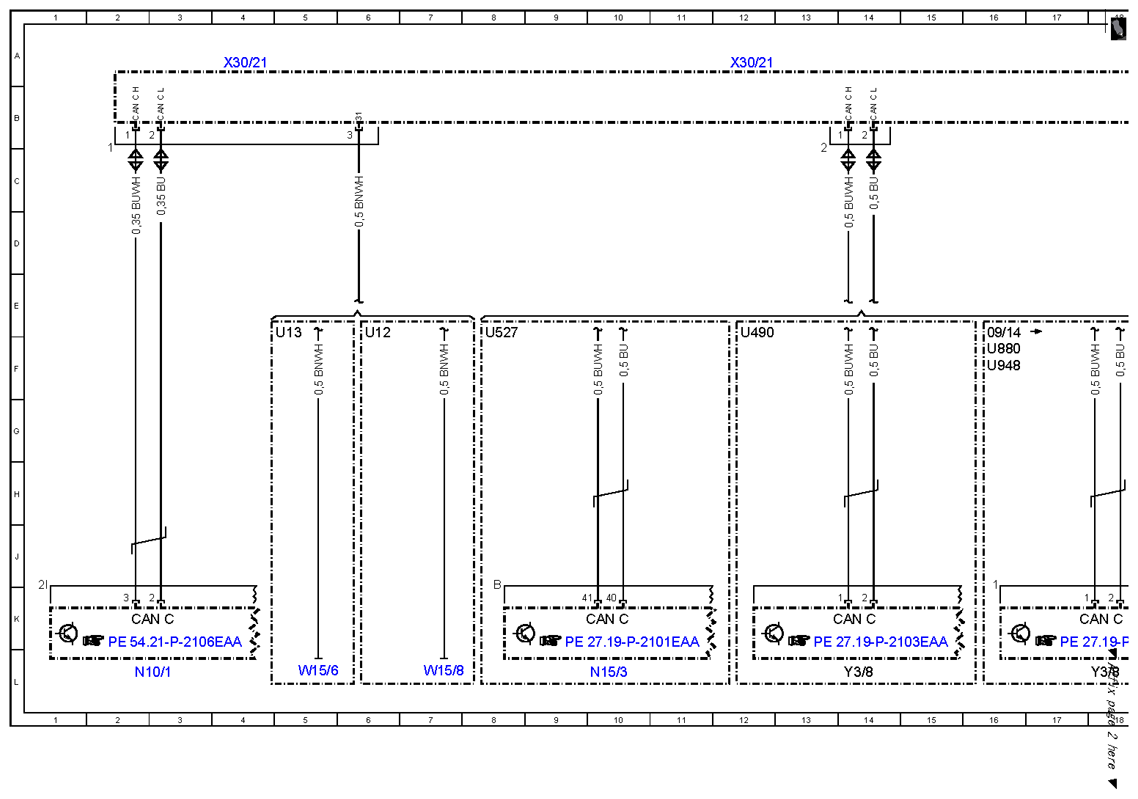

| X30/21 |
Drive train CAN voltage distributor electrical connector |
4A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
12A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
20A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
28A |
| Y3/8 |
Fully integrated transmission control unit |
14L |
| Y3/8 |
Fully integrated transmission control unit |
18L |
