| A0 |
Color code key |
48L |
| A76 |
Left front reversible emergency tensioning retractor |
26L |
| A76/1 |
Right front reversible emergency tensioning retractor |
30L |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
42L |
| B29/4 |
Left rear bumper intelligent radar sensor |
11L |
| B29/5 |
Right rear bumper intelligent radar sensor |
12L |
| CAN E1 |
Chassis CAN 1 |
1K |
| CAN E1 |
Chassis CAN 1 |
4K |
| CAN E1 |
Chassis CAN 1 |
7K |
| CAN E1 |
Chassis CAN 1 |
11K |
| CAN E1 |
Chassis CAN 1 |
12K |
| CAN E1 |
Chassis CAN 1 |
15K |
| CAN E1 |
Chassis CAN 1 |
19K |
| CAN E1 |
Chassis CAN 1 |
22K |
| CAN E1 |
Chassis CAN 1 |
26K |
| CAN E1 |
Chassis CAN 1 |
30K |
| CAN E1 |
Chassis CAN 1 |
34K |
| CAN E1 |
Chassis CAN 1 |
38K |
| CAN E1 |
Chassis CAN 1 |
42K |

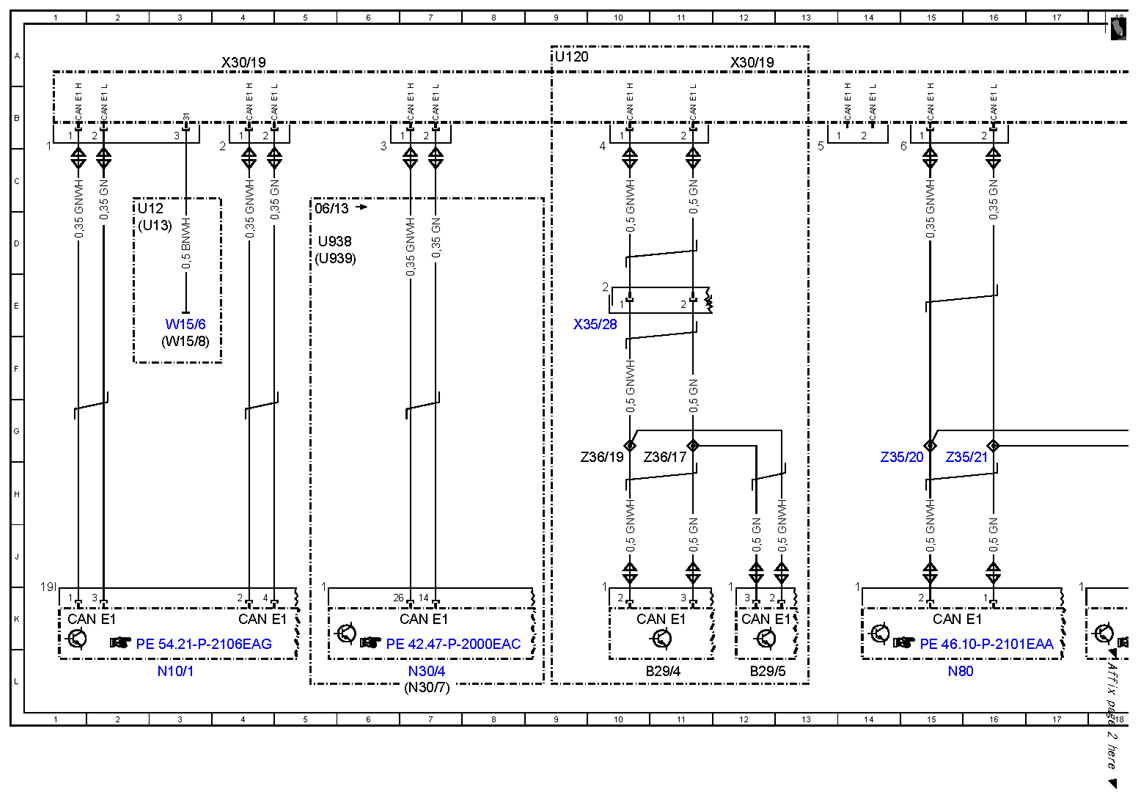

| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N2/10 |
Supplemental restraint system control unit |
23L |
| N30/4 |
Electronic Stability Program control unit |
7L |
| N30/7 |
Premium Electronic Stability Program control unit |
7L |

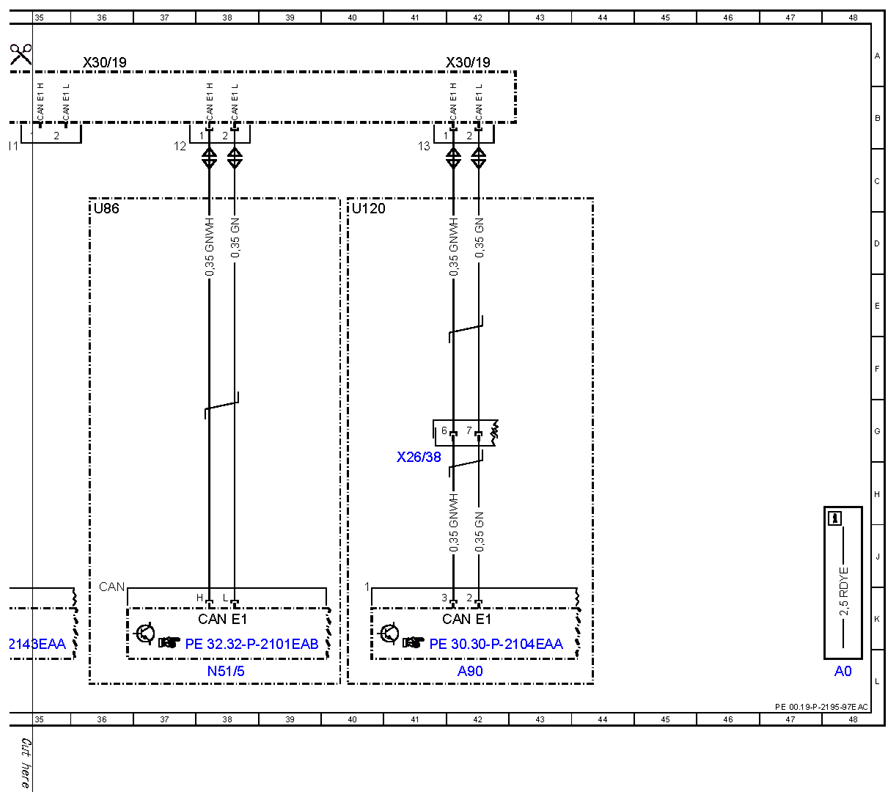

| N51/5 |
Adaptive damping system control unit |
38L |

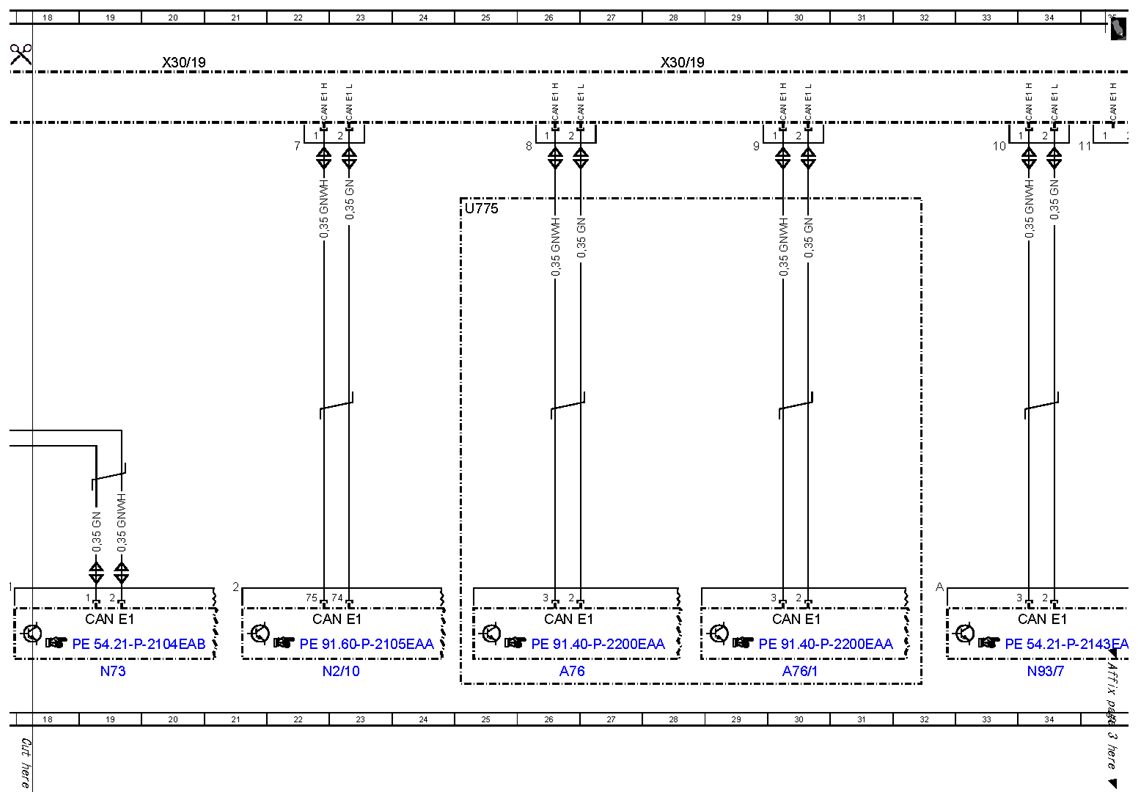

| N73 |
Electronic ignition switch control unit |
19L |
| N80 |
Steering column module control unit |
15L |
| N93/7 |
Chassis gateway control unit |
34L |
| U12 |
Valid for left-hand drive vehicles |
2D |
| U120 |
Not valid for FlexRay |
9A |
| U120 |
Not valid for FlexRay |
40D |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U775 |
Valid for emergency tensioning retractor |
25D |
| U86 |
Valid for adaptive damping system and ESP |
36D |
| U938 |
Valid for ESP Basic |
5D |
| U939 |
Valid for ESP Premium |
5D |
| W15/6 |
Ground point (left front footwell CAN) |
3E |
| W15/8 |
Ground point (right front footwell CAN) |
3F |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
41H |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
4A |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
12A |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
20A |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
28A |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
36A |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
42A |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
10E |
| Z35/20 |
Cockpit chassis CAN (high) connector sleeve |
15G |
| Z35/21 |
Cockpit chassis CAN (low) connector sleeve |
16G |
| Z36/17 |
Rear sensor CAN connector sleeve |
11G |
| Z36/19 |
Rear sensor CAN connector sleeve |
10G |
