| A0 |
Color code key |
40L |
| A1 |
Instrument cluster |
26L |
| A40/11 |
Multifunction camera |
18L |
| B84/3 |
Backup camera |
14L |

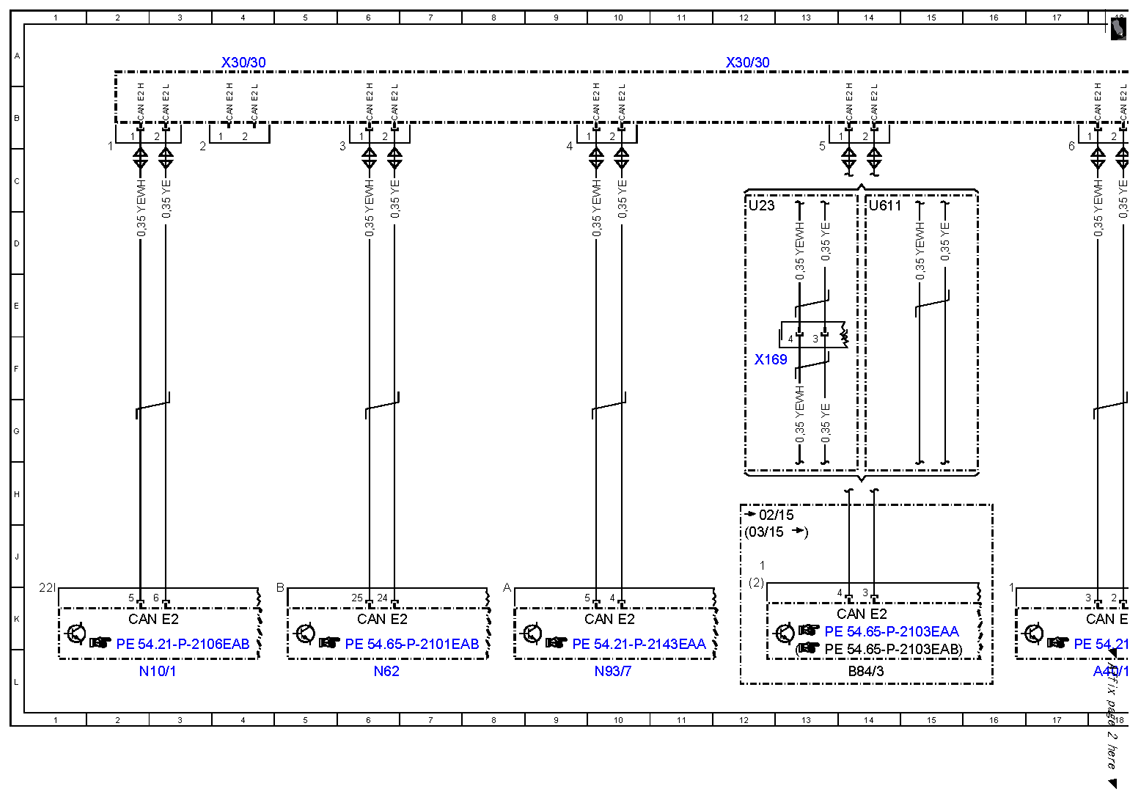

| CAN E2 |
Chassis CAN 2 |
2K |
| CAN E2 |
Chassis CAN 2 |
6K |
| CAN E2 |
Chassis CAN 2 |
10K |
| CAN E2 |
Chassis CAN 2 |
14K |
| CAN E2 |
Chassis CAN 2 |
18K |
| CAN E2 |
Chassis CAN 2 |
22K |
| CAN E2 |
Chassis CAN 2 |
25K |
| CAN E2 |
Chassis CAN 2 |
29K |
| CAN E2 |
Chassis CAN 2 |
33K |
| CAN E2 |
Chassis CAN 2 |
37K |

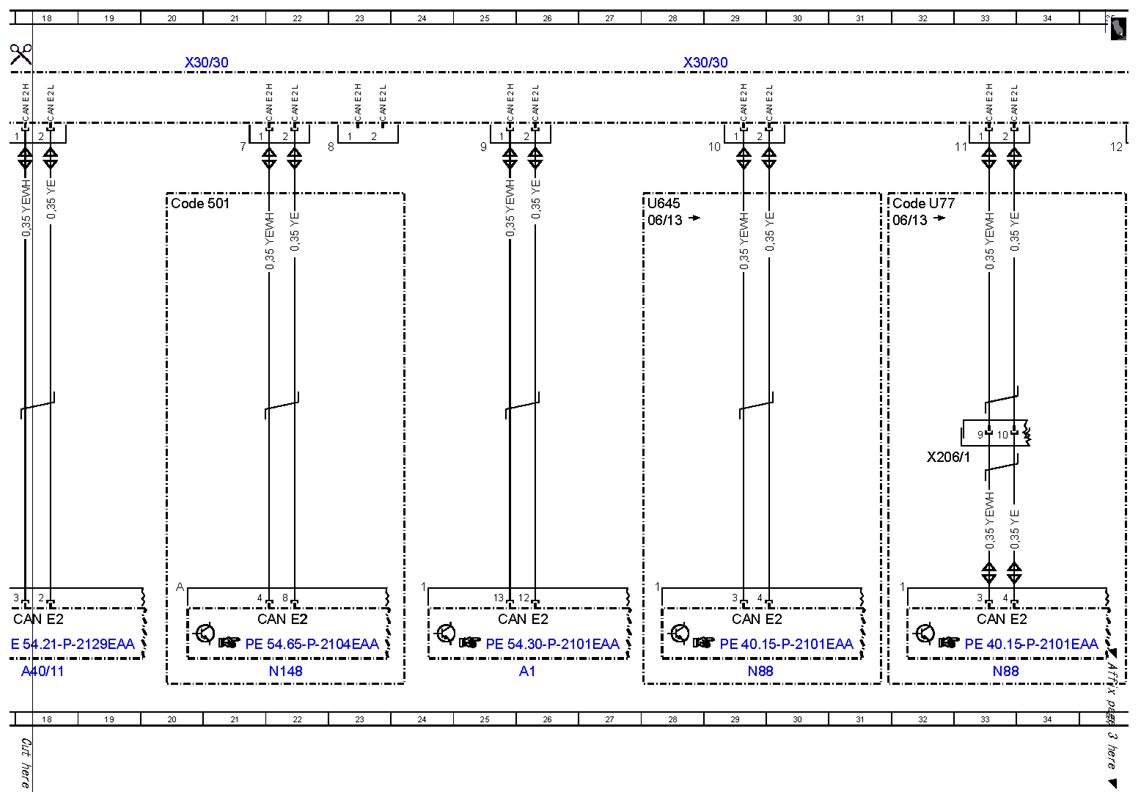

| Code 501 |
360 degree camera |
20C |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
32C |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N148 |
360° camera control unit |
22L |
| N62 |
Parking system control unit |
6L |

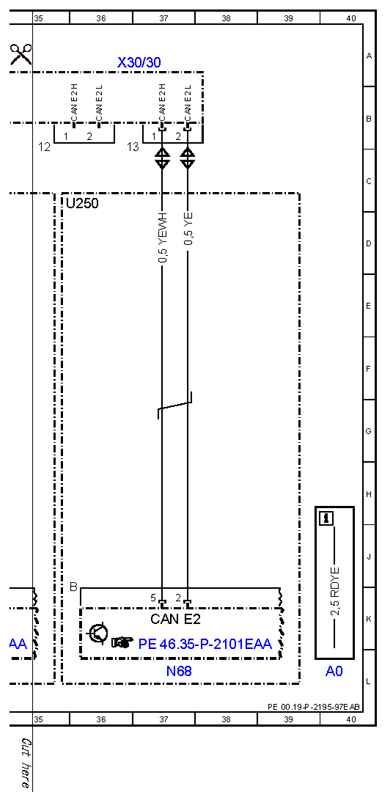

| N68 |
Electrical power steering control unit |
37L |
| N88 |
Tire pressure monitor control unit |
29L |
| N88 |
Tire pressure monitor control unit |
33L |
| N93/7 |
Chassis gateway control unit |
10L |
| U23 |
Valid for convertibles |
12C |
| U250 |
Valid for electric power steering |
35C |
| U611 |
Valid for Coupe |
14C |
| U645 |
Valid for tire pressure monitor |
28C |
| X169 |
Backup camera electrical connector |
12F |
| X206/1 |
AdBlue® tank module electrical connector |
32H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
4A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
12A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
20A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
28A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
36A |
