Secure vehicle on vehicle lift - AR00.60-P-0100CW

MODEL 117, 156, 176, 204, 205, 207, 217, 222, 242, 246

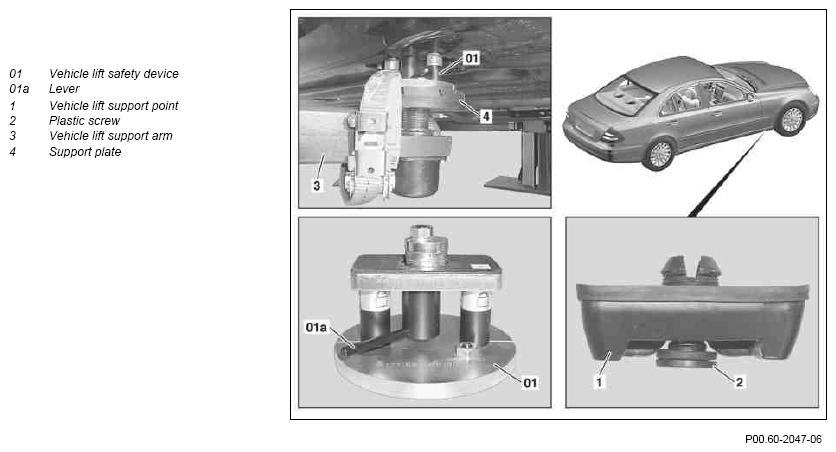

Fig 1: Securing Vehicle On Vehicle Lift

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Mount/detach
1	Remove plastic bolts (2) from vehicle lift support point (1)
2	Pry vehicle lift support point (1) out of longitudinal members	Do not use sharp-edged tools. Otherwise this can result in damage to the longitudinal member.
3	Insert vehicle lift safety devices (01) into longitudinal members	The vehicle lift safety devices (01) must always be mounted in pairs, i.e. at two positions in the vehicle longitudinal members. The vehicle lift safety devices (01) can both be mounted at the front, at the rear or on one side.
		Vehicle hoist securing tool	Fig 2
4	Swivel lever (01a) of vehicle lift safety devices (01) to the right	Thus, the vehicle lift safety devices (01) are locked onto the longitudinal members.
5	Adjust support plates (4) of vehicle lift support arms (3) until they are level with the vehicle lift safety devices (01) or the remaining vehicle lift support points (1)	Rotate support plates (4) until they make contact with the vehicle lift safety devices (01) or the vehicle lift support points (1) of the longitudinal members.
6	Lift vehicle on vehicle lift	MODEL 117, 156, 176, 204, 205, 207, 217, 222, 242, 246
		MODEL 217, 222	AR00.60-P-1000LF
		MODEL 117, 156, 176, 242, 246	AR00.60-P-1000AK
7	Secure lifting platform safety devices (01) using tensioning straps on the lifting platform support arms (3)
8	Dismantle in reverse order

Fig 2: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
