Notes on installing the cap on the brake stator - AH42.20-P-0530-01T
WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 197, 211, 216, 219, 221, 230

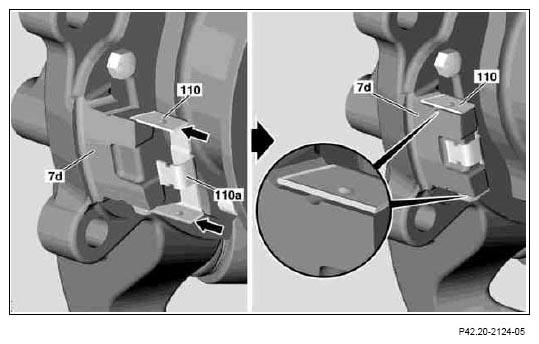

Slide 1 cap (110) using suitable tool onto brake stator (7d).
The depressions in the cap must latch in the grooves of the brake stator.
The force to install the cap (110) must only be applied to the front side of the mounting tabs (arrows). Do not apply any force to the mounting frame bow (110a).
This is because the cap (110) will be distorted thereby impairing the clamping effect allowing it to wander during vehicle operation, this in turn leads to noise development and the brake system heating up.
