Notes on installing brake wear indicator contact sensors - AH42.10-P-0003-01RQ

WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 197

The feed lines for the brake wear sensor and the electrical connections must be routed and fastened or mounted as shown.

Do not use defective or damaged parts again!

Electrical connections must latch into place correctly.

Otherwise ingressing moisture can result in the instrument cluster's warning lamp lighting up.

Front axle

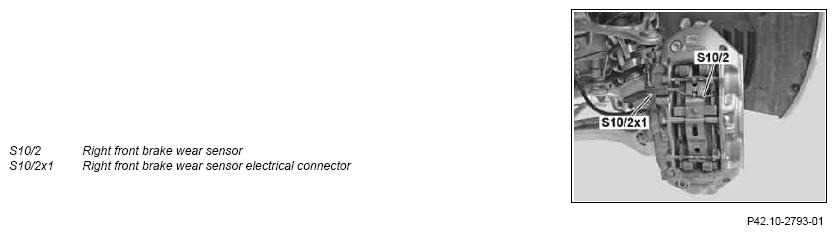

Fig 1: Identifying Right Front Brake Wear Sensor & Electrical Connector

Courtesy of MERCEDES-BENZ USA

Rear axle

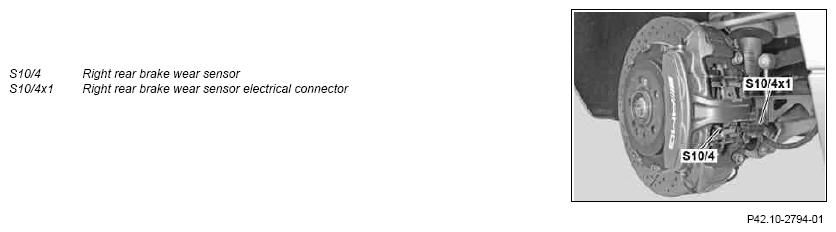

Fig 2: Identifying Right Rear Brake Wear Sensor & Electrical Connector

Courtesy of MERCEDES-BENZ USA

For reason of replacement part simplification, the brake linings must be installed so that the brake wear sensors can be installed in the corresponding installation position.

The corresponding installation position for the brake wear sensors is as follows:

Front axle, version 6
Rear axle, version 10

Fig 3: Identifying Brake Wear Sensor Installation Position
Courtesy of MERCEDES-BENZ USA
