Notes on installing brake wear indicator contact sensors - AH42.10-P-0003-01H

WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 240

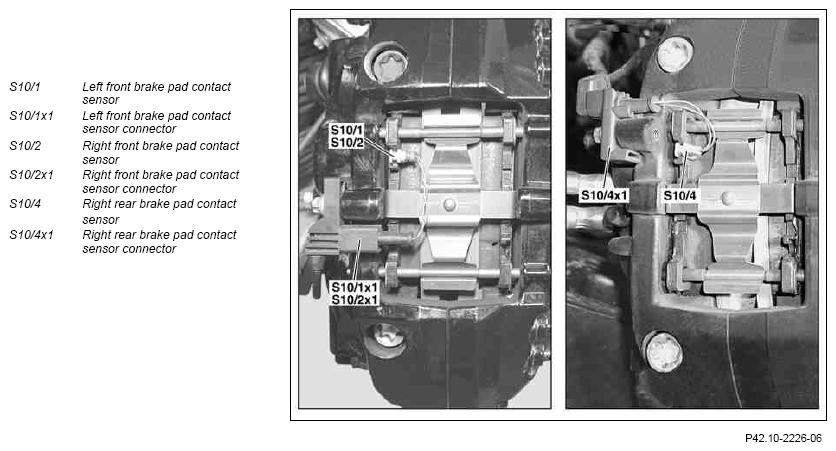

Fig 1: Identifying Brake Wear Indicator Contact Sensors

Courtesy of MERCEDES-BENZ USA

When replacing the brake pads the left front, right brake pad contact sensor (S10/1, S10/2) and the right rear brake pad contact sensor (S10/4) must also be replaced.
The left front and right brake pad contact sensor (S10/1, S10/2) and right rear brake pad contact sensor (S10/4) may only be installed on the inner brake pads.
The electrical feed line of the contact sensor must be routed as shown in the illustration.
Check correct latching of left front, right brake pad contact sensor connector (S10/1x1, S10/2x1) and right rear brake pad contact sensor connector (S10/4x1).

Ingressing moisture can result in the warning lamp lighting up.
