Notes on installation position of brake linings - AH42.10-P-1610-01A
WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 222, 231
Shown on MODEL 231
Certain parts kits for brake linings of the front axle in model series 222 and 231 have a semicircular cutout on the pad backing plate.
- MODEL 222 except CODE Z07 (Highest protection)
- A 007 420 32 20
- MODEL 222 with CODE Z07 (Highest protection)
- A 000 420 57 00
- MODEL 231
- A 006 420 49 20
- A 007 420 40 20
They are bound to a specific running direction and are identified in the parts kit by a number on the pad backing plate.

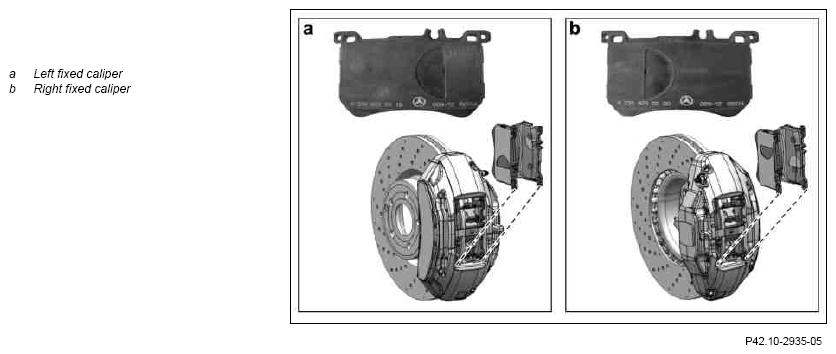

- Brake pads for left fixed caliper (a)
- A 231 421 01 10
- A 231 421 05 10
- A 222 421 15 10
- A 222 421 21 00
- Brake pads for right fixed caliper (b)
- A 231 421 02 10
- A 231 421 06 10
- A 222 421 16 10
- A 222 421 22 00
The numbers printed on the pad backing plate are for orientation with regard to the installation position of the brake linings and are not to be used for parts identification in the EPC.
