Information on inspecting brake pads - AH42.10-P-0004-01T

WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.004/006/007/008/016/020/022/023/026/028/029/041/042/054/056/061/065/070/072/080/082/083/084/087/089/090/092/206/208/216/220/222/223/226/241/242/254/256/261/265/270/272/280/282/283/284/287/289/290/292/606/608/616/620

The brake pad gage (1) is suitable for measuring the:

Thickness of outer brake pads with wheels fitted. Measurement is only possible at the floating brake calipers.

4MATIC-vehicles: Measurement only possible at rear axle.

Tire tread depth. The symbols and arrows printed on identify which side of the brake pad gauge (1) should be used for the corresponding measurement.

Fig 1: Identifying Brake Pad Gage
Courtesy of MERCEDES-BENZ USA

Information on measuring thickness of outer brake pads:

Before commencing each measurement, the slide (2) must be resting against the driver (3).

Otherwise measurement errors will occur.

The test mandrel (4) must be inserted in the check bore of the lining carrier (5) so that the test mandrel (4) contacts the brake disk.

Fit the brake pad gauge (1) to the lining carrier (5).

Remove brake pad check gauge (1) and read off measured value on the slide valve (2).

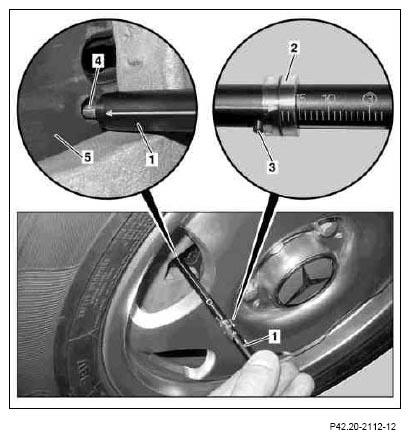

Fig 2: Measuring Thickness Of Outer Brake Pads

Courtesy of MERCEDES-BENZ USA
