Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97EAK

Code: Designation: Position:
A0 Color code key 88L
A9 Refrigerant compressor 36K
A9/7 Refrigerant compressor with magnetic clutch 37K
B16/2 Temperature sensor upstream of NOx storage catalytic converter 59L
B37 Accelerator pedal sensor 73L
B4/3 Fuel tank pressure sensor 51L
B79/2 Transmission neutral position position sensor 53L
CAN I Drive train sensor CAN 60K
CAN I Drive train sensor CAN 63K
Code 580 Automatic air conditioning 35K
Code 581 Comfort automatic air conditioning 35K
Code 835 South Korea version 48A
Code 920 Gasoline direct injection with stratified charge 58A
F32 Front electrical prefuse box 27L
F32f151 Prefuse 151 25K
K61 Charge air cooler circulation pump relay 80L
M1 Starter 33L
M4/7 Combustion engine and air conditioning with integrated control fan motor 24L
M44 Charge air cooler circulation pump 81L
N10/1 Front SAM control unit with fuse and relay module 3L
N10/1f22 Fuse 22 8L
N10/1f23 Fuse 23 15L
N10/1f24 Fuse 24 16L
N10/1f25 Fuse 25 5L
N10/1f27 Fuse 27 2L
N10/1f6 Fuse 6 9L
N10/2 Rear SAM control unit with fuse and relay module 77L
N10/2f66 Fuse 66 76L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 51A
N3/10 ME-SFI [ME] control unit 60A
N3/10 ME-SFI [ME] control unit 68A
N3/10 ME-SFI [ME] control unit 76A
N3/10 ME-SFI [ME] control unit 81A
N37/6 Right NOx sensor control unit 67L
N37/6b1 Right NOx sensor 70L
S40/3 Clutch pedal switch 57L
S40/5 Start enable clutch pedal switch 55L
U12 Valid for left-hand drive vehicles 39H
U12 Valid for left-hand drive vehicles 2C
U12 Valid for left-hand drive vehicles 64H
U12 Valid for left-hand drive vehicles 61G
U13 Valid for right-hand drive vehicles 39J
U13 Valid for right-hand drive vehicles 2C
U13 Valid for right-hand drive vehicles 64H
U13 Valid for right-hand drive vehicles 61G
U24 Valid for manual transmission 52A
U24 Valid for manual transmission 56A
U252 Valid for ECO start/stop function 12D
U252 Valid for ECO start/stop function 52B
U62 Valid for 4MATIC 41F
U960 Valid for radiator shutters 44F
W11 Combustion engine ground point 35L
W15/6 Ground point (left front footwell CAN) 62H
W15/8 Ground point (right front footwell CAN) 62H
W16/3 Left major assembly compartment ground point 55H
W16/3 Left major assembly compartment ground point 57H
W16/5 Left major assembly compartment electronics ground point 40L
W16/5 Left major assembly compartment electronics ground point 3E
W16/6 Right major assembly compartment ground point 40L
W16/6 Right major assembly compartment ground point 3E
W16/6 Right major assembly compartment ground point 82H
W18 Left front seat crossmember ground point 65L
W19 Right front seat crossmember ground point 65L
W9 Left front ground point (at lamp unit) 23H
X25/4 Fuel tank electrical connector 50H
X26 Interior and engine wiring harness electrical connector 29G
X30/38 Potential distributor electrical connector (CAN I) 63L
X30/38 Potential distributor electrical connector (CAN I) 61L
X35/6 Instrument panel and module box electrical connector 75H
X35/6 Instrument panel and module box electrical connector 48E
X35/6 Instrument panel and module box electrical connector 58E
X86/1 Nitrogen oxides control unit electrical connector 66H
X86/2 Electrical connector/temperature sensor/NOx storage catalytic converter 58H
Y123 Left switchable engine mount 42L
Y123/1 Right switchable engine mount 43L
Y58/1 Purge control valve 47L
Y58/4 Activated charcoal filter shutoff valve 49L
Y84 Radiator shutters actuator 45L
Z111 Air conditioning 12 Volt connector sleeve (1) 38K
Z57/17 Engine compartment engine mount solder point 43G
Z7/35z1 Circuit 87 M1e connector sleeve 29K
Z7/36 Circuit 87 M2e connector sleeve 7G
Z7/36 Circuit 87 M2e connector sleeve 46E
Z7/36 Circuit 87 M2e connector sleeve 67C
Z7/36 Circuit 87 M2e connector sleeve 79E
Z7/36z1 Circuit 87 M2e connector sleeve 30H
Z7/36z1 Circuit 87 M2e connector sleeve 41G
Z7/38z1 Circuit 87 M1i connector sleeve 31K
Z7/73 Circuit 87 connector sleeve 4E

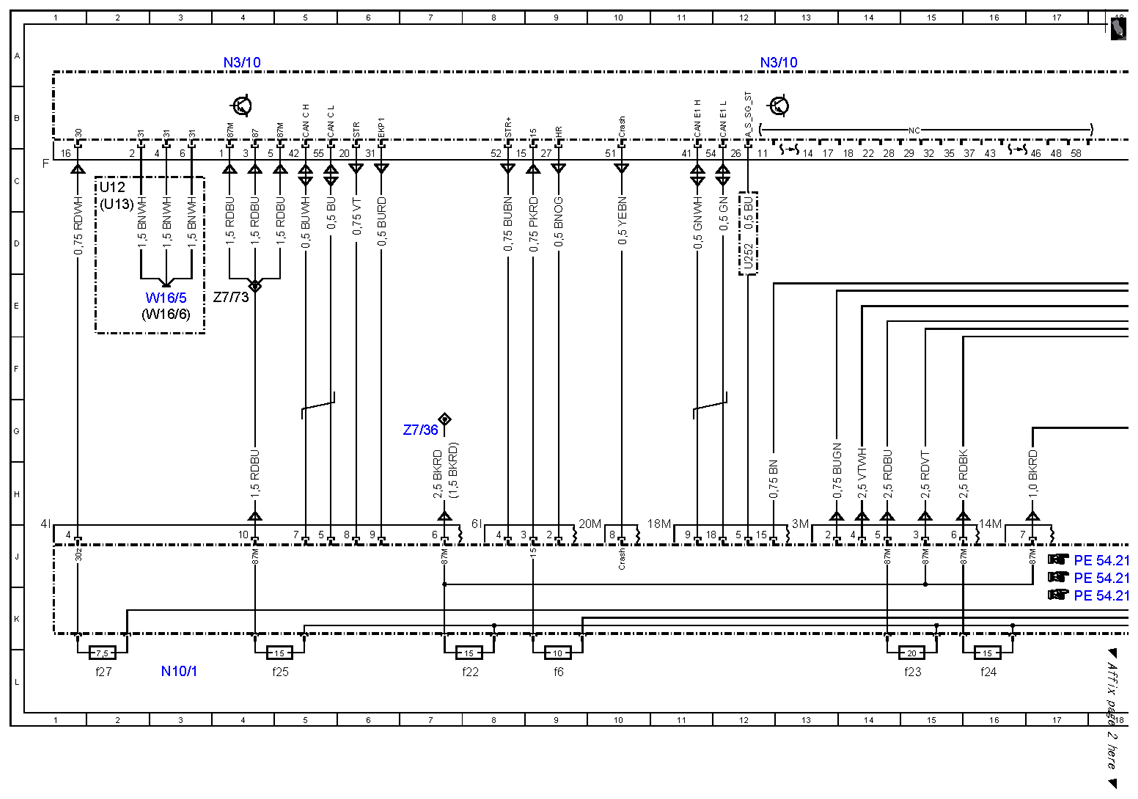

Fig 1: Gasoline Direct Injection System Control Unit - Wiring Diagram (1 Of 6)
G10082176Courtesy of MERCEDES-BENZ USA

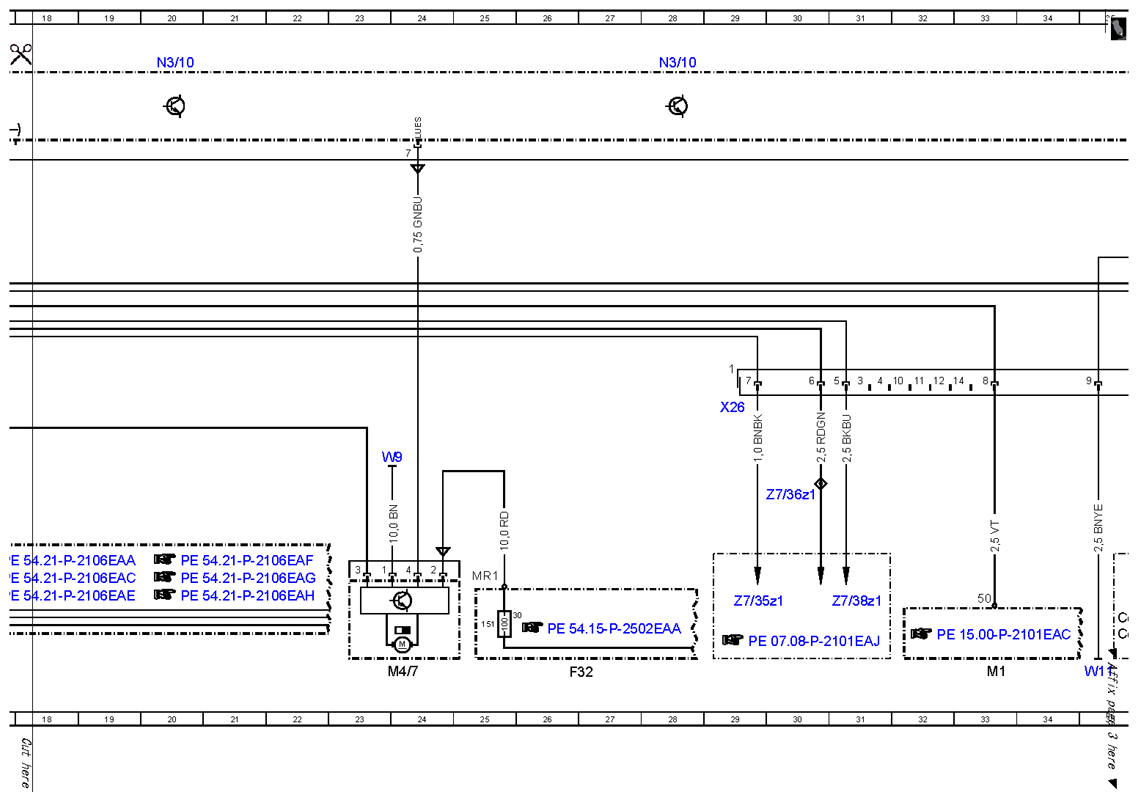

Fig 2: Gasoline Direct Injection System Control Unit - Wiring Diagram (2 Of 6)
G10082177Courtesy of MERCEDES-BENZ USA

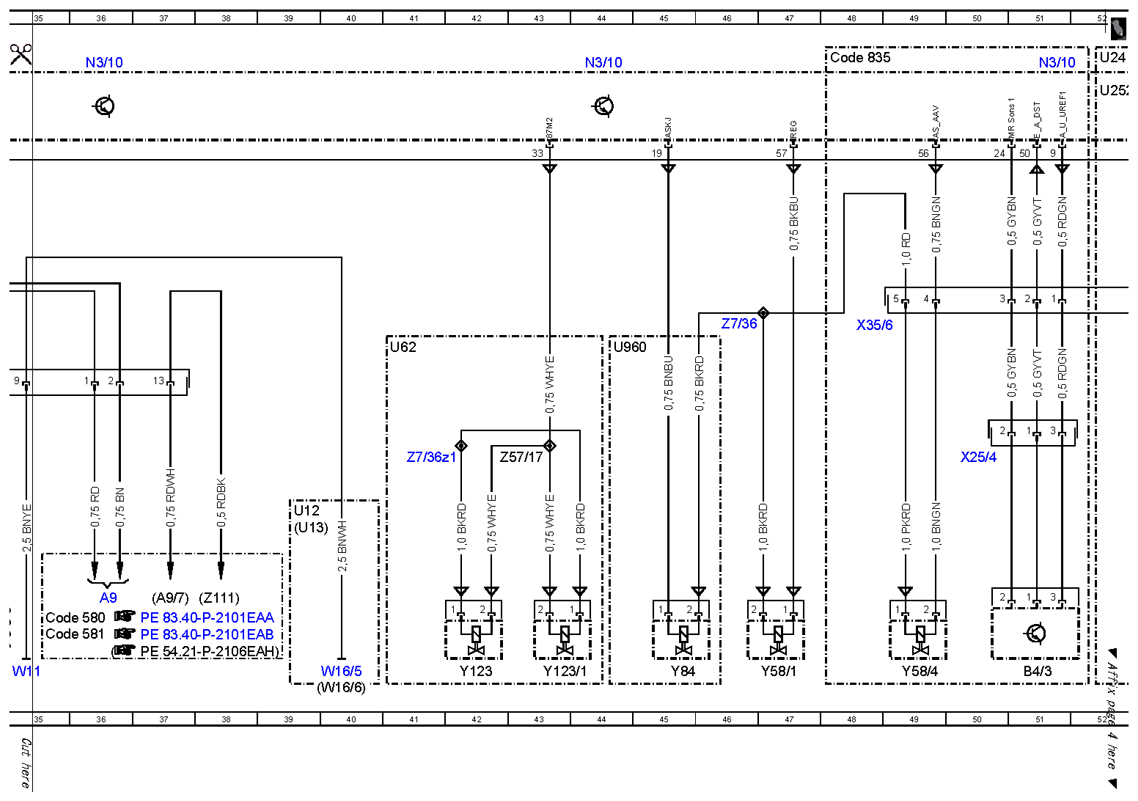

Fig 3: Gasoline Direct Injection System Control Unit - Wiring Diagram (3 Of 6)
G10082178Courtesy of MERCEDES-BENZ USA

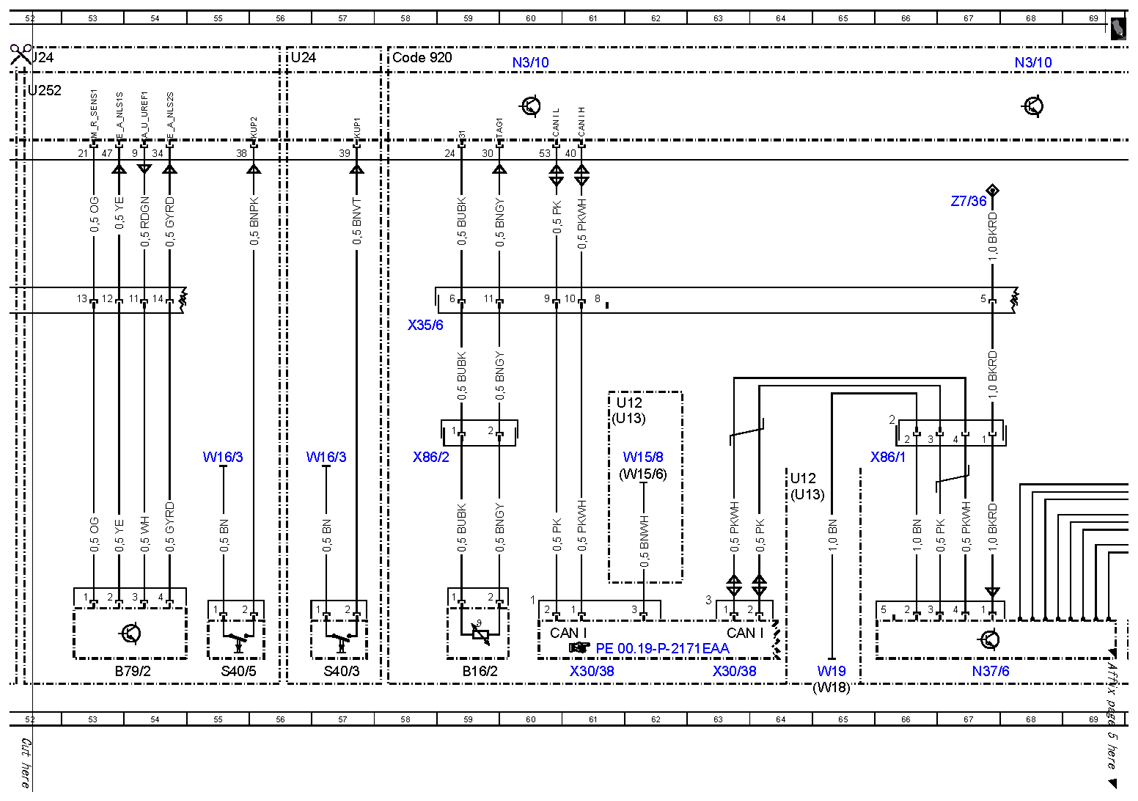

Fig 4: Gasoline Direct Injection System Control Unit - Wiring Diagram (4 Of 6)
G10082179Courtesy of MERCEDES-BENZ USA

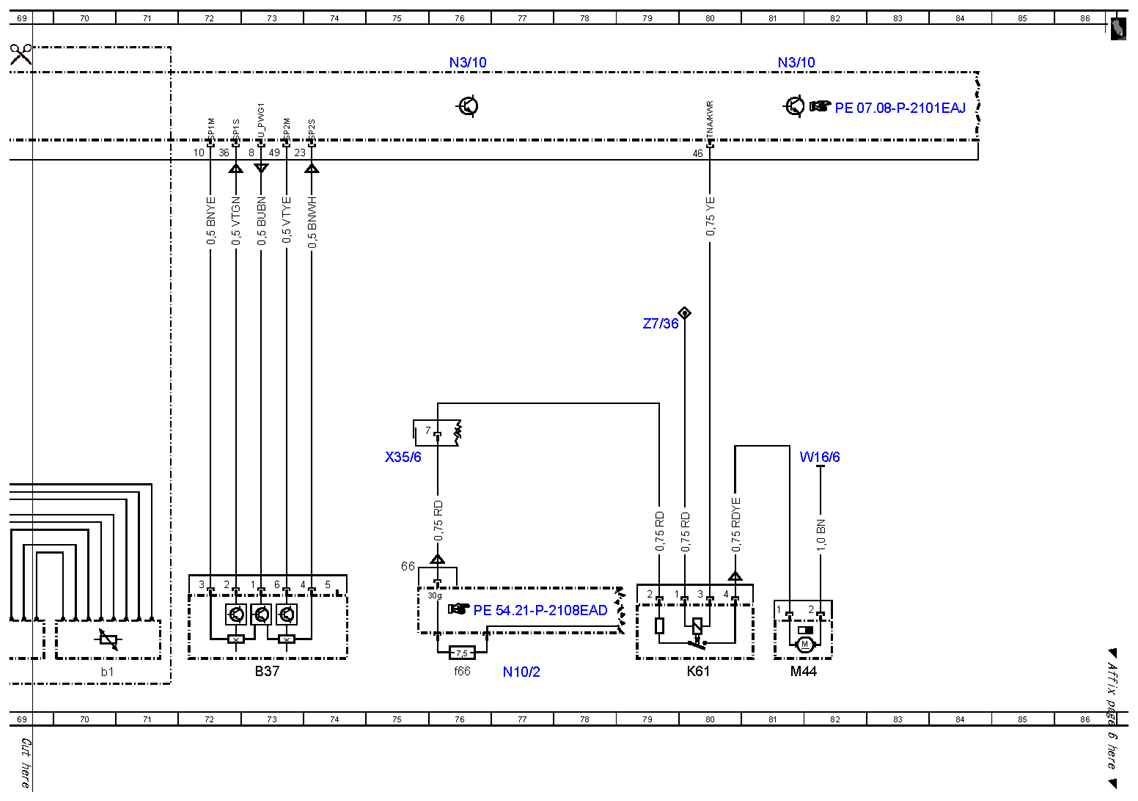

Fig 5: Gasoline Direct Injection System Control Unit - Wiring Diagram (5 Of 6)
G10082180Courtesy of MERCEDES-BENZ USA

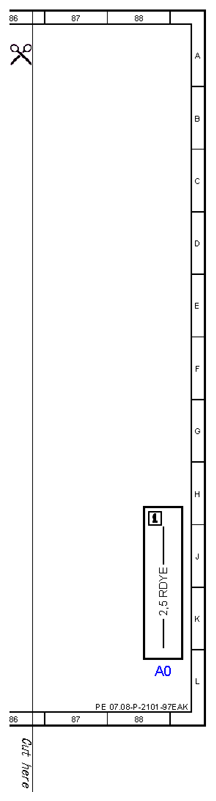

Fig 6: Gasoline Direct Injection System Control Unit - Wiring Diagram (6 Of 6)
G10082181Courtesy of MERCEDES-BENZ USA
