Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97EAJ

Code: Designation: Position:
A0 Color code key 80L
A16/1 Right knock sensor 7L
A16/2 Left knock sensor 6L
B11/4 Coolant temperature sensor 53L
B17/7 Charge air temperature sensor upstream of throttle valve 56L
B17/9 Charge air temperature sensor downstream of throttle valve 55L
B2/5 Hot film mass air flow sensor 64L
B28/5 Pressure sensor downstream of air filter 58L
B28/6 Pressure sensor upstream of throttle valve 52L
B28/7 Pressure sensor downstream of throttle valve 45L
B4/25 Fuel tank pressure and temperature sensor 42L
B5/5 Exhaust gas recirculation pressure sensor 1 62L
B5/6 Exhaust gas recirculation pressure sensor 2 61L
B6/15 Intake camshaft Hall sensor 26L
B6/16 Exhaust camshaft Hall sensor 24L
B70 Crankshaft Hall sensor 47L
Code 920 Gasoline direct injection with stratified charge 29C
Code 920 Gasoline direct injection with stratified charge 48H
Code 920 Gasoline direct injection with stratified charge 59H
G2 Alternator 76L
G3/1 Oxygen sensor downstream of catalytic converter 37L
G3/1b1 Sensor element of oxygen sensor downstream of catalytic converter 37L
G3/1r1 Heater of oxygen sensor heater downstream of catalytic converter 36K
G3/1x1 Electrical connector for oxygen sensor downstream of catalytic converter 36K
G3/2 Oxygen sensor upstream of catalytic converter 39L
G3/2b1 Sensor element of oxygen sensor upstream of catalytic converter 39K
G3/2r1 Heater of oxygen sensor upstream of catalytic converter 38K
G3/2x1 Electrical connector for oxygen sensor upstream of catalytic converter 38J
LIN C1 Drive train LIN 76B
M16/6 Throttle valve actuator 20L
M16/6m1 Actuator motor 20K
M16/6r1 Actual value potentiometer 1 21K
M16/6r2 Actual value potentiometer 2 21K
M16/6r3 Sliding contact 1 actual value potentiometer 20K
M16/6r4 Sliding contact 2 actual value potentiometer 19K
N10/1 Front SAM control unit with fuse and relay module 72L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 52A
N3/10 ME-SFI [ME] control unit 60A
N3/10 ME-SFI [ME] control unit 68A
N3/10 ME-SFI [ME] control unit 75A
R39/2 Full-load operation vent line heater element 23L
R4 Spark plugs 8L
R4 Spark plugs 14L
R4 Spark plugs 11L
R4 Spark plugs 16L
R48 Coolant thermostat heating element 31L
S43 Oil level check switch 18L
T1/1 Cylinder 1 ignition coil 8K
T1/2 Cylinder 2 ignition coil 11K
T1/3 Cylinder 3 ignition coil 14K
T1/4 Cylinder 4 ignition coil 16K
U1021 Not valid for gasoline engine with stratified operation 29D
U12 Valid for left-hand drive vehicles 69H
U13 Valid for right-hand drive vehicles 69H
W11 Combustion engine ground point 14E
W11 Combustion engine ground point 44E
W11 Combustion engine ground point 54F
W11 Combustion engine ground point 69E
W16/5 Left major assembly compartment electronics ground point 69L
W16/6 Right major assembly compartment ground point 69L
X26 Interior and engine wiring harness electrical connector 69G
Y101 Divert air switchover valve 33L
Y130 Engine oil pump valve 30L
Y133 Coolant pump switchover valve 34L
Y27/9 Exhaust gas recirculation actuator 50L
Y27/9b1 Exhaust gas recirculation actuator Hall sensor 50L
Y27/9y1 Exhaust gas recirculation actuator rotating magnet 49L
Y31/5 Boost pressure control pressure transducer 35L
Y49/1 Intake camshaft solenoid 68L
Y49/2 Exhaust camshaft solenoid 66L
Y58/2 Partial load operation crankcase ventilation valve 28L
Y62/1 Cylinder 1 injection valve 1L
Y62/2 Cylinder 2 injection valve 2L
Y62/3 Cylinder 3 injection valve 3L
Y62/4 Cylinder 4 injection valve 4L
Y94 Quantity control valve 41L
Z5z3 Voltage supply connector sleeve 60G
Z5z4 Voltage supply connector sleeve 51G
Z6/26z1 Voltage supply connector sleeve 44G
Z7/35z1 Circuit 87 M1e connector sleeve 67G
Z7/36z1 Circuit 87 M2e connector sleeve 26G
Z7/36z1 Circuit 87 M2e connector sleeve 71E
Z7/36z2 Circuit 87 M2e connector sleeve 32G
Z7/38z1 Circuit 87 M1i connector sleeve 11G
Z7/38z1 Circuit 87 M1i connector sleeve 72E
Z7z1 Ground line connector sleeve 25G

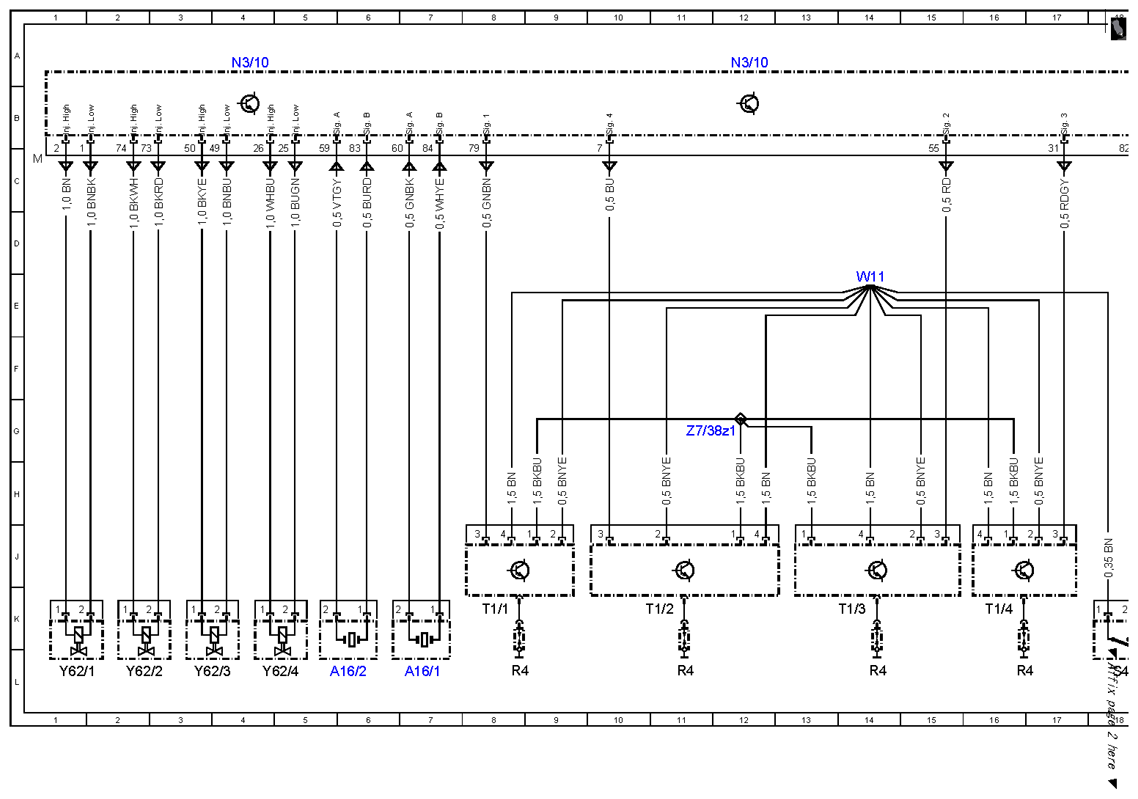

Fig 1: Gasoline Direct Injection System Control Unit - Wiring Diagram (1 Of 5)
G10082171Courtesy of MERCEDES-BENZ USA

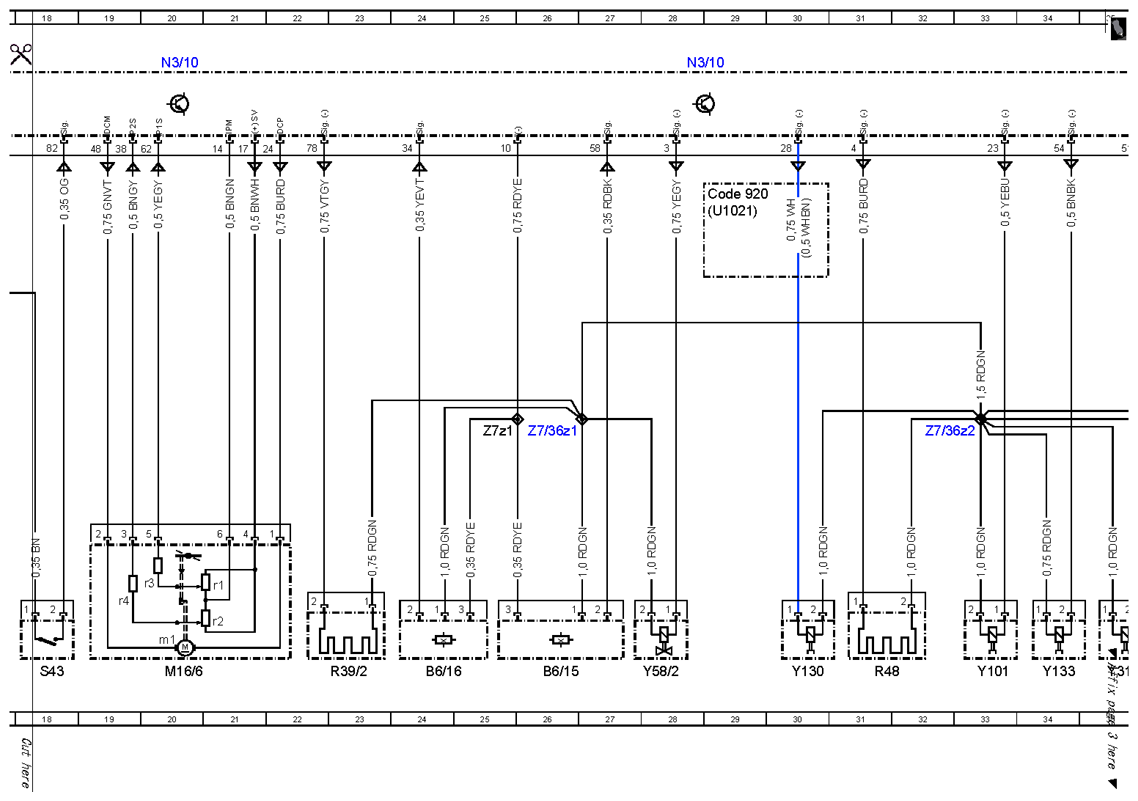

Fig 2: Gasoline Direct Injection System Control Unit - Wiring Diagram (2 Of 5)
G10082172Courtesy of MERCEDES-BENZ USA

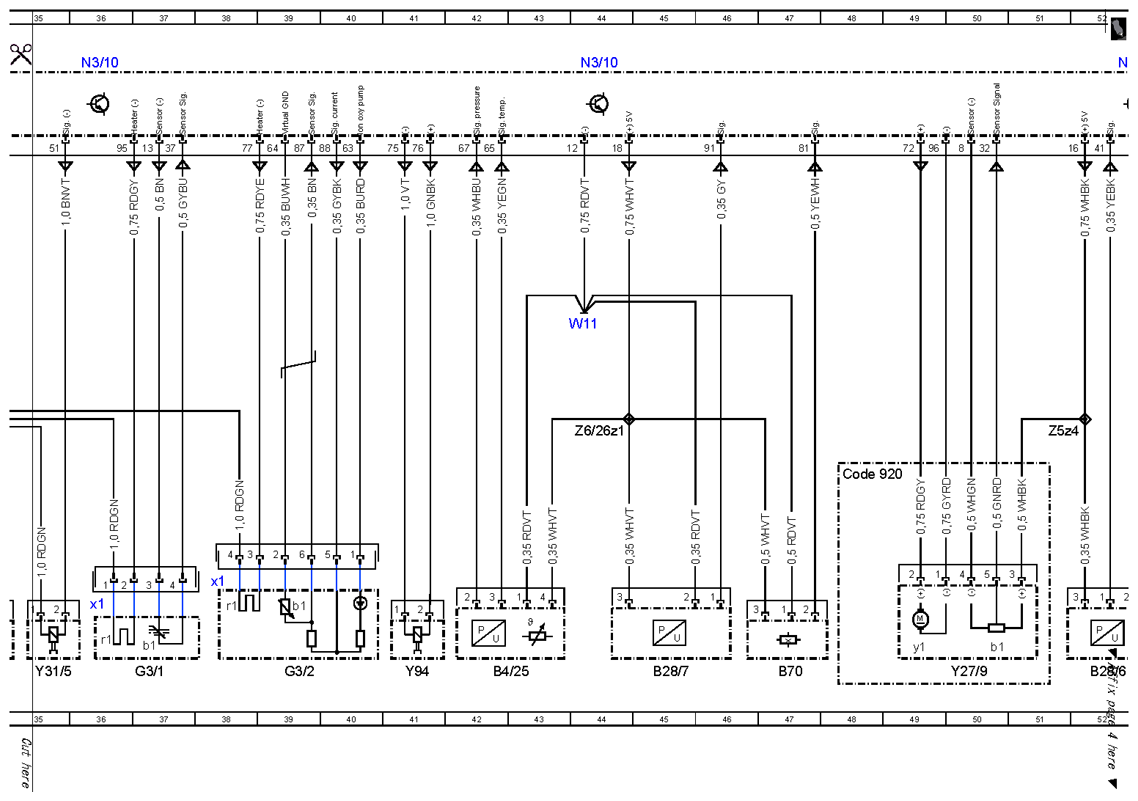

Fig 3: Gasoline Direct Injection System Control Unit - Wiring Diagram (3 Of 5)
G10082173Courtesy of MERCEDES-BENZ USA

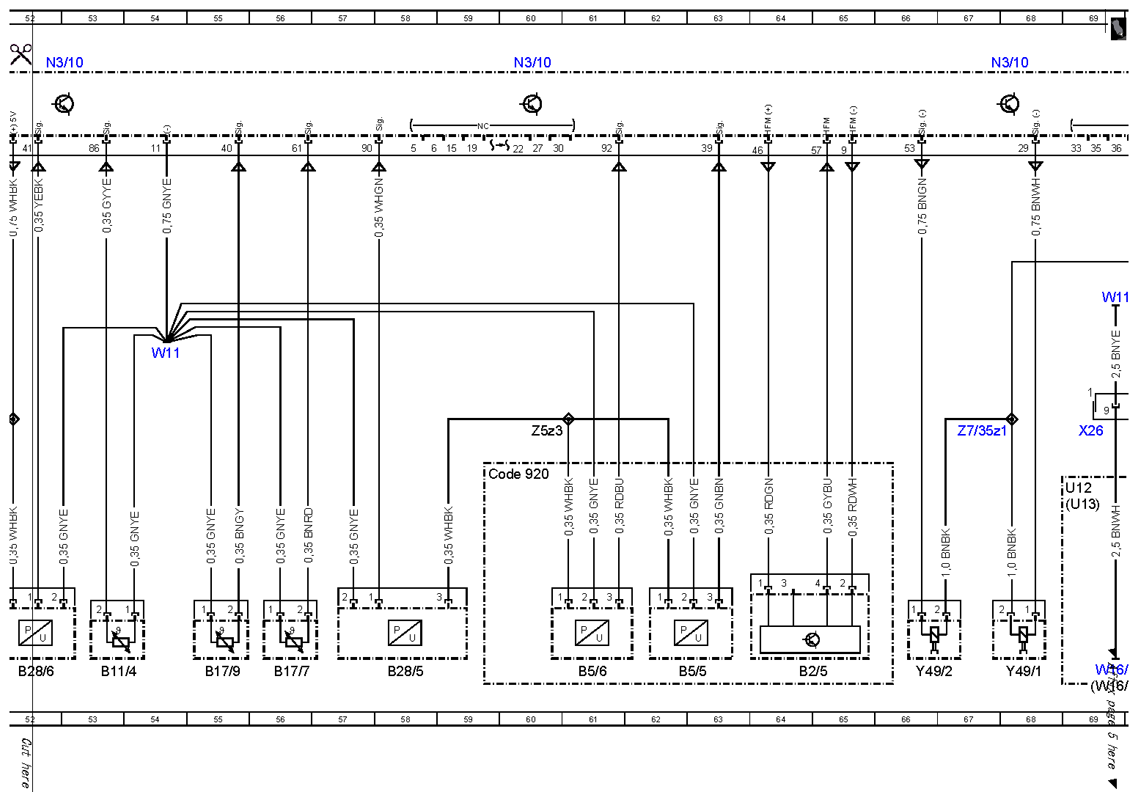

Fig 4: Gasoline Direct Injection System Control Unit - Wiring Diagram (4 Of 5)
G10082174Courtesy of MERCEDES-BENZ USA

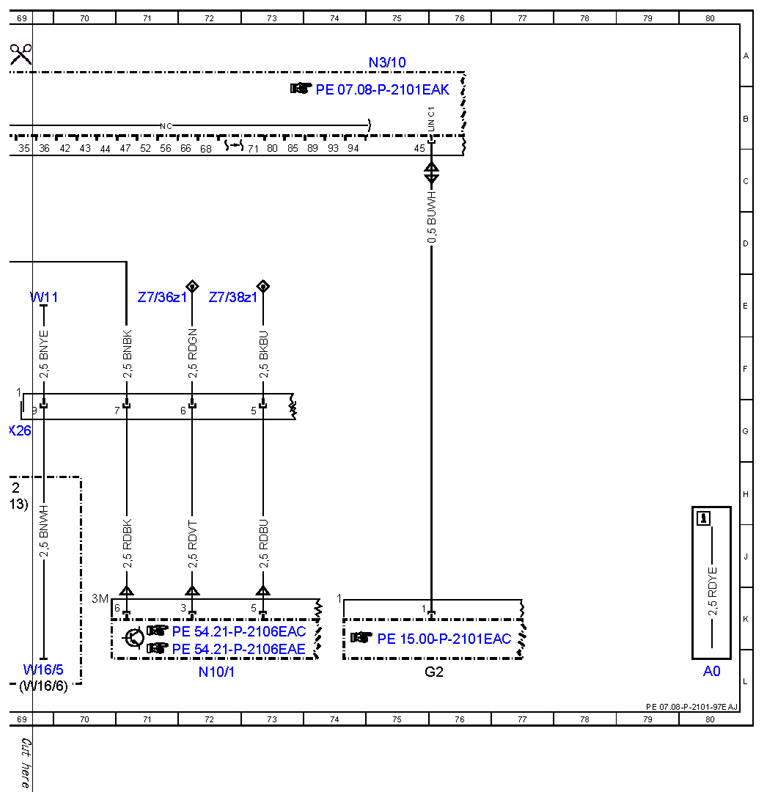

Fig 5: Gasoline Direct Injection System Control Unit - Wiring Diagram (5 Of 5)
G10082175Courtesy of MERCEDES-BENZ USA
