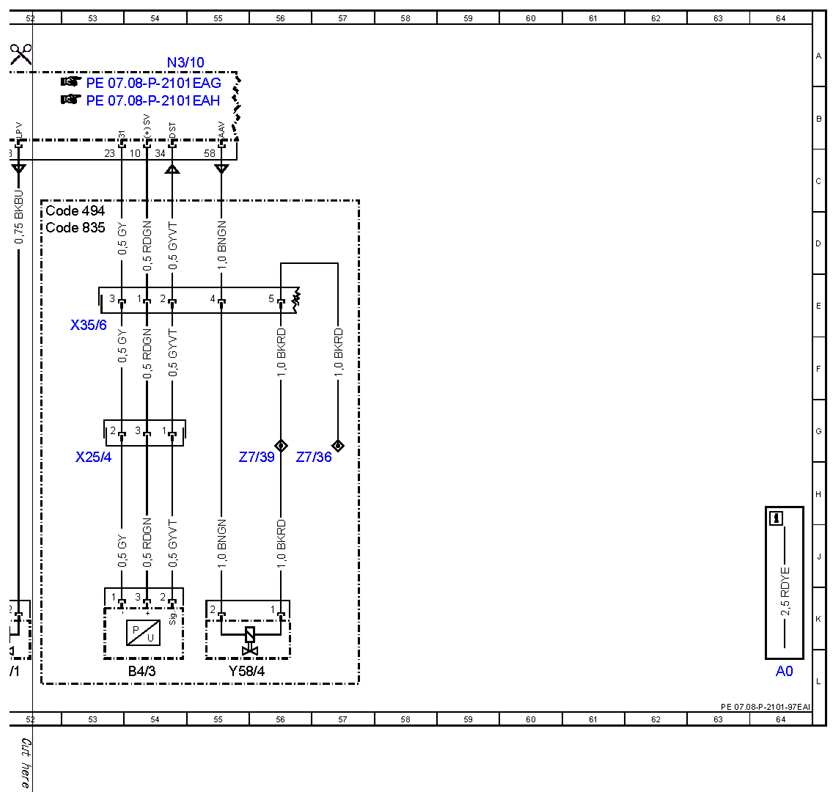

| A0 |
Color code key |
64L |
| A9 |
Refrigerant compressor |
34L |

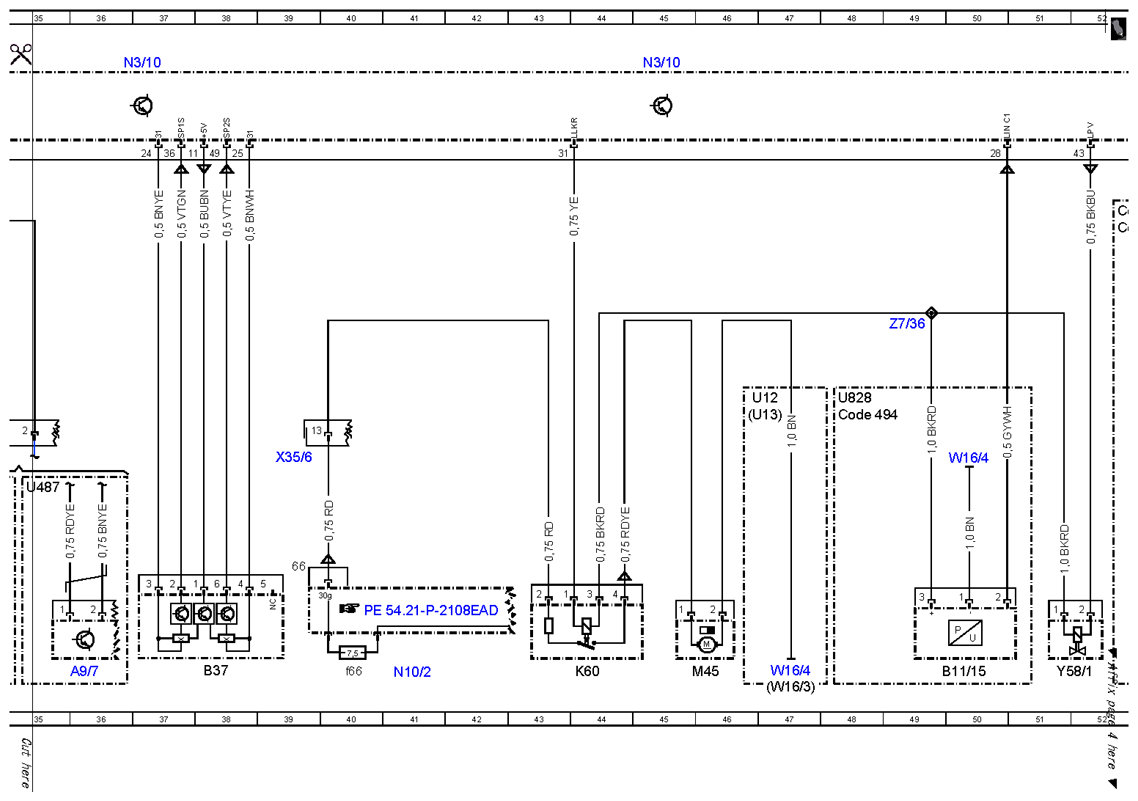

| A9/7 |
Refrigerant compressor with magnetic clutch |
36L |
| B11/15 |
Radiator sensor for engine diagnosis |
50L |
| B37 |
Accelerator pedal sensor |
38L |
| B4/3 |
Fuel tank pressure sensor |
54L |
| Code 494 |
USA version |
52D |
| Code 494 |
USA version |
48G |
| Code 835 |
South Korea version |
52D |
| Code B03 |
ECO start/stop function |
14B |

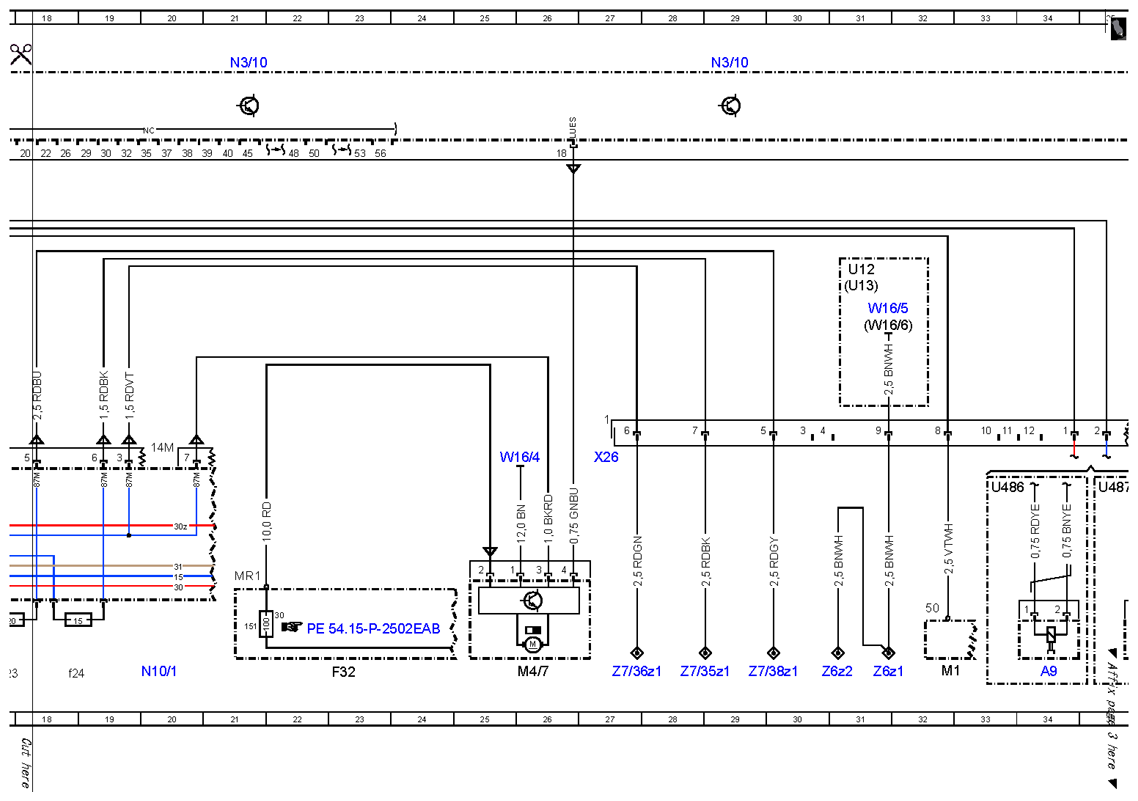

| F32 |
Front electrical prefuse box |
23L |
| F32f151 |
Prefuse 151 |
21K |
| K60 |
Coolant circulation pump relay |
44L |
| LIN C1 |
Drive train LIN |
51B |
| M1 |
Starter |
32L |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
26L |
| M45 |
Coolant circulation pump |
46L |

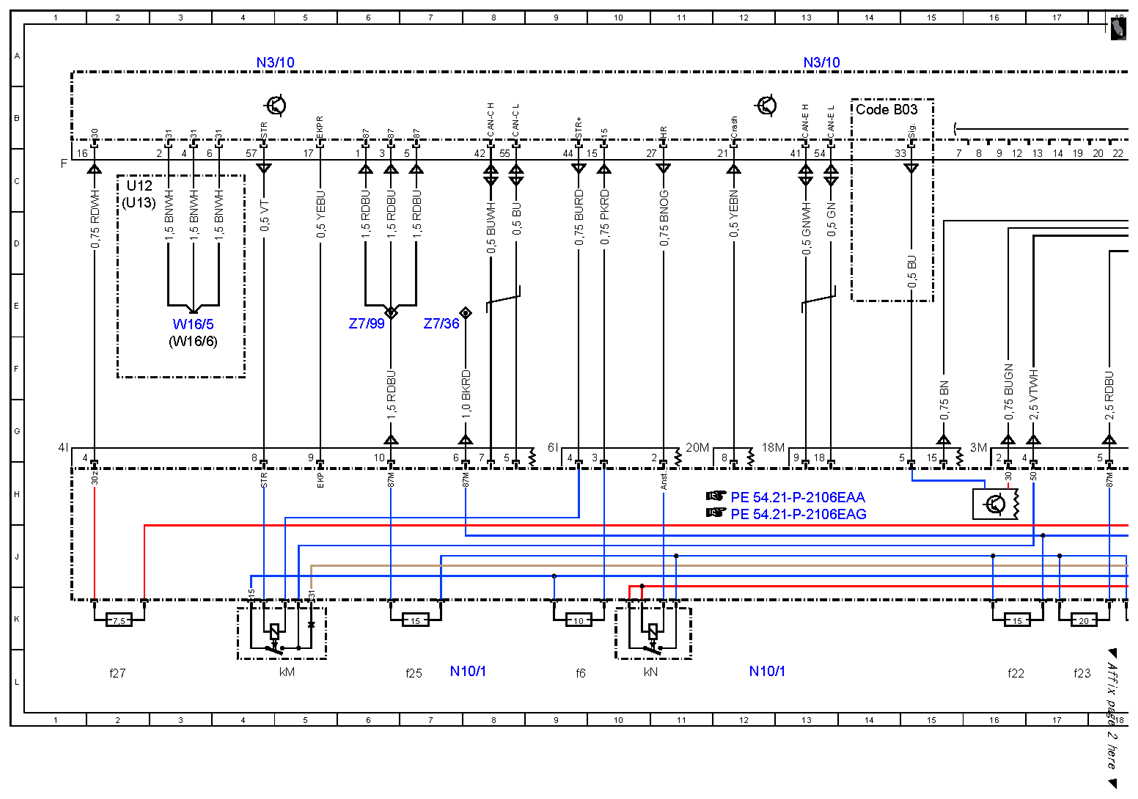

| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12L |
| N10/1 |
Front SAM control unit with fuse and relay module |
20L |
| N10/1f22 |
Fuse 22 |
16L |
| N10/1f23 |
Fuse 23 |
17L |
| N10/1f24 |
Fuse 24 |
18L |
| N10/1f25 |
Fuse 25 |
7L |
| N10/1f27 |
Fuse 27 |
2L |
| N10/1f6 |
Fuse 6 |
9L |
| N10/1kM |
Starter circuit 50 relay |
5L |
| N10/1kN |
Engine circuit 87 relay |
10L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
41L |
| N10/2f66 |
Fuse 66 |
40L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
13A |
| N3/10 |
ME-SFI [ME] control unit |
21A |
| N3/10 |
ME-SFI [ME] control unit |
29A |
| N3/10 |
ME-SFI [ME] control unit |
37A |
| N3/10 |
ME-SFI [ME] control unit |
45A |
| N3/10 |
ME-SFI [ME] control unit |
54A |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U12 |
Valid for left-hand drive vehicles |
46G |
| U12 |
Valid for left-hand drive vehicles |
31D |
| U13 |
Valid for right-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
46G |
| U13 |
Valid for right-hand drive vehicles |
31E |
| U486 |
Valid for refrigerant compressor |
33H |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
35H |
| U828 |
Valid for SULEV |
48G |
| W16/3 |
Left major assembly compartment ground point |
47L |
| W16/4 |
Right wheelhouse ground point |
25H |
| W16/4 |
Right wheelhouse ground point |
47L |
| W16/4 |
Right wheelhouse ground point |
50H |
| W16/5 |
Left major assembly compartment electronics ground point |
3E |
| W16/5 |
Left major assembly compartment electronics ground point |
31E |
| W16/6 |
Right major assembly compartment ground point |
3F |
| W16/6 |
Right major assembly compartment ground point |
31E |
| X25/4 |
Fuel tank electrical connector |
53H |
| X26 |
Interior and engine wiring harness electrical connector |
27H |
| X35/6 |
Instrument panel and module box electrical connector |
39H |
| X35/6 |
Instrument panel and module box electrical connector |
53E |
| Y58/1 |
Purge control valve |
51L |
| Y58/4 |
Activated charcoal filter shutoff valve |
55L |
| Z6z1 |
Circuit 31 connector sleeve |
31L |
| Z6z2 |
Circuit 31 connector sleeve |
31L |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
28L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
7E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
57G |
| Z7/36 |
Circuit 87 M2e connector sleeve |
49E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
27L |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
29L |
| Z7/39 |
Circuit 87 M2i connector sleeve |
56G |
| Z7/99 |
Circuit 87 connector sleeve M4e |
6E |
