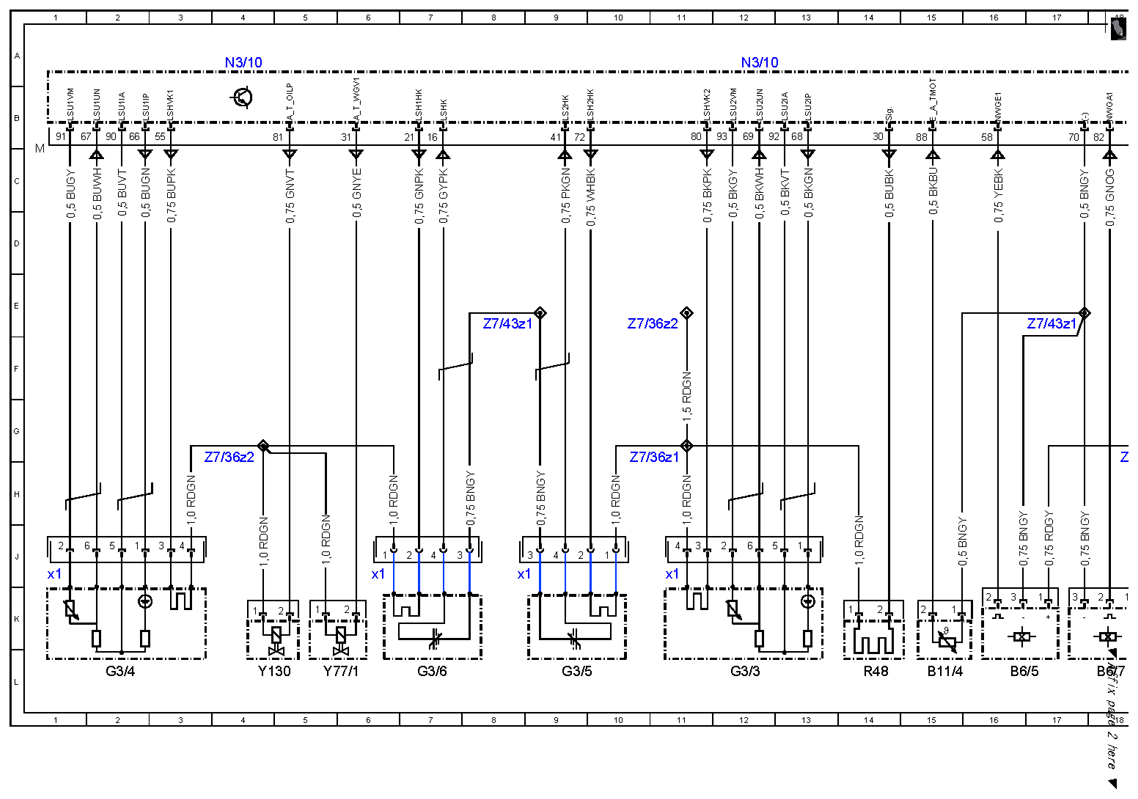

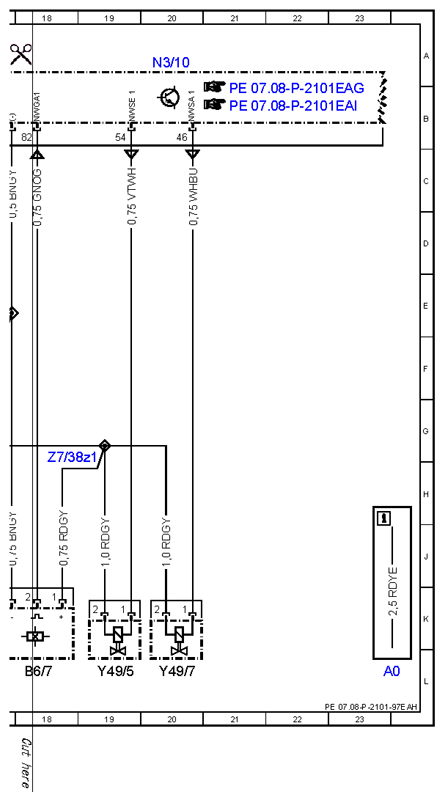

| A0 |
Color code key |
23L |
| B11/4 |
Coolant temperature sensor |
15L |
| B6/5 |
Right intake camshaft Hall sensor |
16L |
| B6/7 |
Right exhaust camshaft Hall sensor |
18L |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
12L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
11J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
2L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
1J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
9L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
8J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
7L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
6J |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| R48 |
Coolant thermostat heating element |
14L |
| Y130 |
Engine oil pump valve |
4L |
| Y49/5 |
Right intake camshaft solenoid |
19L |
| Y49/7 |
Right exhaust camshaft solenoid |
20L |
| Y77/1 |
Boost pressure positioner |
5L |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
11G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
4G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
11E |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
18G |
| Z7/43z1 |
Sensor ground line connector sleeve |
8E |
| Z7/43z1 |
Sensor ground line connector sleeve |
17E |
