Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97EAG

Code: Designation: Position:
A0 Color code key 72L
A29/1 Left cylinder bank front knock sensor 3L
A29/2 Left cylinder bank rear knock sensor 4L
A30/1 Right cylinder bank front knock sensor 2L
A30/2 Right cylinder bank rear knock sensor 5L
B17/8 Charge air temperature sensor 21L
B28/4 Pressure sensor downstream of left cylinder bank air filter 24L
B28/5 Pressure sensor downstream of air filter 26L
B28/6 Pressure sensor upstream of throttle valve 22L
B28/7 Pressure sensor downstream of throttle valve 50L
B4/25 Fuel tank pressure and temperature sensor 53L
B6/4 Left intake camshaft Hall sensor 47L
B6/6 Left exhaust camshaft Hall sensor 48L
B70 Crankshaft Hall sensor 52L
G2 Alternator 64L
M16/6 Throttle valve actuator 18L
M16/6m1 Actuator motor 17K
M16/6r1 Actual value potentiometer 1 18K
M16/6r2 Actual value potentiometer 2 18K
M16/6r3 Sliding contact 1 actual value potentiometer 17K
M16/6r4 Sliding contact 2 actual value potentiometer 17K
N10/1 Front SAM control unit with fuse and relay module 60L
N3/10 ME-SFI [ME] control unit 13A
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 52A
N3/10 ME-SFI [ME] control unit 60A
R4 Spark plugs 28L
R4 Spark plugs 30L
R4 Spark plugs 33L
R4 Spark plugs 35L
R4 Spark plugs 38L
R4 Spark plugs 39L
R4 Spark plugs 41L
R4 Spark plugs 43L
S43 Oil level check switch 6L
T1/1 Cylinder 1 ignition coil 28K
T1/2 Cylinder 2 ignition coil 32K
T1/3 Cylinder 3 ignition coil 34K
T1/4 Cylinder 4 ignition coil 30K
T1/5 Cylinder 5 ignition coil 41K
T1/6 Cylinder 6 ignition coil 37K
T1/7 Cylinder 7 ignition coil 39K
T1/8 Cylinder 8 ignition coil 43K
U12 Valid for left-hand drive vehicles 57H
U13 Valid for right-hand drive vehicles 57H
W11 Combustion engine ground point 36L
W16/5 Left major assembly compartment electronics ground point 57L
W16/6 Right major assembly compartment ground point 57L
X26 Interior and engine wiring harness electrical connector 2H
X26 Interior and engine wiring harness electrical connector 4H
X26 Interior and engine wiring harness electrical connector 25H
X26 Interior and engine wiring harness electrical connector 16E
X26 Interior and engine wiring harness electrical connector 57H
Y49/4 Left intake camshaft solenoid 45L
Y49/6 Left exhaust camshaft solenoid 46L
Y76/1 Cylinder 1 fuel injector 7L
Y76/2 Cylinder 2 fuel injector 9L
Y76/3 Cylinder 3 fuel injector 10L
Y76/4 Cylinder 4 fuel injector 11L
Y76/5 Cylinder 5 fuel injector 12L
Y76/6 Cylinder 6 fuel injector 13L
Y76/7 Cylinder 7 fuel injector 14L
Y76/8 Cylinder 8 fuel injector 15L
Y94/1 Left quantity control valve 55L
Y94/2 Right quantity control valve 56L
Z5 Connector sleeve in wiring harness 24E
Z6/8 Sensor ground connector sleeve 41G
Z6z1 Circuit 31 connector sleeve 29E
Z6z1 Circuit 31 connector sleeve 57E
Z6z2 Circuit 31 connector sleeve 39E
Z7/35z1 Circuit 87 M1e connector sleeve 34E
Z7/35z1 Circuit 87 M1e connector sleeve 43E
Z7/35z1 Circuit 87 M1e connector sleeve 58E
Z7/35z2 Circuit 87 M1e connector sleeve 48G
Z7/36z1 Circuit 87 M2e connector sleeve 59E
Z7/38z1 Circuit 87 M1i connector sleeve 30E
Z7/38z1 Circuit 87 M1i connector sleeve 60E
Z7/41 Sensor voltage supply connector sleeve 53E
Z7/43z1 Sensor ground line connector sleeve 20C
Z7/44 Sensor ground connector sleeve 24E
Z7/44 Sensor ground connector sleeve 51G

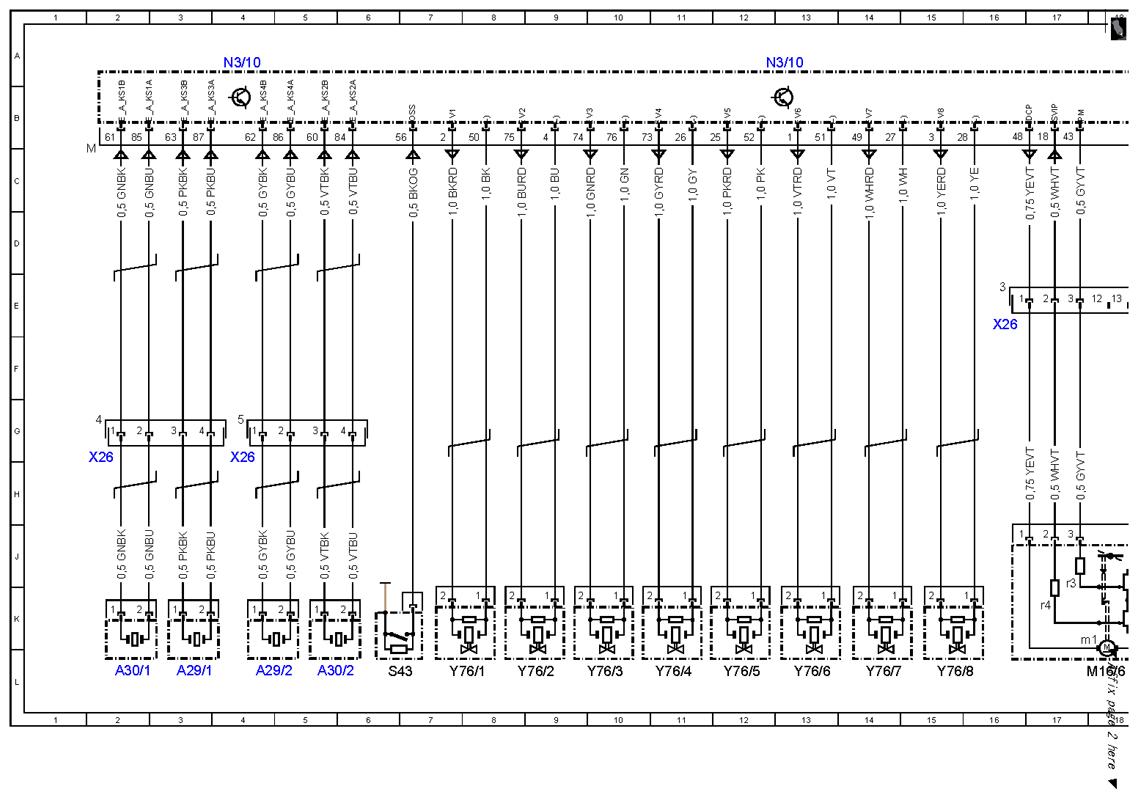

Fig 1: Gasoline Direct Injection System Control Unit - Wiring Diagram (1 Of 5)
G10082160Courtesy of MERCEDES-BENZ USA

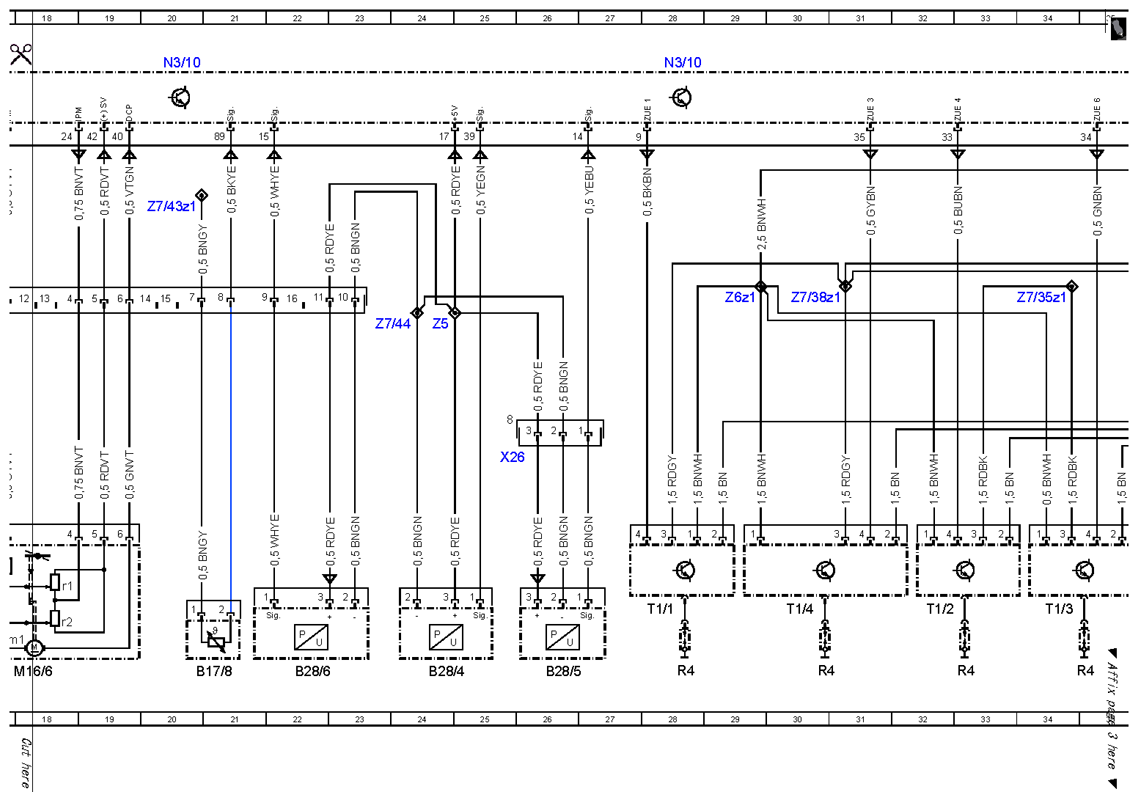

Fig 2: Gasoline Direct Injection System Control Unit - Wiring Diagram (2 Of 5)
G10082161Courtesy of MERCEDES-BENZ USA

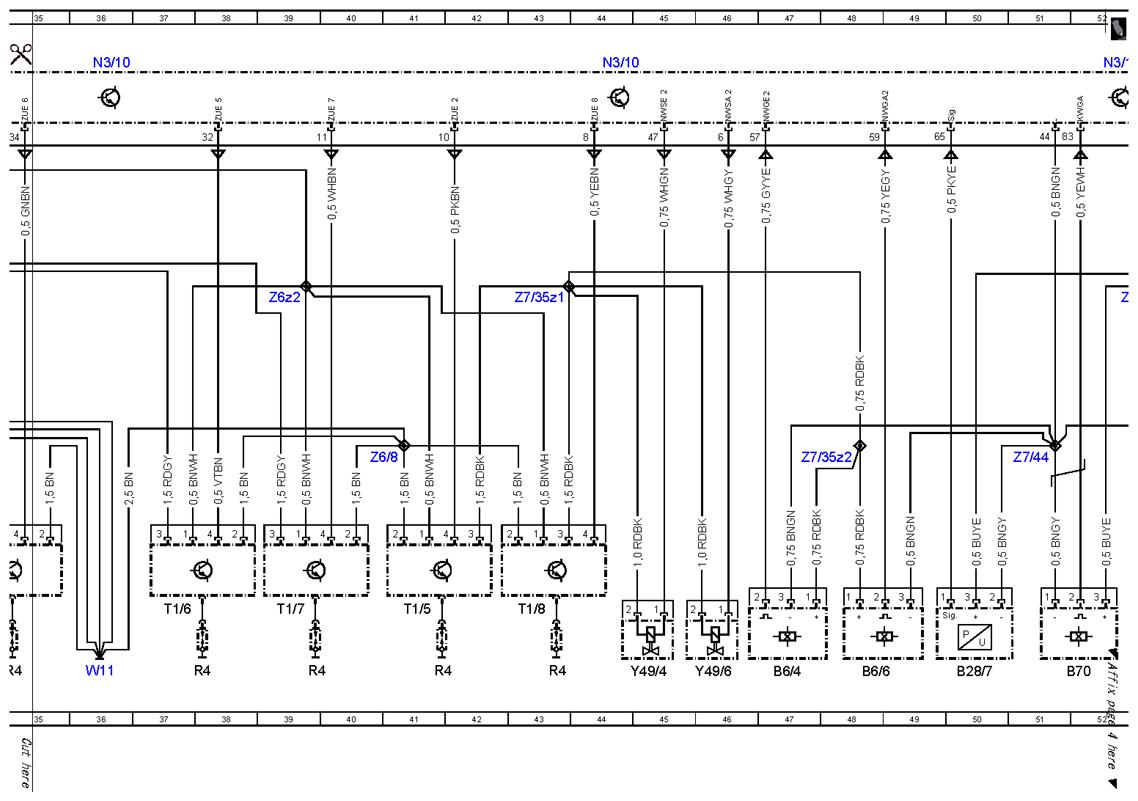

Fig 3: Gasoline Direct Injection System Control Unit - Wiring Diagram (3 Of 5)
G10082162Courtesy of MERCEDES-BENZ USA

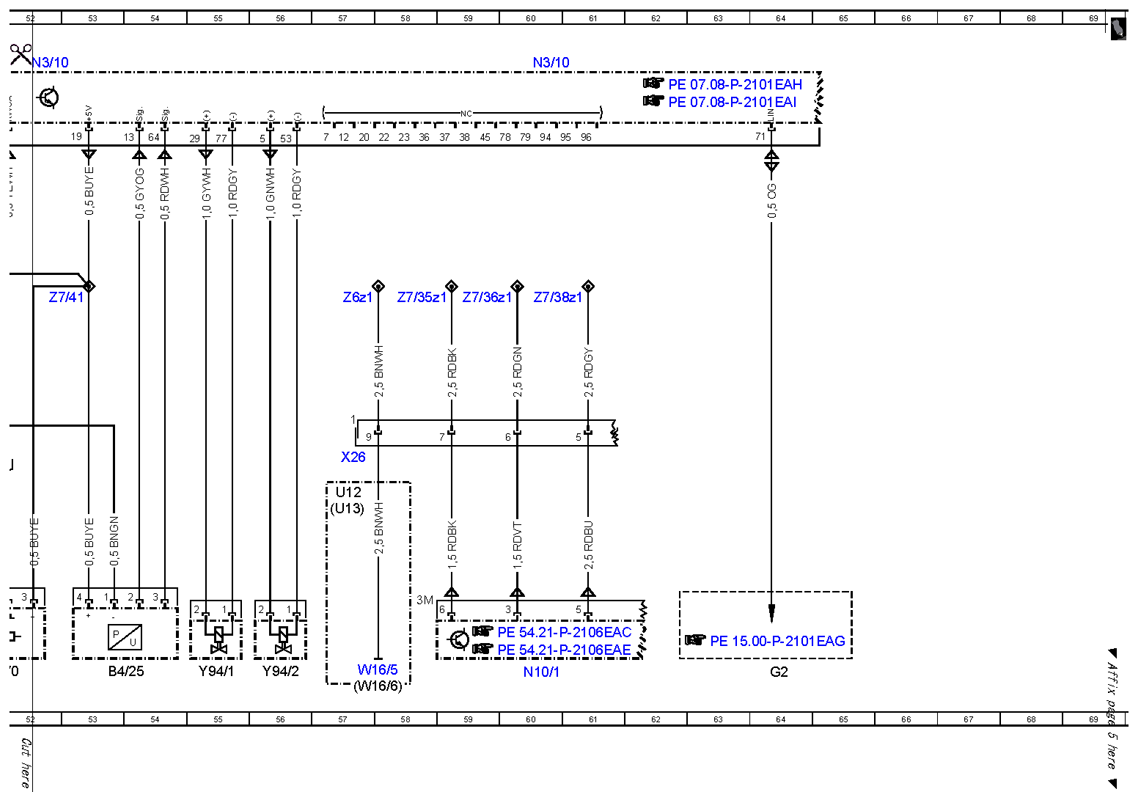

Fig 4: Gasoline Direct Injection System Control Unit - Wiring Diagram (4 Of 5)
G10082163Courtesy of MERCEDES-BENZ USA

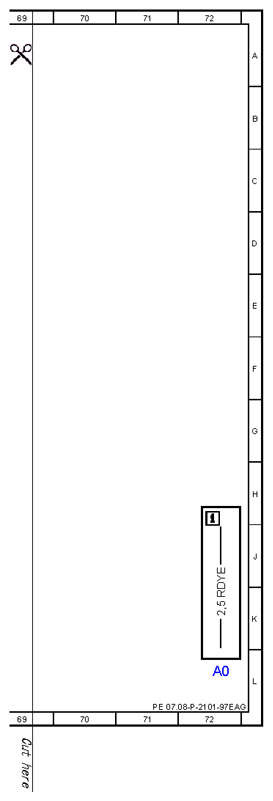

Fig 5: Gasoline Direct Injection System Control Unit - Wiring Diagram (5 Of 5)
G10082164Courtesy of MERCEDES-BENZ USA
