Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97EAE

Code: Designation: Position:
A0 Color code key 88L
A16/1 Right knock sensor 3L
A16/2 Left knock sensor 2L
B11/4 Coolant temperature sensor 40L
B17 Intake air temperature sensor 57L
B17/1 Intake manifold intake air temperature sensor 46L
B2/5 Hot film mass air flow sensor 61L
B2/5b1 Intake air temperature sensor 61L
B28/7 Pressure sensor downstream of throttle valve 68L
B4/25 Fuel tank pressure and temperature sensor 72L
B6/4 Left intake camshaft Hall sensor 37L
B6/5 Right intake camshaft Hall sensor 41L
B6/6 Left exhaust camshaft Hall sensor 38L
B6/7 Right exhaust camshaft Hall sensor 43L
B70 Crankshaft Hall sensor 70L
Code 920 Gasoline direct injection with stratified charge 58G
G2 Alternator 80L
G3/3 Left oxygen sensor upstream of catalytic converter 54L
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter 53J
G3/4 Right oxygen sensor upstream of catalytic converter 16L
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter 15J
G3/5 Left oxygen sensor downstream of catalytic converter 47L
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter 47J
G3/6 Right oxygen sensor downstream of catalytic converter 49L
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 49J
M16/6 Throttle valve actuator 13L
M16/6m1 Actuator motor 13K
M16/6r1 Actual value potentiometer 1 14K
M16/6r2 Actual value potentiometer 2 14K
M16/6r3 Sliding contact 1 actual value potentiometer 13K
M16/6r4 Sliding contact 2 actual value potentiometer 12K
N10/1 Front SAM control unit with fuse and relay module 76L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 19A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 45A
N3/10 ME-SFI [ME] control unit 61A
N3/10 ME-SFI [ME] control unit 53A
N3/10 ME-SFI [ME] control unit 69A
N3/10 ME-SFI [ME] control unit 76A
R4 Spark plugs 21L
R4 Spark plugs 23L
R4 Spark plugs 29L
R4 Spark plugs 25L
R4 Spark plugs 33L
R4 Spark plugs 31L
R48 Coolant thermostat heating element 20L
S43 Oil level check switch 4L
T1/1 Cylinder 1 ignition coil 21K
T1/2 Cylinder 2 ignition coil 23K
T1/3 Cylinder 3 ignition coil 25K
T1/4 Cylinder 4 ignition coil 28K
T1/5 Cylinder 5 ignition coil 31K
T1/6 Cylinder 6 ignition coil 33K
U1021 Not valid for gasoline engine with stratified operation 56G
U12 Valid for left-hand drive vehicles 73H
U13 Valid for right-hand drive vehicles 73H
W11 Combustion engine ground point 26L
W16/5 Left major assembly compartment electronics ground point 74L
W16/6 Right major assembly compartment ground point 74L
X26 Interior and engine wiring harness electrical connector 2H
X26 Interior and engine wiring harness electrical connector 73G
Y130 Engine oil pump valve 51L
Y27/11 Left exhaust gas recirculation valve 64L
Y27/11b1 Left exhaust gas recirculation valve Hall sensor 64L
Y27/11y1 Left exhaust gas recirculation valve rotating magnet 63L
Y27/12 Right exhaust gas recirculation valve 66L
Y27/12b1 Right exhaust gas recirculation valve Hall sensor 66L
Y27/12y1 Right exhaust gas recirculation valve rotating magnet 67L
Y49/4 Left intake camshaft solenoid 35L
Y49/5 Right intake camshaft solenoid 44L
Y49/6 Left exhaust camshaft solenoid 36L
Y49/7 Right exhaust camshaft solenoid 45L
Y76/1 Cylinder 1 fuel injector 5L
Y76/2 Cylinder 2 fuel injector 6L
Y76/3 Cylinder 3 fuel injector 7L
Y76/4 Cylinder 4 fuel injector 9L
Y76/5 Cylinder 5 fuel injector 10L
Y76/6 Cylinder 6 fuel injector 11L
Y77/2 Intake manifold resonance flap switchover valve 18L
Y77/3 Intake manifold selector drum switchover valve 52L
Y94 Quantity control valve 56L
Z2/1 Right engine ground connector sleeve 26G
Z2/2 Left engine ground connector sleeve 27G
Z5z1 Cross section reduction connector sleeve 65G
Z6z1 Circuit 31 connector sleeve 22E
Z6z2 Circuit 31 connector sleeve 31E
Z6z2 Circuit 31 connector sleeve 73E
Z7/35z1 Circuit 87 M1e connector sleeve 38G
Z7/35z1 Circuit 87 M1e connector sleeve 30E
Z7/35z1 Circuit 87 M1e connector sleeve 74E
Z7/36z1 Circuit 87 M2e connector sleeve 19G
Z7/36z1 Circuit 87 M2e connector sleeve 50G
Z7/36z1 Circuit 87 M2e connector sleeve 75E
Z7/38z1 Circuit 87 M1i connector sleeve 24E
Z7/38z1 Circuit 87 M1i connector sleeve 43G
Z7/38z1 Circuit 87 M1i connector sleeve 77E
Z7/41 Sensor voltage supply connector sleeve 71G
Z7/43 Sensor ground connector sleeve 69E
Z7/44 Sensor ground connector sleeve 57E
Z7/44 Sensor ground connector sleeve 64E
Z7/44z1 Sensor ground line connector sleeve 42E

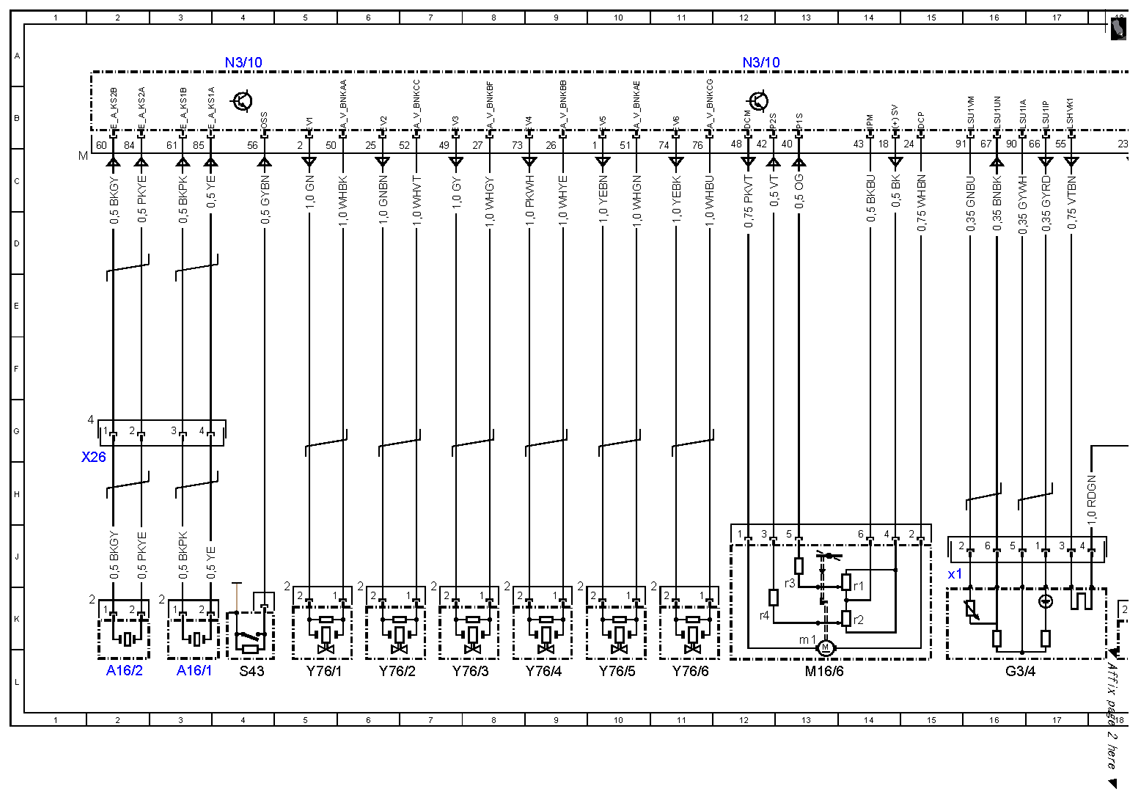

Fig 1: Gasoline Direct Injection System Control Unit - Wiring Diagram (1 Of 6)
G10082147Courtesy of MERCEDES-BENZ USA

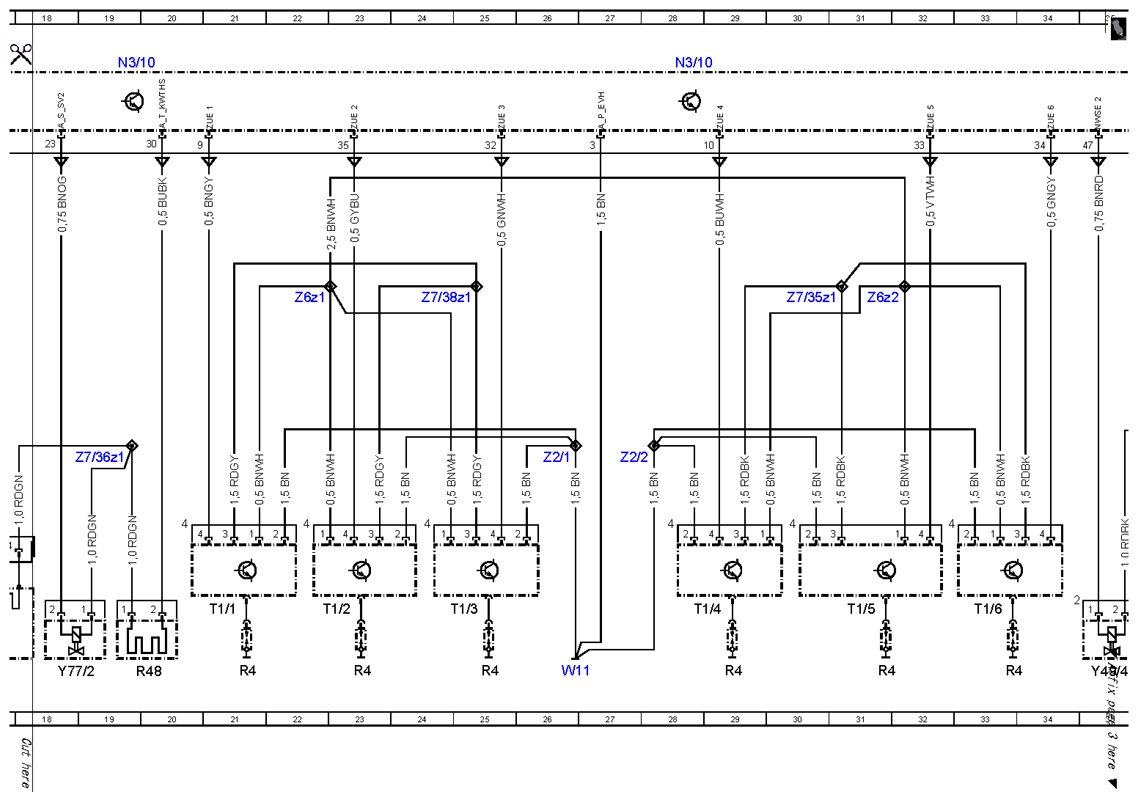

Fig 2: Gasoline Direct Injection System Control Unit - Wiring Diagram (2 Of 6)
G10082148Courtesy of MERCEDES-BENZ USA

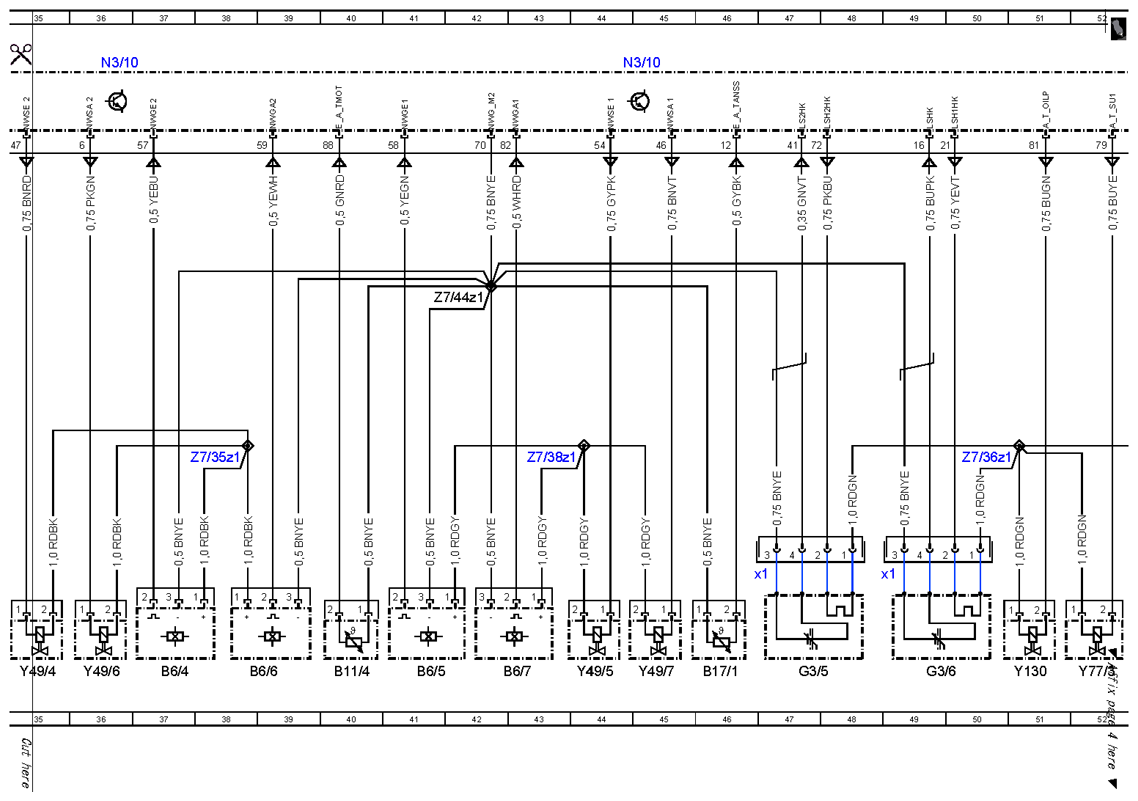

Fig 3: Gasoline Direct Injection System Control Unit - Wiring Diagram (3 Of 6)
G10082149Courtesy of MERCEDES-BENZ USA

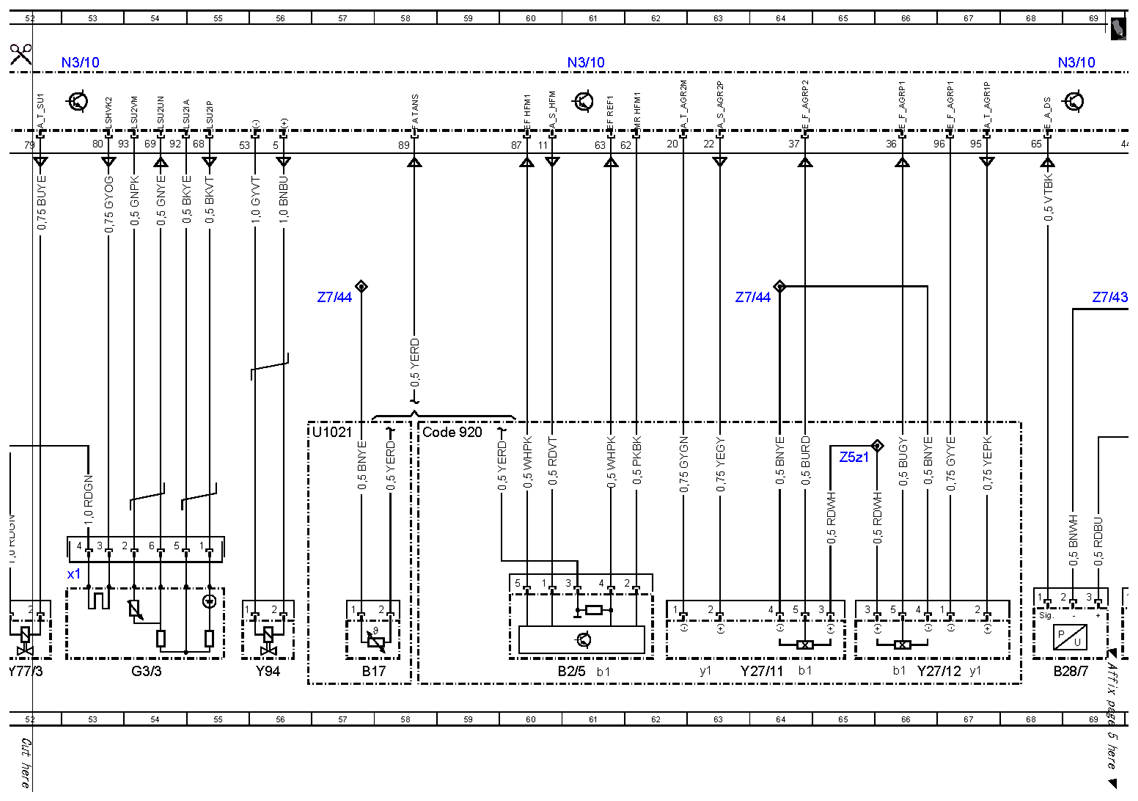

Fig 4: Gasoline Direct Injection System Control Unit - Wiring Diagram (4 Of 6)
G10082150Courtesy of MERCEDES-BENZ USA

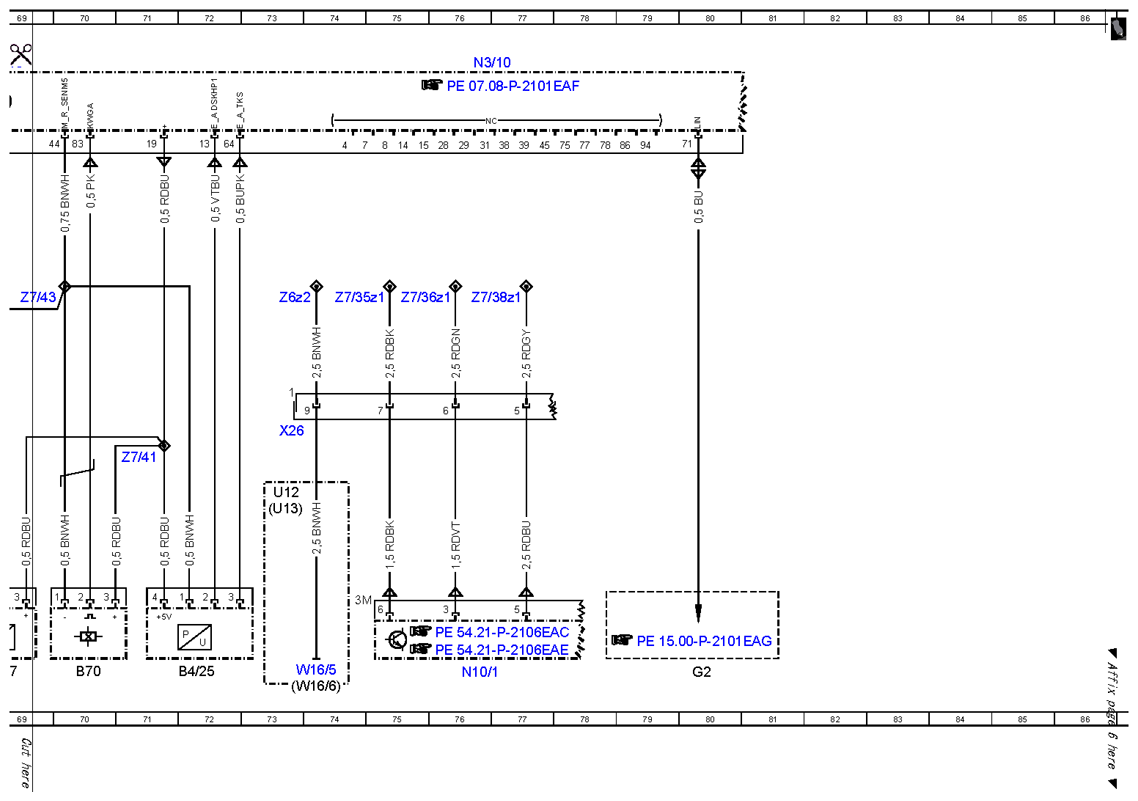

Fig 5: Gasoline Direct Injection System Control Unit - Wiring Diagram (5 Of 6)
G10082151Courtesy of MERCEDES-BENZ USA

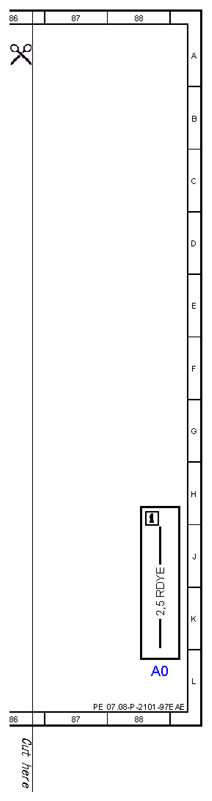

Fig 6: Gasoline Direct Injection System Control Unit - Wiring Diagram (6 Of 6)
G10082152Courtesy of MERCEDES-BENZ USA
