Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97EAA

Code: Designation: Position:
A0 Color code key 80L
A16/1 Right knock sensor 1L
A16/4 Front knock sensor 2L
B11/4 Coolant temperature sensor 5L
B17/8 Charge air temperature sensor 4L
B28/15 Pressure sensor upstream of compressor impeller 12L
B28/6 Pressure sensor upstream of throttle valve 19L
B28/7 Pressure sensor downstream of throttle valve 17L
B4/6 Rail pressure sensor 15L
B6/15 Intake camshaft Hall sensor 49L
B6/16 Exhaust camshaft Hall sensor 51L
B70 Crankshaft Hall sensor 7L
C4 Interference suppression capacitor 63L
G2 Alternator 38L
G3/1 Oxygen sensor downstream of catalytic converter 25L
G3/1x1 Electrical connector for oxygen sensor downstream of catalytic converter 24J
G3/2 Oxygen sensor upstream of catalytic converter 35L
G3/2x1 Electrical connector for oxygen sensor upstream of catalytic converter 34J
LIN C1 Drive train LIN 38B
M16/6 Throttle valve actuator 21L
M16/6m1 Actuator motor 21K
M16/6r1 Actual value potentiometer 1 22K
M16/6r2 Actual value potentiometer 2 22K
M16/6r3 Sliding contact 1 actual value potentiometer 21K
M16/6r4 Sliding contact 2 actual value potentiometer 20K
M59 Intake manifold swirl flap actuator motor 9L
M59b1 Swirl flap Hall sensor 9K
M59m1 Swirl flap actuator motor 9K
N10/1 Front SAM control unit with fuse and relay module 45L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 53A
N3/10 ME-SFI [ME] control unit 62A
N3/10 ME-SFI [ME] control unit 69A
R39/2 Full-load operation vent line heater element 43L
R4 Spark plugs 60L
R4 Spark plugs 61L
R4 Spark plugs 65L
R4 Spark plugs 67L
R48 Coolant thermostat heating element 28L
S43 Oil level check switch 11L
T1/1 Cylinder 1 ignition coil 60K
T1/2 Cylinder 2 ignition coil 62K
T1/3 Cylinder 3 ignition coil 65K
T1/4 Cylinder 4 ignition coil 67K
U52 Valid for Japan 39F
U54 Valid for all except Japan 39F
W11 Combustion engine ground point 61E
X26 Interior and engine wiring harness electrical connector 44G
X26/39 Gasoline engine electrical connector 53G
Y101 Divert air switchover valve 29L
Y16/2 Heating system shutoff valve 31L
Y31/5 Boost pressure control pressure transducer 27L
Y32 Air pump switchover valve 41L
Y49/1 Intake camshaft solenoid 33L
Y49/2 Exhaust camshaft solenoid 32L
Y76/1 Cylinder 1 fuel injector 53L
Y76/2 Cylinder 2 fuel injector 57L
Y76/3 Cylinder 3 fuel injector 58L
Y76/4 Cylinder 4 fuel injector 55L
Y94 Quantity control valve 47L
Z6 Circuit 31 connector sleeve 61G
Z6 Circuit 31 connector sleeve 66G
Z6/8 Sensor ground connector sleeve 12G
Z6/8 Sensor ground connector sleeve 15G
Z6/8 Sensor ground connector sleeve 17G
Z6/8 Sensor ground connector sleeve 50G
Z7/35z1 Circuit 87 M1e connector sleeve 55E
Z7/35z2 Circuit 87 M1e connector sleeve 45E
Z7/35z2 Circuit 87 M1e connector sleeve 63E
Z7/35z3 Circuit 87 M1e connector sleeve 57E
Z7/36z1 Circuit 87 M2e connector sleeve 32G
Z7/36z1 Circuit 87 M2e connector sleeve 44E
Z7/36z1 Circuit 87 M2e connector sleeve 52E
Z7/36z2 Circuit 87 M2e connector sleeve 28G
Z7/36z2 Circuit 87 M2e connector sleeve 40G
Z7/36z2 Circuit 87 M2e connector sleeve 52G
Z7/41 Sensor voltage supply connector sleeve 8G
Z7/41 Sensor voltage supply connector sleeve 14G
Z7/41 Sensor voltage supply connector sleeve 18G
Z7/43 Sensor ground connector sleeve 4G
Z7/5 Circuit 87 connector sleeve 48G

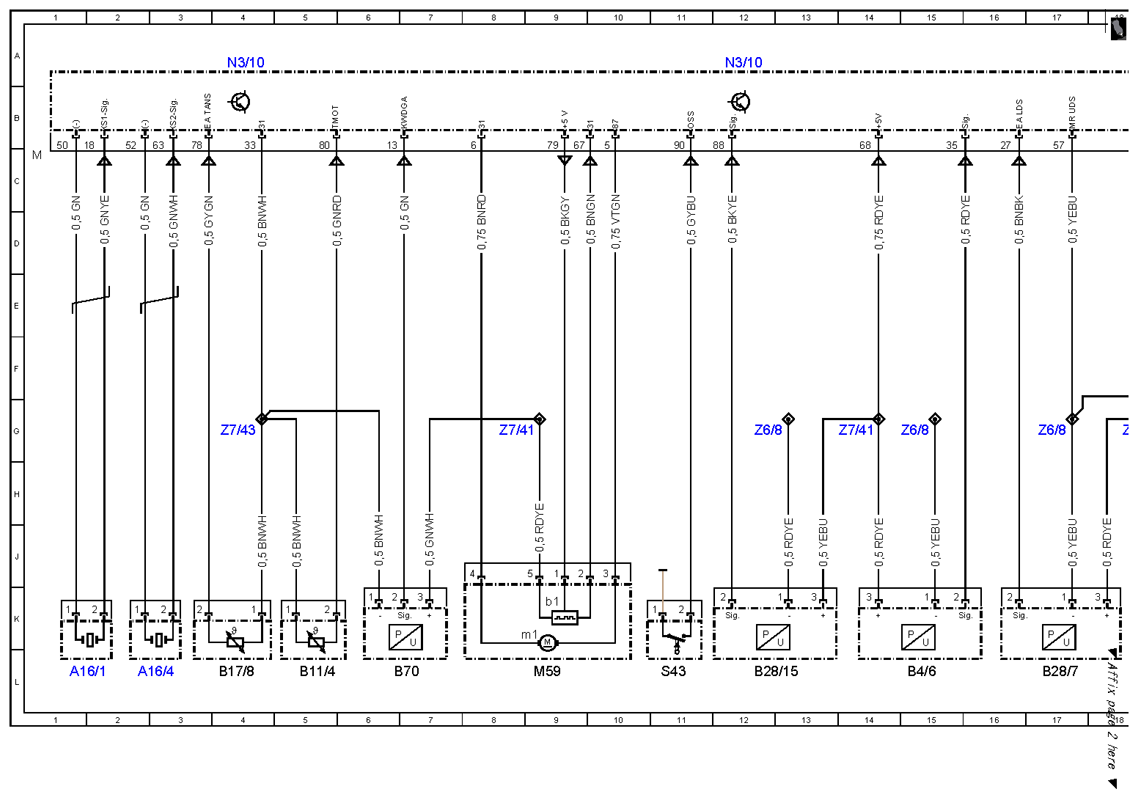

Fig 1: Gasoline Direct Injection System Control Unit - Wiring Diagram (1 Of 5)
G10082127Courtesy of MERCEDES-BENZ USA

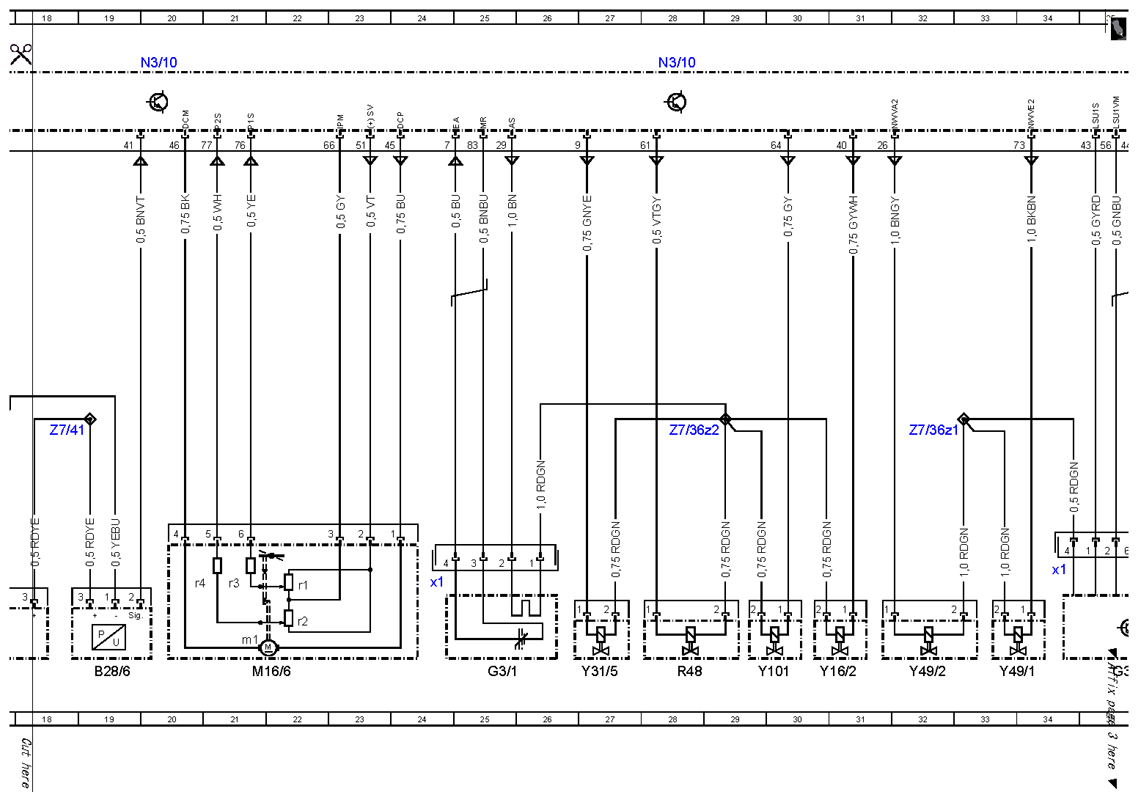

Fig 2: Gasoline Direct Injection System Control Unit - Wiring Diagram (2 Of 5)
G10082128Courtesy of MERCEDES-BENZ USA

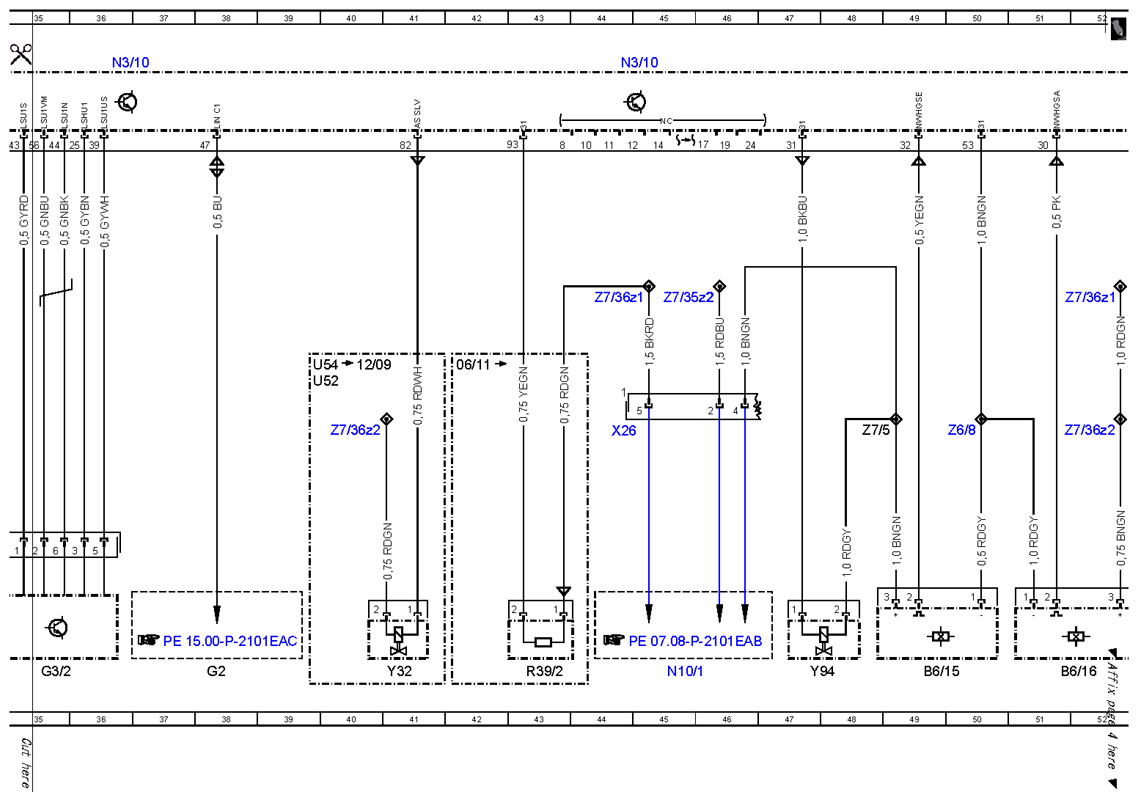

Fig 3: Gasoline Direct Injection System Control Unit - Wiring Diagram (3 Of 5)
G10082129Courtesy of MERCEDES-BENZ USA

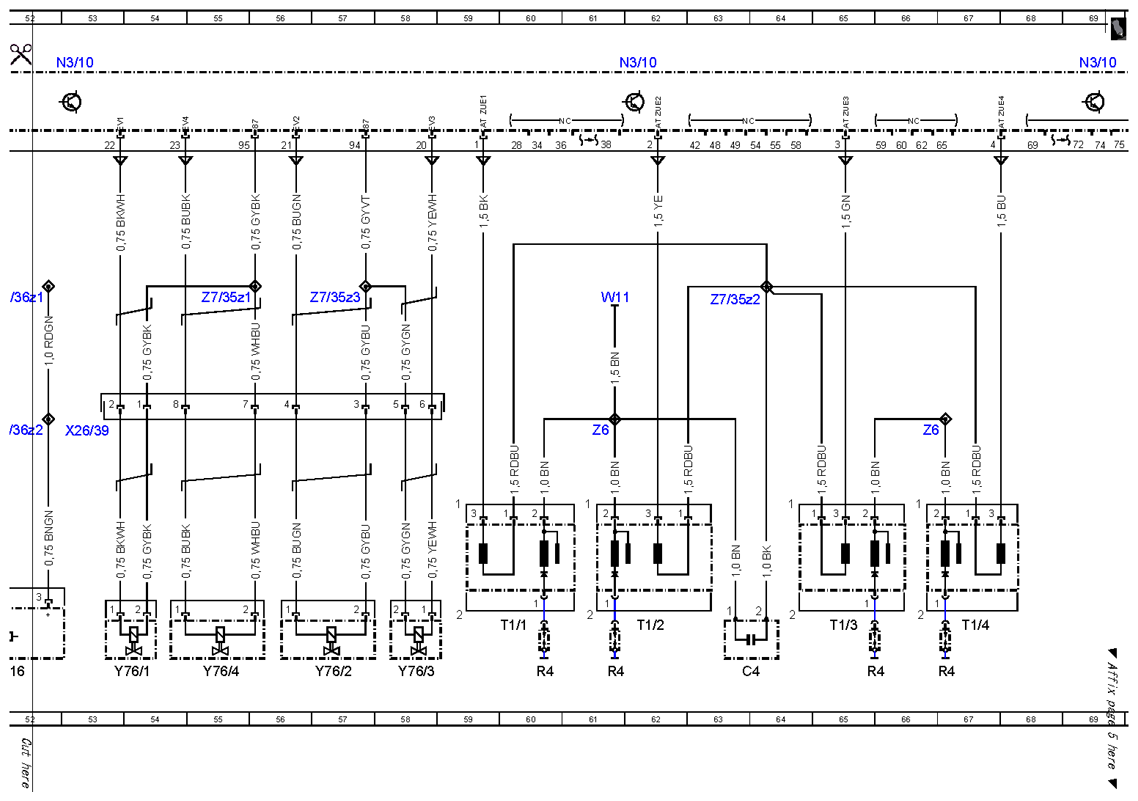

Fig 4: Gasoline Direct Injection System Control Unit - Wiring Diagram (4 Of 5)
G10082130Courtesy of MERCEDES-BENZ USA

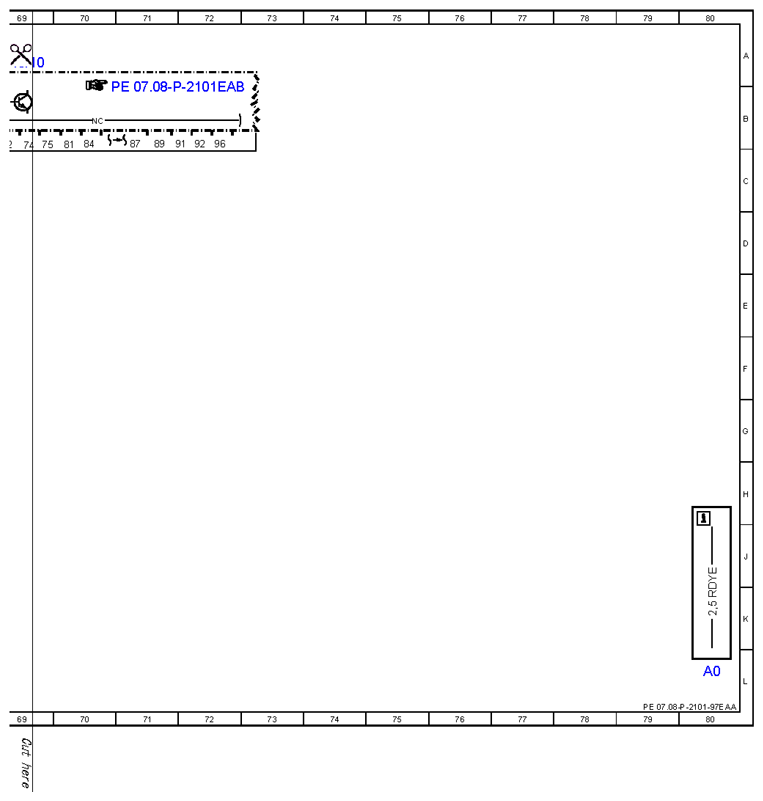

Fig 5: Gasoline Direct Injection System Control Unit - Wiring Diagram (5 Of 5)
G10082131Courtesy of MERCEDES-BENZ USA
