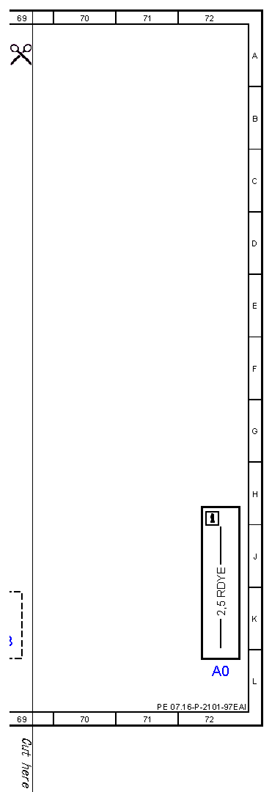

| A0 |
Color code key |
72L |

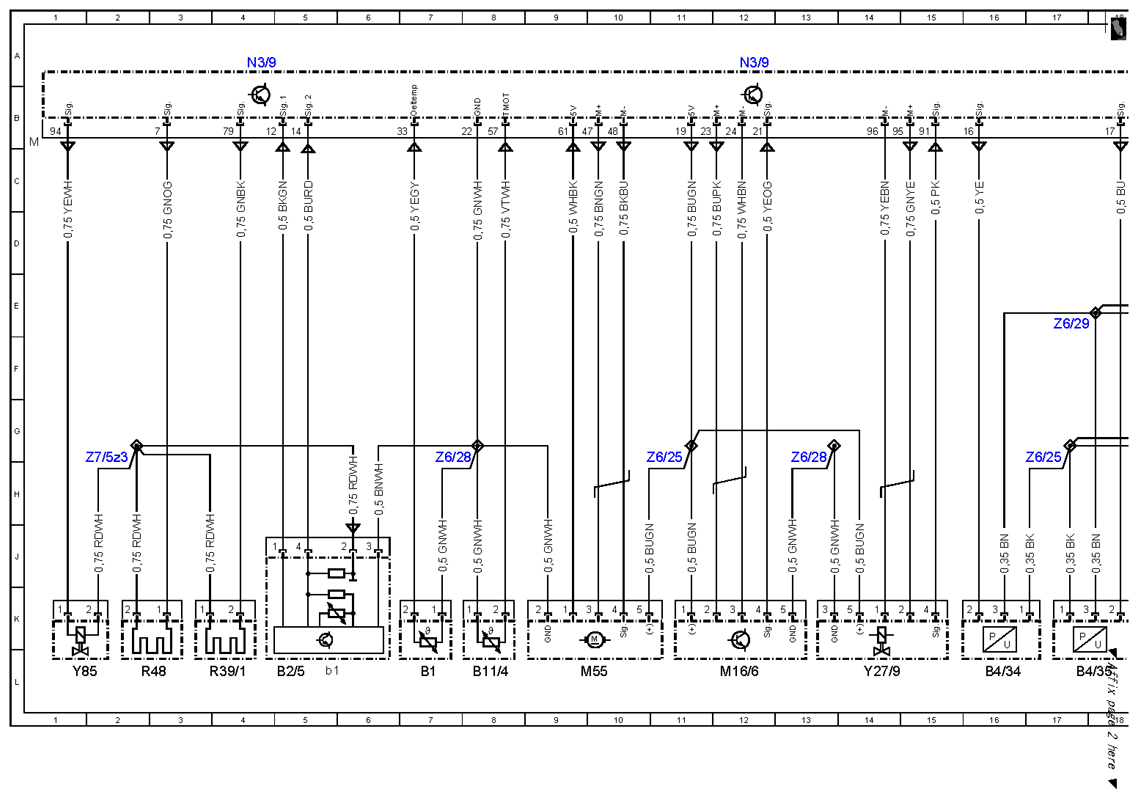

| B1 |
Oil temperature sensor |
7L |
| B11/4 |
Coolant temperature sensor |
8L |
| B17/8 |
Charge air temperature sensor |
24L |
| B19/11 |
Temperature sensor upstream of turbocharger |
22L |
| B2/5 |
Hot film mass air flow sensor |
5L |
| B2/5b1 |
Intake air temperature sensor |
5L |
| B28/5 |
Pressure sensor downstream of air filter |
25L |
| B4/34 |
Cylinder 1 combustion chamber pressure sensor |
16L |

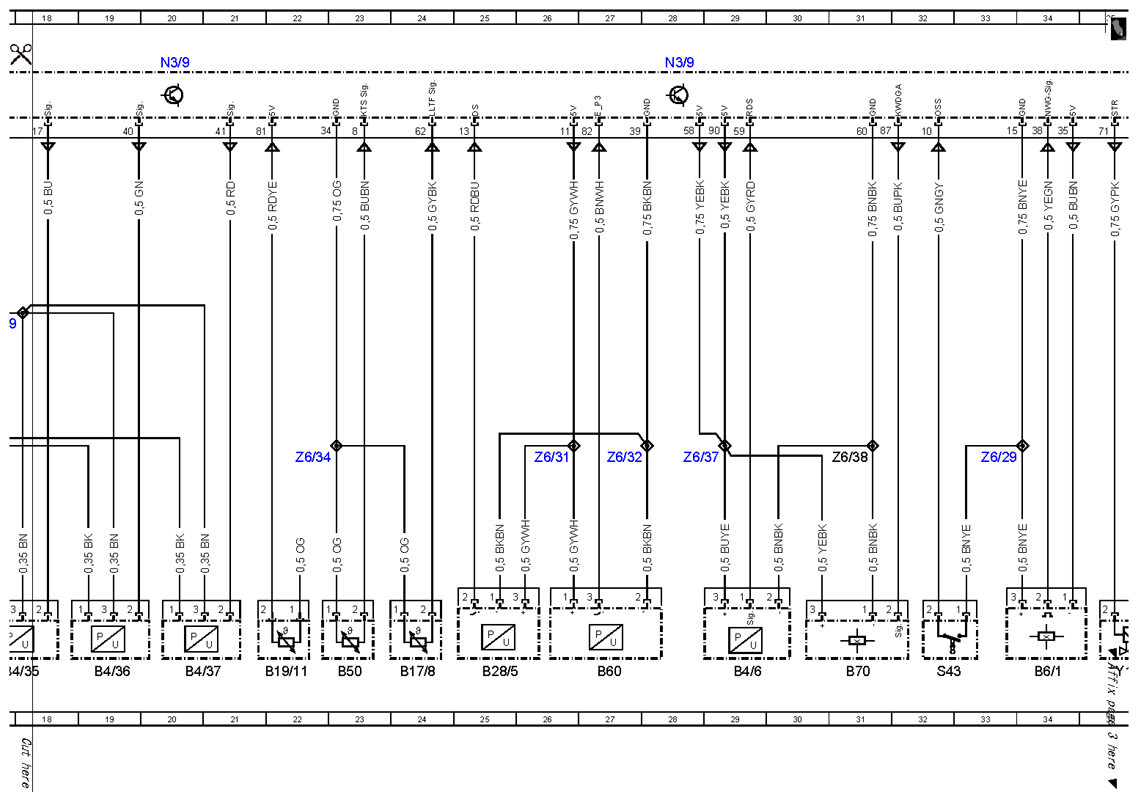

| B4/35 |
Cylinder 2 combustion chamber pressure sensor |
17L |
| B4/36 |
Cylinder 3 combustion chamber pressure sensor |
19L |
| B4/37 |
Cylinder 4 combustion chamber pressure sensor |
20L |
| B4/6 |
Rail pressure sensor |
29L |
| B5/1 |
Boost pressure sensor |
44L |
| B5/4 |
Low-pressure turbocharger boost pressure sensor |
46L |
| B50 |
Fuel temperature sensor |
23L |
| B6/1 |
Camshaft Hall sensor |
34L |
| B60 |
Exhaust pressure sensor |
27L |
| B70 |
Crankshaft Hall sensor |
31L |
| Code 427 |
7-speed automatic transmission |
52H |
| Code B03 |
ECO start/stop function |
52J |
| G2 |
Alternator |
68L |
| K60/1 |
Transmission oil circulation pump relay |
54L |
| LIN C1 |
Drive train LIN |
68B |

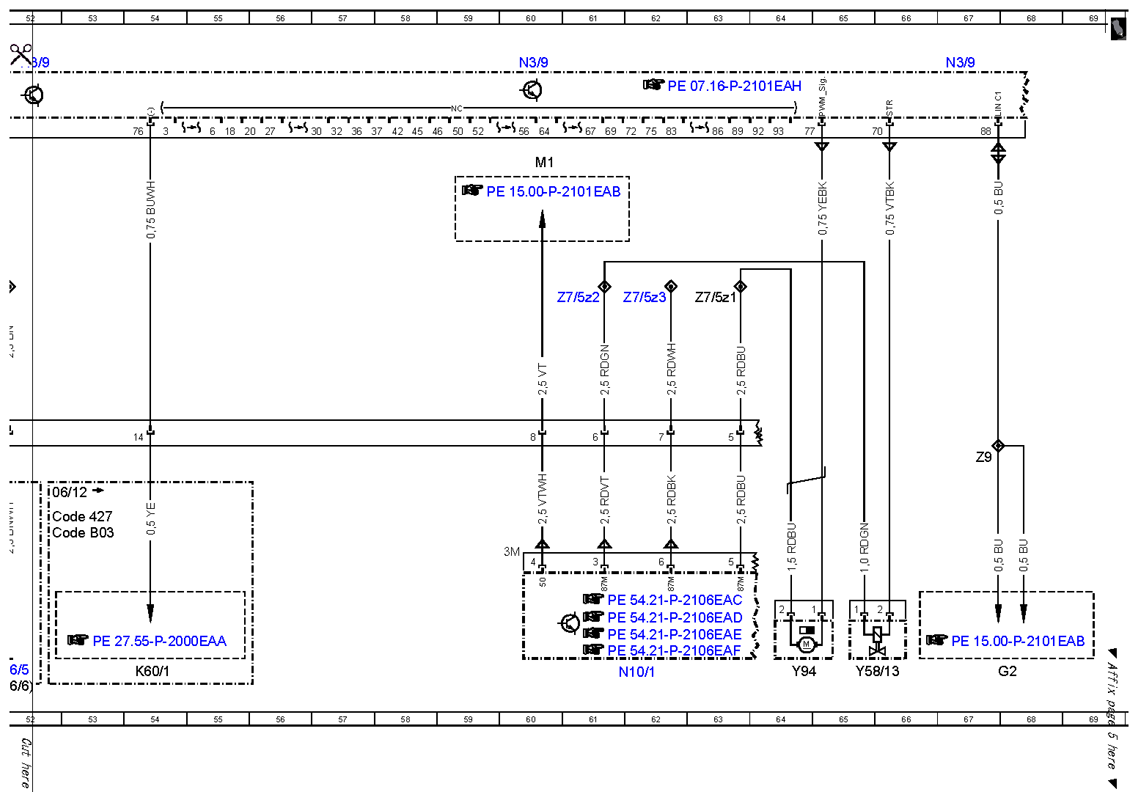

| M1 |
Starter |
60C |
| M16/6 |
Throttle valve actuator |
12L |
| M55 |
Intake port shutoff actuator motor |
10L |
| N10/1 |
Front SAM control unit with fuse and relay module |
62L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
43A |
| N3/9 |
CDI control unit |
52A |
| N3/9 |
CDI control unit |
60A |
| N3/9 |
CDI control unit |
67A |
| R39/1 |
Vent line heater element |
4L |
| R48 |
Coolant thermostat heating element |
2L |
| S43 |
Oil level check switch |
32L |
| U12 |
Valid for left-hand drive vehicles |
51H |
| U13 |
Valid for right-hand drive vehicles |
51H |
| W16/5 |
Left major assembly compartment electronics ground point |
52L |
| W16/6 |
Right major assembly compartment ground point |
51L |
| X26 |
Interior and engine wiring harness electrical connector |
51H |

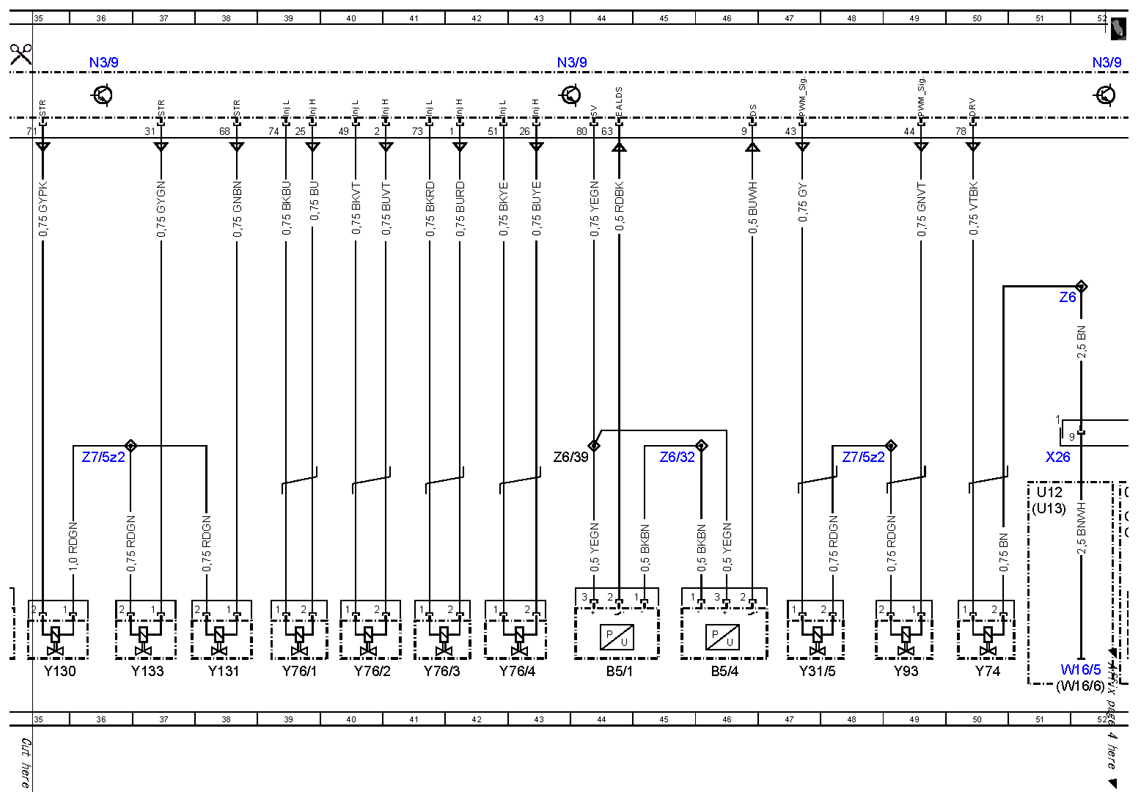

| Y130 |
Engine oil pump valve |
35L |
| Y131 |
Oil spray nozzle shutoff valve |
38L |
| Y133 |
Coolant pump switchover valve |
37L |
| Y27/9 |
Exhaust gas recirculation actuator |
14L |
| Y31/5 |
Boost pressure control pressure transducer |
47L |
| Y58/13 |
Heat exchanger shutoff valve |
65L |
| Y74 |
Pressure regulator valve |
50L |
| Y76/1 |
Cylinder 1 fuel injector |
39L |
| Y76/2 |
Cylinder 2 fuel injector |
40L |
| Y76/3 |
Cylinder 3 fuel injector |
41L |
| Y76/4 |
Cylinder 4 fuel injector |
43L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
1L |
| Y93 |
Boost pressure control flap pressure transducer |
49L |
| Y94 |
Quantity control valve |
64L |
| Z6 |
Circuit 31 connector sleeve |
51E |
| Z6/25 |
Sensor voltage supply connector sleeve |
11G |
| Z6/25 |
Sensor voltage supply connector sleeve |
17G |
| Z6/28 |
Sensor ground connector sleeve |
7G |
| Z6/28 |
Sensor ground connector sleeve |
13G |
| Z6/29 |
Sensor ground connector sleeve |
33G |
| Z6/29 |
Sensor ground connector sleeve |
17E |
| Z6/31 |
Sensor voltage supply connector sleeve |
26G |
| Z6/32 |
Sensor ground connector sleeve |
27G |
| Z6/32 |
Sensor ground connector sleeve |
45G |
| Z6/34 |
Sensor ground connector sleeve |
22G |
| Z6/37 |
Sensor voltage supply connector sleeve |
28G |
| Z6/38 |
Sensor ground connector sleeve |
31G |
| Z6/39 |
Sensor voltage supply connector sleeve |
44G |
| Z7/5z1 |
Circuit 87 connector sleeve |
63E |
| Z7/5z2 |
Circuit 87 connector sleeve |
36G |
| Z7/5z2 |
Circuit 87 connector sleeve |
48G |
| Z7/5z2 |
Circuit 87 connector sleeve |
61E |
| Z7/5z3 |
Circuit 87 connector sleeve |
2G |
| Z7/5z3 |
Circuit 87 connector sleeve |
62E |
| Z9 |
Connector sleeve 1 |
67G |
