Wiring diagram for common rail diesel injection (CDI) control unit - PE07.16-P-2101-97EAG

Code: Designation: Position:
A0 Color code key 80L
B1 Oil temperature sensor 11L
B11/4 Coolant temperature sensor 12L
B16/14 Exhaust gas recirculation temperature sensor 24L
B17/8 Charge air temperature sensor 14L
B19/11 Temperature sensor upstream of turbocharger 25L
B19/7 Temperature sensor upstream of catalytic converter 27L
B19/9 Temperature sensor upstream of diesel particulate filter 28L
B2/6 Left hot film MAF sensor 48L
B2/6b1 Left intake air temperature sensor 49L
B2/7 Right hot film MAF sensor 51L
B2/7b1 Right intake air temperature sensor 51L
B28/16 Differential pressure sensor/diesel particulate filter for onboard diagnostics (OBD) 23L
B28/5 Pressure sensor downstream of air filter 19L
B28/8 Differential pressure sensor (DPF) 21L
B4/6 Rail pressure sensor 37L
B5/1 Boost pressure sensor 15L
B50 Fuel temperature sensor 13L
B6/1 Camshaft Hall sensor 39L
B60 Exhaust pressure sensor 17L
B70 Crankshaft Hall sensor 40L
B90 Exhaust gas recirculation cooling bypass flap Hall sensor 35L
B96/1 Left intake port shutoff Hall sensor 31L
B96/2 Right intake port shutoff Hall sensor 33L
G3/2 Oxygen sensor upstream of catalytic converter 60L
G3/2x1 Electrical connector for oxygen sensor upstream of catalytic converter 58J
LIN C1 Drive train LIN 77B
M16/6 Throttle valve actuator 45L
M55 Intake port shutoff actuator motor 62L
N10/1 Front SAM control unit with fuse and relay module 69L
N3/9 CDI control unit 4A
N3/9 CDI control unit 11A
N3/9 CDI control unit 28A
N3/9 CDI control unit 20A
N3/9 CDI control unit 36A
N3/9 CDI control unit 44A
N3/9 CDI control unit 52A
N3/9 CDI control unit 61A
N3/9 CDI control unit 69A
N3/9 CDI control unit 76A
R39/1 Vent line heater element 53L
R48 Coolant thermostat heating element 57L
S43 Oil level check switch 29L
U12 Valid for left-hand drive vehicles 66H
U13 Valid for right-hand drive vehicles 66H
U2 Valid for all except USA 57H
U935 Valid for USA BIN5 22H
U935 Valid for USA BIN5 30H
U936 Valid for increased engine power 1A
W16/5 Left major assembly compartment electronics ground point 66K
W16/6 Right major assembly compartment ground point 66K
X26 Interior and engine wiring harness electrical connector 66H
Y133 Coolant pump switchover valve 54L
Y27/9 Exhaust gas recirculation actuator 42L
Y74 Pressure regulator valve 8L
Y76/1 Cylinder 1 fuel injector 1L
Y76/2 Cylinder 2 fuel injector 3L
Y76/3 Cylinder 3 fuel injector 4L
Y76/4 Cylinder 4 fuel injector 5L
Y76/5 Cylinder 5 fuel injector 6L
Y76/6 Cylinder 6 fuel injector 7L
Y77/1 Boost pressure positioner 64L
Y85 Exhaust gas recirculation cooler bypass switchover valve 56L
Y94 Quantity control valve 10L
Z11 Connector sleeve 3 in wiring harness 12G
Z300/10 Sensor ground line connector sleeve 27G
Z300/13 Sensor ground line connector sleeve 34G
Z300/13 Sensor ground line connector sleeve 44G
Z300/13 Sensor ground line connector sleeve 50H
Z300/15 Sensor voltage supply connector sleeve 18G
Z300/15 Sensor voltage supply connector sleeve 22H
Z300/16 Sensor ground line connector sleeve 16G
Z300/17 Sensor voltage supply connector sleeve 36G
Z300/17 Sensor voltage supply connector sleeve 46G
Z300/21 Sensor voltage supply connector sleeve 20G
Z300/25 Sensor ground line connector sleeve 40G
Z300/26 Sensor voltage supply connector sleeve 38G
Z6 Circuit 31 connector sleeve 66E
Z7/5z1 Circuit 87 connector sleeve 55G
Z7/5z1 Circuit 87 connector sleeve 69E
Z7/5z2 Circuit 87 connector sleeve 9G
Z7/5z2 Circuit 87 connector sleeve 68E
Z7/5z3 Circuit 87 connector sleeve 48G
Z7/5z3 Circuit 87 connector sleeve 67E
Z9 Connector sleeve 1 73E

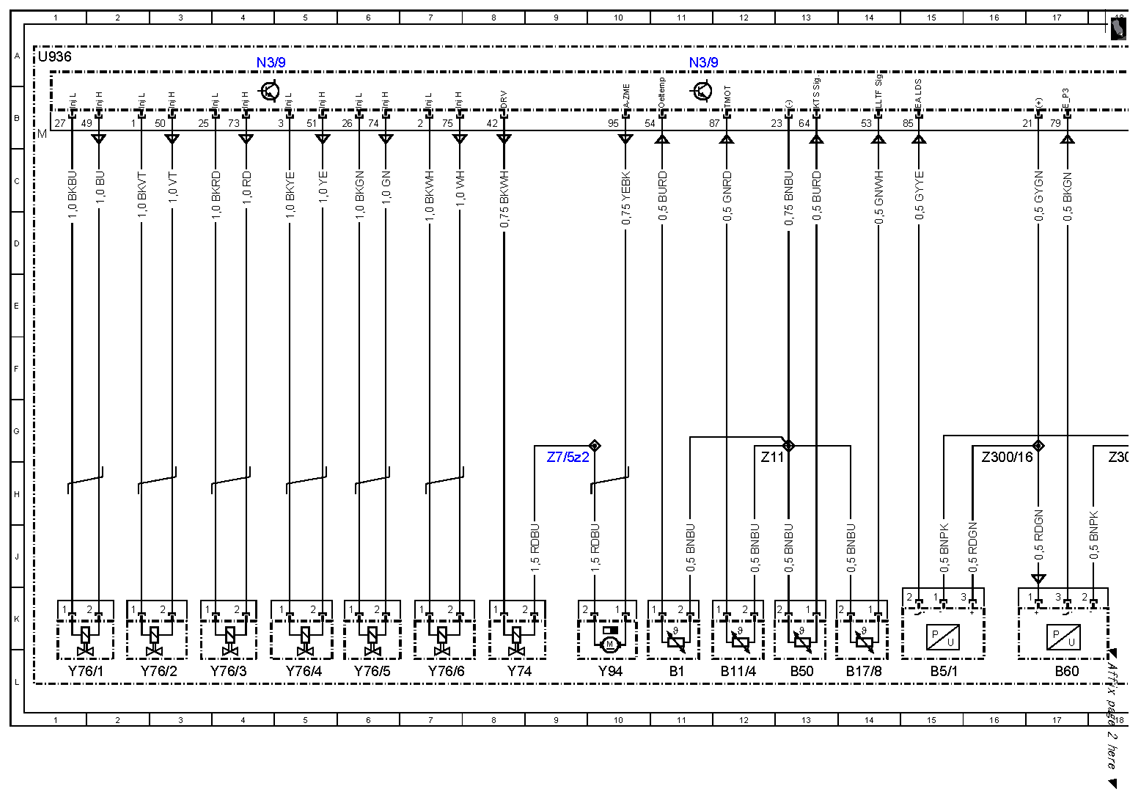

Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (1 Of 5)
G10082230Courtesy of MERCEDES-BENZ USA

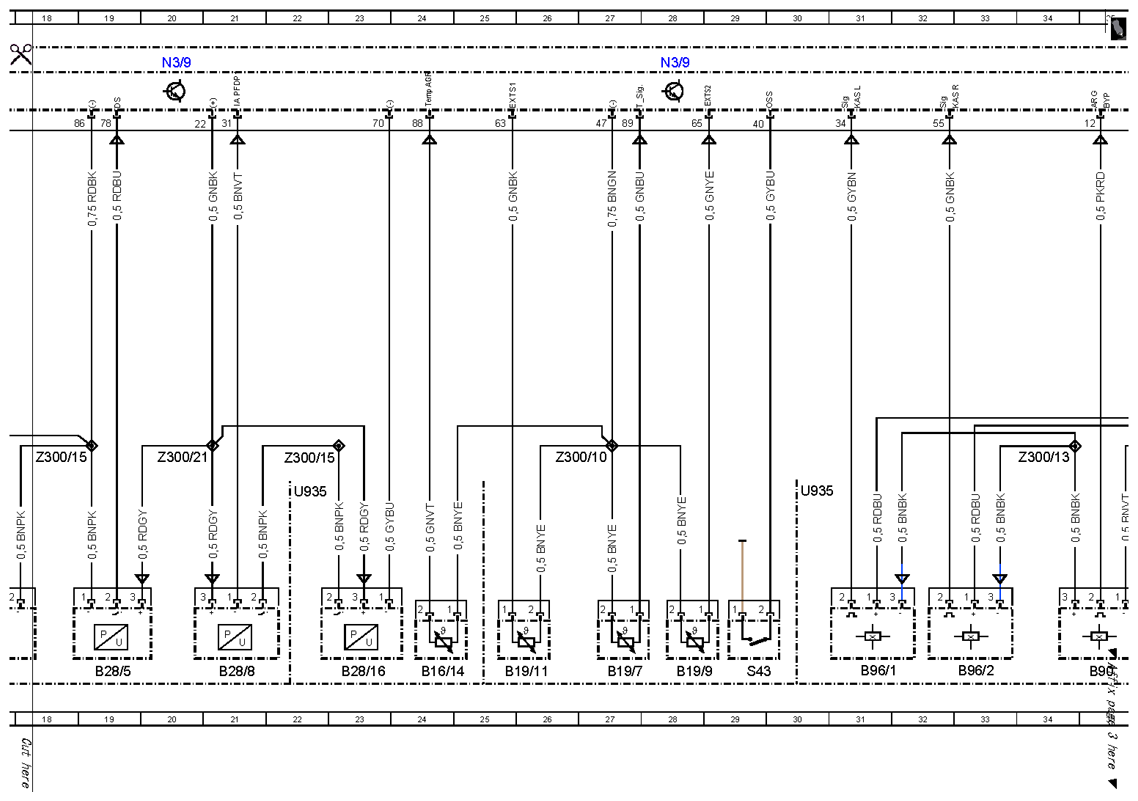

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (2 Of 5)
G10082231Courtesy of MERCEDES-BENZ USA

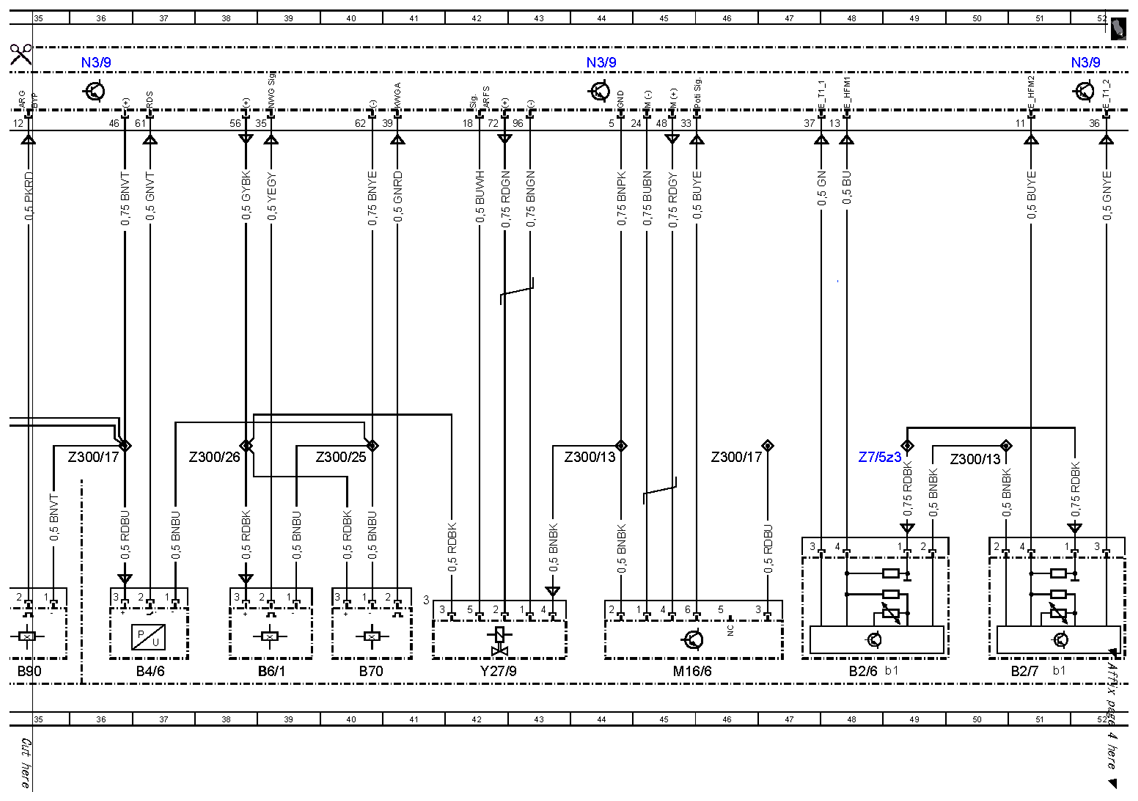

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (3 Of 5)
G10082232Courtesy of MERCEDES-BENZ USA

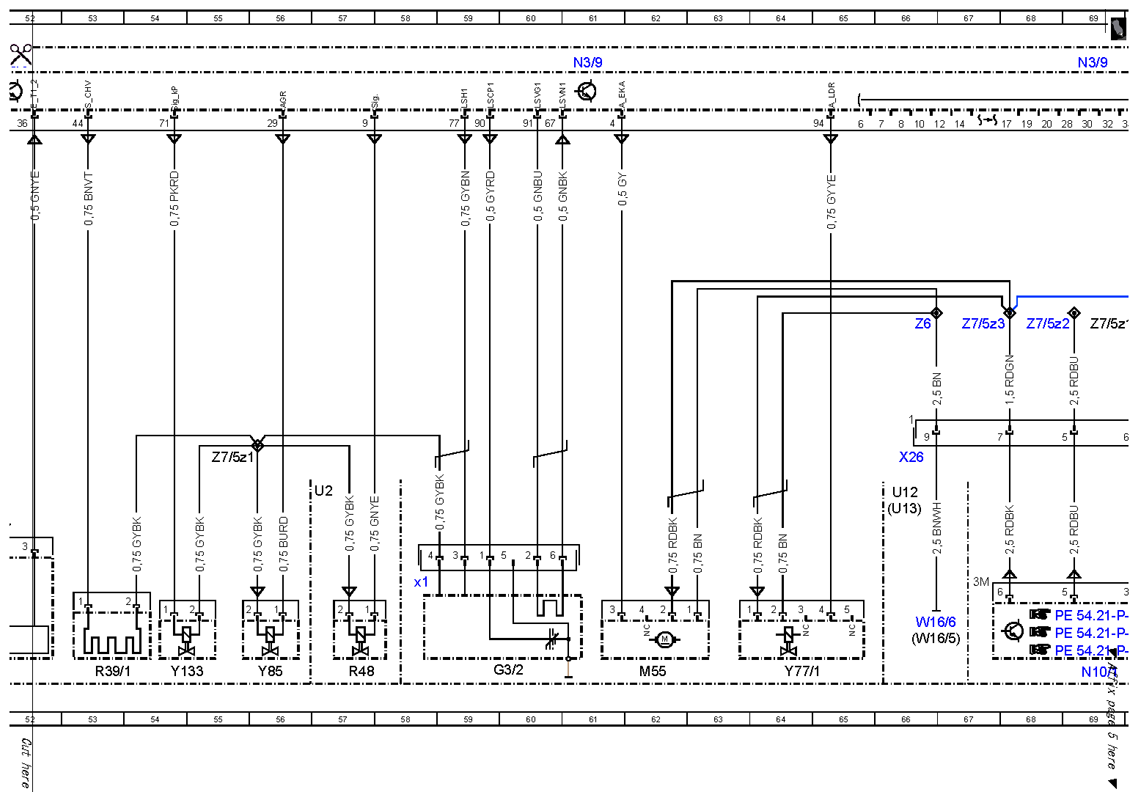

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (4 Of 5)
G10082233Courtesy of MERCEDES-BENZ USA

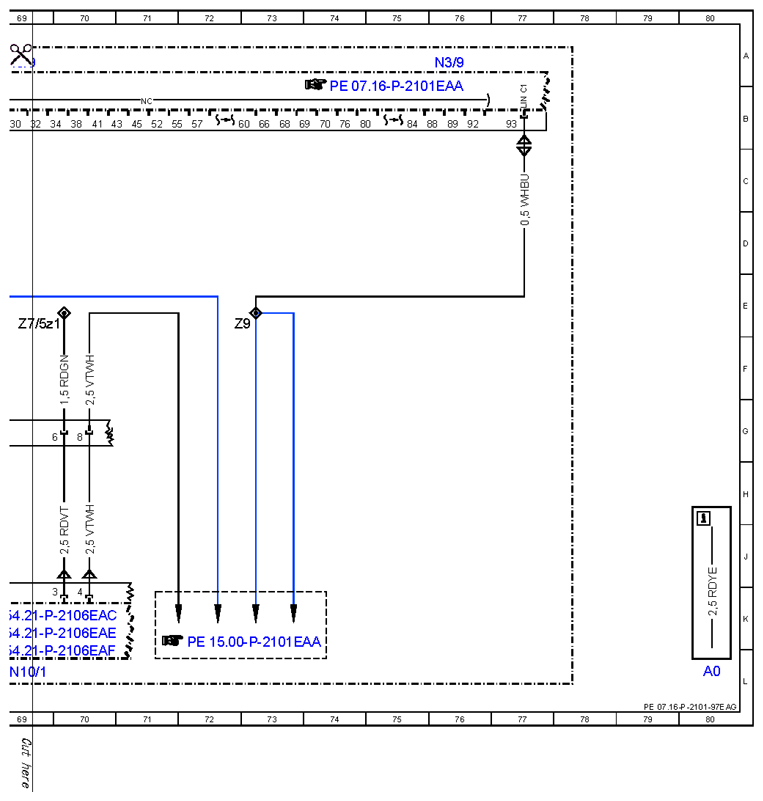

Fig 5: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (5 Of 5)
G10082234Courtesy of MERCEDES-BENZ USA
