Wiring diagram for common rail diesel injection (CDI) control unit - PE07.16-P-2101-97EAF

Code: Designation: Position:
A0 Color code key 80L
A16/1 Right knock sensor 1L
A16/4 Front knock sensor 3L
B1 Oil temperature sensor 10L
B11/4 Coolant temperature sensor 12L
B17/8 Charge air temperature sensor 22L
B19/11 Temperature sensor upstream of turbocharger 20L
B2/5 Hot film mass air flow sensor 8L
B2/5b1 Intake air temperature sensor 9L
B28/5 Pressure sensor downstream of air filter 24L
B4/6 Rail pressure sensor 28L
B5/1 Boost pressure sensor 48L
B5/1 Boost pressure sensor 51L
B5/4 Low-pressure turbocharger boost pressure sensor 53L
B50 Fuel temperature sensor 21L
B6/1 Camshaft Hall sensor 33L
B60 Exhaust pressure sensor 26L
B70 Crankshaft Hall sensor 30L
Code 427 7-speed automatic transmission 65H
Code B03 ECO start/stop function 65J
LIN C1 Drive train LIN 77B
M16/6 Throttle valve actuator 16L
M55 Intake port shutoff actuator motor 13L
N10/1 Front SAM control unit with fuse and relay module 71L
N3/9 CDI control unit 4A
N3/9 CDI control unit 12A
N3/9 CDI control unit 20A
N3/9 CDI control unit 28A
N3/9 CDI control unit 36A
N3/9 CDI control unit 44A
N3/9 CDI control unit 53A
N3/9 CDI control unit 60A
N3/9 CDI control unit 69A
N3/9 CDI control unit 76A
R39/1 Vent line heater element 7L
R48 Coolant thermostat heating element 6L
S43 Oil level check switch 31L
U12 Valid for left-hand drive vehicles 63H
U13 Valid for right-hand drive vehicles 63H
U963 Valid for piezo fuel injector 28D
U963 Valid for piezo fuel injector 51A
U964 Valid for all except piezo fuel injector 39A
U964 Valid for all except piezo fuel injector 64F
W16/5 Left major assembly compartment electronics ground point 64L
W16/6 Right major assembly compartment ground point 64L
X26 Interior and engine wiring harness electrical connector 64H
Y130 Engine oil pump valve 35L
Y131 Oil spray nozzle shutoff valve 38L
Y133 Coolant pump switchover valve 37L
Y27/9 Exhaust gas recirculation actuator 18L
Y31/5 Boost pressure control pressure transducer 60L
Y58/13 Heat exchanger shutoff valve 75L
Y74 Pressure regulator valve 44L
Y74 Pressure regulator valve 62L
Y76/1 Cylinder 1 fuel injector 39L
Y76/1 Cylinder 1 fuel injector 54L
Y76/2 Cylinder 2 fuel injector 40L
Y76/2 Cylinder 2 fuel injector 55L
Y76/3 Cylinder 3 fuel injector 41L
Y76/3 Cylinder 3 fuel injector 57L
Y76/4 Cylinder 4 fuel injector 43L
Y76/4 Cylinder 4 fuel injector 59L
Y77/1 Boost pressure positioner 45L
Y85 Exhaust gas recirculation cooler bypass switchover valve 4L
Y85/4 Exhaust gas recirculation bypass flap electronic vacuum regulator 34L
Y93 Boost pressure control flap pressure transducer 61L
Y94 Quantity control valve 74L
Z1z1 Connector sleeve 1 57E
Z6 Circuit 31 connector sleeve 45G
Z6 Circuit 31 connector sleeve 64E
Z6/25 Sensor voltage supply connector sleeve 15G
Z6/28 Sensor ground connector sleeve 11G
Z6/28 Sensor ground connector sleeve 17G
Z6/29 Sensor ground connector sleeve 32G
Z6/31 Sensor voltage supply connector sleeve 25G
Z6/32 Sensor ground connector sleeve 26G
Z6/32 Sensor ground connector sleeve 47G
Z6/32 Sensor ground connector sleeve 51G
Z6/34 Sensor ground connector sleeve 21G
Z6/37 Sensor voltage supply connector sleeve 27G
Z6/38 Sensor ground connector sleeve 30G
Z6/39 Sensor voltage supply connector sleeve 50G
Z7/5z1 Circuit 87 connector sleeve 73E
Z7/5z2 Circuit 87 connector sleeve 36G
Z7/5z2 Circuit 87 connector sleeve 46G
Z7/5z2 Circuit 87 connector sleeve 61G
Z7/5z2 Circuit 87 connector sleeve 71E
Z7/5z3 Circuit 87 connector sleeve 5G
Z7/5z3 Circuit 87 connector sleeve 72E
Z9 Connector sleeve 1 77G

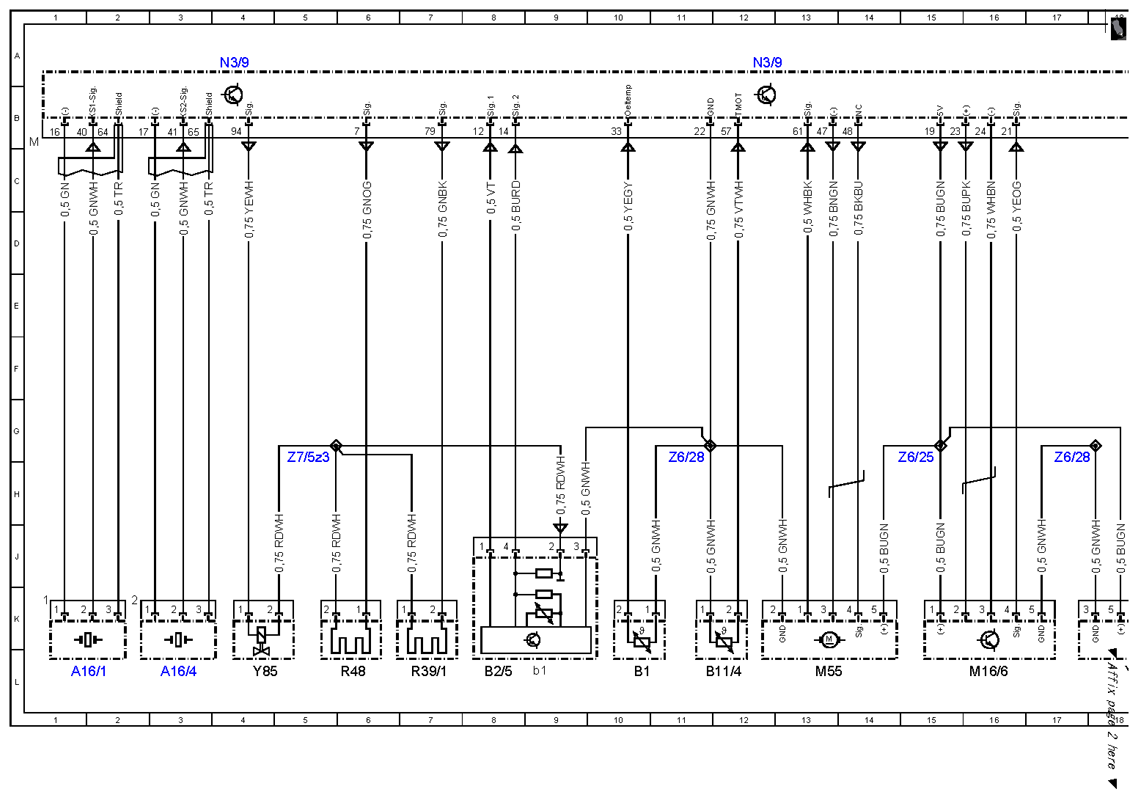

Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (1 Of 5)
G10082225Courtesy of MERCEDES-BENZ USA

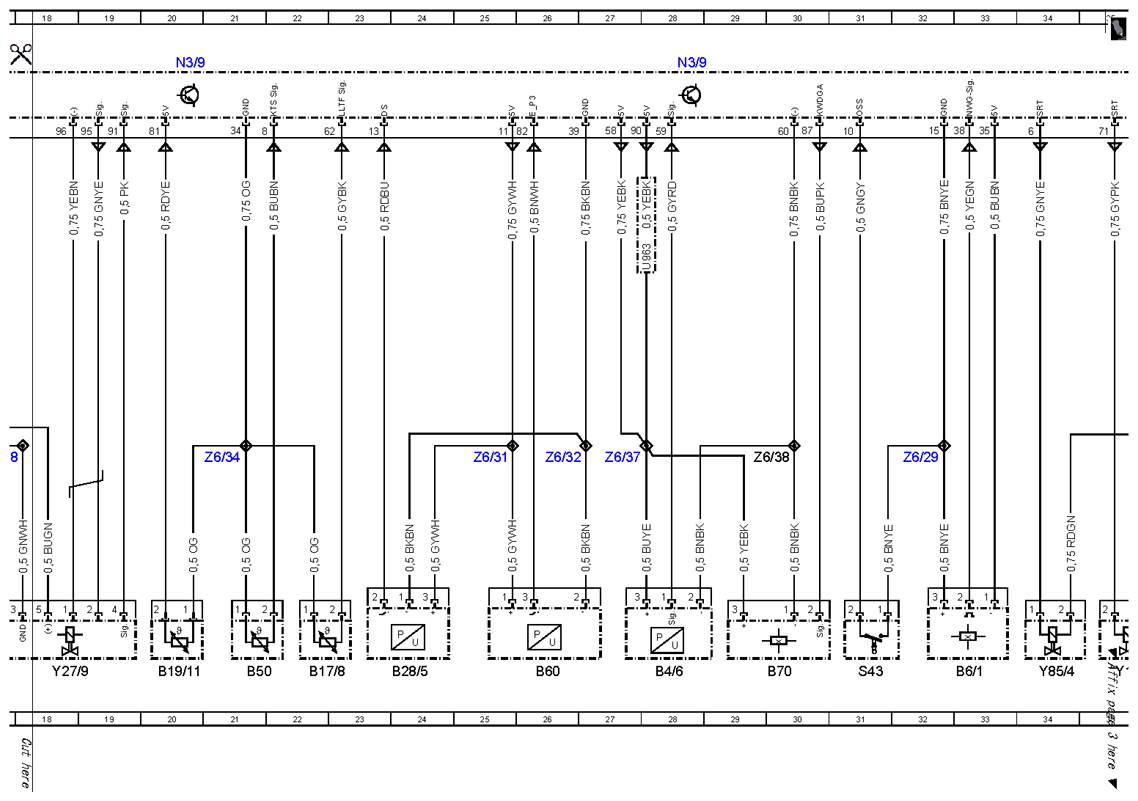

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (2 Of 5)
G10082226Courtesy of MERCEDES-BENZ USA

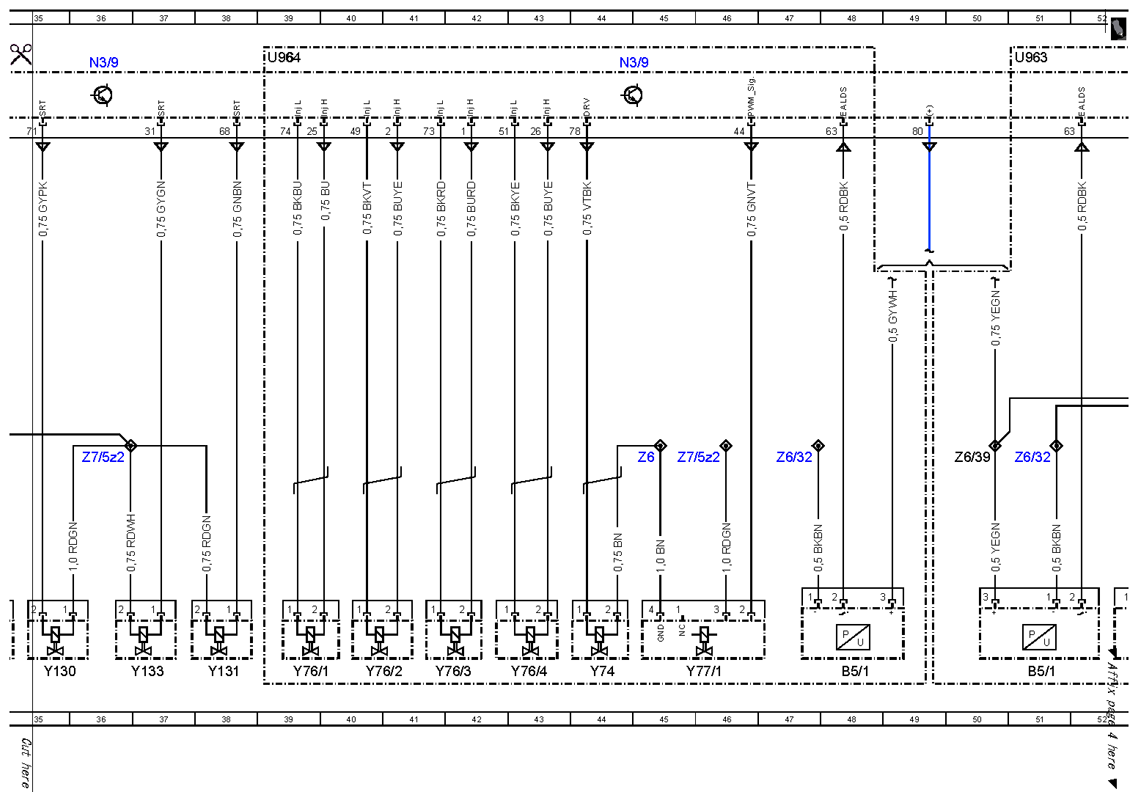

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (3 Of 5)
G10082227Courtesy of MERCEDES-BENZ USA

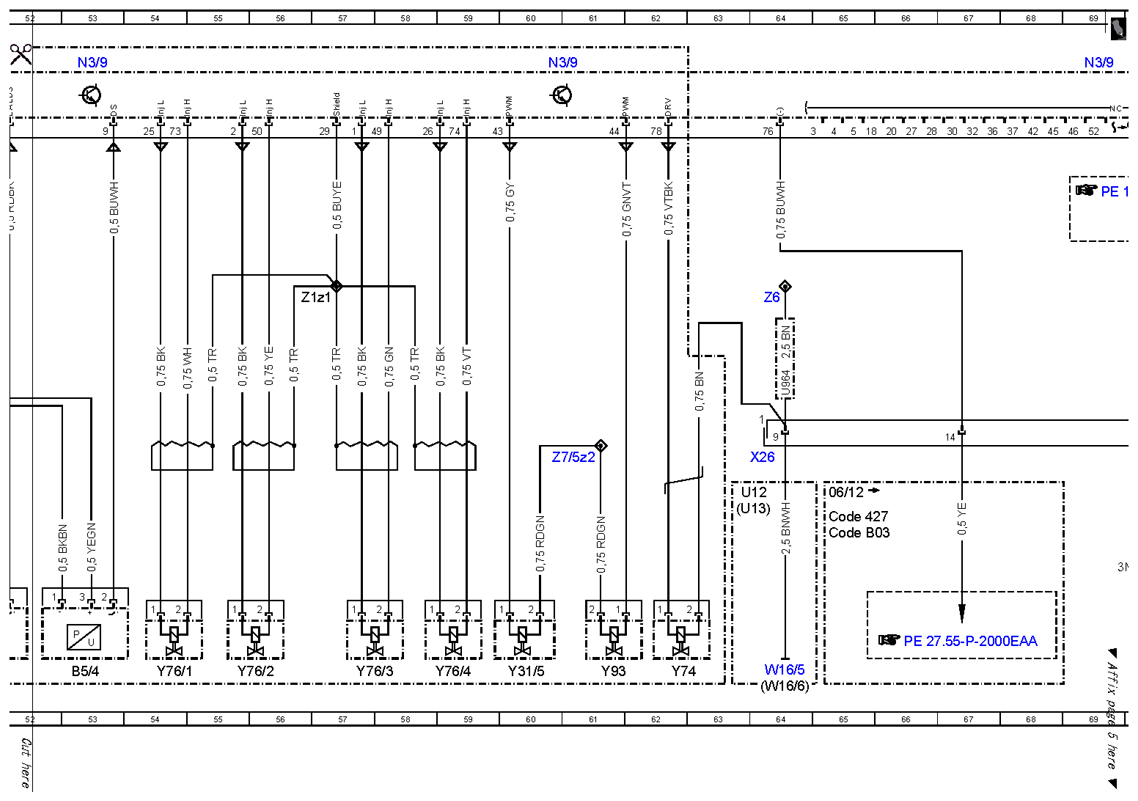

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (4 Of 5)
G10082228Courtesy of MERCEDES-BENZ USA

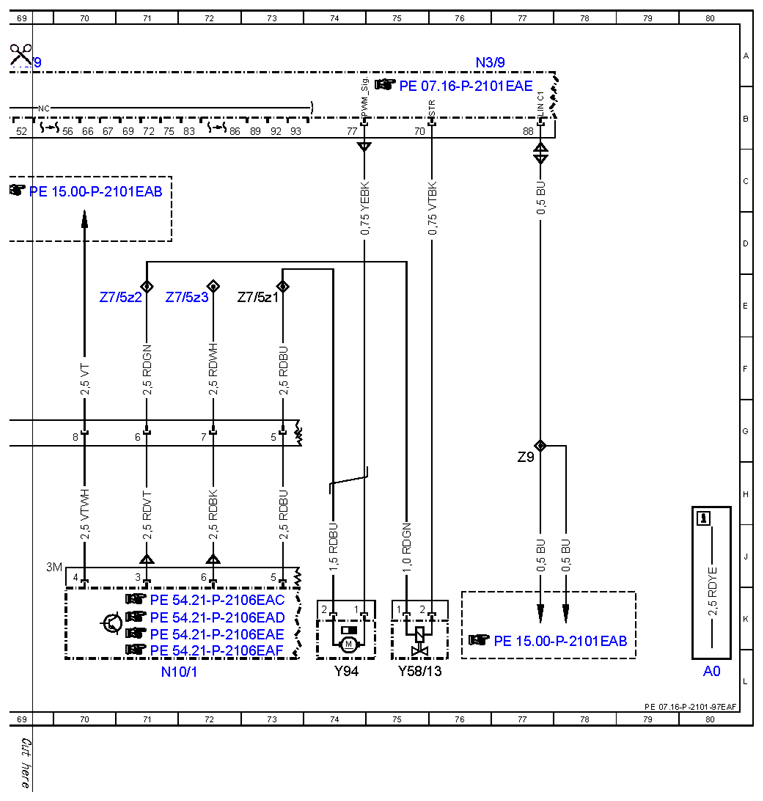

Fig 5: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (5 Of 5)
G10082229Courtesy of MERCEDES-BENZ USA
