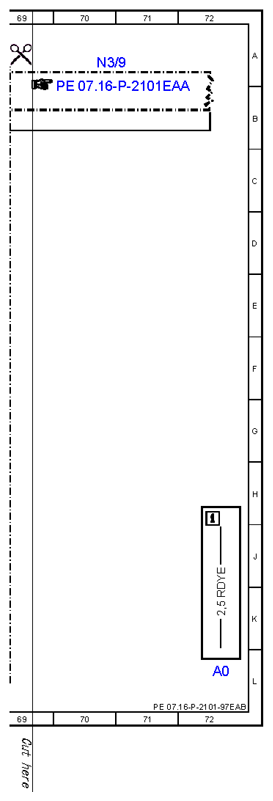

| A0 |
Color code key |
72L |

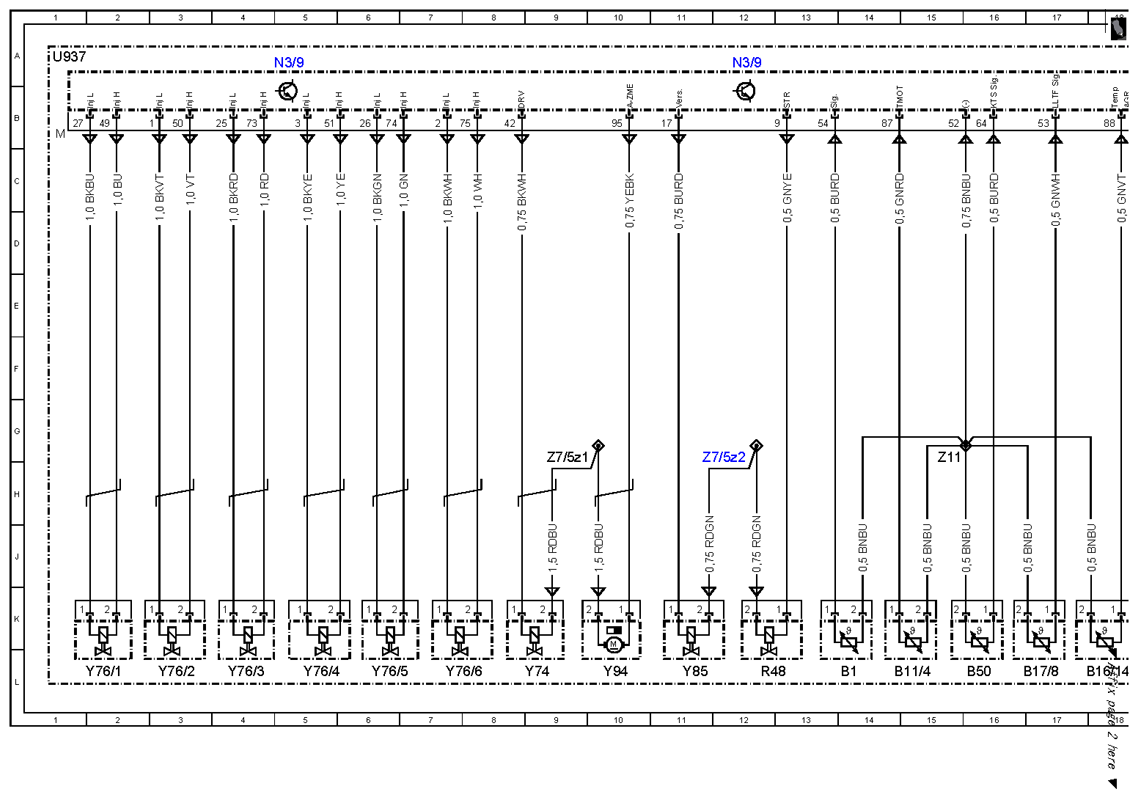

| B1 |
Oil temperature sensor |
14L |
| B11/4 |
Coolant temperature sensor |
15L |

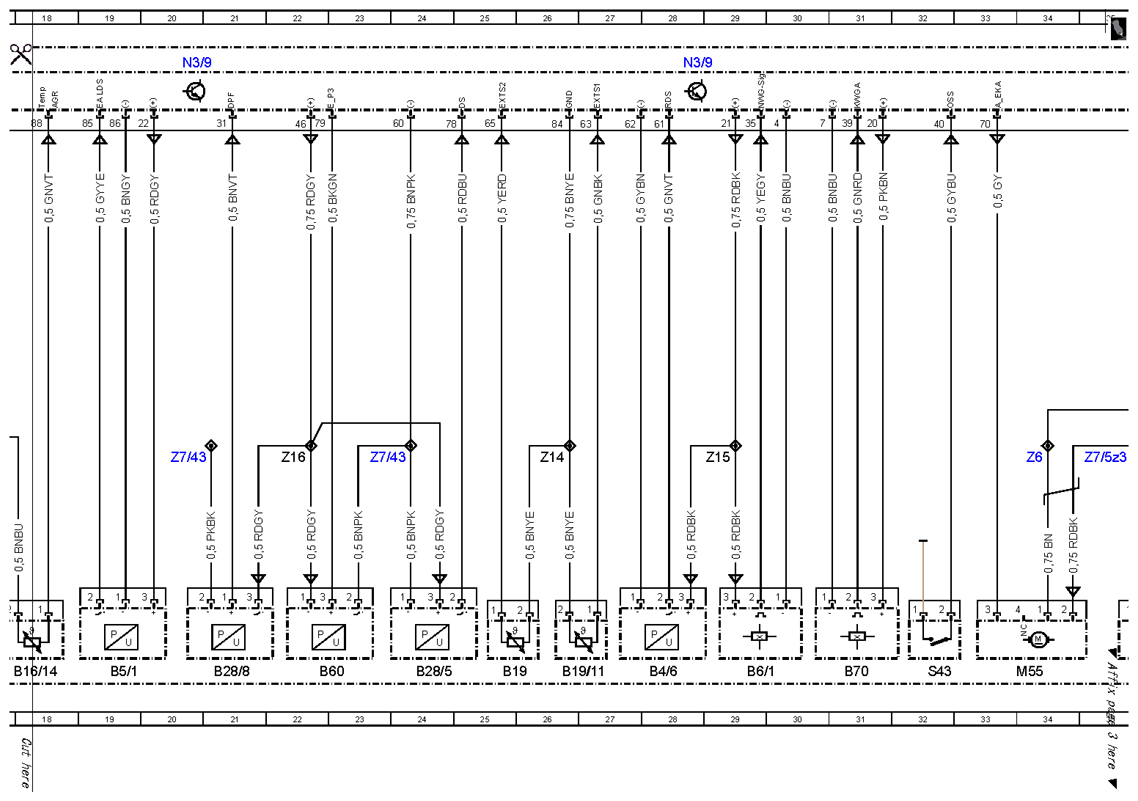

| B16/14 |
Exhaust gas recirculation temperature sensor |
18L |
| B17/8 |
Charge air temperature sensor |
17L |
| B19 |
Catalytic converter temperature sensor |
25L |
| B19/11 |
Temperature sensor upstream of turbocharger |
26L |

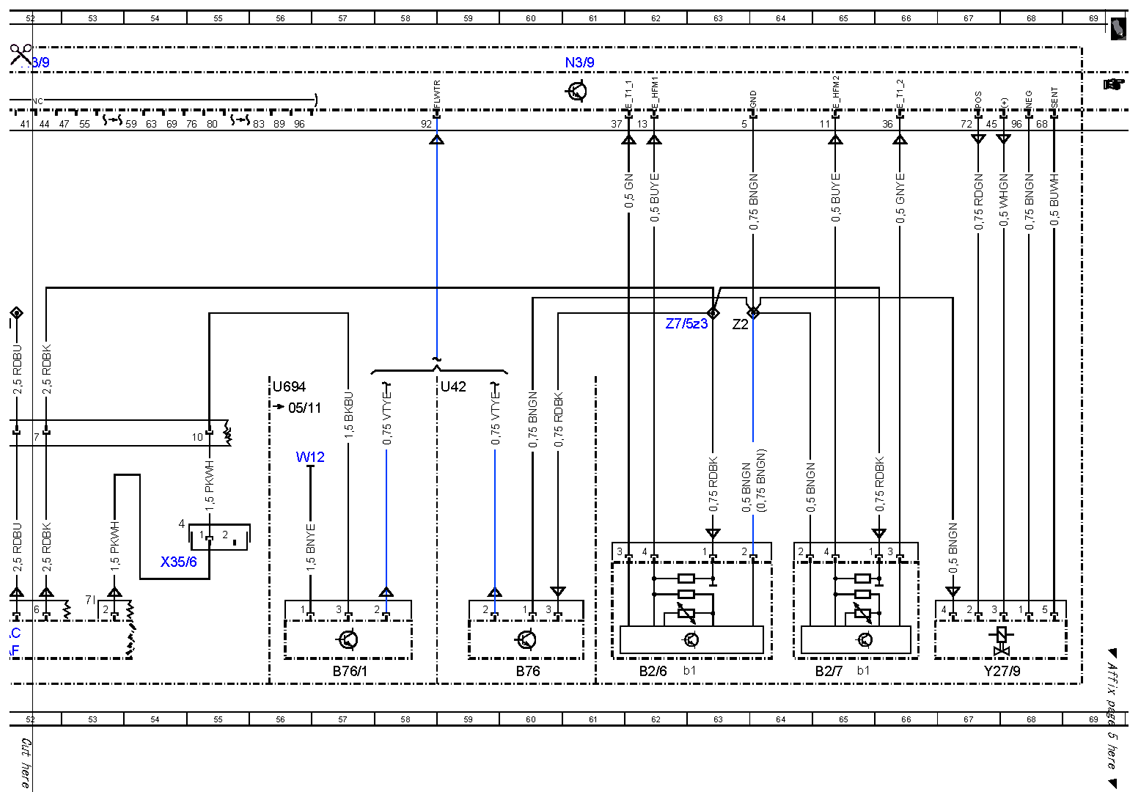

| B2/6 |
Left hot film MAF sensor |
62L |
| B2/6b1 |
Left intake air temperature sensor |
62L |
| B2/7 |
Right hot film MAF sensor |
65L |
| B2/7b1 |
Right intake air temperature sensor |
65L |
| B28/5 |
Pressure sensor downstream of air filter |
24L |
| B28/8 |
Differential pressure sensor (DPF) |
21L |
| B4/6 |
Rail pressure sensor |
28L |
| B5/1 |
Boost pressure sensor |
19L |
| B50 |
Fuel temperature sensor |
16L |
| B6/1 |
Camshaft Hall sensor |
29L |
| B60 |
Exhaust pressure sensor |
22L |
| B70 |
Crankshaft Hall sensor |
31L |
| B76 |
Fuel filter condensation sensor |
60L |
| B76/1 |
Condensation sensor for fuel filter with heating element |
57L |

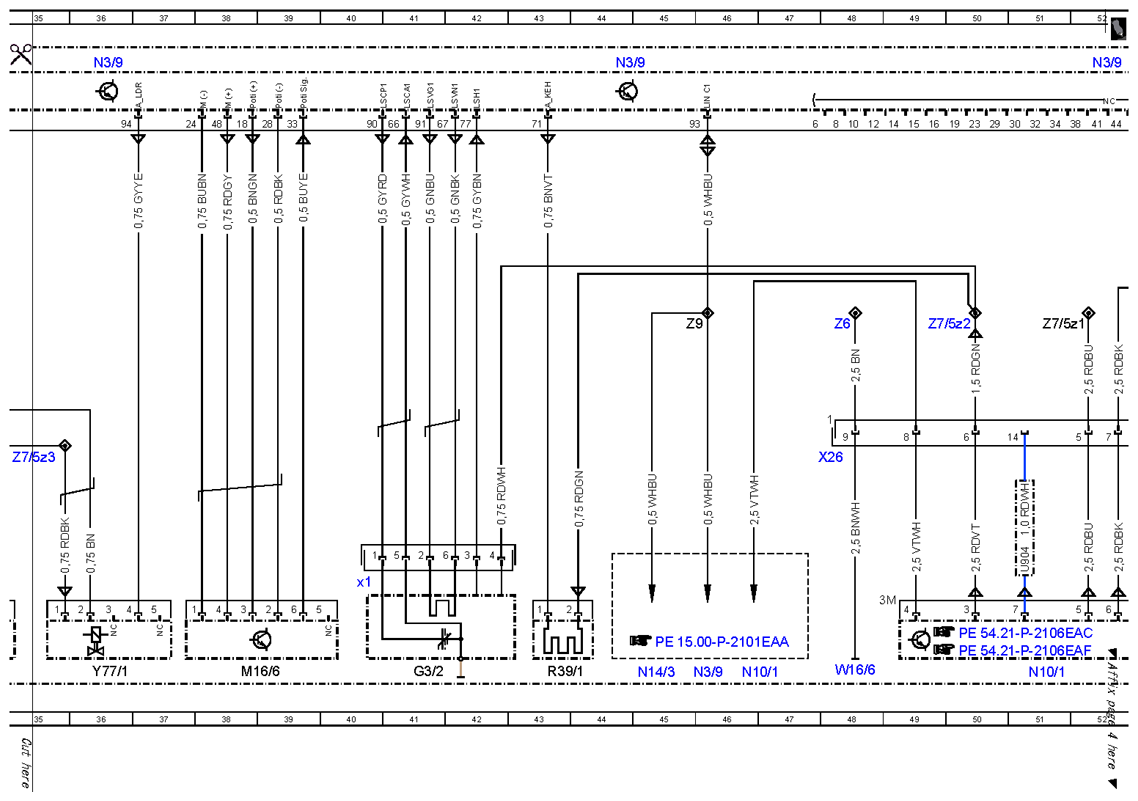

| G3/2 |
Oxygen sensor upstream of catalytic converter |
41L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
40J |
| LIN C1 |
Drive train LIN |
46B |
| M16/6 |
Throttle valve actuator |
38L |
| M55 |
Intake port shutoff actuator motor |
34L |
| N10/1 |
Front SAM control unit with fuse and relay module |
51L |
| N10/1 |
Front SAM control unit with fuse and relay module |
46L |
| N14/3 |
Glow output stage |
45L |
| N3/9 |
CDI control unit |
5A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
61A |
| N3/9 |
CDI control unit |
52A |
| N3/9 |
CDI control unit |
46L |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
70A |
| R39/1 |
Vent line heater element |
43L |
| R48 |
Coolant thermostat heating element |
12L |
| S43 |
Oil level check switch |
32L |
| U42 |
Valid for countries with poor quality fuel |
59F |
| U694 |
Valid for condensation sensor for fuel filter with heating element |
56F |
| U904 |
Wiring harness installed but nonfunctional |
51J |
| U937 |
Valid for all except increased engine power |
1A |
| W12 |
Ground point for fuel filter with heating element |
56H |
| W16/6 |
Right major assembly compartment ground point |
48L |
| X26 |
Interior and engine wiring harness electrical connector |
48H |
| X35/6 |
Instrument panel and module box electrical connector |
54J |
| Y27/9 |
Exhaust gas recirculation actuator |
67L |
| Y74 |
Pressure regulator valve |
9L |
| Y76/1 |
Cylinder 1 fuel injector |
2L |
| Y76/2 |
Cylinder 2 fuel injector |
3L |
| Y76/3 |
Cylinder 3 fuel injector |
4L |
| Y76/4 |
Cylinder 4 fuel injector |
5L |
| Y76/5 |
Cylinder 5 fuel injector |
6L |
| Y76/6 |
Cylinder 6 fuel injector |
7L |
| Y77/1 |
Boost pressure positioner |
36L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
11L |
| Y94 |
Quantity control valve |
10L |
| Z11 |
Connector sleeve 3 in wiring harness |
15G |
| Z14 |
Connector sleeve 6 in wiring harness |
26G |
| Z15 |
Connector sleeve 7 in wiring harness |
29G |
| Z16 |
Connector sleeve 8 in wiring harness |
22G |
| Z2 |
Sensor voltage supply connector sleeve |
63E |
| Z6 |
Circuit 31 connector sleeve |
34G |
| Z6 |
Circuit 31 connector sleeve |
48E |
| Z7/43 |
Sensor ground connector sleeve |
20G |
| Z7/43 |
Sensor ground connector sleeve |
23G |
| Z7/5z1 |
Circuit 87 connector sleeve |
9G |
| Z7/5z1 |
Circuit 87 connector sleeve |
51E |
| Z7/5z2 |
Circuit 87 connector sleeve |
12G |
| Z7/5z2 |
Circuit 87 connector sleeve |
50E |
| Z7/5z3 |
Circuit 87 connector sleeve |
35G |
| Z7/5z3 |
Circuit 87 connector sleeve |
62E |
| Z9 |
Connector sleeve 1 |
45E |
